TIGER ELECTRONIC CO.,LTD
1.0AMP FAST RECOVERY RECTIFIERS
DO-41
φ
0.107( 2.7 )
φ0.080
( 2.0 )
FR101 THRU FR107
VOLTAGE RANGE: 50 to 1000 VOLTS
FEATURES
. Low cost
. Diffused junction
. Low Leakage
. Low forward voltage drop
. High current capability
. Easily cleaned with Freon. Alcohol. Lsopropanol and similar
solvents
. The plastic material carries U/L recognition 94V-O
0.034(0.86)
0.028(0.7)
0.205(5.2)
0.160(4.1)
1.0 ( 25.4 )
1.0 ( 25.4 )
MECHANICAL DATA
. Case: JEDEC DO - 41. molded plastic
. Terminals: Axial leads. Solderable per MIL - STD - 202.
Method 208
inch ( mm )
. Polarity: Color band denotes cathode
. Weight: 0.012 ounce. 0.33 grams
. Mounting position: Any
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Ratings at 25
℃
ambient temperature unless otherwise specified.
Single phase half wave 60HZ. resistive or inductive load. For capacitive load current derate by 20％
SYMBOL FR101
Maximum Recurrent Peak Reverse Voltage
Maximum RMS Voltage
Maximum DC Blocking Voltage
Maximum Average Forward Rectified Current
9.5mm Lead Length. T
A
= 55℃
Peak Forward Surge Current
8.3ms Single half-sine-wave superimposed
on rated load
Maximum Forward Voltage at 1.0A DC
Maximum Reverse Current
T
A
= 25℃
at Rated DC Blocking Voltage T
A
= 100℃
Maximum Reverse Recovery Time (Note 1)
Typical Junction Capacitance ( Note 2 )
Typical Thermal Resistance ( Note 3 )
Operating Junction Temperature Range
Storage Temperature Range
V
F
I
R
trr
C
j
R
QJA
T
j
T
STG
150
15
55
55 to 125
55 to 150
1.2
5.0
100
250
500
V
μA
ns
pF
℃/W
℃
℃
I
FSM
30
A
V
RRM
V
RMS
V
DC
I
(AV)
50
35
50
FR102
100
70
100
FR103
200
140
200
FR104
400
280
400
1.0
FR105
600
420
600
FR106
800
560
800
FR107
1000
700
1000
UNITS
V
V
V
A
NOTE: 1.Measured with IF=0.5A,IR=1A,Irr=0.25A.
2.Measured at 1.0MHz and applied reverse voltage of 4.0V DC.
3.Thermal Resistance Junction to Ambient.
GIANTION ELECTRONICS
TIGER ELECTRONIC CO.,LTD
FR101 THRU FR107
GIANTION ELECTRONIC

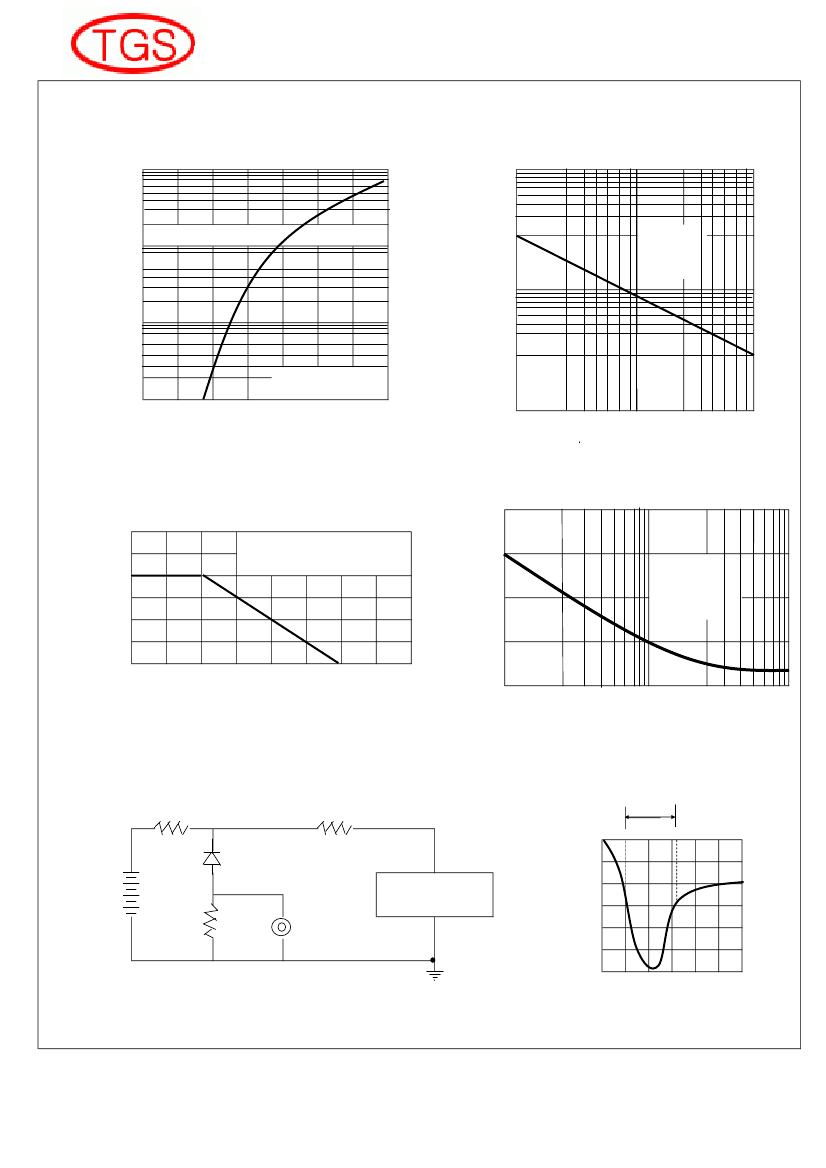

FIG. 1 -- TYPICAL FORWARD CHARACTERISTIC
10
FIG. 2 -- TYPICAL JUNCTION CAPACITANCE
100
INSTANTANEOUS FORWARD CURRENT /
3.0
1.0
Pulse width=300us
1% duly cycle
30
T
j
= 25
℃
AMPERES
0.4
CAPACITANCE. PF
1.8
10
0.1
0.04
0
0.4
0.6
0.8
1.0
Pulse Width = 300μS
1 % Duly Cycle
1.2
1.4
1.6
3.0
1.0
1.0
4.0
10
100
INSTANTANEOUS FORWARD VOLTAGE / VOLTS
REVERSE VOLTAGE / VOLTS
FIG. 3 -- FORWARD CURRENT DERATING CURVE
AVERAGE FORWARD RECTIFIED
PEAK FORWARD SURGE
1.5
40
Single Phase Half Wave 60HZ
Resistive or Inductive Load
FIG. 4 -- PEAK FORWARD SURGE CURRENT
CURRENT AMPERES
30
CURRENT AMPERES
1.0
Tj = 125
℃
8.3 ms Single
Half Sing -Wave
20
0.5
0
0
25
50
75
100
125
150
175
200
10
0
1.0
2.0
10
20
100
AMBIENT TEMPERATURE /
℃
NUMBER OF CYCLES AT 60H
Z
FIG. 5 -- TEST CIRCUIT DIAGRAM AND REVERSE RECOVERY TIME CHARACTERISTIC
50Ω
N.1.
10Ω
N.1.
(-)
PULSE GENERATOR
( NOTE 2 )
1Ω
N.1.
OSCILLOSCOPE
( NOTE )
0.5A
t
rr
(+)
50 Vdc
(APPROX)
(-)
NOTES:
D.U.T
0
0.25A
(+)
1.0A
1. RISE TIME = 7n SEC MAX. INPUT IMPEDANCE = 1 MEGOHM. 22
P
F
2. RISE TIME = 10n SEC MAX. SOURCE IMPEDANCE = 50 OHM.
SET TIME BASE FOR 15 ns / cm
