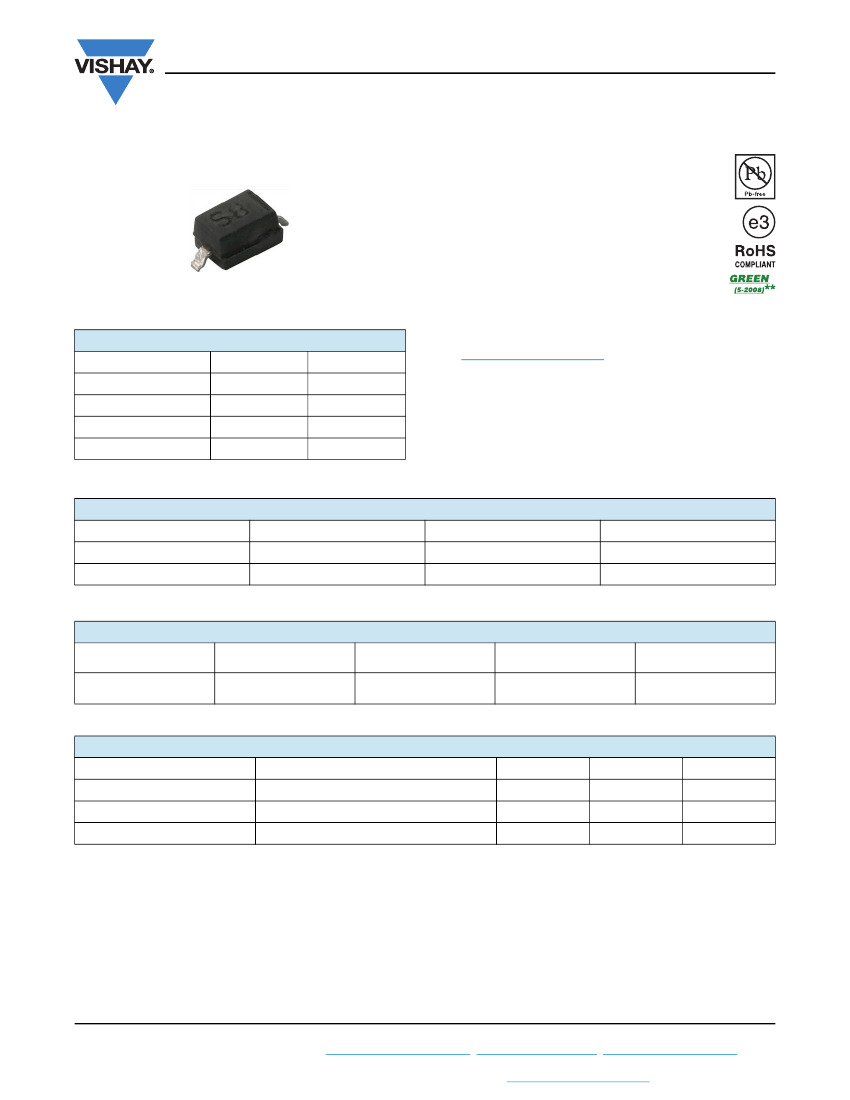

GDZ-V-G-Series
www.vishay.com
Vishay Semiconductors
Small Signal Zener Diodes
FEATURES
• Silicon planar power Zener diodes
• Low Zener impedence and low leakage current
• Popular in Asian designs
• Compact surface mount device
• Ideal for automated mounting
• AEC-Q101 qualified
• Compliant to RoHS directive 2002/95/EC and in
accordance to WEEE 2002/96/EC
PRIMARY CHARACTERISTICS
PARAMETER
V
Z
range nom.
Test current I
ZT
V
Z
specification
Int. construction
VALUE
2.0 to 36
5
Pulse current
Single
UNIT
V
mA
Note
**
Please see document “Vishay Material Category Policy”:
www.vishay.com/doc?99902
ORDERING INFORMATION
DEVICE NAME
GDZ-V-G-series
GDZ-V-G-series
ORDERING CODE
GDZ-V-G-series-18
GDZ-V-G-series-08
TAPED UNITS PER REEL
10 000 (8 mm tape on 13" reel)
3000 (8 mm tape on 7" reel)
MINIMUM ORDER QUANTITY
10 000/box
15 000/box
PACKAGE
PACKAGE NAME
SOD-323
WEIGHT
4 mg
MOLDING COMPOUND MOISTURE SENSITIVITY
FLAMMABILITY RATING
LEVEL
UL 94 V-0
MSL level 1
(according J-STD-020)
SOLDERING
CONDITIONS
260 °C/10 s at terminals
ABSOLUTE MAXIMUM RATINGS
(T
amb
= 25 °C, unless otherwise specified)
PARAMETER
Power dissipation
Junction temperature
Storage temperature range
TEST CONDITION
SYMBOL
P
tot
T
j
T
stg
VALUE
200
150
- 55 to + 150
UNIT
mW
°C
°C
Rev. 1.2, 16-Sep-11
Document Number: 83334
1
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
GDZ-V-G-Series
www.vishay.com
Vishay Semiconductors
REVERSE
CURRENT
I
R
at V
R
μA
MAX.
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
0.5
0.5
0.5
0.5
0.5
0.5
1
1
1
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
120
120
120
100
50
20
10
5
5
2
2
1
1
0.5
0.5
0.5
0.5
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.5
0.7
1
1
1
1
1
1
1
1
1
2.5
3
3.5
4
5
6
7
8
9
10
11
12
13
15
17
19
21
23
25
27
V
MAX.
100
100
100
110
120
120
100
100
100
100
80
60
60
40
30
30
30
30
30
30
37
42
50
65
85
100
120
150
200
250
300
ELECTRICAL CHARACTERISTICS
(T
amb
= 25 °C, unless otherwise specified)
ZENER VOLTAGE RANGE
PART NUMBER
MARKING
CODE
MIN.
GDZ2V0B-V-G
GDZ2V2B-V-G
GDZ2V4B-V-G
GDZ2V7B-V-G
GDZ3V0B-V-G
GDZ3V3B-V-G
GDZ3V6B-V-G
GDZ3V9B-V-G
GDZ4V3B-V-G
GDZ4V7B-V-G
GDZ5V1B-V-G
GDZ5V6B-V-G
GDZ6V2B-V-G
GDZ6V8B-V-G
GDZ7V5B-V-G
GDZ8V2B-V-G
GDZ9V1B-V-G
GDZ10B-V-G
GDZ11B-V-G
GDZ12B-V-G
GDZ13B-V-G
GDZ15B-V-G
GDZ16B-V-G
GDZ18B-V-G
GDZ20B-V-G
GDZ22B-V-G
GDZ24B-V-G
GDZ27B-V-G
GDZ30B-V-G
GDZ33B-V-G
GDZ36B-V-G
05
15
25
35
45
55
65
75
85
95
U1
U2
U3
U4
U5
U6
U7
U8
U9
UA
UB
UC
UD
UE
UH
UK
UL
UM
UN
UP
UT
2.02
2.22
2.43
2.69
3.01
3.32
3.6
3.89
4.17
4.55
4.98
5.49
6.06
6.65
7.28
8.02
8.85
9.77
10.76
11.74
12.91
14.34
15.85
17.56
19.52
21.54
23.72
26.19
29.19
32.15
35.07
V
Z
at I
ZT1
V
NOM.
2.0
2.2
2.4
2.7
3.0
3.3
3.6
3.9
4.3
4.7
5.1
5.6
6.2
6.8
7.5
8.2
9.1
10
11
12
13
15
16
18
20
22
24
27
30
33
36
MAX.
2.2
2.41
2.63
2.91
3.22
3.53
3.845
4.16
4.43
4.75
5.2
5.73
6.33
6.93
7.6
8.36
9.23
10.21
11.22
12.24
13.49
14.98
16.51
18.35
20.39
22.47
24.78
27.53
30.69
33.79
36.87
TEST CURRENT
I
ZT1
mA
I
ZT2
DYNAMIC RESISTANCE
Z
Z
at I
ZT1
MAX.
1000
1000
1000
1000
1000
1000
1000
1000
1000
800
500
200
100
60
60
60
60
60
60
80
80
80
80
80
100
100
120
150
200
250
300
Z
ZK
at I
ZT2
Notes
• The Zener voltage V
Z
is measured 40 ms after power is supplied
• The operating resistance (Z
Z
, Z
ZK
) are measured by superimposing a 1 kHz alternating current on the regulated current (I
Z
).
Rev. 1.2, 16-Sep-11
Document Number: 83334
2
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
GDZ-V-G-Series
www.vishay.com
BASIC CHARACTERISTICS
(T
amb
= 25 °C, unless otherwise specified)
0.12
Vishay Semiconductors
Temperature Coefficient (%/K)
0.10
0.08
0.06
0.04
0.02
0
- 0.02
- 0.04
- 0.06
- 0.08
0
4
8
12 16
20 24 28
32 36
19964
Zener Voltage V
Z
(V)
Fig. 1 - Zener Voltage Temperature Coefficient vs.
Zener Voltage
PACKAGE DIMENSIONS
in millimeters (inches):
SOD-323
1.15 (0.045)
0.8 (0.031)
0.2 (0.008)
0.1 (0.004) max.
0° to 8
°
0.15 (0.006)
1.95 (0.077)
1.60 (0.063)
2.85 (0.112)
2.50 (0.098)
1.5 (0.059)
0.40 (0.016)
0.25 (0.010)
Cathode bar
0.40 (0.016)
0.20 (0.008)
Foot print recommendation:
0.6 (0.024)
1.1 (0.043)
0.10 (0.004)
0.6 (0.024)
1.6 (0.063)
17443
Rev. 1.2, 16-Sep-11
Document Number: 83334
3
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
0.6 (0.024)
Document no.:S8-V-3910.02-001 (4)
Created - Date: 24.August.2004
Rev. 5 - Date: 23.Sept.2009
