AM111D datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Amplifier circuit> AM111D

AM111D: DescriptionComparator, 1 Func, 4000uV Offset-Max, 200ns Response Time, CDIP14, HERMETIC SEALED, DIP-14; CategoryAnalog mixed-signal IC Amplifier circuit; File Size124KB，4 Pages; ManufacturerAMD; Websitehttp://www.amd.com

Download Datasheet Parametric Compare View All

AM111D Overview

Comparator, 1 Func, 4000uV Offset-Max, 200ns Response Time, CDIP14, HERMETIC SEALED, DIP-14

AM111D Parametric

Parameter Name	Attribute value
Maker	AMD
Parts packaging code	DIP
package instruction	DIP,
Contacts	14
Reach Compliance Code	unknown
ECCN code	EAR99
Amplifier type	COMPARATOR
Maximum average bias current (IIB)	0.15 µA
Maximum input offset voltage	4000 µV
JESD-30 code	R-GDIP-T14
length	19.43 mm
Negative supply voltage upper limit	-18 V
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of functions	1
Number of terminals	14
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output type	OPEN-COLLECTOR
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
Nominal response time	200 ns
Maximum seat height	5.08 mm
Supply voltage upper limit	18 V
Nominal supply voltage (Vsup)	15 V
surface mount	NO
Temperature level	MILITARY
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	7.62 mm

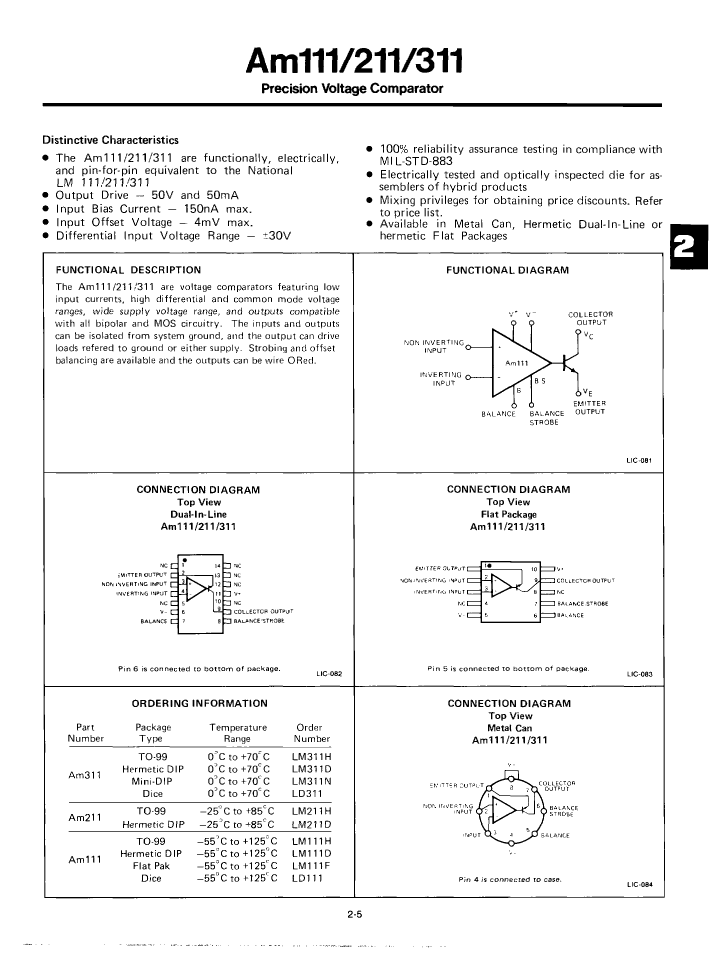

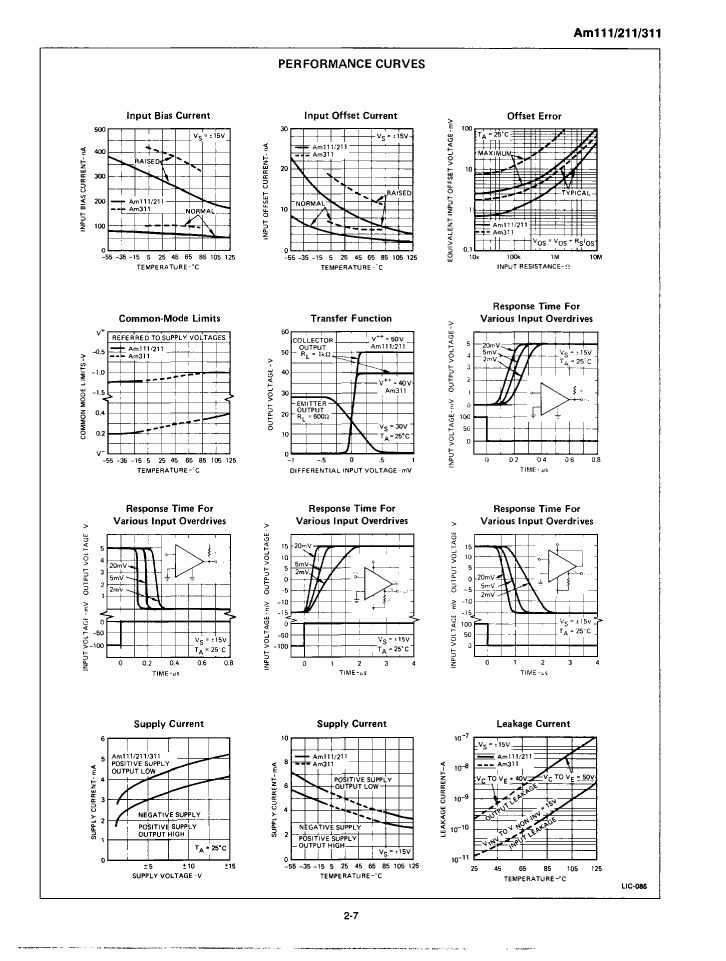

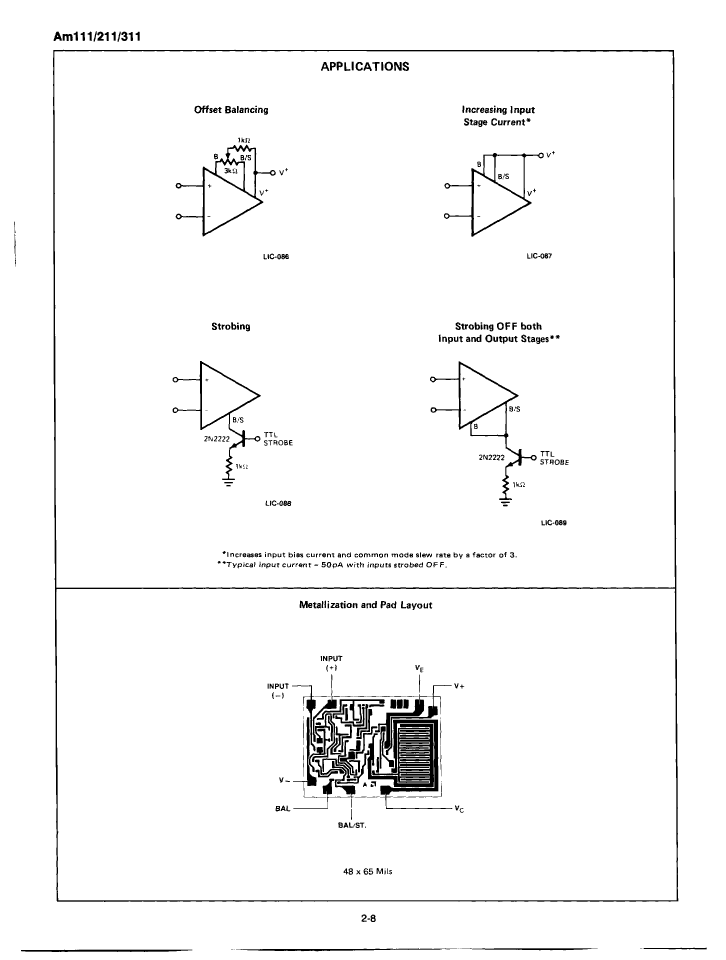

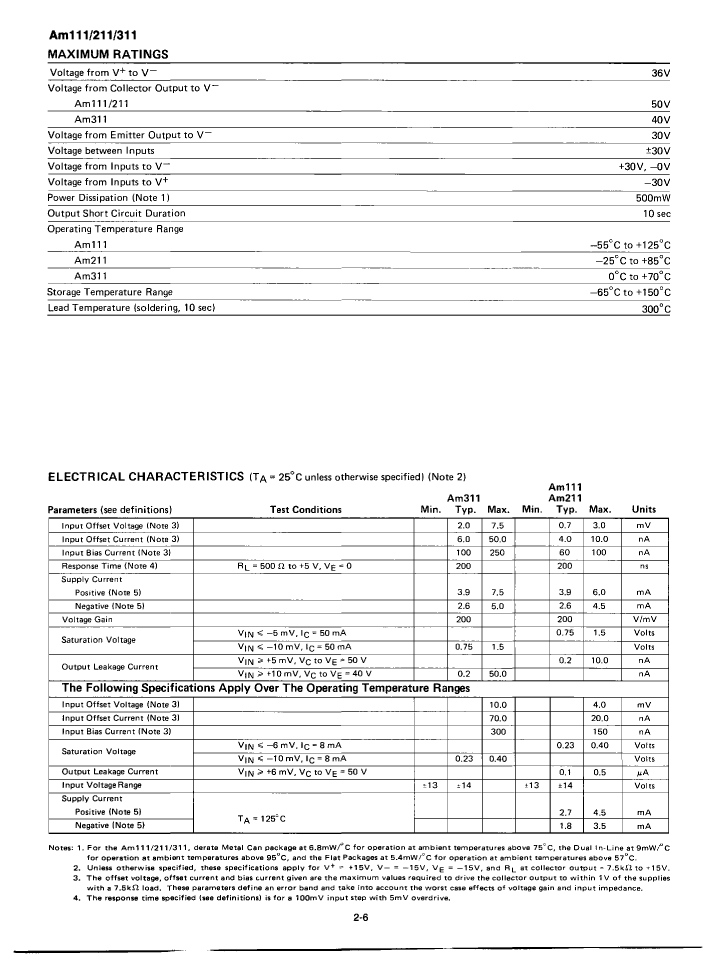

Preview

Download Datasheet

View All

AM111D Related Products

	AM111D	AM111H	AM211D	AM111	AM111F	AM211H	AM311	AM311D	AM311H	AM311N
Description	Comparator, 1 Func, 4000uV Offset-Max, 200ns Response Time, CDIP14, HERMETIC SEALED, DIP-14	Comparator, 1 Func, 4000uV Offset-Max, 200ns Response Time, MBCY8, METAL CAN, TO-99, 8 PIN	Comparator, 1 Func, 4000uV Offset-Max, 200ns Response Time, CDIP14, HERMETIC SEALED, DIP-14	Comparator, 1 Func, 4000uV Offset-Max, 200ns Response Time, 0.480 X 0.650 INCH, DIE-8	Comparator, 1 Func, 4000uV Offset-Max, 200ns Response Time, CDFP10, HERMETIC SEALED, CERAMIC, FP-10	Comparator, 1 Func, 4000uV Offset-Max, 200ns Response Time, MBCY8, METAL CAN, TO-99, 8 PIN	Comparator, 1 Func, 10000uV Offset-Max, 200ns Response Time, 0.480 X 0.650 INCH, DIE-8	Comparator, 1 Func, 10000uV Offset-Max, 200ns Response Time, CDIP14, HERMETIC SEALED, DIP-14	Comparator, 1 Func, 10000uV Offset-Max, 200ns Response Time, MBCY8, METAL CAN, TO-99, 8 PIN	Comparator, 1 Func, 10000uV Offset-Max, 200ns Response Time, PDIP8, MINI, PLASTIC, DIP-8
Parts packaging code	DIP	TO-99	DIP	DIE	DFP	TO-99	DIE	DIP	TO-99	DIP
package instruction	DIP,	METAL CAN, TO-99, 8 PIN	DIP,	DIE,	DFP,	TO-99,	DIE,	DIP,	TO-99,	DIP,
Contacts	14	8	14	8	10	8	8	14	8	8
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Amplifier type	COMPARATOR	COMPARATOR	COMPARATOR	COMPARATOR	COMPARATOR	COMPARATOR	COMPARATOR	COMPARATOR	COMPARATOR	COMPARATOR
Maximum average bias current (IIB)	0.15 µA	0.15 µA	0.15 µA	0.15 µA	0.15 µA	0.15 µA	0.3 µA	0.3 µA	0.3 µA	0.3 µA
Maximum input offset voltage	4000 µV	4000 µV	4000 µV	4000 µV	4000 µV	4000 µV	10000 µV	10000 µV	10000 µV	10000 µV
JESD-30 code	R-GDIP-T14	O-MBCY-W8	R-GDIP-T14	R-XUUC-N8	S-CDFP-F10	O-MBCY-W8	R-XUUC-N8	R-GDIP-T14	O-MBCY-W8	R-PDIP-T8
Negative supply voltage upper limit	-18 V	-18 V	-18 V	-18 V	-18 V	-18 V	-18 V	-18 V	-18 V	-18 V
Nominal Negative Supply Voltage (Vsup)	-15 V	-15 V	-15 V	-15 V	-15 V	-15 V	-15 V	-15 V	-15 V	-15 V
Number of functions	1	1	1	1	1	1	1	1	1	1
Number of terminals	14	8	14	8	10	8	8	14	8	8
Maximum operating temperature	125 °C	125 °C	85 °C	125 °C	125 °C	85 °C	70 °C	70 °C	70 °C	70 °C
Minimum operating temperature	-55 °C	-55 °C	-25 °C	-55 °C	-55 °C	-25 °C	-	-	-	-
Output type	OPEN-COLLECTOR	OPEN-COLLECTOR	OPEN-COLLECTOR	OPEN-COLLECTOR	OPEN-COLLECTOR	OPEN-COLLECTOR	OPEN-COLLECTOR	OPEN-COLLECTOR	OPEN-COLLECTOR	OPEN-COLLECTOR
Package body material	CERAMIC, GLASS-SEALED	METAL	CERAMIC, GLASS-SEALED	UNSPECIFIED	CERAMIC, METAL-SEALED COFIRED	METAL	UNSPECIFIED	CERAMIC, GLASS-SEALED	METAL	PLASTIC/EPOXY
encapsulated code	DIP	TO-99	DIP	DIE	DFP	TO-99	DIE	DIP	TO-99	DIP
Package shape	RECTANGULAR	ROUND	RECTANGULAR	RECTANGULAR	SQUARE	ROUND	RECTANGULAR	RECTANGULAR	ROUND	RECTANGULAR
Package form	IN-LINE	CYLINDRICAL	IN-LINE	UNCASED CHIP	FLATPACK	CYLINDRICAL	UNCASED CHIP	IN-LINE	CYLINDRICAL	IN-LINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Nominal response time	200 ns	200 ns	200 ns	200 ns	200 ns	200 ns	200 ns	200 ns	200 ns	200 ns
Supply voltage upper limit	18 V	18 V	18 V	18 V	18 V	18 V	18 V	18 V	18 V	18 V
Nominal supply voltage (Vsup)	15 V	15 V	15 V	15 V	15 V	15 V	15 V	15 V	15 V	15 V
surface mount	NO	NO	NO	YES	YES	NO	YES	NO	NO	NO
Temperature level	MILITARY	MILITARY	OTHER	MILITARY	MILITARY	OTHER	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	THROUGH-HOLE	WIRE	THROUGH-HOLE	NO LEAD	FLAT	WIRE	NO LEAD	THROUGH-HOLE	WIRE	THROUGH-HOLE
Terminal location	DUAL	BOTTOM	DUAL	UPPER	DUAL	BOTTOM	UPPER	DUAL	BOTTOM	DUAL
Maker	AMD	-	AMD	AMD	AMD	AMD	AMD	AMD	AMD	AMD
