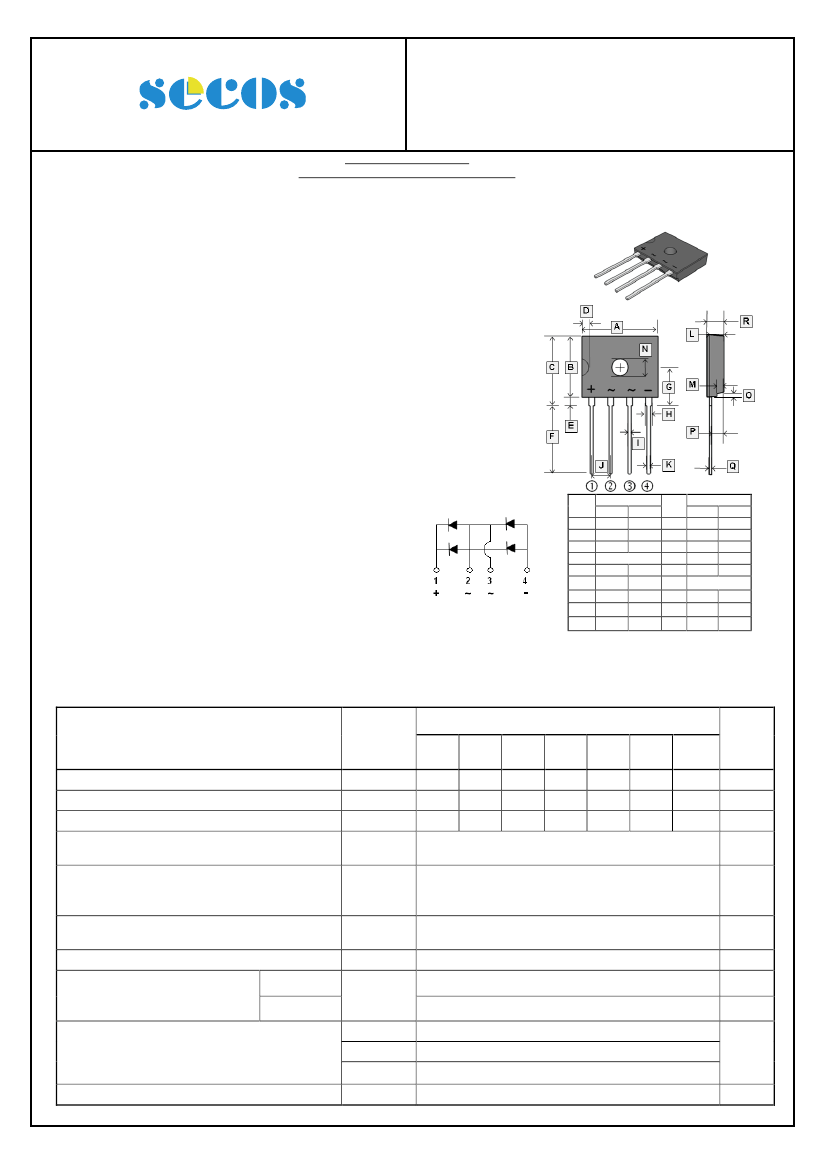

D4KB05 ~ D4KB10

Elektronische Bauelemente

Voltage 50V ~ 1000V

4.0Amp Glass Passivited Bridge Rectifiers

RoHS Compliant Product

A suffix of “-C” specifies halogen & lead-free

FEATURES

Glass passivated chip junction

High case dielectric strength

High surge current capability

ldeal for printed circuit boar

D3K

MECHANICAL DATA

Case: UL-94 Class V-0 recognized Flane

Retardant Epoxy

Terminals: Plated leads solderable per

MIL-STD-202E, Method 208C

Polarity: Polarity symbol marked on body

Mounting position: Any

REF.

Millimeter

Min.

Max.

13.5

14.1

10.5

11.1

11.7

12.3

1.45 TYP.

1.2

1.4

11.7

6.4

1.1

1.05

12.3

7.0

1.5

1.25

REF.

Millimeter

Min.

Max.

3.51

4.11

0.66

0.86

2.4

2.8

1.0

1.4

3.1

3.4

0.6 TYP.

1.8

0.4

2.9

2.4

0.6

3.3

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS

(Rating 25°C ambient temperature unless otherwise specified. Single phase half wave, 60Hz, resistive or inductive load.

For capacitive load, de-rate current by 20%.)

Part Number

Parameter

Maximum Recurrent Peak Reverse Voltage

Maximum RMS Bridge Input Voltage

DC Blocking Voltage

Maximum Average Forward Rectified Current

=138°C (with heatsink)

Peak Forward Surge Current 8.3 ms Single Half

Sine-Wave Super Imposed on Rated Load

(JEDEC Method)

Maximum Forward Voltage Drop Per Bridge

Element at 4.0A Peak

t Rating for Fusing (t<8.3ms)

Maximum Reverse Current at

Rated DC Blocking Voltage per

Element

Typical Thermal Resistance

Operating and Storage temperature range

http://www.SeCoSGmbH.com/

Symbol

RRM

RMS

(AV)

FSM

=25°C

=125°C

θJA

θJC

θJL

, T

STG

D4K

B05

D4K

B10

Unit

µA

100

200

140

200

400

280

400

4.0

125

1.1

64.84

500

1.5

-55~150

600

420

600

800

560

800

1000

700

1000

°C

/ W

°C

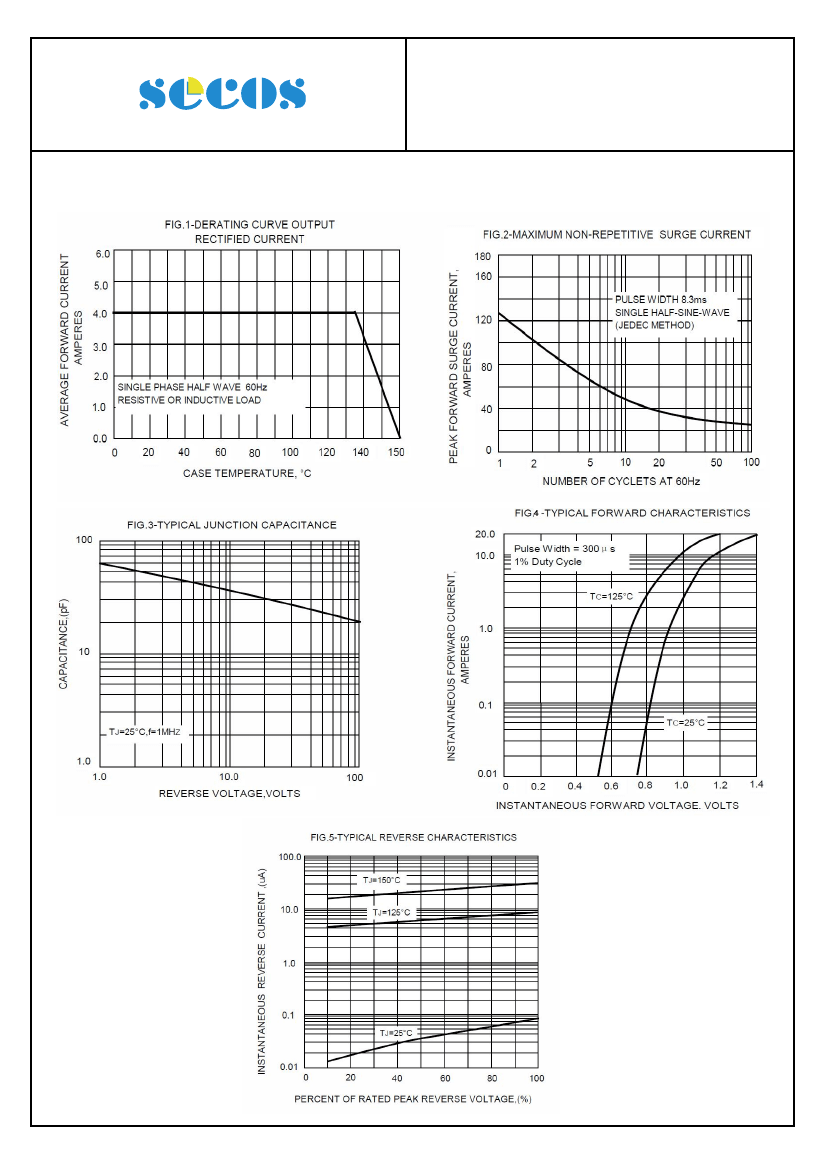

Page 1 of 2

Any changes of specification will not be informed individually.

2-Jun-2011 Rev. A
