85876-902 datasheet, PDF - EEWORLD Datasheet

85876-902: DescriptionBoard Connector, 10 Contact(s), 5 Row(s), Female, Right Angle, Solder Terminal, Natural Insulator, Receptacle; CategoryThe connector The connector; File Size90KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

85876-902 Overview

Board Connector, 10 Contact(s), 5 Row(s), Female, Right Angle, Solder Terminal, Natural Insulator, Receptacle

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	SCSI BUS, FUTUREBUS
Board mount options	SOLDER HOLDING POSTS
body width	0.366 inch
subject depth	0.846 inch
body length	0.47 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact arrangement	S0P10
Contact to complete cooperation	TIN LEAD
Contact completed and terminated	TIN LEAD
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
Contact style	HYBRID
DIN compliance	NO
Dielectric withstand voltage	1000VAC V
Durability	250 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	1.4734 N
Insulation resistance	5000000000 Ω
Insulator color	NATURAL
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	85876
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
Number of rows loaded	5
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
Plating thickness	FLASH inch
Rated current (signal)	3 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.108 inch
Terminal pitch	2 mm
Termination type	SOLDER
Total number of contacts	10
UL Flammability Code	94V-0
Evacuation force-minimum value	.5004 N

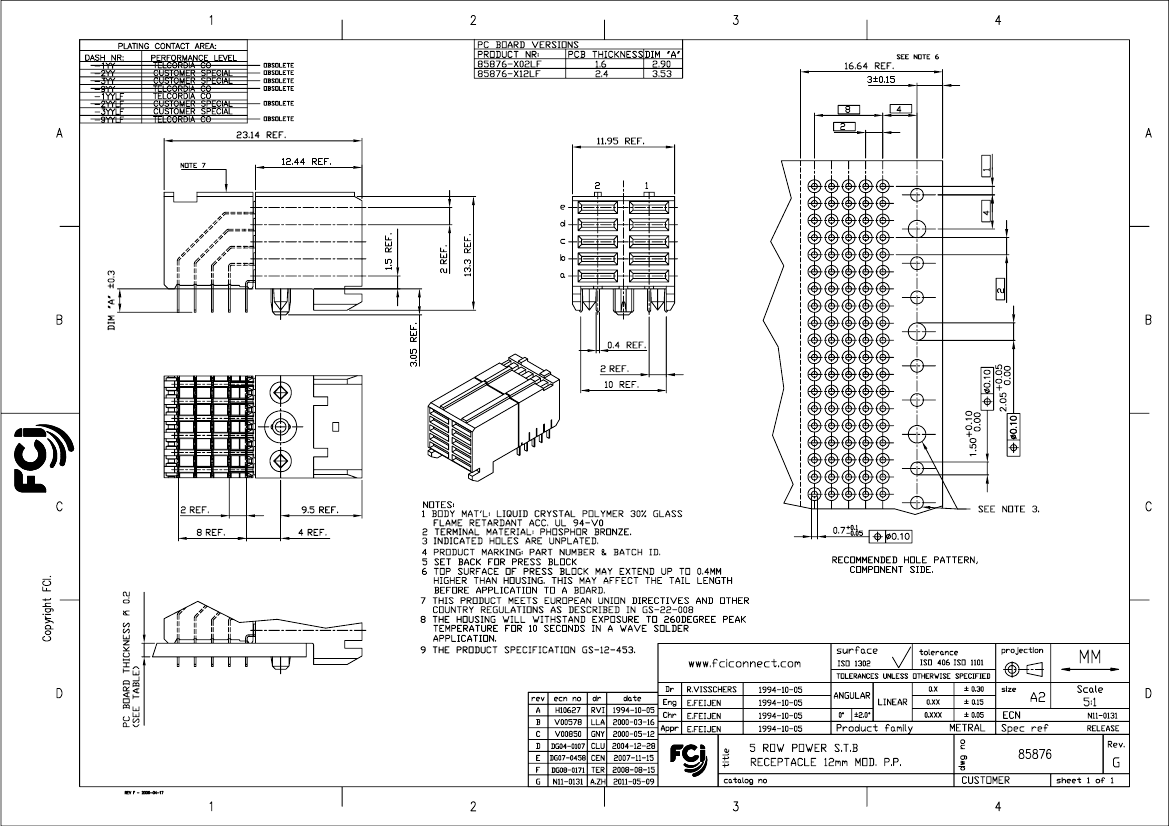

PDM: Rev:G

STATUS:

Released

Printed: May 17, 2011

	85876-902	85876-312	85876-912	85876-212
Description	Board Connector, 10 Contact(s), 5 Row(s), Female, Right Angle, Solder Terminal, Natural Insulator, Receptacle	Board Connector, 10 Contact(s), 5 Row(s), Female, Right Angle, Solder Terminal, Receptacle	Board Connector, 10 Contact(s), 5 Row(s), Female, Right Angle, Solder Terminal, Natural Insulator, Receptacle	Board Connector, 10 Contact(s), 5 Row(s), Female, Right Angle, Solder Terminal, Receptacle
Maker	Amphenol	Amphenol	Amphenol	Amphenol
Reach Compliance Code	compliant	compliant	compliant	unknown
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD
Contact completed and terminated	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE
DIN compliance	NO	NO	NO	NO
Filter function	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO
JESD-609 code	e0	e0	e0	e0
MIL compliance	NO	NO	NO	NO
Manufacturer's serial number	85876	85876	85876	85876
Mixed contacts	NO	NO	NO	NO
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	5	5	5	5
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2 mm	2 mm	2 mm	2 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	10	10	10	10
UL Flammability Code	94V-0	94V-0	94V-0	94V-0
ECCN code	EAR99	-	EAR99	EAR99
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	-
