95521-513WHG

Description
Card Edge Connector, 72 Contact(s), 1 Row(s), Female, Straight, 0.05 inch Pitch, Solder Terminal, Latch & Eject, Black Insulator, Socket,
CategoryThe connector    The connector
File Size180KB,3 Pages
ManufacturerAmphenol
Websitehttp://www.amphenol.com/
Download Datasheet Parametric View All

95521-513WHG Overview

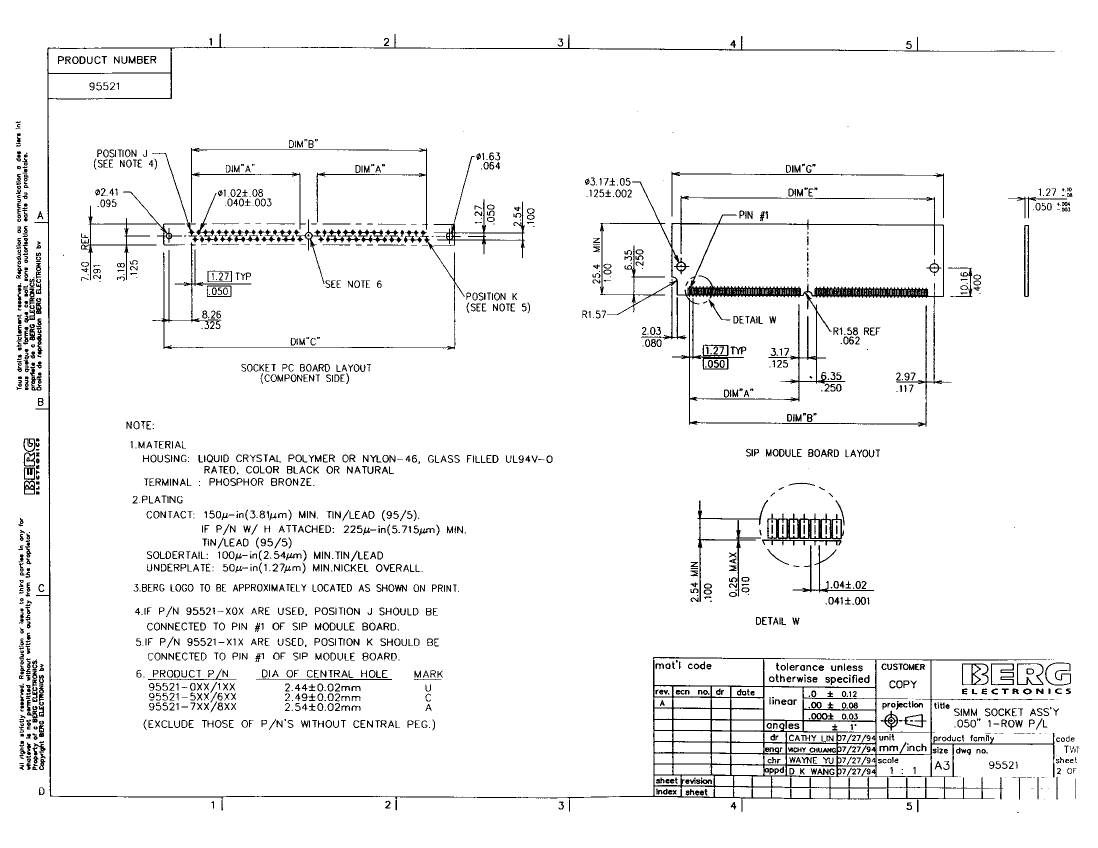

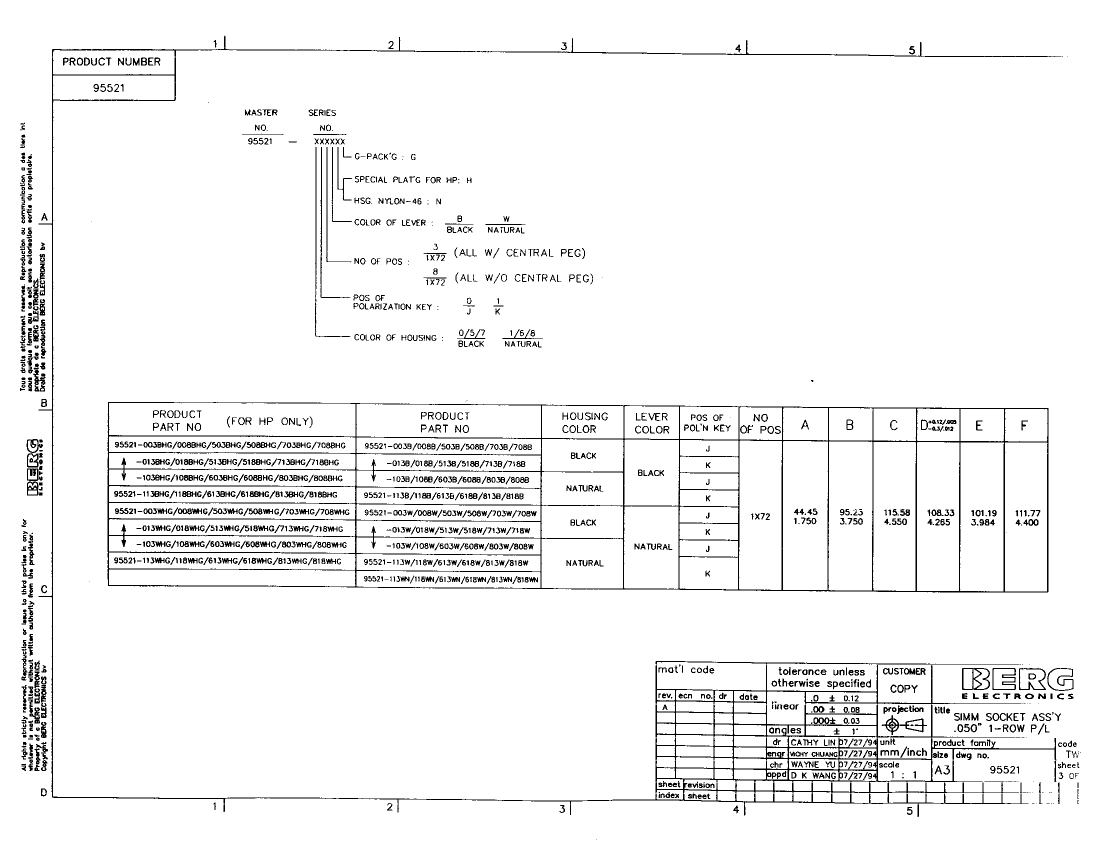

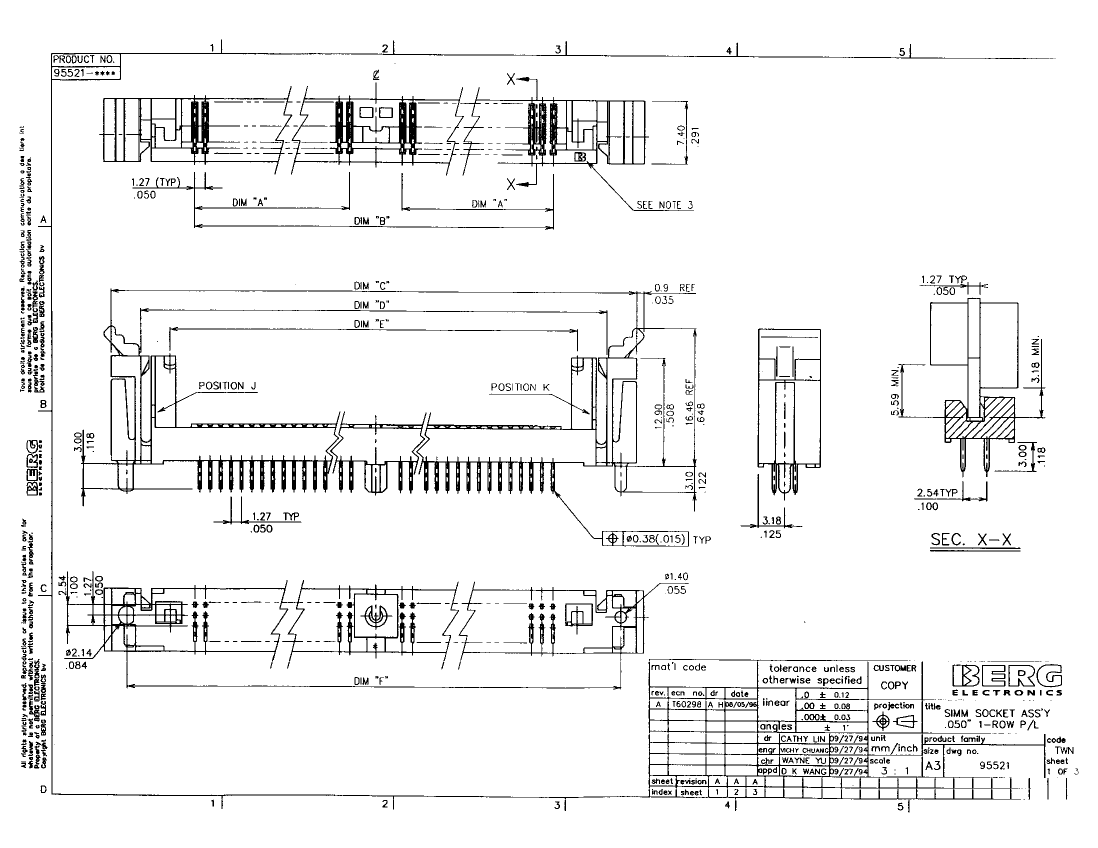

Card Edge Connector, 72 Contact(s), 1 Row(s), Female, Straight, 0.05 inch Pitch, Solder Terminal, Latch & Eject, Black Insulator, Socket,

95521-513WHG Parametric

Parameter NameAttribute value
Is it lead-free?Contains lead
Is it Rohs certified?incompatible
MakerAmphenol
Reach Compliance Codecompliant
ECCN codeEAR99
Other featuresLATCHED, POLARIZED
Board mount optionsPEG
body width0.291 inch
subject depth0.508 inch
body length4.55 inch
Body/casing typeSOCKET
Connector typeCARD EDGE CONNECTOR
Contact to complete cooperationTIN LEAD OVER NICKEL
Contact completed and terminatedTin/Lead (Sn/Pb) - with Nickel (Ni) barrier
Contact point genderFEMALE
Contact materialPHOSPHOR BRONZE
Contact resistance20 mΩ
Contact styleBELLOWED TYPE
DIN complianceNO
Dielectric withstand voltage1000VAC V
Durability25 Cycles
Filter functionNO
IEC complianceNO
Insulation resistance10000000000 Ω
Insulator colorBLACK
insulator materialGLASS FILLED LIQUID CRYSTAL POLYMER
JESD-609 codee0
MIL complianceNO
Manufacturer's serial number95521
Plug contact pitch0.05 inch
Mixed contactsNO
Installation option 1LATCH & EJECT
Installation option 2LOCKING
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number2
Number of rows loaded1
Maximum operating temperature105 °C
Minimum operating temperature-55 °C
OptionsGENERAL PURPOSE
PCB contact patternSTAGGERED
PCB contact row spacing0.1 mm
Plating thickness225u inch
polarization keyCENTER
Rated current (signal)1 A
GuidelineUL, CSA
reliabilityCOMMERCIAL
Terminal length0.118 inch
Terminal pitch2.54 mm
Termination typeSOLDER
Total number of contacts72
UL Flammability Code94V-0
