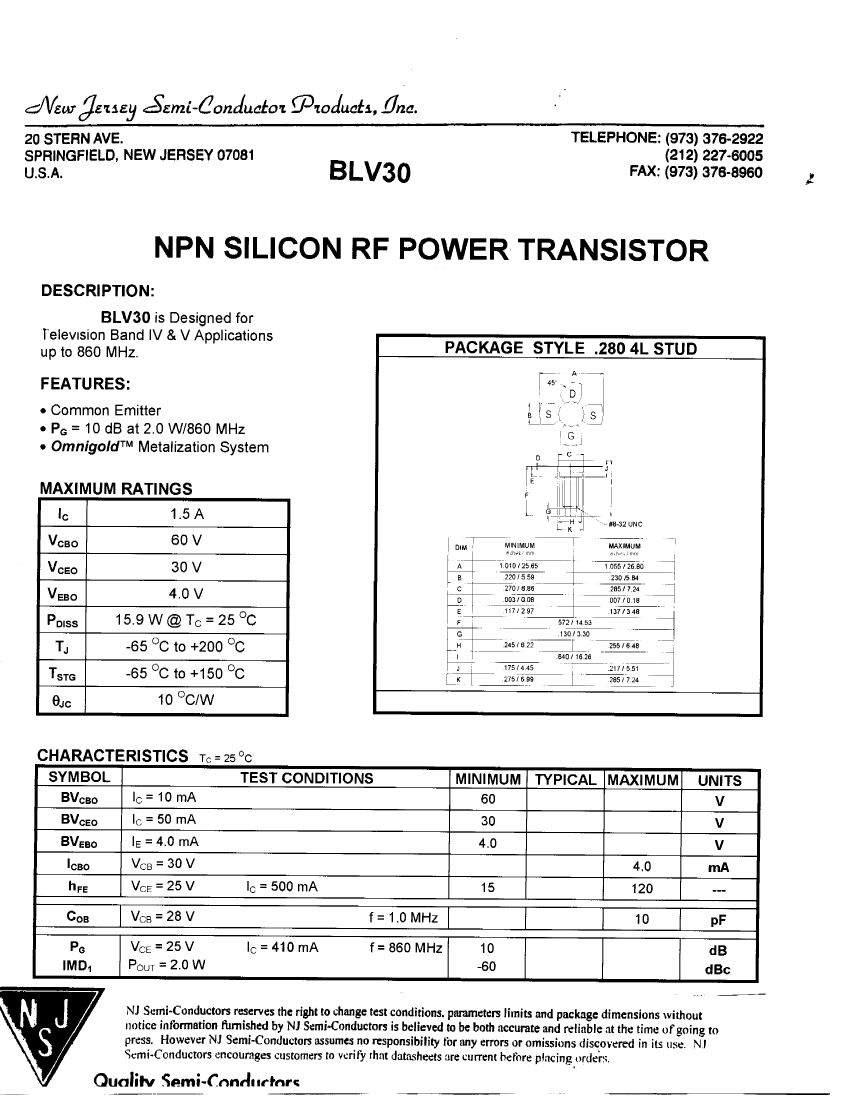

BLV30
NPN SILICON RF POWER TRANSISTOR
DESCRIPTION:
BLV30
is Designed for
Television Band IV & V Applications
up to 860 MHz.
FEATURES:
• Common Emitter
• P
G
= 10dBat2.0W/860MHz
•
Omnigold™
Metalization System
MAXIMUM RATINGS
Ic
PACKAGE STYLE .280 4L STUD
1.5 A
60V
30V
VCBO
VCEO
VEBO
PDISS
Tj
4.0V
1 5 . 9 W @ T
C
= 25°C
-65 °C to +200 °C
-65°Cto+150°C
10°C/W
TSTG
6jc
CHARACTERISTICS
SYMBOL
l
c
= 10mA
BVCBO
l
c
= 50 mA
BV
CEO
BV
EBO
ICBO
hFE
COB
2
5
°c
TEST CONDITIONS
MINIMUM TYPICAL MAXIMUM
60
30
4.0
4.0
UNITS
V
V
V
mA
—
PF
IE = 4.0 mA
VCB = 30 V
V
CE
= 25 V
VCB = 28 V
l
c
= 500 mA
f = 1 .0 MHz
15
120
10
PG
IMDi
VCE = 25V
POUT = 2.0 W
lc = 410mA
f = 860 MHz
10
-60
dB
dBc
