DTA114YE/DTA114YUA/DTA114YKA /DTA114YSA/DTA114YCA
TRANSISTOR(PNP)
FEATURES
1. Built-in bias resistors enable the configuration of an inverter circuit without
connecting external input resistors(see equivalent circuit).
2. The bias resistors consist of thin-film resistors with complete isolation to
allow
positive
biasing of the input.They also have the advantage of almost
completely eliminating parasitic effects.
3. Only the on/off conditions need to be set for operation, making device
design easy.

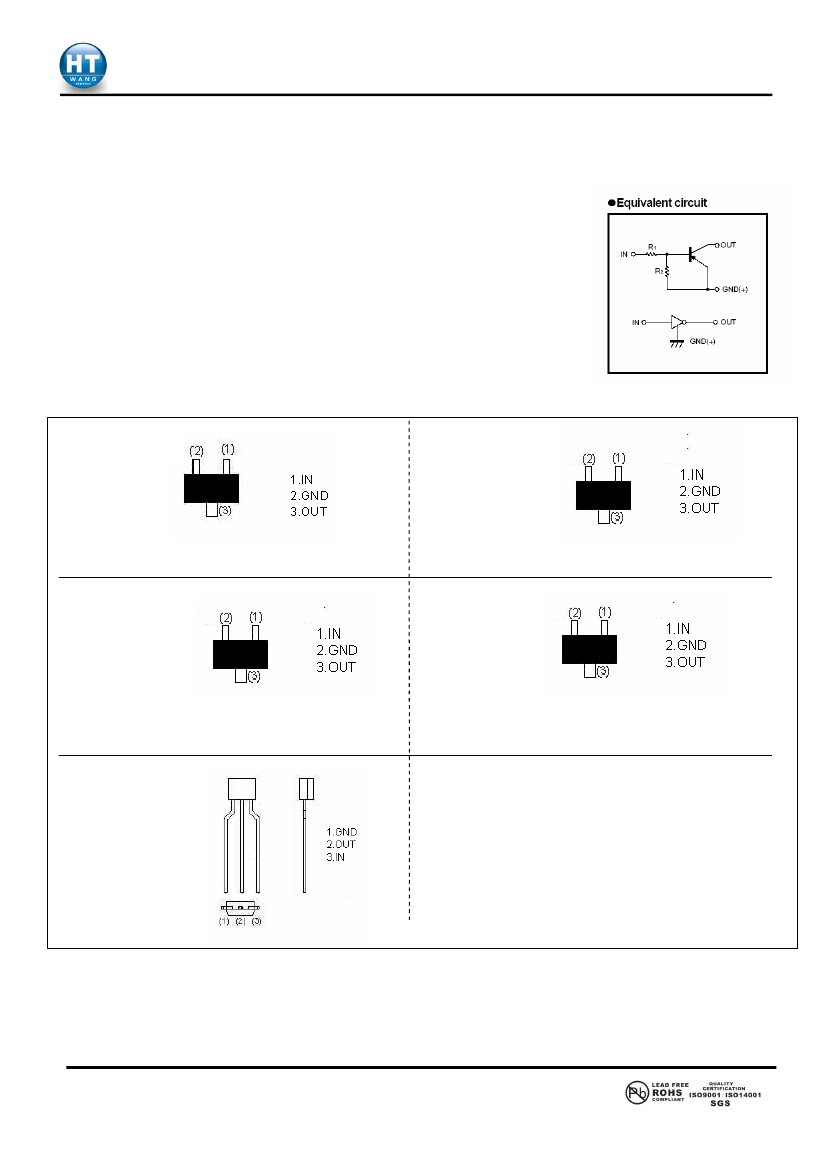

PIN CONNENCTIONS AND MARKING
DTA114YE
DTA114YUA
DTC114EUA
SOT-323
SOT-523
Addreviated symbol: 54
Addreviated symbol: 54
DTA114YKA
DTA114YCA
SOT-23-3L
SOT-23
Addreviated symbol: 54
Addreviated symbol: 54
DTA114YSA
TO-92S
１
JinYu
semiconductor
www.htsemi.com
Ｄ½½½：２０１１／０５
DTA114YE/DTA114YUA/DTA114YKA /DTA114YSA/DTA114YCA
Absolute maximum ratings(Ta=25℃)
Parameter
Supply voltage
Input voltage
Output current
Power dissipation
Junction temperature
Storage temperature
Symbol
V
CC
V
IN
I
O
I
C(Max.)
P
C
Tj
Tstg
150
Limits (DTA114Y□ )
E
UA
KA
-50
-40to+6
-70
-100
200
150
-55 to+ 150
300
CA
SA
Unit
V
V
mA
mA
mW
℃
℃
Electrical characteristics (Ta=25℃)
Parameter
Input voltage
Output voltage
Input current
Output current
DC current gain
Input resistance
Resistance ratio
Transition frequency
Symbol
V
I(off)
V
I(on)
V
O(on)
I
I
I
O(off)
G
I
R
1
R
2
/R
1
f
T
68
7
3.7
10
4.7
250
13
5.7
MHz
V
O
=-10V ,I
O
=5mA,f=100MHz
KΩ
-1.4
-0.3
-0.88
-0.5
Min.
Typ
Max.
-0.3
Unit
V
V
mA
µA
Conditions
V
CC
=-5V ,I
O
=-100µA
V
O
=-0.3V ,I
O
=-1mA
I
O
/I
I
=-5mA/-0.25mA
V
I
=-5V
V
CC
=-50V ,V
I
=0
V
O
=-5V ,I
O
=-5mA
Typical Characteristics
２
JinYu
semiconductor
www.htsemi.com
Ｄ½½½：２０１１／０５
