DE3L40U-4071

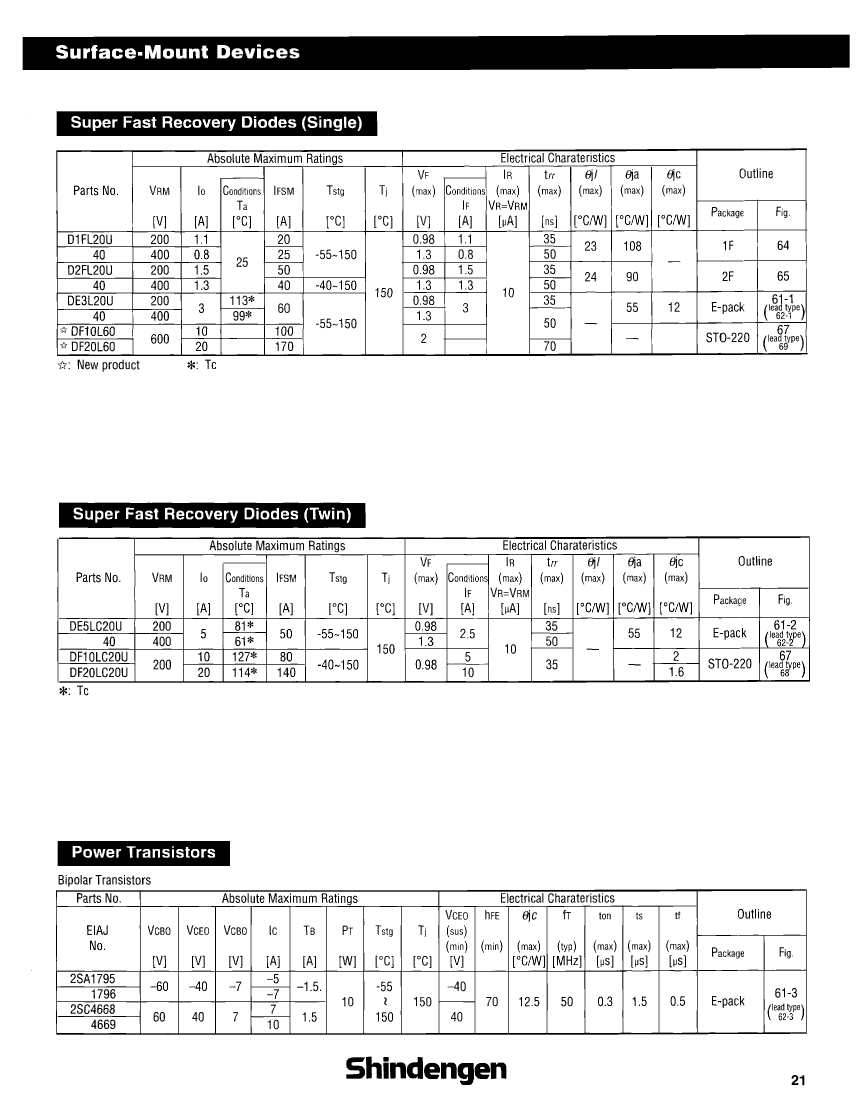

Description
Rectifier Diode, 1 Phase, 1 Element, 3A, 400V V(RRM), Silicon, EPACK-3
CategoryDiscrete semiconductor    diode
File Size35KB,1 Pages
ManufacturerSHINDENGEN
Websitehttps://www.shindengen.com
Download Datasheet Parametric Compare View All

DE3L40U-4071 Overview

Rectifier Diode, 1 Phase, 1 Element, 3A, 400V V(RRM), Silicon, EPACK-3

DE3L40U-4071 Parametric

Parameter NameAttribute value
MakerSHINDENGEN
package instructionR-XSSO-G2
Contacts3
Reach Compliance Codeunknown
ECCN codeEAR99
applicationSUPER FAST RECOVERY
Shell connectionCATHODE
ConfigurationSINGLE
Diode component materialsSILICON
Diode typeRECTIFIER DIODE
Maximum forward voltage (VF)1.3 V
JESD-30 codeR-XSSO-G2
Maximum non-repetitive peak forward current60 A
Number of components1
Phase1
Number of terminals2
Maximum operating temperature150 °C
Maximum output current3 A
Package body materialUNSPECIFIED
Package shapeRECTANGULAR
Package formSMALL OUTLINE
Certification statusNot Qualified
Maximum repetitive peak reverse voltage400 V
Maximum reverse current10 µA
Maximum reverse recovery time0.05 µs
surface mountYES
Terminal formGULL WING
Terminal locationSINGLE

DE3L40U-4071 Related Products

DE3L40U-4071 D2FL40U-4073 DE3L40U-4061 D2FL40U-4063 D2FL40U-4103 D1FL40U-4063 D1FL40U-4073 D1FL40U-4103 DE3L40U-4101
Description Rectifier Diode, 1 Phase, 1 Element, 3A, 400V V(RRM), Silicon, EPACK-3 Rectifier Diode, 1 Phase, 1 Element, 1.3A, 400V V(RRM), Silicon, 2F, 2 PIN Rectifier Diode, 1 Phase, 1 Element, 3A, 400V V(RRM), Silicon, EPACK-3 Rectifier Diode, 1 Phase, 1 Element, 1.3A, 400V V(RRM), Silicon, 2F, 2 PIN Rectifier Diode, 1 Phase, 1 Element, 1.3A, 400V V(RRM), Silicon, 2F, 2 PIN Rectifier Diode, 1 Element, 0.8A, 400V V(RRM), Silicon, 1F, 2 PIN Rectifier Diode, 1 Element, 0.8A, 400V V(RRM), Silicon, 1F, 2 PIN Rectifier Diode, 1 Element, 0.8A, 400V V(RRM), Silicon, 1F, 2 PIN Rectifier Diode, 1 Phase, 1 Element, 3A, 400V V(RRM), Silicon, EPACK-3
package instruction R-XSSO-G2 R-PDSO-C2 R-XSSO-G2 R-PDSO-C2 R-PDSO-C2 1F, 2 PIN 1F, 2 PIN 1F, 2 PIN R-XSSO-G2
Contacts 3 2 3 2 2 2 2 2 3
Reach Compliance Code unknown unknown unknown unknown unknown unknown unknown unknown unknown
ECCN code EAR99 EAR99 EAR99 EAR99 EAR99 EAR99 EAR99 EAR99 EAR99
Configuration SINGLE SINGLE SINGLE SINGLE SINGLE SINGLE SINGLE SINGLE SINGLE
Diode component materials SILICON SILICON SILICON SILICON SILICON SILICON SILICON SILICON SILICON
Diode type RECTIFIER DIODE RECTIFIER DIODE RECTIFIER DIODE RECTIFIER DIODE RECTIFIER DIODE RECTIFIER DIODE RECTIFIER DIODE RECTIFIER DIODE RECTIFIER DIODE
JESD-30 code R-XSSO-G2 R-PDSO-C2 R-XSSO-G2 R-PDSO-C2 R-PDSO-C2 R-PDSO-C2 R-PDSO-C2 R-PDSO-C2 R-XSSO-G2
Number of components 1 1 1 1 1 1 1 1 1
Number of terminals 2 2 2 2 2 2 2 2 2
Maximum operating temperature 150 °C 150 °C 150 °C 150 °C 150 °C 150 °C 150 °C 150 °C 150 °C
Maximum output current 3 A 1.3 A 3 A 1.3 A 1.3 A 0.8 A 0.8 A 0.8 A 3 A
Package body material UNSPECIFIED PLASTIC/EPOXY UNSPECIFIED PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY UNSPECIFIED
Package shape RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR
Package form SMALL OUTLINE SMALL OUTLINE SMALL OUTLINE SMALL OUTLINE SMALL OUTLINE SMALL OUTLINE SMALL OUTLINE SMALL OUTLINE SMALL OUTLINE
Certification status Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified
Maximum repetitive peak reverse voltage 400 V 400 V 400 V 400 V 400 V 400 V 400 V 400 V 400 V
Maximum reverse recovery time 0.05 µs 0.05 µs 0.05 µs 0.05 µs 0.05 µs 0.05 µs 0.05 µs 0.05 µs 0.05 µs
surface mount YES YES YES YES YES YES YES YES YES
Terminal form GULL WING C BEND GULL WING C BEND C BEND C BEND C BEND C BEND GULL WING
Terminal location SINGLE DUAL SINGLE DUAL DUAL DUAL DUAL DUAL SINGLE
Maker SHINDENGEN - - - SHINDENGEN SHINDENGEN SHINDENGEN SHINDENGEN SHINDENGEN
application SUPER FAST RECOVERY SUPER FAST RECOVERY SUPER FAST RECOVERY SUPER FAST RECOVERY SUPER FAST RECOVERY - - - SUPER FAST RECOVERY
Maximum forward voltage (VF) 1.3 V 1.3 V 1.3 V 1.3 V 1.3 V - - - 1.3 V
Maximum non-repetitive peak forward current 60 A 40 A 60 A 40 A 40 A - - - 60 A
Phase 1 1 1 1 1 - - - 1
Maximum reverse current 10 µA 10 µA 10 µA 10 µA 10 µA - - - 10 µA
