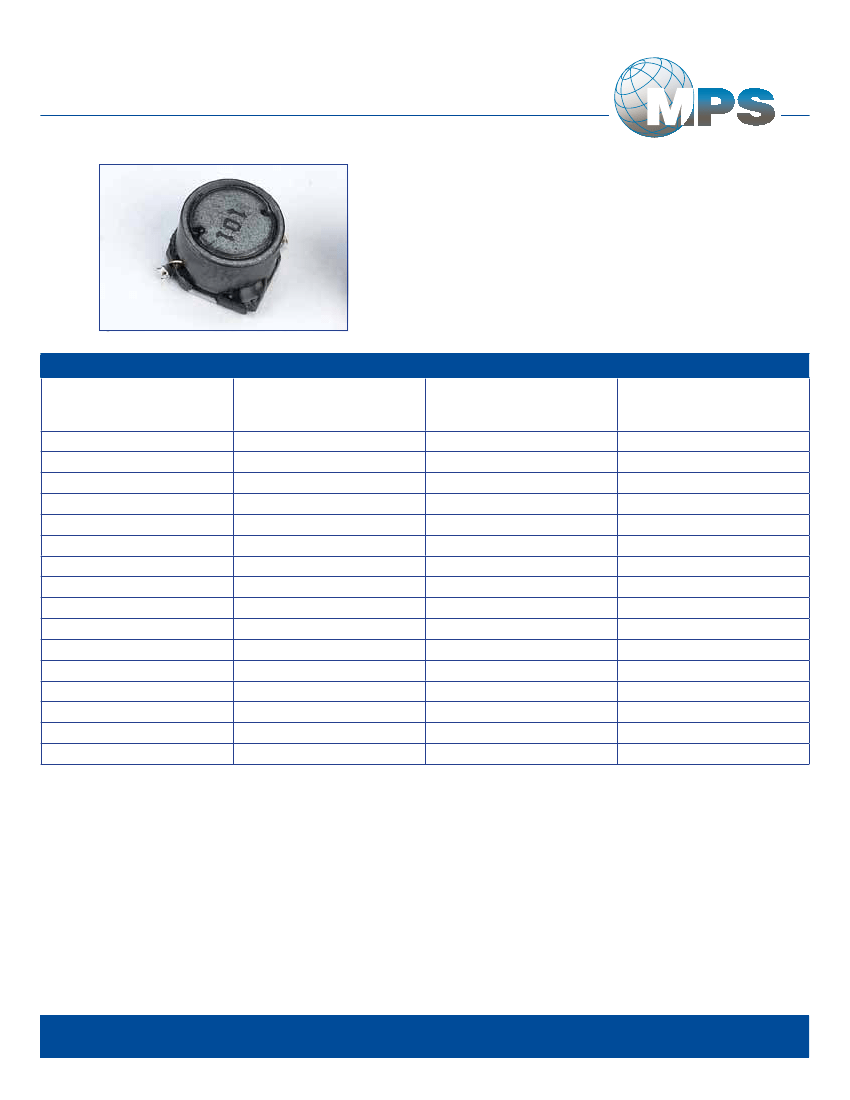

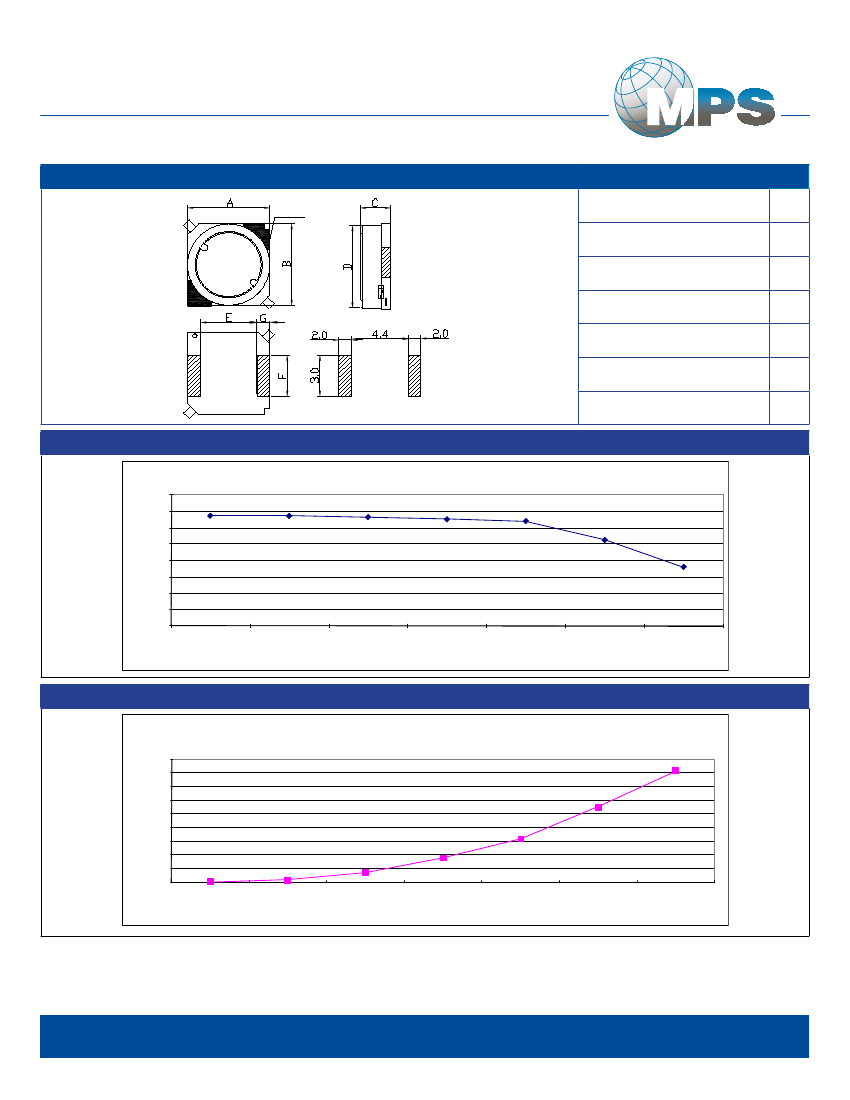

SHIELDED SMD
POWER INDUCTOR
P177032C SERIES
• Low profile package
•
Low DC resistance
•
High current handling capacity
•
Operating temperature range: -40
o
C to +85
o
C
•
Storage temperature range: -40
o
C to +85
o
C
•
RoHS compliant product
Industries
ELECTRICAL SPECIFICATION @ 20
O
C
Part Number
P177032C-
3R3M
4R7M
6R8M
100M
150M
220M
330M
470M
680M
101M
151M
221M
331M
471M
681M
102M
•
•
•
Inductance measured at 100kHz / 0.5V
Inductance drop 20% Typical at Idc from initial value
Temperature rise 40 °C Typcial at Idc from 20 °C
Inductance
(µH)
(±20%)
3.30
4.70
6.80
10.00
15.00
22.00
33.00
47.00
68.00
100.00
150.00
220.00
330.00
470.00
680.00
1000.00
DC Resistance
(mΩ)
(±20%)
23
36
41
53
75
110
160
240
310
450
650
1050
1670
2050
3150
4780
Rated DC Current
(A)
(Max)
1.90
1.70
1.60
1.40
1.10
0.96
0.75
0.67
0.59
0.45
0.37
0.29
0.22
0.20
0.16
0.13
Product performance is limited to specified parameters. Data is subject to change without prior notice.
Dimensions
Unless otherwise specified, all tolerances are:
inch: .XX : ±0.015
.XXX : ±0.004
mm: X,X : ±0,38
X,XX : ±0,10
13200 Estrella Ave., Bldg. B
Gardena, CA 90248
Tel: 310-325-1043
Fax: 310-325-1044
www.mpsind.com
sales@mpsind.com
SHIELDED SMD
POWER INDUCTOR
P177032C SERIES
Industries
DIMENSIONS
EPOXY
A = 7.0 ± 0.2
B = 7.0 ± 0.2
mm
mm
mm
mm
mm
mm
mm
6R8
C = 3.4 max
D = 6.8 ± 0.3
E = 4.5 ref
F = 2.0 ref
G = 1.0 ref
INDUCTANCE CURVE VS. CURRENT
(6.8 μH sample reading)
INDUCTANCE CURVE VS.CURRENT
8.00
7.00
INDUCTANCE（uH）
6.00
5.00
4.00
3.00
2.00
1.00
0.00
0A
0.45A
0.9A
1.35A
1.6A
2.25A
2.7A
DC CURRENT(A)
TEMPERATURE CURVE VS. CURRENT
(6.8 μH sample reading)
TEMPER TURE RISE CURVE VS.CURRENT
45.00
TEMPERATURE RISE（℃）
40.00
35.00
30.00
25.00
20.00
15.00
10.00
5.00
0.00
0A
0.55A
1.1A
1.6A
2.2A
2.75A
3.3A
DC CURRENT(A)
Product performance is limited to specified parameters. Data is subject to change without prior notice.
Dimensions
Unless otherwise specified, all tolerances are:
inch: .XX : ±0.015
.XXX : ±0.004
mm: X,X : ±0,38
X,XX : ±0,10
13200 Estrella Ave., Bldg. B
Gardena, CA 90248
Tel: 310-325-1043
Fax: 310-325-1044
www.mpsind.com
sales@mpsind.com
