KAP104RT: DescriptionPIANO DIP SWITCHES; File Size132KB，2 Pages; ManufacturerE-Switch; Websitehttp://www.e-switch.com

Download Datasheet View All

KAP104RT Overview

PIANO DIP SWITCHES

Preview

Download Datasheet

View All

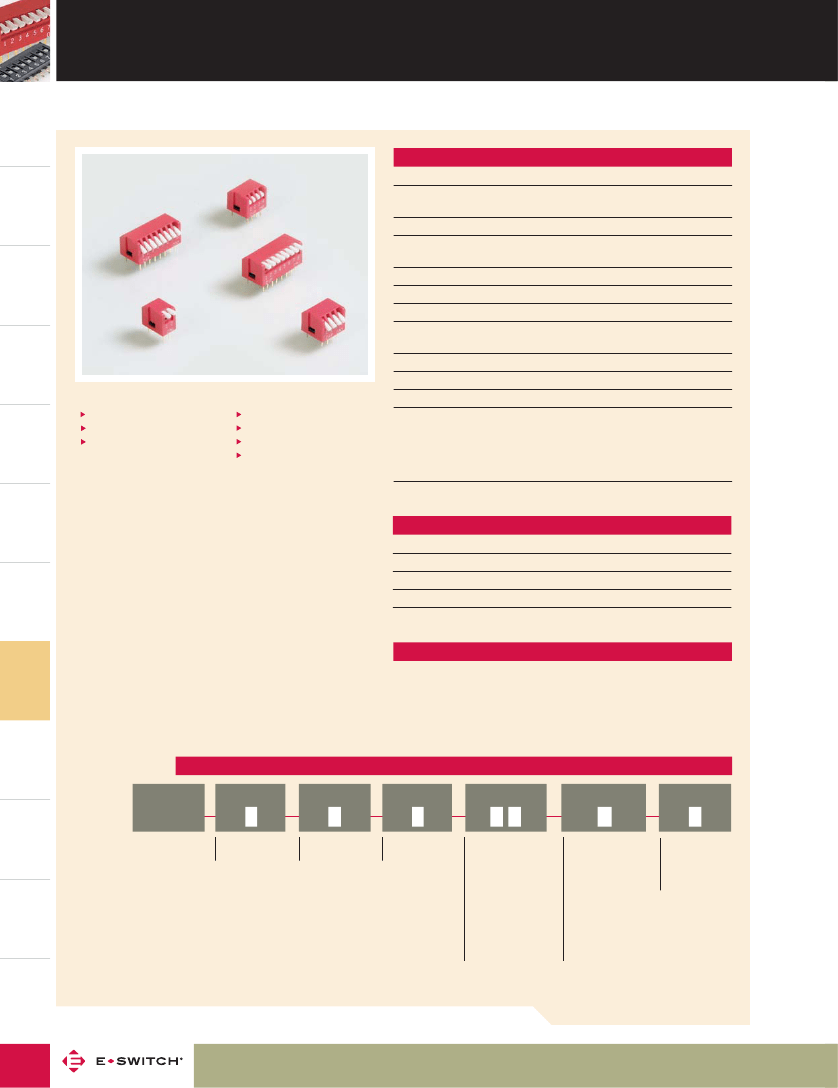

SERIES KAP SWITCHES

TACT

SWITCHES

PIANO DIP SWITCHES

SPECIFICATIONS

NAVIGATION

SWITCHES

Switch Function:

Contact Rating:

Insulation Resistance:

Contact Resistance:

SPST, 2 thru 12 positions (except position 11)

Switch: 25mA @ 24V DC

Carry: 100mA @ 50V DC

100 MΩ Min. @ 500V DC

Initial: 50 mΩ typical @ 2-4V DC @ 100mA

After Life: 100mΩ typical @ 2-4 DC @ 100mA

2,000 make-and-break cycles, each circuit

1000 gf max.

2.0 mm typical

500V RMS min. @ sea level between

adjacent terminals

Operating/Storage: -40° C to 85° C

To MIL-STD-202F, Method 201 A

To MIL-STD-202F, Method 213B, Condition A

Wave: 500 F (260 C) for 5s max;

Hand: 30W soldering iron @ 608 F (320 C) for 2s

typical. Keep all switches in the “OFF” position

during soldering and cleaning process.

PUSHBUTTON

SWITCHES

Operating Life:

Operating Force:

Travel (Actuator):

Dielectric Strength:

TOGGLE

SWITCHES

Temperature Range:

Vibration:

FEATURES & BENEFITS

ROCKER

SWITCHES

Piano style

Top side off or top side on option

Tape seal option

APPLICATIONS/MARKETS

Garage door openers

Test & instrumentation

Telecommunications

Controller application

Shock:

Soldering

Recommendations:

SLIDE

SWITCHES

MATERIALS

Housing and Actuator:

Contacts:

Terminals:

Tape:

Glass filled polyester (PBT) UL94-V0

Phosphor Bronze with gold plate over nickel plate

Mylar

SNAP-ACTION

SWITCHES

DIP

SWITCHES

PACKAGING

Switches are supplied in standard IC tubes with all poles in the “OFF” position.

KEYLOCK

SWITCHES

▲

HOW TO ORDER

SERIES

MODEL NO.

TERMINATION

CIRCUIT

NO. OF

POSITIONS

ACTUATOR

SEAL

ROTARY

SWITCHES

P = Piano Type

1 = PC Pin

1 = SPST

R = Recessed Act.,

Top Side OFF

E = Extended Act.,

Top Side OFF

V = Recessed Act.,

Top Side ON

W = Extended Act.,

Top Side ON

(None) = Std.

Unsealed

T = Top Tape

Sealed

DETECTOR

SWITCHES

▲

Example Ordering Number

KA_ P_ 1_ 1_ 04_ R_ T

CAP

OPTIONS

Specifications subject to change without notice.

218

Phone: 800-867-2717

Fax: 763-531-8235
