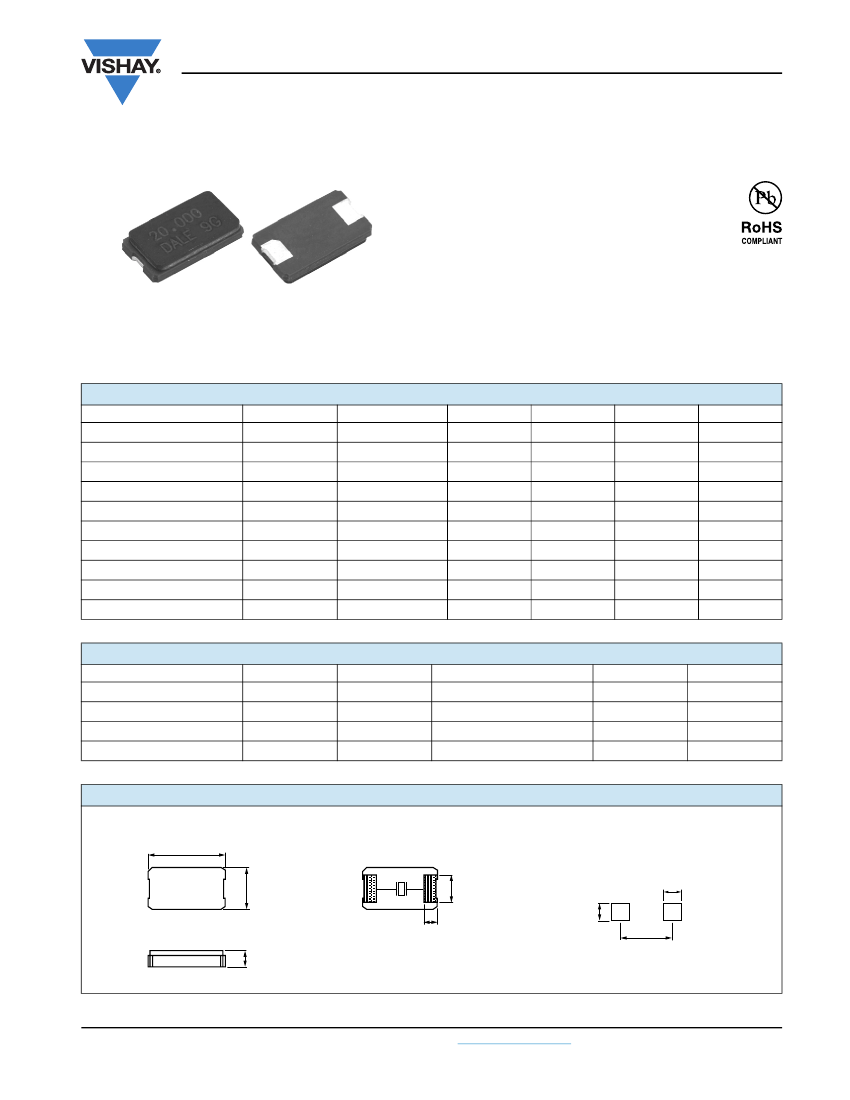

XT36C
Vishay Dale
Surface Mount Crystal
FEATURES
• Miniature size: 8.0 x 4.5 x 1.8 (mm)
• Wide frequency range
• Glass sealing
• Emboss taping
• Compliant to RoHS directive 2002/95/EC
The XT36C part is a miniature SMD crystal with 8.0 x 4.5
ceramic package and a height of 1.8 mm maximum. It is
widely applied in notebook computer, PCMCIA, and
communication equipment.
STANDARD ELECTRICAL SPECIFICATIONS
PARAMETER
Frequency range
Frequency tolerance
Temperature stability
Operating temperature range
Storage temperature range
Shunt capacitance
Load capacitance
Insulation resistance
Drive level
Aging
SYMBOL
F
O
ΔF/F
O
T
C
T
OPR
T
STG
C
0
C
L
I
R
D
L
Fa
at 25 °C, per year
customer specified
100 V
DC
at 25 °C
ref. to 25 °C
CONDITION
UNIT
MHz
ppm
ppm
°C
°C
pF
pF
MΩ
μW
ppm
MIN.
10.000
-
-
- 10
- 55
-
10
500
-
-5
TYP.
-
± 50
± 50
-
-
-
-
-
10
-
MAX.
70.000
-
-
+ 60
+ 125
7
series
-
500
+5
EQUIVALENT SERIES RESISTANCE (ESR) AND MODE OF VIBRATION (MODE)
FREQUENCY RANGE (MHz)
10.000 to 10.999
11.000 to 14.099
14.100 to 17.999
18.000 to 19.999
MAX. ESR (Ω)
110
50
45
30
MODE
fundamental
fundamental
fundamental
fundamental
FREQUENCY RANGE (MHz)
20.000 to 31.999
32.000 to 47.999
48.000 to 70.000
MAX. ESR (Ω)
25
110
100
MODE
fundamental
3
rd
overtone
3
rd
overtone
DIMENSIONS
in inches [millimeters]
0.315 ± 0.012
[8.00 ± 0.3]
Recommended
Solder
Pattern
MARKING
AREA
0.177 ± 0.012
[4.5 ± 0.3]
0.079 ± 0.002
[2.0 ± 0.05]
0.110 [2.8]
0.059
[1.5]
0.071 [1.80] max.
0.260 [6.6]
0.094 [2.4]
Document Number: 35010
Revision: 09-Mar-10
For technical questions, contact:
frequency@vishay.com
www.vishay.com
1
