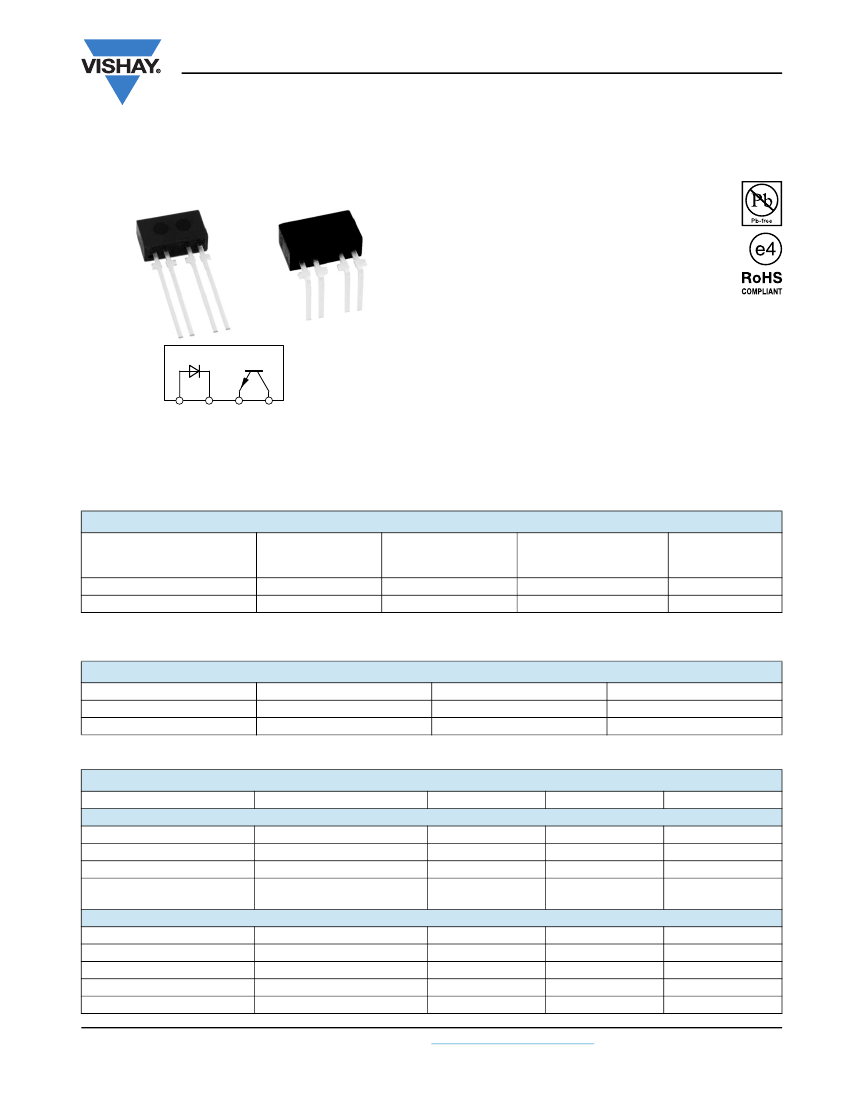

TCRT1000, TCRT1010
Vishay Semiconductors
Reflective Optical Sensor with Transistor Output
FEATURES
TCRT1000
TCRT1010
• Package type: leaded
• Detector type: phototransistor
• Dimensions (L x W x H in mm): 7 x 4 x 2.5
• Peak operating distance: 1 mm
• Operating range within > 20 % relative collector
current: 0.2 mm to 4 mm
• Typical output current under test: I
C
= 0.5 mA
21836
• Daylight blocking filter
• Emitter wavelength: 950 nm
• Lead (Pb)-free soldering released
A
C
E
C
19155_1
• Compliant to RoHS directive 2002/95/EC
accordance to WEEE 2002/96/EC
and
in
DESCRIPTION
The TCRT1000 and TCRT1010 are reflective sensors which
include an infrared emitter and phototransistor in a leaded
package which blocks visible light.
APPLICATIONS
• Optoelectronic scanning and switching devices i.e., index
sensing, coded disk scanning etc. (optoelectronic encoder
assemblies for transmissive sensing).
PRODUCT SUMMARY
PART NUMBER
TCRT1000
TCRT1010
DISTANCE FOR
MAXIMUM CTR
rel (1)
(mm)
1
1
DISTANCE RANGE FOR
TYPICAL OUTPUT
RELATIVE I
out
> 20 % CURRENT UNDER TEST
(2)
(mm)
(mA)
0.2 to 4
0.2 to 4
0.5
0.5
DAYLIGHT
BLOCKING FILTER
INTEGRATED
Yes
Yes
Notes
(1)
CTR: current transfere ratio, I /I
out in
(2)
Conditions like in table basic charactristics/sensor
ORDERING INFORMATION
ORDERING CODE
TCRT1000
TCRT1010
(1)
PACKAGING
Bulk
Bulk
VOLUME
(1)
MOQ: 1000 pcs, 1000 pcs/bulk
MOQ: 1000 pcs, 1000 pcs/bulk
REMARKS
Straight leads
Bent leads
Note
MOQ: minimum order quantity
ABSOLUTE MAXIMUM RATINGS
PARAMETER
SENSOR
Total power dissipation
Ambient temperature range
Storage temperature range
Soldering temperature
INPUT (EMITTER)
Reverse voltage
Forward current
Forward surge current
Power dissipation
Junction temperature
Document Number: 83752
Rev. 1.7, 17-Aug-09
(1)
TEST CONDITION
T
amb
≤
25 °C
SYMBOL
P
tot
T
amb
T
stg
VALUE
200
- 40 to + 85
- 40 to + 100
260
UNIT
mW
°C
°C
°C
2 mm distance to package,
t
≤
5s
T
sd
V
R
I
F
t
p
≤
10 µs
T
amb
≤
25 °C
I
FSM
P
V
T
j
For technical questions, contact:
sensorstechsupport@vishay.com
5
50
3
100
100
V
mA
A
mW
°C
www.vishay.com
1
TCRT1000, TCRT1010
Vishay Semiconductors
Reflective Optical Sensor with
Transistor Output
(1)
ABSOLUTE MAXIMUM RATINGS
PARAMETER
OUTPUT (DETECTOR)
Collector emitter voltage
Emitter collector voltage
Collector current
Power dissipation
Junction temperature
Note
(1)
T
amb
= 25 °C, unless otherwise specified
TEST CONDITION
SYMBOL
V
CEO
V
ECO
I
C
VALUE
32
5
50
100
100
UNIT
V
V
mA
mW
°C
T
amb
≤
25 °C
P
V
T
j
ABSOLUTE MAXIMUM RATINGS
300
P - Power Dissipation (mW)
Coupled device
200
Phototransistor
100
IR - diode
0
0
95 11071
25
50
75
100
T
amb
- Ambient Temperature (°C)
Fig. 1 - Power Dissipation Limit vs. Ambient Temperature
BASIC CHARACTERISTICS
PARAMETER
SENSOR
Collector current
Cross talk current
Collector emitter saturation
voltage
INPUT (EMITTER)
Forward voltage
Radiant intensity
Peak wavelength
Virtual source diameter
OUTPUT (DETECTOR)
Collector emitter voltage
Emitter collector voltage
Collector dark current
(1)
(1)
TEST CONDITION
V
CE
= 5 V, I
F
= 20 mA,
d = 1 mm (figure 2)
V
CE
= 5 V, I
F
= 20 mA, (figure 1)
I
F
= 20 mA, I
C
= 0.1 mA,
d = 1 mm (figure 2)
I
F
= 50 mA
I
F
= 50 mA, t
p
= 20 ms
I
F
= 100 mA
Method: 63 % encircled energy
I
C
= 1 mA
I
E
= 100 µA
V
CE
= 20 V, I
F
= 0 A, E = 0 lx
SYMBOL
MIN.
TYP.
MAX.
UNIT
I
C (2)
I
CX (3)
V
CEsat (2)
0.3
0.5
1
0.3
mA
µA
V
V
F
I
e
λ
P
d
V
CEO
V
ECO
I
CEO
32
5
940
1.25
1.6
75
V
mW/sr
nm
mm
V
V
1.2
200
nA
Notes
T
amb
= 25 °C, unless otherwise specified
(2)
Measured with the ‘Kodak neutral test card", white side with 90 % diffuse reflectance
(3)
Measured without reflecting medium
www.vishay.com
2
For technical questions, contact:
sensorstechsupport@vishay.com
Document Number: 83752
Rev. 1.7, 17-Aug-09
TCRT1000, TCRT1010
Reflective Optical Sensor with
Transistor Output
Vishay Semiconductors
Reflecting medium
(Kodak neutral test card)
~
~
~
d
~
~
~
Detector
Emitter
A
C
E
C
95 10893
Fig. 2 - Test Condition
BASIC CHARACTERISTICS
T
amb
= 25 °C, unless otherwise specified
1000
10.0
I
C
- Collector Current (mA)
I
F
- Forward Current (mA)
Kodak
Neutral
Card
(White Side)
d = 1 mm
1.0
I
F
= 50 mA
20 mA
10 mA
5 mA
100
10
0.1
1
2 mA
0.1
0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0
96 11862
0.01
0.1
95 11075
1
10
100
V
F
- Forward
Voltage
(V)
V
CE
- Collector Emitter
Voltage
(V)
Fig. 3 - Forward Current vs. Forward Voltage
Fig. 5 - Collector Current vs. Collector Emitter Voltage
CTR
rel
- Relative Current Transfer Ratio
2.0
100
CTR - Current Transfer Ratio (%)
d = 1 mm
V
CE
= 5
V
10
1.5
1.0
1
0.5
V
CE
= 5
V
I
F
= 20 mA
d = 1 mm
0
25
50
75
100
0
- 25
0.1
0.1
95 11076
1
10
100
95 11074
T
amb
- Ambient Temperature (°C)
I
F
- Forward Current (mA)
Fig. 4 - Relative Current Transfer Ratio vs. Ambient Temperature
Fig. 6 - Current Transfer Ratio vs. Forward Current
Document Number: 83752
Rev. 1.7, 17-Aug-09
For technical questions, contact:
sensorstechsupport@vishay.com
www.vishay.com
3
TCRT1000, TCRT1010
Vishay Semiconductors
10
I
Crel
- Relative Collector Current
I
C
- Collector Current (mA)
Reflective Optical Sensor with
Transistor Output
120
V
CE
= 5
V
I
F
= 20 mA
1
Sensing Object
100
s
80
60
40
20
0
d = 1 mm
V
CE
= 5
V
I
F
= 20 mA
d
0.1
0.01
0
95 11077
2
4
6
8
10
1
95 11078
2
3
4
5
6
d - Distance (mm)
s - Displacement (mm)
Fig. 7 - Collector Current vs. Distance
Fig. 8 - Relative Collector Current vs. Displacement

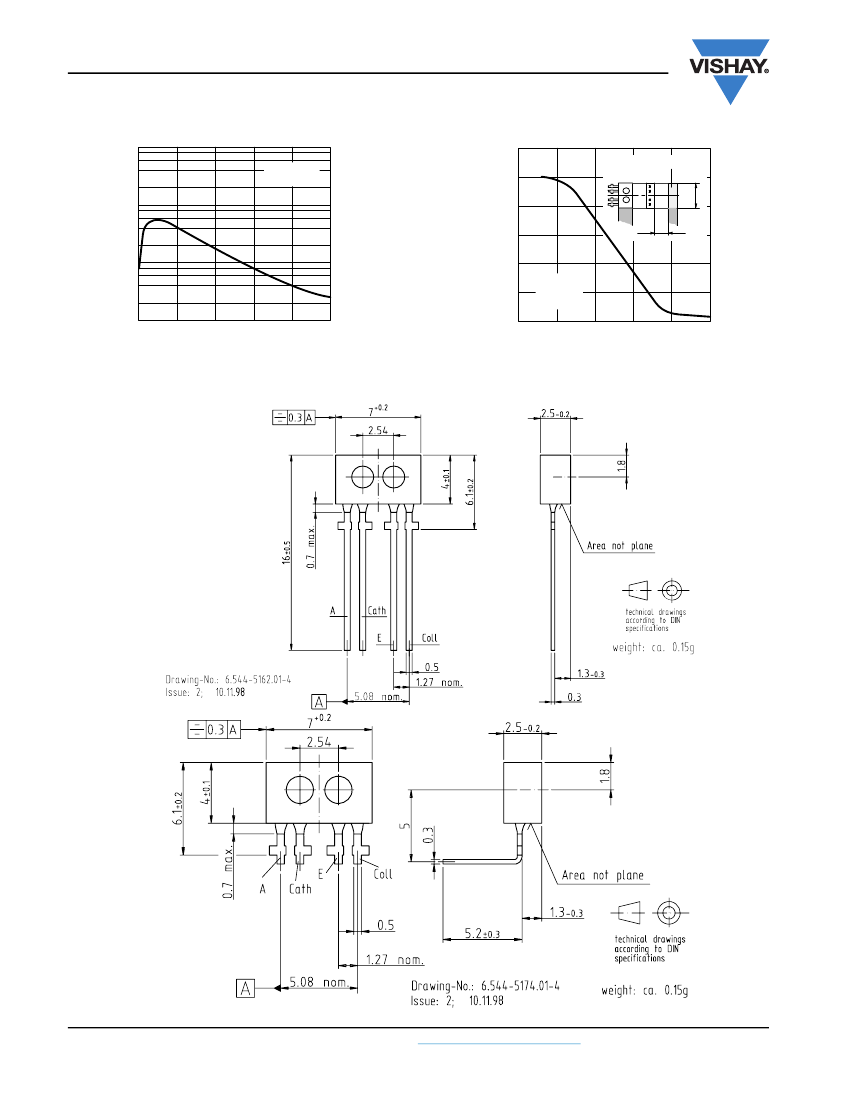

PACKAGE DIMENSIONS
in millimeters
14768
14769
www.vishay.com
4
For technical questions, contact:
sensorstechsupport@vishay.com
Document Number: 83752
Rev. 1.7, 17-Aug-09
Packaging and Ordering Information
Vishay Semiconductors
Packaging and Ordering Information
PART NUMBER
CNY70
TCPT1300X01
TCRT1000
TCRT1010
TCRT5000
TCRT5000L
TCST1030
TCST1030L
TCST1103
TCST1202
TCST1230
TCST1300
TCST2103
TCST2202
TCST2300
TCST5250
TCUT1300X01
TCZT8020-PAER
Notes
(1)
MOQ: minimum order quantity
(2)
Please refer to datasheets
MOQ
(1)
4000
2000
1000
1000
4500
2400
5200
2600
1020
1020
4800
1020
1020
1020
1020
4860
2000
2500
PCS PER TUBE
80
Reel
Bulk
Bulk
50
48
65
65
85
85
60
85
85
85
85
30
Reel
Bulk
TUBE SPEC.
(FIGURE)
1
(2)
CONSTITUENTS
(FORMS)
28
29
26
26
27
27
24
24
24
24
24
24
24
24
24
24
29
22
-
-
2
3
5
6
4
4
7
4
4
4
4
8
(2)
-
TUBE SPECIFICATION FIGURES
15198
Fig. 1
Document Number: 80112
Rev. 1.1, 02-Jul-09
For technical questions, contact:
optocoupleranswers@vishay.com
www.vishay.com
1
