Model the Gate Charge, Transient, and Diode Reverse Recovery
Characteristics
DESCRIPTION
The attached spice model describes the typical electrical
characteristics of the p-channel vertical DMOS. The subcircuit
model is extracted and optimized over the
−55
to 125°C
temperature ranges under the pulsed 0-V to 10-V gate drive. The
saturated output impedance is best fit at the gate bias near the
threshold voltage.
A novel gate-to-drain feedback capacitance network is used to model
the gate charge characteristics while avoiding convergence difficulties
of the switched C
gd
model. All model parameter values are optimized
to provide a best fit to the measured electrical data and are not
intended as an exact physical interpretation of the device.
SUBCIRCUIT MODEL SCHEMATIC
This document is intended as a SPICE modeling guideline and does not constitute a commercial product data sheet. Designers should refer to the appropriate
data sheet of the same number for guaranteed specification limits.
Document Number: 74891
S-71389Rev. A, 16-Jul-07
www.vishay.com
1
SPICE Device Model Si4409DY
Vishay Siliconix
SPECIFICATIONS (T
J
= 25°C UNLESS OTHERWISE NOTED)
Parameter
Static
Gate Threshold Voltage
On-State Drain Current
a
Drain-Source On-State Resistance
a
Forward Transconductance
a
Diode Forward Voltage
a
Symbol
Test Condition
Simulated
Data
2.4
5.1
0.96
1.1
1
−0.77
Measured
Data
Unit
V
GS(th)
I
D(on)
r
DS(on)
g
fs
V
SD
V
DS
= V
GS
, I
D
=
−250 µA
V
DS
≥ −5
V, V
GS
=
−10
V
V
GS
=
−10
V, I
D
=
−0.50
A
V
GS
=
−6
V, I
D
=
−0.50
A
V
DS
=
−10
V, I
D
=
−0.50
A
I
S
=
−1
A
V
A
0.95
1
2.2
−0.70
Ω
S
V
Dynamic
b
Input Capacitance
Output Capacitance
Reverse Transfer Capacitance
Total Gate Charge
Gate-Source Charge
Gate-Drain Charge
C
iss
C
oss
C
rss
Q
g
Q
gs
Q
gd
V
DS
=
−75
V, V
GS
=
−10
V, I
D
=
−0.50
A
V
DS
=
−75
V, V
GS
=
−6
V, I
D
=
−0.50
A
V
DS
=
−50
V, V
GS
= 0 V, f = 1 MHz
361
25
13
6.5
4.6
1.5
2.5
332
25
13
7.7
4.8
1.5
2.5
nC
pF
Notes
a. Pulse test; pulse width
≤
300
µs,
duty cycle
≤
2%.
b. Guaranteed by design, not subject to production testing.
www.vishay.com
2
Document Number: 74891
S-71389Rev. A, 16-Jul-07
SPICE Device Model Si4409DY
Vishay Siliconix

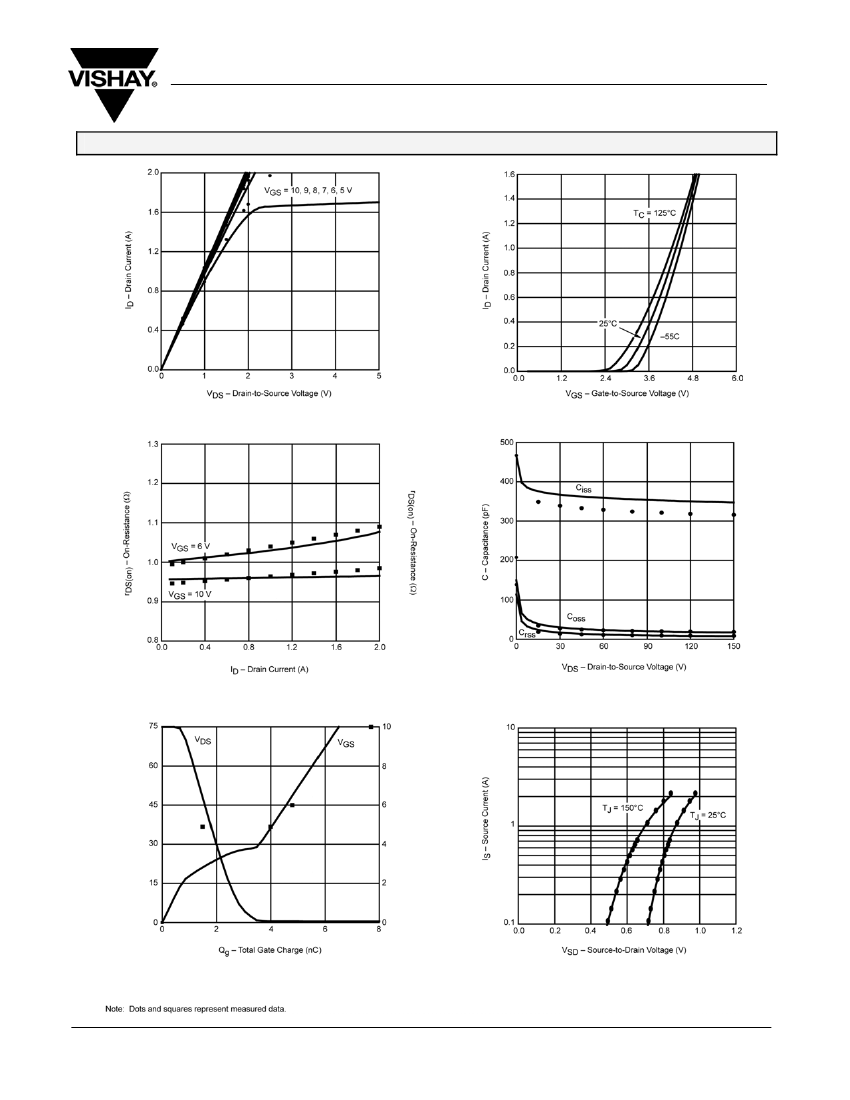

COMPARISON OF MODEL WITH MEASURED DATA (T
J
=25°C UNLESS OTHERWISE NOTED)
Document Number: 74891
S-71389Rev. A, 16-Jul-07
www.vishay.com
3
