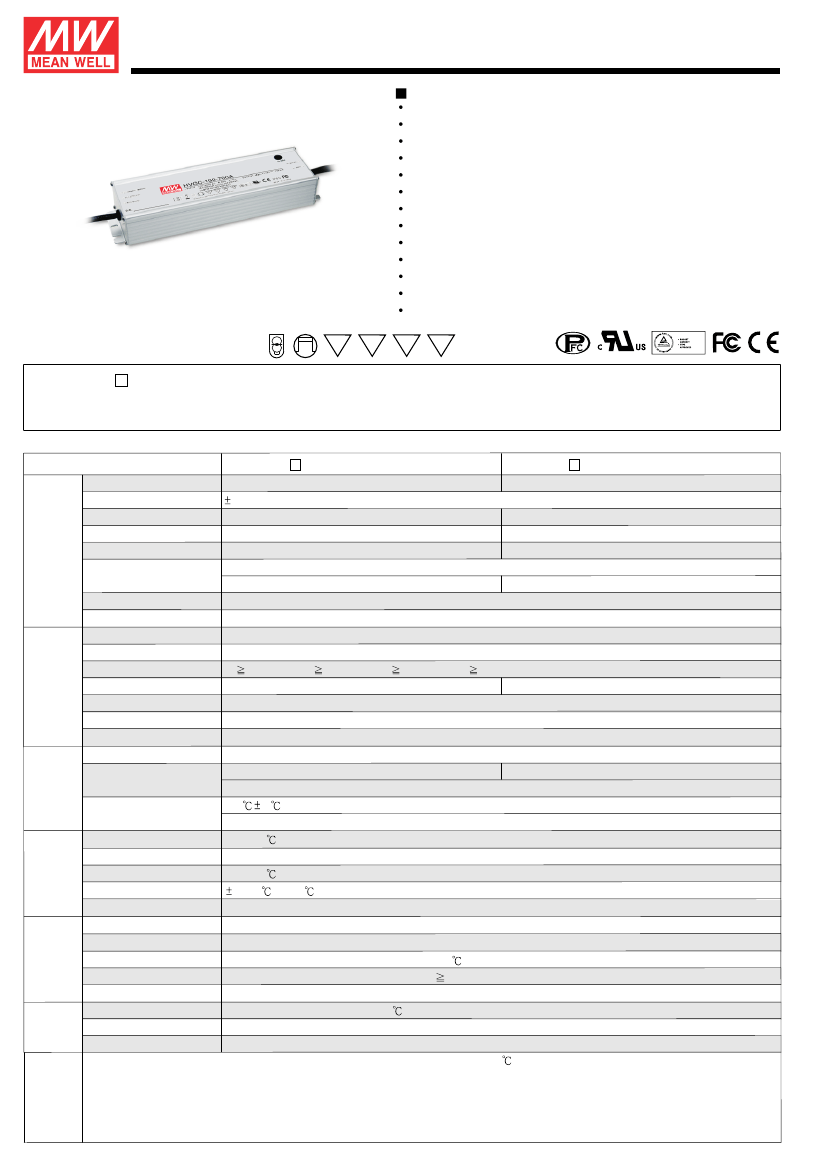

100W Single Output LED Power Supply
Features :
HVGC-100
series
Constant current design
Wide input range 180~480VAC
Built-in active PFC function
High efficiency up to 91%
Protections: Short circuit / Over voltage / Over temperature
Cooling by free air convection
OCP point adjustable through output cable or internal potentiometer
IP67 / IP65 design for indoor or outdoor installations
Three in one dimming function (0~10Vdc or 10V PWM signal or resistance)
Suitable for LED lighting and street lighting applications
Compliance to worldwide safety regulations for lighting
Suitable for dry / damp / wet locations
5 years warranty (Note.6)
F
110
M
M
IP65 IP67
HVGC-100-350 A
A : IP65 rated. Output voltage and constant current level can be adjusted through internal potentiometer.
B : IP67 rated. Constant current level adjustable through output cable with 0~10Vdc or 10V PWM signal or resistance.
D
(option) : IP67 rated. Timer dimming function, contact MEAN WELL for details.
SPECIFICATION
MODEL
RATED CURRENT
CURRENT ACCURACY
MAX. OUTPUT VOLTAGE
RATED POWER
OUTPUT
HVGC-100-350
350mA
5.0%
3 ~ 285V
99.75W
Can be adjusted by internal potentiometer or through output cable
210 ~ 350mA
3000ms, 150ms at full load
30ms at full load
Note.3
180 ~ 480VAC
HVGC-100-700
700mA
3 ~ 142V
99.4W
0.5Vp-p
420 ~ 700mA
440VAC / 347VAC ; B type 5000ms, 150ms at 95% load
440VAC / 347VAC
440VAC / 347VAC
254VDC ~ 679VDC
RIPPLE & NOISE (max.)
Note.2
1Vp-p
CURRENT ADJ. RANGE
SETUP, RISE TIME
HOLD UP TIME (Typ.)
VOLTAGE RANGE
FREQUENCY RANGE
POWER FACTOR (Typ.)
47 ~ 63Hz
PF 0.98/230VAC, PF 0.98/277VAC, PF 0.97/347VAC, PF 0.94/440VAC at full load (Please refer to "Power Factor Characteristic" curve)
91%
0.32A / 347VAC
0.26A / 440VAC
COLD START 50A / 440VAC
<0.75mA / 440VAC
Constant current limiting, recovers automatically after fault condition is removed
300 ~ 320V
150 ~ 160V
Protection type : Shut down o/p voltage with auto-recovery or re-power on to recovery
100
10 (RTH2)
Protection type : Shut down o/p voltage, recovers automatically after temperature goes down
-40 ~ +70
(Refer to "Derating Curve")
20 ~ 95% RH non-condensing
-40 ~ +80 , 10 ~ 95% RH
0.03%/
(0 ~ 50
)
10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes
I/P-O/P:3.75KVAC
I/P-FG:1.88KVAC
O/P-FG:0.5KVAC
91%
INPUT
EFFICIENCY (Typ.)
AC CURRENT (Typ.)
INRUSH CURRENT (Typ.)
LEAKAGE CURRENT
SHORT CIRCUIT
PROTECTION
OVER VOLTAGE
OVER TEMPERATURE
WORKING TEMP.
WORKING HUMIDITY
ENVIRONMENT STORAGE TEMP., HUMIDITY
TEMP. COEFFICIENT
VIBRATION
WITHSTAND VOLTAGE
ISOLATION RESISTANCE
EMC EMISSION
EMC IMMUNITY
MTBF
OTHERS

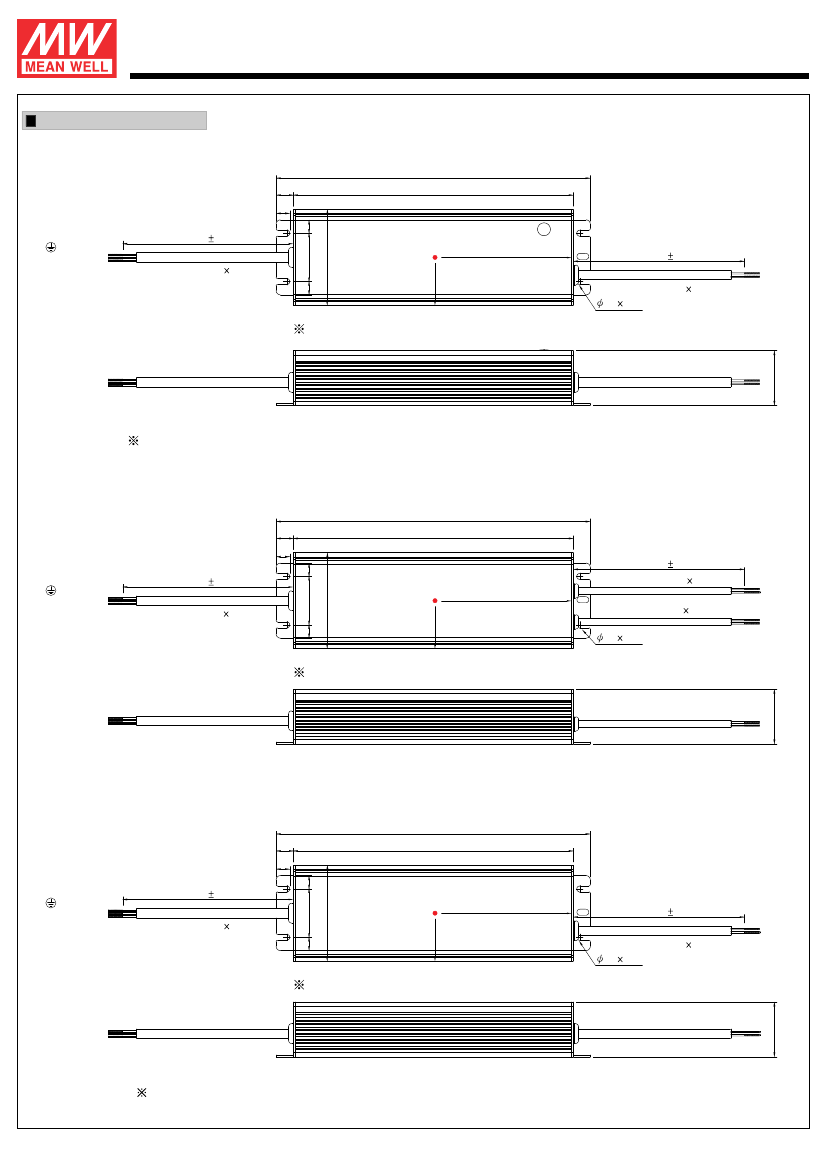

DIMENSION
PACKING
NOTE
SAFETY STANDARDS
Note.4
UL8750
,
CSA C22.2 No. 250.0-08, EN61347-1, EN61347-2-13 independent,
IP65 or IP67
approved
SAFETY &
EMC
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25 / 70% RH
Compliance to EN55015, EN61000-3-2 Class C ( 50% load) ; EN61000-3-3, FCC part 15 class B
Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547,
light industry level (surge 4KV), criteria A
186.1Khrs min. MIL-HDBK-217F (25 )
236*68*38.8 mm (L*W*H)
1.18Kg;
12pcs/15.2Kg/0.74CUFT
1. All parameters NOT specially mentioned are measured at 347VAC input, rated load and 25 of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 2.2uf parallel capacitor.
3. Derating may be needed under low input voltages. Please check the static characteristics for more details.
4. Safety and EMC design refer to EN60598-1, CNS15233, GB7000.1.
5. The power supply is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the
complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again.
6. Refer to warranty statement.
File Name:HVGC-100-SPEC 2011-12-16
100W Single Output LED Power Supply

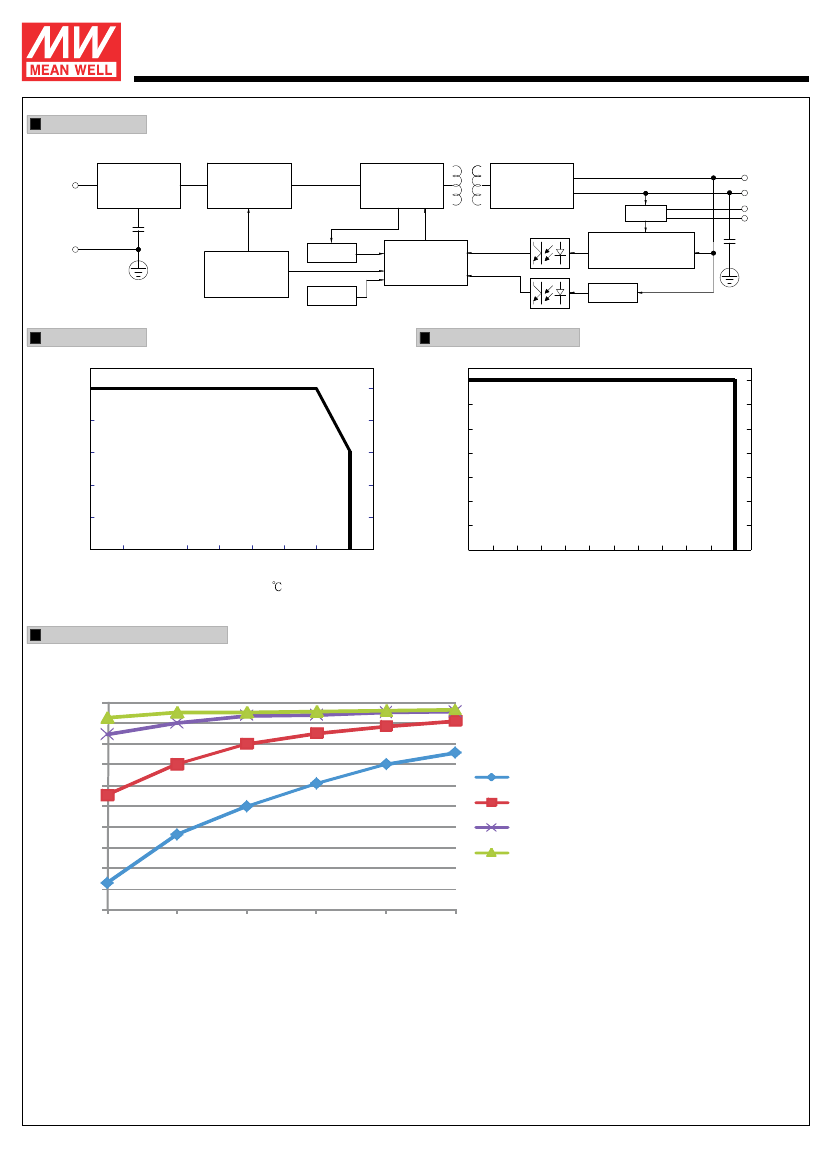

EFFICIENCY vs LOAD (HVGC-100-700 Model)
HVGC-100
series
HVGC-100 series possess superior working efficiency that up to 91% can be reached in field applications.
0.94
0.90
0.86
EFFICIENCY (%)
0.82
0.78
0.74
0.70
0.66
0.62
0.58
10%
20%
30%
40%
50%
60%
70%
80%
90% 100%
440V
347V
277V
230V
LOAD
DRIVING METHODS OF LED MODULE
There are two major kinds of LED drive method "direct drive" and "with LED driver".
A typical LED power supply may either work in "constant voltage mode (CV) or constant current mode (CC)" to drive the LEDs.
Mean Well's LED power supply with CV+ CC characteristic can be operated at both CV mode (with LED driver, at area (A) and CC mode (direct drive, at area (B).
100
50
(max.)
Vo(%)
(A) Constant
Voltage area
(B)
Constant
Current area
50
100
Io (%)
Typical LED power supply I-V curve
File Name:HVGC-100-SPEC 2011-12-16
100W Single Output LED Power Supply

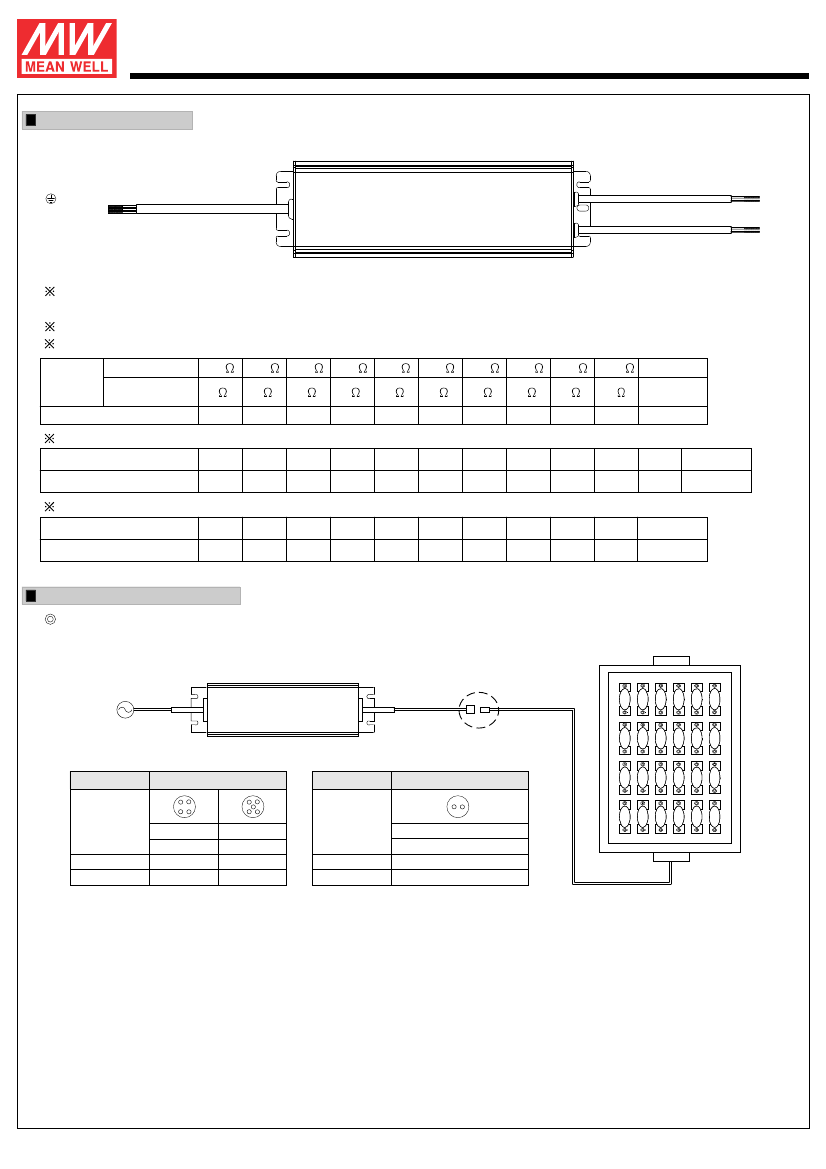

DIMMING OPERATION
HVGC-100
series
FG (Green/Yellow)
AC/L(Brown)
AC/N(Blue)
HVGC-100
DIM+(Blue)
DIM-(White)
+V(Red)
-V(Black)
Built-in 3 in 1 dimming function, IP67 rated. Output constant current level can be adjusted through output cable by connecting a resistance or
0 ~ 10Vdc or 10V PWM signal between DIM+ and DIM-.
Please DO NOT connect "DIM-" to "-V".
Reference resistance value for output current adjustment (Typical)
10K
30K
40K
50K
70K
80K
90K
Single driver
100K
60K
20K
Resistance
Multiple drivers
value
(N=driver quantity for synchronized
10K
/N 20K /N 30K /N 40K /N 50K /N 60K /N 70K /N 80K /N 90K /N 100K /N
dimming operation)
OPEN
-----
102%~108%
Percentage of rated current
10%
20%
30%
40%
50%
60%
70%
80%
90%
100%
0 ~ 10V dimming function for output current adjustment (Typical)
Dimming value
Percentage of rated current
0V
0%
1V
10%
2V
20%
3V
30%
4V
40%
5V
50%
6V
60%
7V
70%
8V
80%
9V
90%
10V
100%
OPEN
102%~108%
10V PWM signal for output current adjustment (Typical): Frequency range :100Hz ~ 3KHz
Duty value
Percentage of rated current
10%
10%
20%
20%
30%
30%
40%
40%
50%
50%
60%
60%
70%
70%
80%
80%
90%
90%
100%
100%
OPEN
102%~108%
WATERPROOF CONNECTION
Waterproof connector
Waterproof connector can be assembled on the output cable of HVGC-100 to operate in dry/wet/damp or outdoor environment.
AC
source
HVGC-100
I/P
O/P
Size
Pin Configuration (Female)
Size
Pin Configuration (Female)
M12
Order No.
Suitable Current
4-PIN
5A/PIN
M12-04
10A max.
5-PIN
5A/PIN
M12-05
10A max.
M15
Order No.
Suitable Current
2-PIN
12A/PIN
M15-02
12A max.
LED Lamp
File Name:HVGC-100-SPEC 2011-12-16
