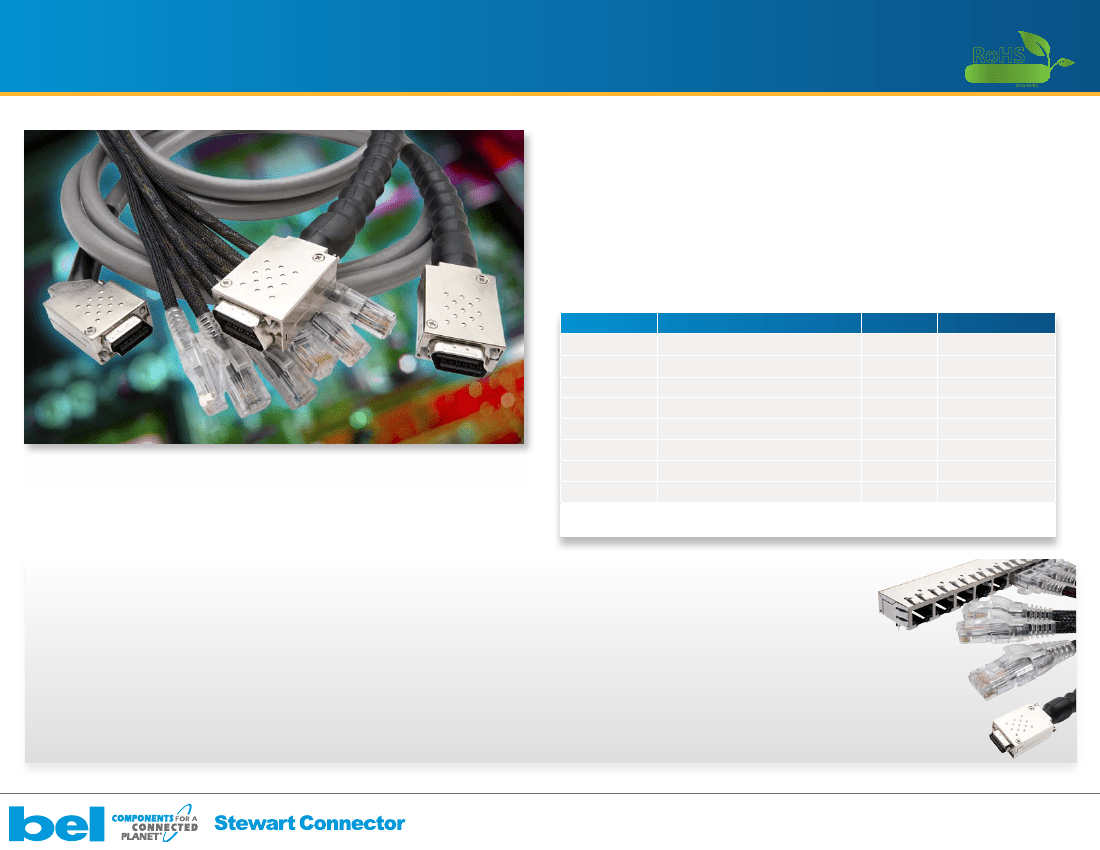

MRJ21 Cable Assemblies
Features & Benefits
•
•
•
•
•
•
Suitable for Gigabit Ethernet, PoE and VoIP
RoHS
Compliant
High density telco-style, double-blade design allows 1.5 to 3 times the
density of 2x6 modular stacked RJ45 jacks.
1mm pair spacing, 1.5 mm pair-to-pair spacing
Designed to meet or exceed CAT5e performance standards
Available in both unshielded or low EMI shielded configurations
Durability tested to 500 cycles – see www.belfuse.com for data sheet(s)
Description
6 RJ45 Plugs to MRJ21 Angled
MRJ21 Straight to MRJ21 Straight
6 RJ45 Plugs to MRJ21 Straight
MRJ21 Straight to MRJ21 Angled
6 RJ45 Plugs to MRJ21 Angled
MRJ21 Straight to MRJ21 Straight
6 RJ45 Plugs to MRJ21 Straight
MRJ21 Straight to MRJ21 Angled
Cable Type
CMR
CMR
CMR
CMR
CMP
CMP
CMP
CMP
Shielding
Unshielded
Unshielded
Unshielded
Unshielded
Unshielded
Unshielded
Unshielded
Unshielded
Part Number*
MRJxxxxAF-A
MRJxxxxDD-A
MRJxxxxAD-A
MRJxxxxDF-A
MRJxxxxAF-C
MRJ21 cable assemblies showing connector options: MRJ21 180 degree straight and 45
degree angle connectors as well as multiple RJ45 connectors
MRJxxxxDD-C
MRJxxxxAD-C
MRJxxxxDF-C
* xxxx denotes desired cable length from 0.5 to 100.0 meters, in 0.5 meter increments.
Typical part numbers are listed. For configurations not shown here, please consult factory.
Bel Stewart Connector’s MRJ21
cable assembly products are designed to support increased patch panel density in
telecom and premise wiring applications. This modular cabling platform supports network applications such as Gigabit Ethernet, Voice
over Internet Protocol (VoIP), and Power over Ethernet (PoE). Cable connection options include left or right 45 degree angle, or 180
degree straight cable exit to facilitate various routing schemes to component racks. In addition, these cable assemblies allow a connection
migration path from legacy products including punch down blocks, modular plug breakouts, and standard RJ21 to MRJ21 assemblies.
Designed with a die cast backshell for shielded applications, Bel Stewart’s MRJ21 cable assemblies are durability tested to 500 cycles to
ensure unsurpassed quality and performance. Jackscrews provide a secure cable connection while the robust boardlock design allows superior
PCB strain relief. For additional product information visit our Ethernet connectivity webpage at www.belstewart.com
MRJ21 is a trademark owned by TE Connectivity used here under license.
11118 Susquehanna Trail South Glen Rock, PA 17327 Tel: 717.235.7512 Fax: 717.235.4675
Document number US/LIT-MRJ21v08.12 @2012 Bel connector Inc.
Specification Subject To Change

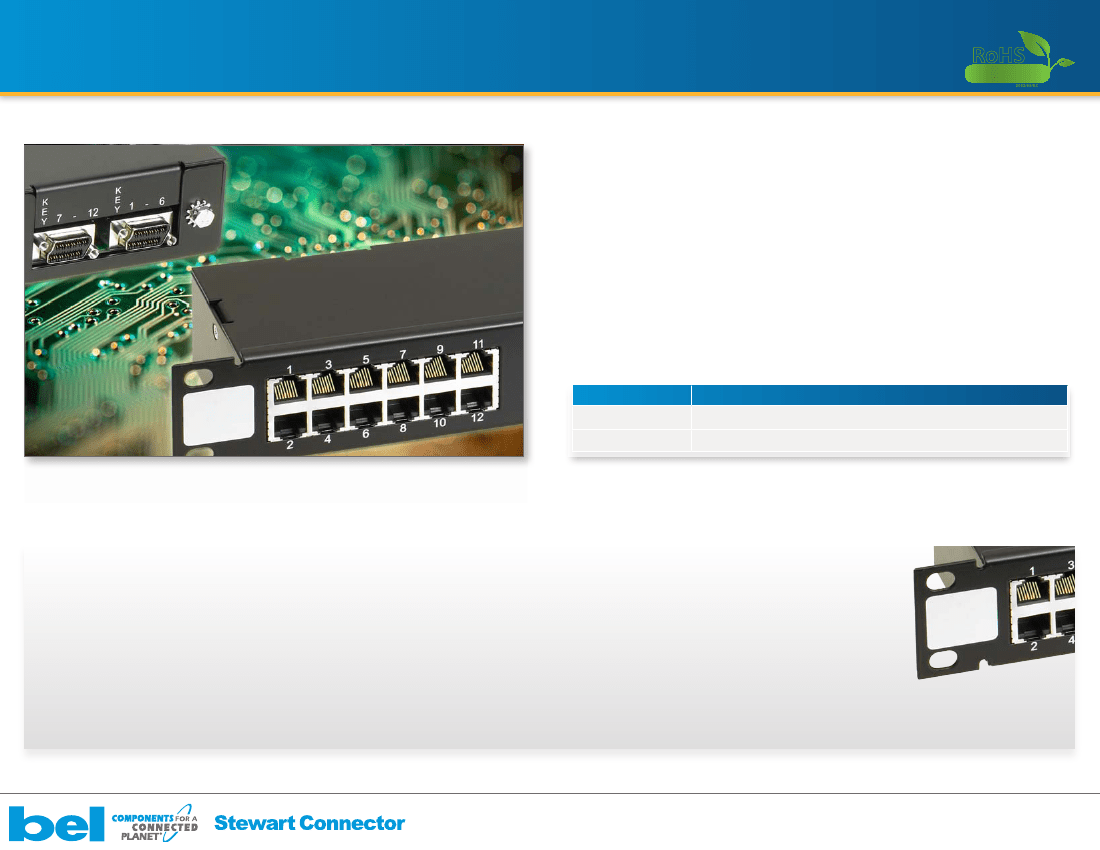

MRJ21 Patch Panels
Features & Benefits
•
•
•
•
•
•
Suitable for Gigabit Ethernet, PoE and VoIP
High performance copper cabling solution
High density, small form factor connectivity
Modular, pluggable design
RoHS
Compliant
4 pair MRJ21 patch panels support applications which use four or fewer pairs,
Including 10Base-T, 100 Base-T and 1000 Base-T
2 pair MRJ21 patch panels support applications which use two or fewer pairs
including 10Base-T and 100 Base-T
Part Number
ASY21000-005
ASY21000-006
Description
48 Port 10/100 Base-T 1U Patch Panel
48 Port 10/100/1000 Base-T 1U Patch Panel
MRJ21 Patch Panel, Standard, 48-Port, for 2-Pair (10/100/BASE-T) Applications 4-Pair
(1000 Base-T) Applications
Bel Stewart Connector’s MRJ21 48–port straight patch panels
are designed to be mounted onto a standard
483–mm [19–in.] Electronic Industries Alliance (EIA) rack or equipment cabinet. The Bel Stewart patch panels are available in both 2 pair and
4 pair configurations. The 2 pair option supports speed at 10Base-T and 100 Base-T while the four pair configuration supports higher speeds
at 1000 Base-T.
The core of the system is the innovative MRJ21 high density and high performance connector. It integrates reliable connections for up to 6
GigaBit Ethernet (1000Base-T) Channels in one plug & go interface and is therefore supporting fastest installation and highest flexibility.
The shielded MRJ21 Trunk Cables are completely pre-terminated and factory tested, eliminating the need for testing after installation. The Trunk
Cables interconnect a wide range of shielded MRJ21 Patch Panels, which are available in highest density up to 48 RJ45 Port on 1U. The Panels integrate in the rear side the
MRJ21 receptacles and to the front RJ45 interfaces compliant with the latest revisions of the international standards like ISO/IEC 11801, EN 50173 and EIA/TIA 568.
MRJ21 is a trademark owned by TE Connectivity used here under license.
11118 Susquehanna Trail South Glen Rock, PA 17327 Tel: 717.235.7512 Fax: 717.235.4675
Document number US/LIT-MRJ21v08.12 @2012 Bel connector Inc.
Specification Subject To Change
