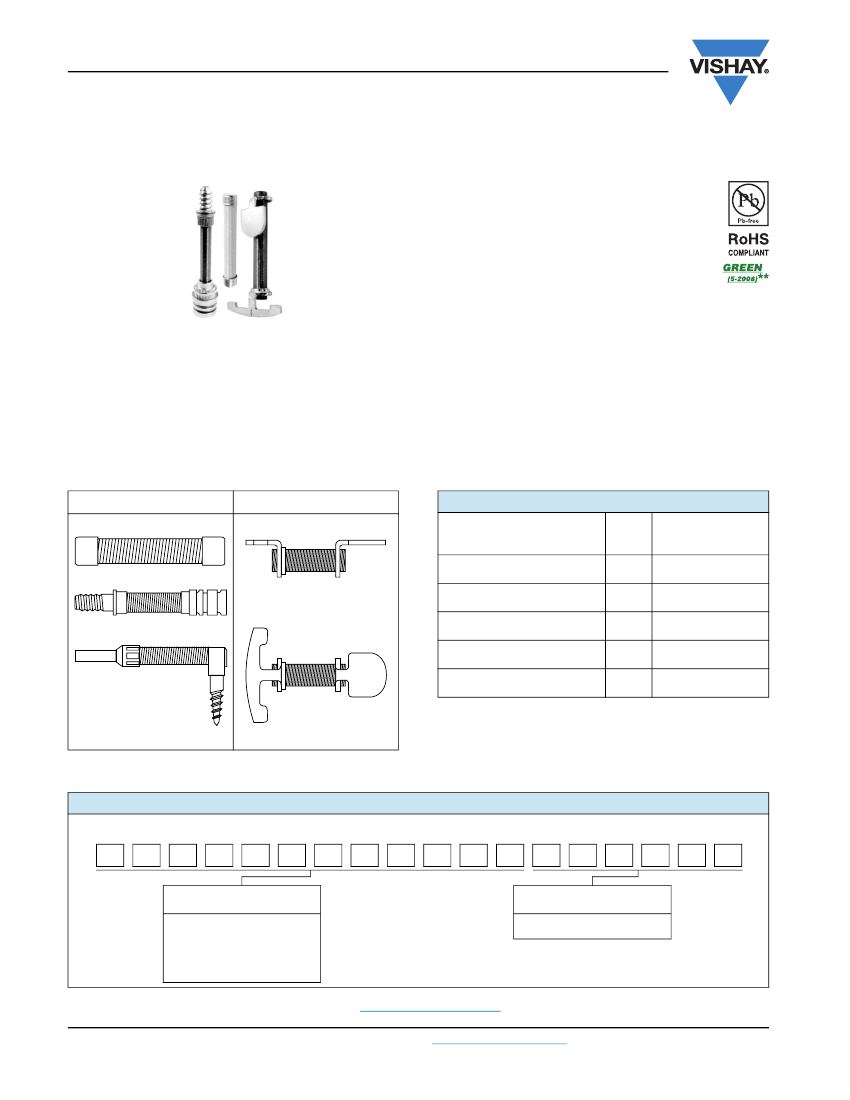

NSR
Vishay Dale
Wirewound Resistors, Noise Suppressor
FEATURES
•
Ideal for reducing RFI during electrical
discharges on gasoline engines
•
Variety of resistance and inductance values
available
•
Special design of electrical contacts upon
request
•
Capability to withstand high voltage pulses at high
frequency
•
Compliant to RoHS directive 2002/95/EC
TECHNOLOGY
The resistor element is a resistive wire, which is wound in a single layer on a fiberglass core. Metallic caps or electrodes are
fixed to the ends of the resistive core, following the specific ignition system characteristics. A coating protects the resistive
element against moisture and mechanical shock, plus is able to withstand high temperatures. These products can be molded
with epoxy resin, thermoplastic or thermo set materials.
TYPE 1 (WITH CAPS)
TYPE 2 (WITH ELECTRODES)
TECHNICAL SPECIFICATIONS
PARAMETER
Resistance Range
(1)
Tolerances
(2)
Inductance Range, 2 MHz
(3)
Temperature Coefficient
Operating Temperature Range
UNIT
Ω
%
µH
ppm/°C
°C
NSR
CHARACTERISTICS
1K - 15K
± 10 , ± 15, ± 20
5 to 56
± 250
- 40 to + 200
Notes
(1)
Special resistance values available upon request
(2)
Other tolerances available upon request
(3)
Special inductance values available upon request
GLOBAL PART NUMBER INFORMATION
Global Part Number Example: 230630990078000000
(Historical Part Numbering example: 2306 309 90078)
2
3
0
6
3
0
9
9
0
0
7
8
0
0
0
0
0
0
GLOBAL MODEL
See page 2
Global Model
columns for
options
** Please see document “Vishay Material Category Policy”:
www.vishay.com/doc?99902
www.vishay.com
172
For technical questions, contact:
ww2aresistors@vishay.com
SPECIAL
000000
= Standard
Document Number: 30252
Revision: 08-Jul-09
