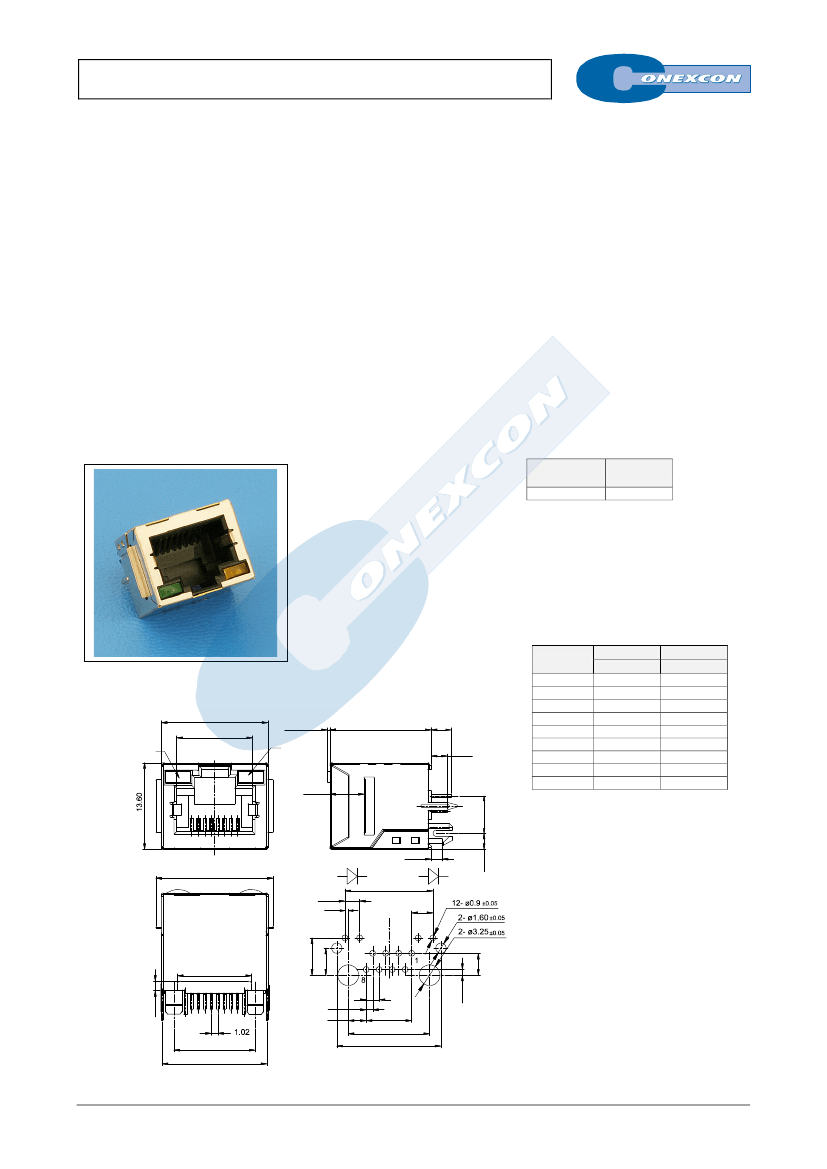

TOP ENTRY SHIELDED PCB JACK FCC-68

7695 SERIES.

Vertical PCB jack with leds.

General Features

Electrical Features



Available in 8/8 circuits

Standard telephone jack FCC-68

15.50 mm. height

Accept standard plugs FCC-68

Selective gold plating with different plating

Bifurcated plastic foot print



Voltage rating: < 125V

Current rating: < 1.50 A

Contact resistance: < 20 mΩ

Dielectric withstanding voltage: 300 V AC/minute

Insulation resistance: >1000 MΩ

Materials

Mechanical Features



Insulator: Thermoplastic UL 94V-0

Contact: 0.46 mm round in phosphor bronze

Shielded: 0.25 mm thickness brass

Operating temperature. -25ºC to + 85ºC

RoHS compliant



Durability: 1000 cycles

Dimensional Information

Circuit Size

8/8

Part Number

7695 –

T88C

T = Plating Options



T =

10µ” gold over nickel

T =

15µ” gold over nickel

T =

30µ” gold over nickel

T =

50µ” gold over nickel

OPCION C

16.50

11.86

Led 2

0.7±0.15

Led 1

15.50

3.20

2.54

LED 1

RIGHT

W/O LED

GREEN

YELLOW

GREEN

YELLOW

YELL/GREEN

GRREN/RED

YELLOW

LED 2

LEFT

W/O LED

YELLOW

W/O LED

GREEN

YELLOW

YELL/GREEN

GREEN/RED

YELL/GREEN

5.84

±0.2

5.30

2.16

3.43

1.02

2.80

2.04

7.14

12.70

16.26

RECOMMENDED HOLE PATTERN

0.89

1.70

18.30

2.29

0.51

5.84

4.24

13.72

3.3

10 9

11.60

1.50

12.70

16.26

E-XX
