8417-15-56-1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 8417-15-56-1

8417-15-56-1: DescriptionBoard Connector, 56 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Surface Mount Terminal, Locking, Black Insulator; CategoryThe connector The connector; File Size86KB，1 Pages; ManufacturerConexcon Group; Environmental Compliance

Download Datasheet Parametric View All

8417-15-56-1 Overview

Board Connector, 56 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Surface Mount Terminal, Locking, Black Insulator

8417-15-56-1 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Conexcon Group
Reach Compliance Code	unknown
body width	0.2 inch
subject depth	0.346 inch
body length	2.816 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	FEMALE
Contact material	BERYLLIUM COPPER
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	1000VAC V
Durability	500 Cycles
maximum insertion force	1.946 N
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	POLYPHENYLENE SULPHIDE
Manufacturer's serial number	8417
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	1.6002 mm
Plating thickness	15u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	2.54 mm
Termination type	SURFACE MOUNT
Total number of contacts	56
Evacuation force-minimum value	.3058 N

Preview

Download Datasheet

View All

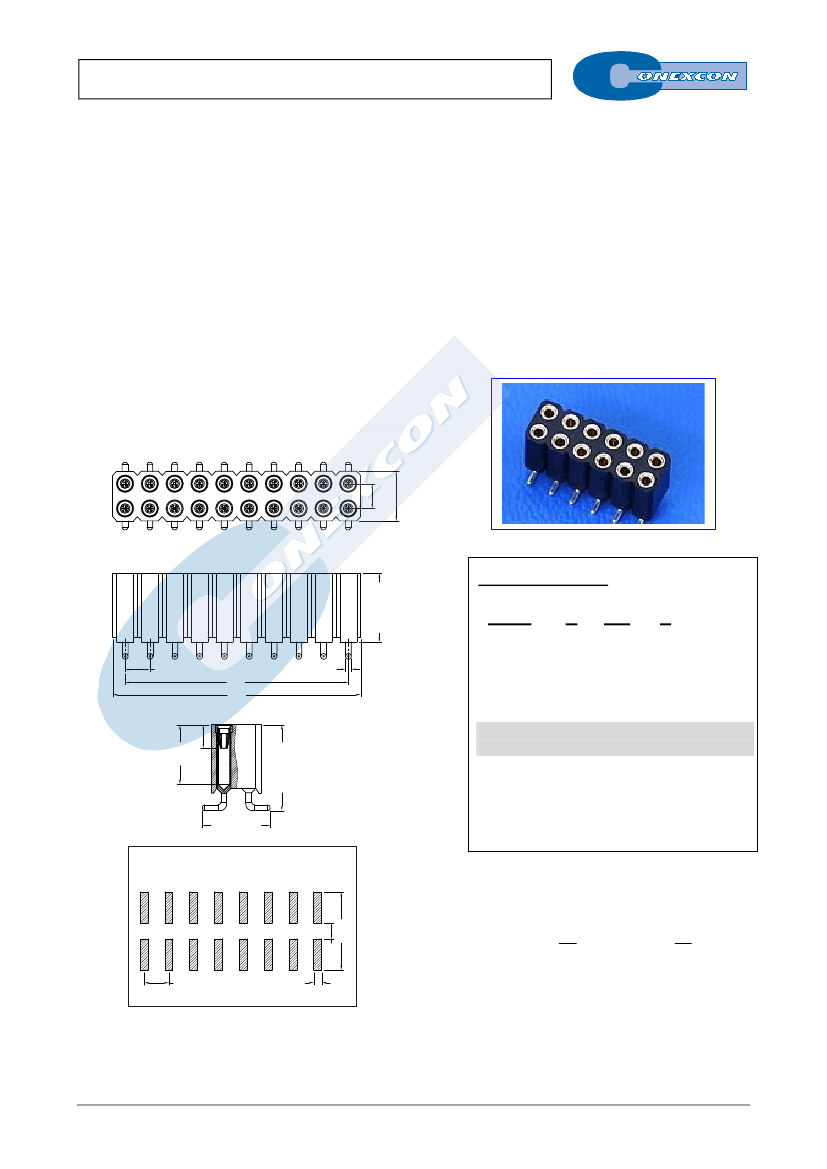

DUAL ROW VERTICAL SMT SOCKET

8417 SERIES.

2.54 x 2.54 mm. (0.100 x 0.100”) pitch. Machined contact.

General Features

Electrical Features



Available in 4 through 80 circuits



Mates with 0.64 square pin headers 2.54 mm 2558

series and with 0.76 mm round pin header 8419 series



Accept round pin 0.70 to 0.90 mm and sq. pin 0.64 mm



Different plating options

Materials



Voltage rating: < 250V

Current rating: < 3A

Contact resistance: < 10 mΩ

Dielectric withstanding Voltage: 1000 V AC/minute

Insulation resistance: >1000 MΩ

Mechanical Features



Insulator: PPS black + 30% GF UL 94 V-0

Contact: Clip (6 fingers): Beryllium copper

Sleeve: Brass

Operating temperature. -40ºC to +105ºC

RoHS compliant



Insertion force per pin: < 0.20 Kgf (round pin 0.43 mm)



Withdrawal force per pin: > 0.03 Kgf (round pin 0.43 mm)



Durability: 500 Cycles

Dimension Information

5.08±0.15

2.54±0.10

7.00±0.15

Ordering Information:

8417 -

T-

XX-

2.54±0.10

ø0.60

1. Connector Series

2. (T) Contact Plating

2.40



T =

13.

Selec. gold flash over 30-50µ" Ni overall

8.80±0.25

6.10

Recommended Finish



T =

15.

15µ" selec. gold over 30-50µ" Ni overall



T =

16.

30µ" selec. gold over 30-50µ" Ni overall

3. (XX) Number of circuits

6.94±0.25



Available in 4 through 80 circuits

RECOMMENDED PCB LAYOUT

(Tolerance ±0.05)

DIMENSIONS:

8.00

1.60





2.54



−







= Number of circuits

2.54









0.40









2.54

0.80

A-XX

FULL LINE CATALOGUE
