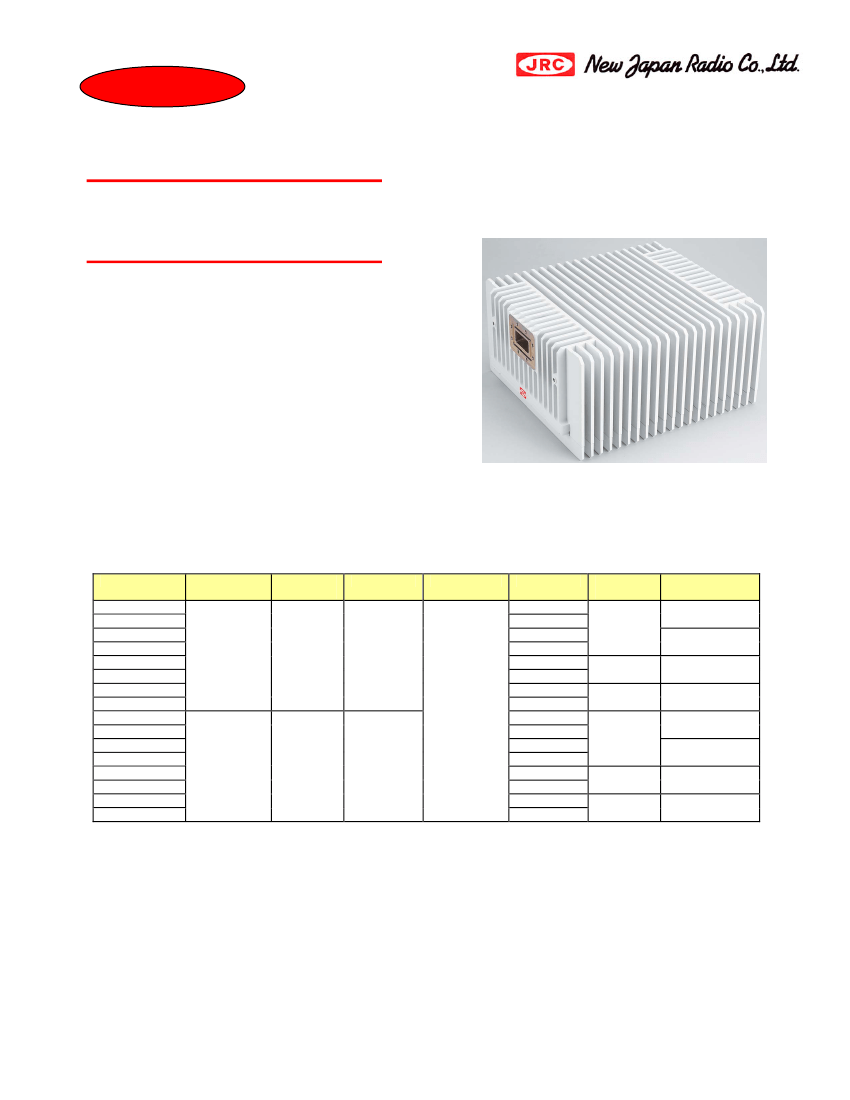

C-band 10W Block Upconverter
Model No. NJT5662 Series
XC-band 10W Block Upconverter
Model No. NJT5663 Series
< Features >
* No “Cooling Fan” Solution
* High Efficiency Output Power
(10W minimum @P1dB over temperature)
* Three Power Supply Selections
DC: +48Vdc Operation (+38 to +60 Vdc)
DC: +24Vdc Operation
AC: 110V / 220V
* Option:
Separation of power supply port (MS-connector)
<Line-Up>
Model No.
NJT5662N00100
NJT5662F00100
NJT5662N01100
NJT5662F01100
NJT5662N10100
NJT5662F10100
NJT5662N41100
NJT5662F41100
NJT5663N00100
NJT5663F00100
NJT5663N01100
NJT5663F01100
NJT5663N10100
NJT5663F10100
NJT5663N41100
NJT5663F41100
RF Frequency
5.850 to 6.425
GHz
(C-band)
Local
Frequency
4.90 GHz
IF Frequency
950 to 1,525
MHz
Output Power
10W Linear
(+40 dBm min.)
IF Connector
N-type
F-type
N-type
F-type
N-type
F-type
N-type
F-type
N-type
F-type
N-type
F-type
N-type
F-type
N-type
F-type
Power
Supply
+48Vdc
Port for
Voltage Input
Same as
IF Connector
MS Connector
(separate port)
Same as
IF Connector
MS Connector
(separate port)
Same as
IF Connector
MS Connector
(separate port)
Same as
IF Connector
MS Connector
(separate port)
+24Vdc
AC
(110-220V)
+48Vdc
6.725 to 7.025
GHz
(XC-band)
5.76 GHz
950 to 1,265
MHz
+24Vdc
AC
(110-220V)
Copyright © 2003 New Japan Radio Co., Ltd.
Rev.01 C/XC 10W BUC_NJT5662/62F/63/63F
< Specifications >
Item
Output Interface
Output Power @ 1dB G.C.P.
Linear Gain
Requirement for External Reference
Specifications
Waveguide, CPR137-G (Grooved) with Flange
+40 dBm min. over temp.
64 dB nominal
10 MHz (sine-wave)
-5 to +5 dBm @ Input port
-135 dBc/Hz max. @ 100 Hz
-140 dBc/Hz max. @ 1 kHz
-143 dBc/Hz max. @ 10 kHz
-60 dBc/Hz max. @ 100 Hz
-70 dBc/Hz max. @ 1 kHz
-80 dBc/Hz max. @ 10 kHz
-90 dBc/Hz max. @ 100 kHz
2 : 1 max
2 : 1 max.
Option 1: +48 VDC (+38 to +60 VDC), 130 W max.
Option 2: +24 VDC (+18 to +24 VDC)
Option 3: 110VAC / 220VAC
Shut off the HPA in case of L.O. unlocked
N-type, female (50 ohms) [Model No. NJT5662N*****]
F-type, female (75 ohms) [Model No. NJT5662F*****]
275mm (L) x 246mm (W) x 135 mm (H)
[10.8” (L) x 9.7” (W) x 5.3” (H)]
20 lbs max. [9 kg max.]
-40 to +55 C (operating)
-40 to +75 C (storage)
[Frequency]
[Input Power]
[Phase Noise]
L.O. Phase Noise
Input V.S.W.R.
Output V.S.W.R.
DC Power Requirement
Mute
Input Interface
Dimension & Housing
Weight
Temperature Range (ambient)
NJT5662 N 0 1 1 0 0
1
st
Digit
IF connector
N
F
N-connector
F-connector
2
nd
Digit
Operating Voltage
Range
0 DC: +38 to +60V
(+48V)
1 DC: +24V
3
rd
Digit
Port for Voltage
Input
0 Same as
IF signal
1 MS connector
4
th
Digit
LED
0
1
Not
equipped
Equipped
0
1
5
th
Digit
M&C
Not
equipped
*Power Monitor
*Output power
On/off
*Fault Indicator
6
th
Digit
Other fuctions
0
1
Not
equipped
With
mounting
cradle
2 DC: +12V
3 Negative Voltage
(TBD)
4 AC
2
TNC connector
Copyright © 2003 New Japan Radio Co., Ltd.
Rev.01 C/XC 10W BUC_NJT5662/62F/63/63F

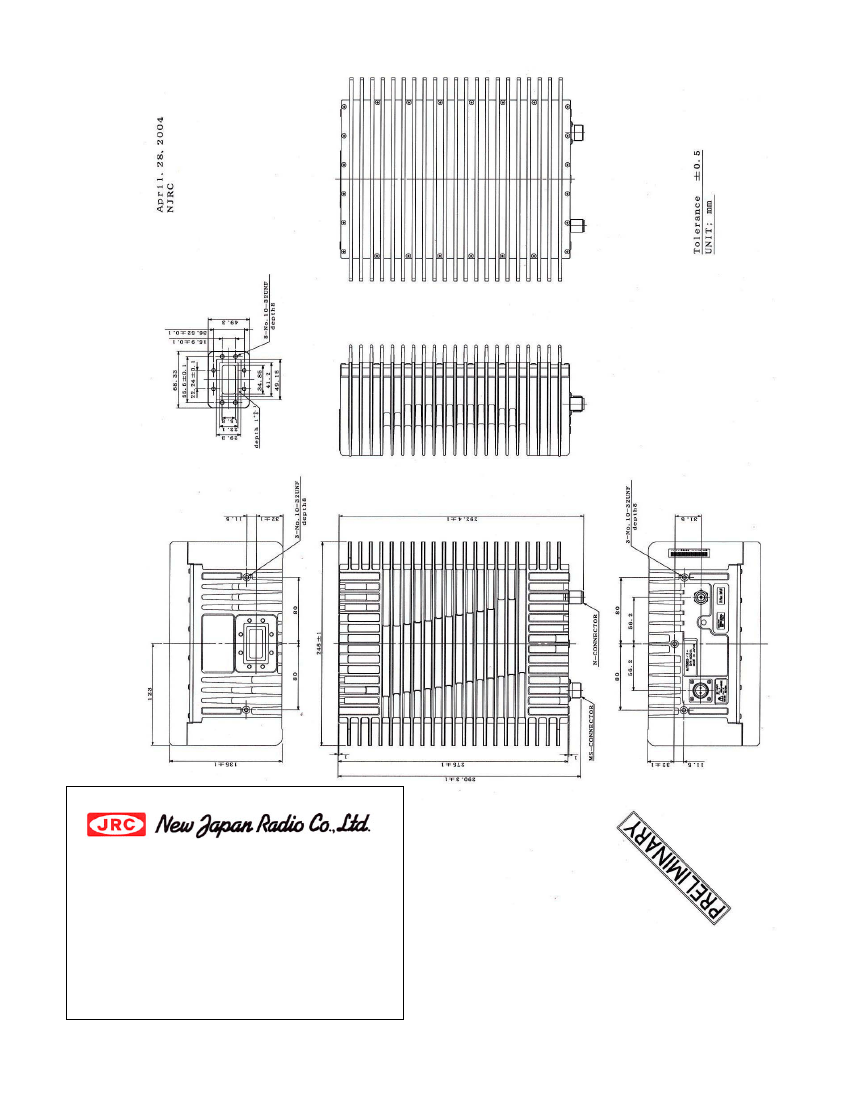

< Outline Drawing >
Microwave Components Division
1-1, Fukuoka 2-Chome, Kamifukuoka-City
SAITAMA, 356-8510 JAPAN
E-mail : mcsales@njr.co.jp
Phone : +81-49-278-1270
FAX : +81-49-278-1234
http://www.njr.co.jp
Copyright © 2003 New Japan Radio Co., Ltd.
Unit : mm
Rev.01 C/XC 10W BUC_NJT5662/62F/63/63F
