9108-15-225-01 datasheet, PDF - EEWORLD Datasheet

9108-15-225-01: DescriptionBoard Connector, 50 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Eject Lever, Receptacle; CategoryThe connector The connector; File Size187KB，1 Pages; ManufacturerMethode Electronics Inc.

Download Datasheet Parametric View All

9108-15-225-01 Overview

Board Connector, 50 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Eject Lever, Receptacle

Parameter Name	Attribute value
Maker	Methode Electronics Inc.
Reach Compliance Code	unknown
Other features	WITH LONG EJECTOR LEVER
Board mount options	HOLE .099-.111
body width	0.335 inch
subject depth	0.535 inch
body length	3.26 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	TIN/LEAD OVER NICKEL
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1500VAC V
maximum insertion force	2.78 N
Insulation resistance	5000000000 Ω
insulator material	GLASS FILLED POLYESTER
Manufacturer's serial number	9100
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation option 1	EJECT LEVER
Installation option 2	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	30u inch
polarization key	GUIDE SLOT(S)
Rated current (signal)	3 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.11 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	50
Evacuation force-minimum value	.556 N

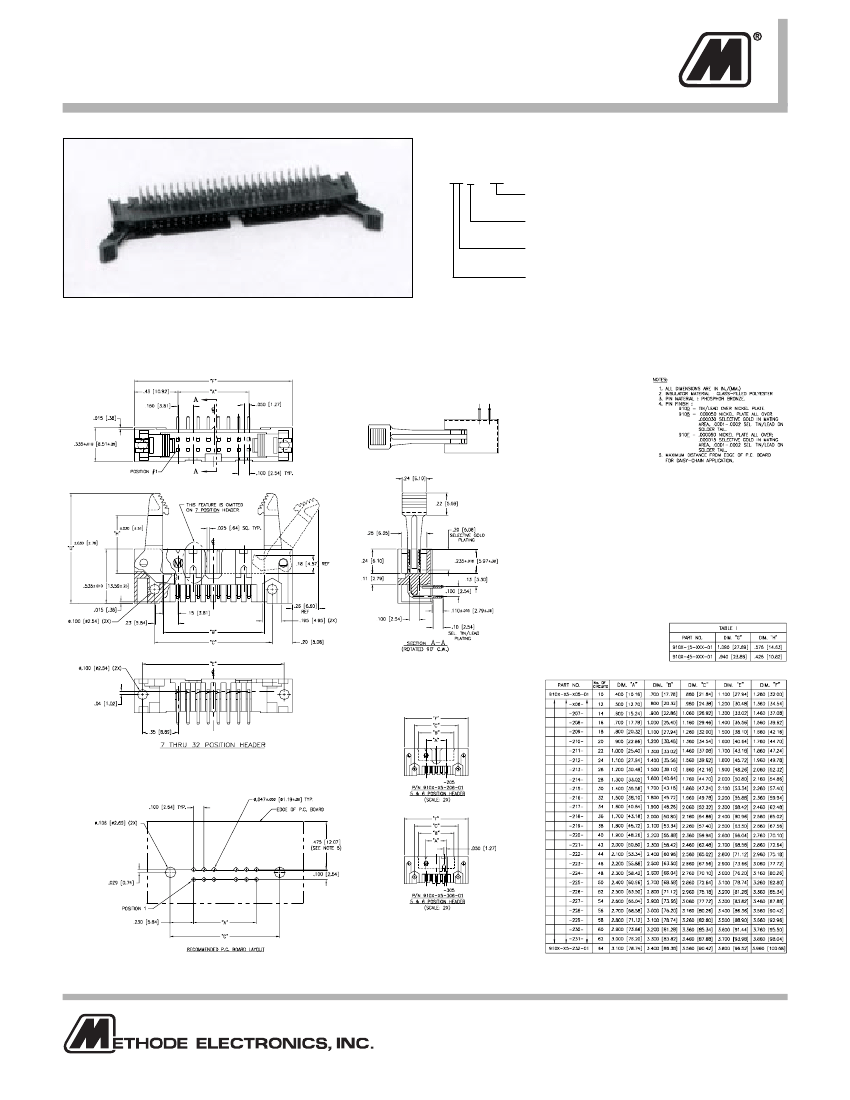

.100” (2.54mm) Dual Row, Through Hole, Right

Angle Shrouded Header with Ejector Lever

9100 SERIES

(“POST/BOXE”)

PART NUMBER LEGEND

91XX-X5-2XX-01

NUMBER OF POSITIONS

(SEE TABLE II)

EJECTOR TYPE

(SEE TABLE I)

PIN PLATING

(SEE NOTE 4)

INSULATOR MATERIAL

(SEE NOTE 2)

TABLE II

Connector Products

1700 Hicks Road • Rolling Meadows, IL 60008 USA

Telephone: 847.392.3500 • Fax: 847.392.9404

email: mcpsales@methode.com • Web Page: www.methode.com
