BRIH58S1624K64B2A

Description
Rotary Position Encoder, Single, 2 Channels
CategoryLED optoelectronic/LED    photoelectric
File Size80KB,4 Pages
ManufacturerBaumer Electric Ag
Download Datasheet Parametric View All

BRIH58S1624K64B2A Overview

Rotary Position Encoder, Single, 2 Channels

BRIH58S1624K64B2A Parametric

Parameter NameAttribute value
MakerBaumer Electric Ag
Reach Compliance Codeunknown
ConfigurationSINGLE, 2 CHANNELS
Number of functions1
Maximum operating temperature85 °C
Minimum operating temperature-20 °C
Optoelectronic device typesROTARY POSITION ENCODER

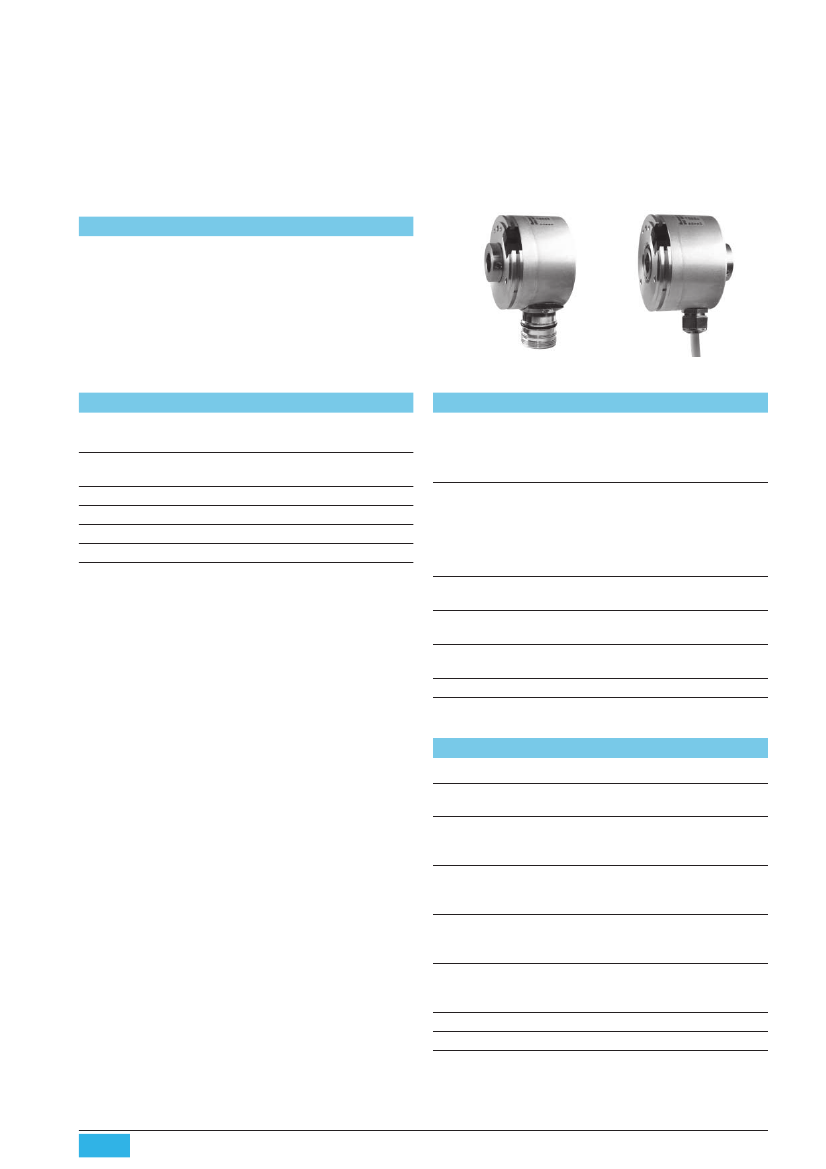

Magnetic Incremental hollow shaft encoder
BRIH/BRID –
EcoMag
features
• robust against shock and vibration
• high switching frequency
• end shaft mounting type BRIH
• through shaft mounting type BRID
BRIH
general data
voltage supply
max. supply current
no load
max. measuring steps
pulse range
pulse tolerance
5 VDC ±10% (05A)
10 - 30 VDC (24K)
typ. 30 mA (at 5 VDC) (05A)
typ. 15 mA (at 24 VDC) (24K)
8'192 steps
see order designation
±15%
mechanical data
max. revolutions
BRIH
BRID
torque
BRIH
BRID
BRID
12'000 rpm (IP 42)
6'000 rpm (IP 65)
6'000 rpm
typ. 0,9 cNm IP 42
typ. 3,7 cNm IP 65
typ. 1,75 cNm IP 42
typ. 4,7 cNm IP 65
(3'000 rpm / 20 °C)
depending on ambient conditions
(typ. 10
9
revolutions)
shaft: IP 65
housing: IP 65
housing: aluminum
flange: aluminum
approx. 150 g
max. switching frequency 320 kHz
product life
max. protection class
material
weight
ambient conditions
temperature range
relative humidity
vibration
(sine)
vibration
(random)
shock
-20...+85 °C
max. 95%
non condensing
IEC 60068-2-6
(≤ 300 m/s
2
/ 10 - 2'000 Hz)
150 min per axis
IEC 60068-2-64
(≤ 0,1 g
2
/Hz / 20 - 2'000 Hz)
30 min per axis
IEC 60068-2-27
(≤ 1'000 m/s
2
/ 6 ms)
10 pulses per axis and direction
IEC 60068-2-29
(≤ 1'000 m/s
2
/ 2 ms)
4'000 pulses per axis and direction
EN 61000-6-2
EN 61000-6-3
bump
noise immunity
emitted interference
1. 26
www.baumerelectric.com
