Model AMS1000 CPE Antennas
MDS, ISM, WCS, MMDS
REMEC Magnum’s
series of Button,
MMDS Antennas
are
designed for use with CPE
transceivers. All of these
antennas designs are Dual
Yagi Arrays. Vertical or
horizontal polarity can be
achieved by rotating the
antenna 90°. These
antennas offer excellent
side-lobe and cross pole
performance, and have an
aesthetically pleasing profile.
Consult Remec Magnum for
information concerning
antennas for other bands.
•
Weather sealed and UV hardened
•
•
Very Low Wind Loading
Mates easily to telecom poles, 1.25" to
2.0" in diameter
•
•
•
2100 to 2700 MHz Coverage
-25 dBc Side Lobe Levels
-25 dBc Cross Polarization
FEATURES
ELECTRICAL SPECIFICATIONS (Typical Performance)
Model Number
Frequency Range (MHz)
Gain (dBi)
VSWR
Crosspolar rejection (dB)
Input connector (male, 12" pig tail)
Dimensions (Diameter" x Length")
Inches
millimeters
AMS1000-1
2500-2700
11
1.5:1 max.
25
N
5X3
127 X 76
AMS1000-2
2500-2700
14
1.5:1 max.
25
N
5X6
127 X 152
AMS1000-3
2500-2700
16
1.5:1 max.
25
N
5X9
127 X 228
REMEC Magnum, Inc.
1990 Concourse Dr. • San Jose, CA 95131-1719
Tel 408.432.9898 • Fax 408.432.1551 • sales@remecmagnum.com

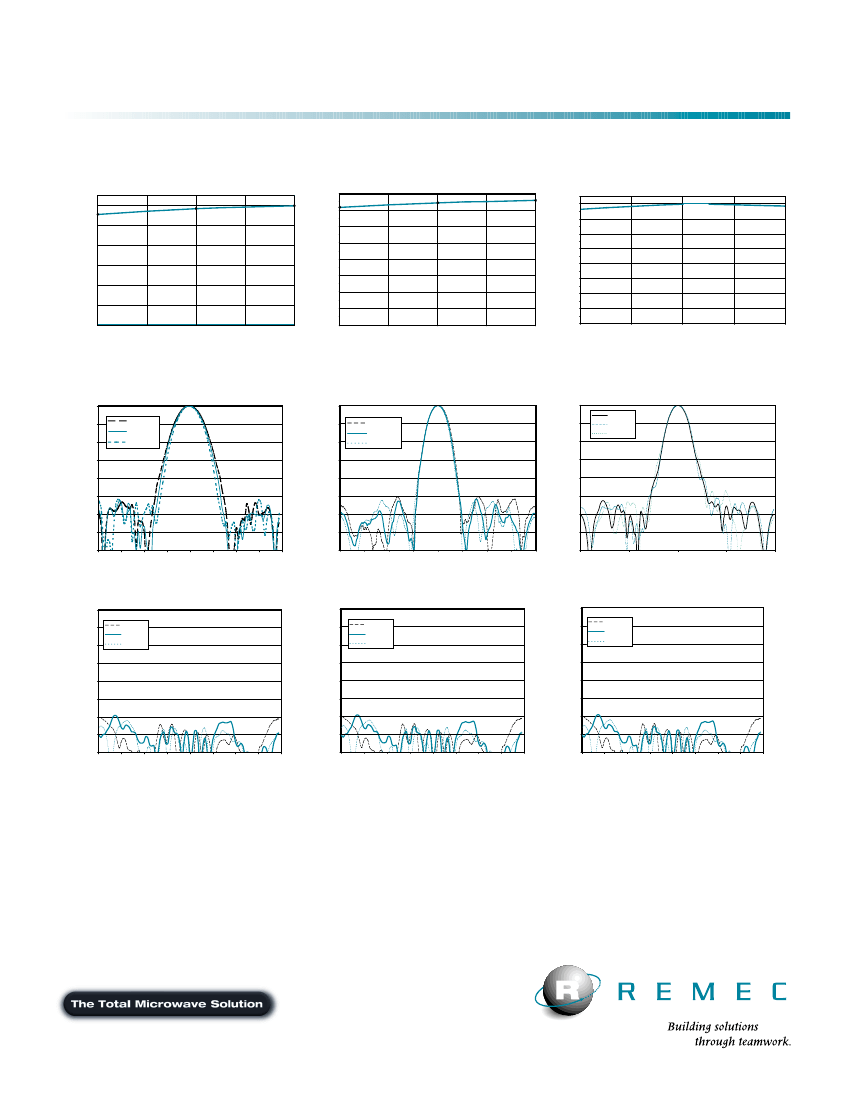

Models AMS1000-1, -2, & -3
11 dBi GAIN
12
10
8
dB
6
4
2
0
2.5
2.55
2.6
GHz
2.65
2.7
16
14
12
10
8
6
4
2
0
2.5
dB
MDS, ISM, WCS, MMDS
14 dBi GAIN
16
14
12
10
8
6
4
2
0
2.5
16 dBi GAIN
2.55
2.6
GHz
2.65
2.7
dB
2.55
2.6
GHz
2.65
2.7
CO-POLARIZATION, Vertical
0
-5
-10
-15
-dBc
-dBc
-20
-25
-30
-35
-40
0
45
90 135 180 225 270 315 360
DEGREES
2500 MHz.
2600 MHz.
2700 MHz.
CO-POLARIZATION, Vertical
0
-5
-10
-15
-20
-25
-30
-35
-40
-180 -135 -90 -45
0 45
DEGREES
0
-5
-10
-15
-dBc
-20
-25
-30
-35
-40
-dBc
90 135 180
-dBc
2500 MHz.
2600 MHz.
2700 MHz.
CO-POLARIZATION, Vertical
0
-5
-10
-15
-20
-25
-30
-35
-40
0
90
180
DEGREES
270
360
2600 MHz.
2500 MHz.
2700 MHz.
0
-5
-10
-15
-dBc
-20
-25
-30
-35
-40
0
X-POLARIZATION, Vertical
2500 MHz.
2600 MHz.
2700 MHz.
X-POLARIZATION, Vertical
2500 MHz.
2600 MHz.
2700 MHz.
0
-5
-10
-15
-20
-25
-30
-35
-40
X-POLARIZATION, Vertical
2500 MHz.
2600 MHz.
2700 MHz.
45
90 135 180 225 270 315 360
DEGREES
0
45
90 135 180 225 270 315 360
DEGREES
0
45
90 135 180 225 270 315 360
DEGREES
REMEC Magnum, Inc.
1990 Concourse Dr. • San Jose, CA 95131-1719
Tel 408.432.9898 • Fax 408.432.1551 • sales@remecmagnum.com
