3.0SMI54CATR datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> 3.0SMI54CATR

3.0SMI54CATR: DescriptionTrans Voltage Suppressor Diode,; CategoryDiscrete semiconductor diode; File Size374KB，6 Pages; ManufacturerSangdest Microelectronics (Nanjing) Co., Ltd.; Environmental Compliance

Download Datasheet Parametric View All

3.0SMI54CATR Overview

Trans Voltage Suppressor Diode,

3.0SMI54CATR Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Sangdest Microelectronics (Nanjing) Co., Ltd.
Reach Compliance Code	compliant
Diode type	TRANS VOLTAGE SUPPRESSOR DIODE
JESD-609 code	e3
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Terminal surface	Tin (Sn)
Maximum time at peak reflow temperature	NOT SPECIFIED

Preview

Download Datasheet

View All

3.0SMI SERIES

Technical Data

Data Sheet N1804 Rev. A

3.0SMI SERIES

SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR

Features



Glass Passivated Die Construction

3000W Peak Pulse Power Dissipation

5.0V- 170V Standoff Voltage

Uni- and Bi-Directional Versions Available

Excellent Clamping Capability

Fast Response Time

Plastic Case Material has UL Flammability

Classification Rating 94V-O

This is a Pb − Free Device

All SMC Parts are Traceable to the Wafer Lot

Additional testing can be offered upon request

SMC



Circuit Diagram

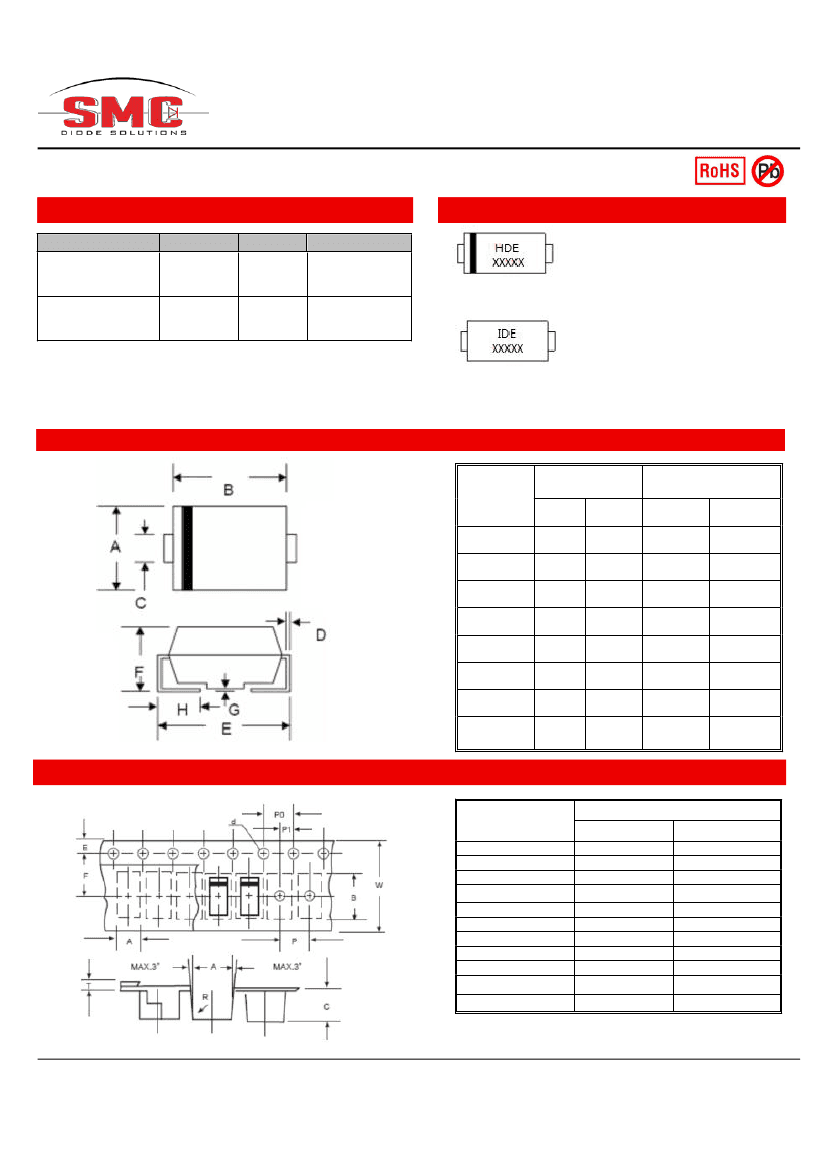

Mechanical Data



Case: SMC Low Profile Molded Plastic

Terminals: Solder Plated , Solderable per MIL-STD

750, Method 2026

Polarity: Cathode Band or Cathode Notch

Weight:0.21 grams(approx.)

Unipolar



Bipolar

Maximum Ratings and Thermal Characteristics

=25°C unless otherwise specified

Parameter

Peak Pulse Power Dissipation on 10/1000us waveform

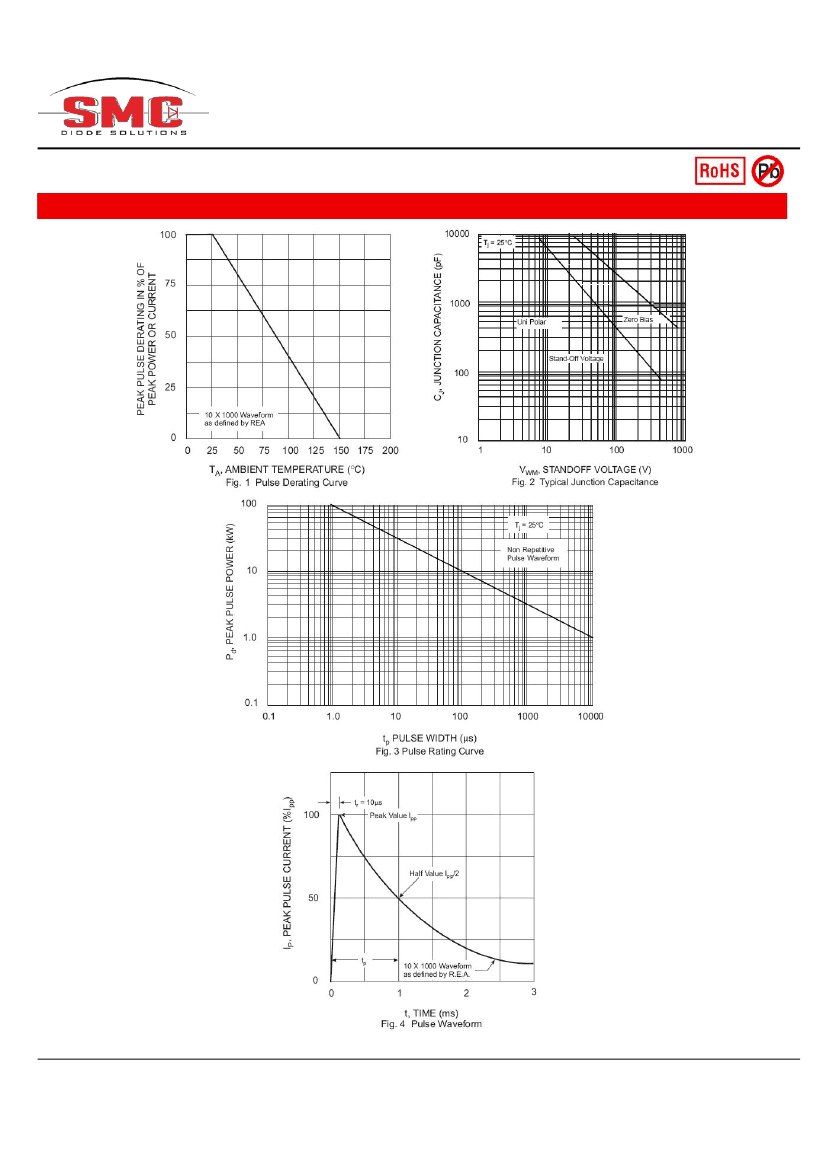

(NOTE 1, 2, Fig.1)

Peak Forward Surge Current, 8.3ms

Single Half Sine Wave (Note 2),(Note 3)

Typical Thermal Resistance Junction to Lead

Typical Thermal Resistance Junction to Ambient

Operating Junction and Storage Temperature Range

Symbol

PPM

FSM

θJL

θJA

STG

Value

3000

300

-55 to 150

Units

°C/W

°C

Notes:

1. Non-repetitive current pulse , per Fig. 3 and derated above T

= 25°C per Fig. 2.

2. Mounted on 8.0mm

copper pads to each terminal

3. Measured on 8.3ms single half sine wave or equivalent square wave, duty cycle=4pulses per minute maximum.



China - Germany - Korea - Singapore - United States



http://www.smc-diodes.com - sales@ smc-diodes.com


