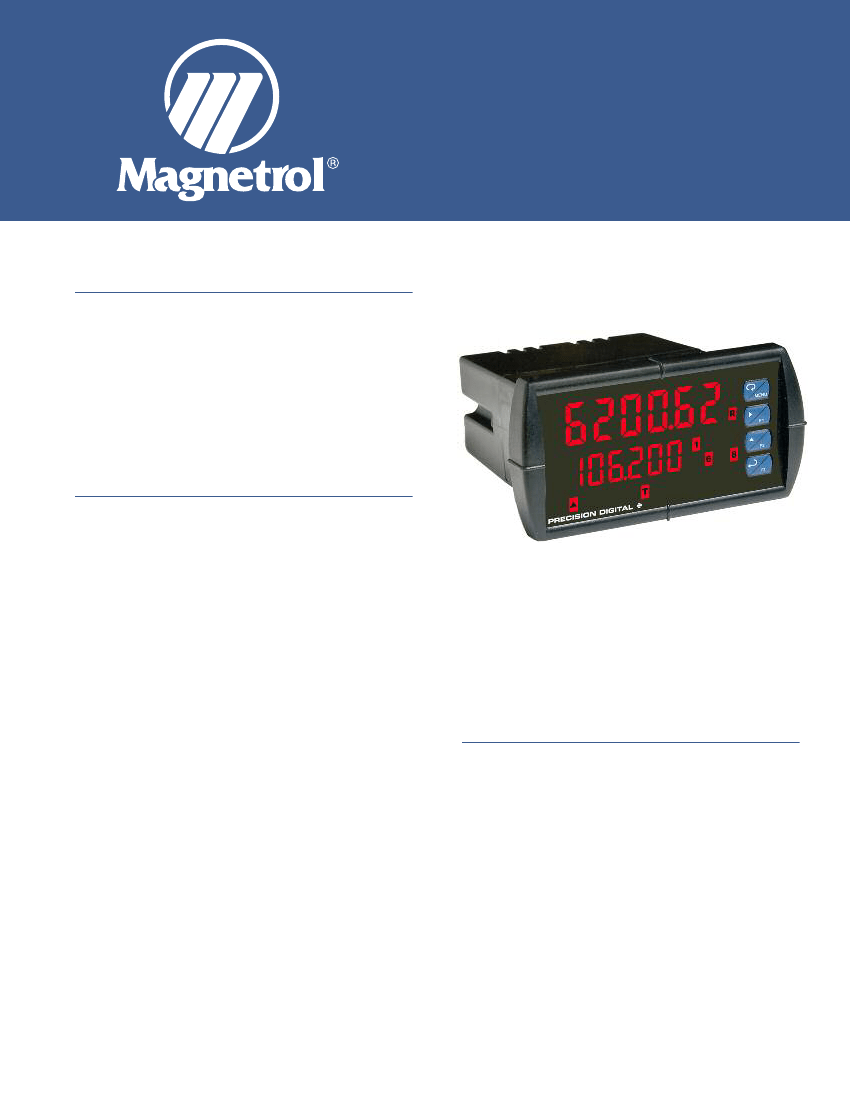

Digital Meters
Loop and Line Powered
DESCRIPTION
A selection of digital meters is available as additional
indication for any of Magnetrol’s electronic transmitters.
These meters are manufactured by a leading meter
supplier and are a valuable accessory to the local
indication already standard on many of our transmitters,
or as indication on a blind transmitter.
FEATURES
•
Choice of two- and four-wire models
•
1
⁄
8
" DIN, NEMA 4X and explosion proof enclosures
•
Panel and pipe mounting kits available
•
FM, CSA, UL and CENELEC approvals available
•
Only one volt drop across loop-powered models
•
3
1
⁄
2
, 4 or 6 digit display
•
Line-powered models available with the
following options:
• Totalizer
• On-board power supplies
• Up to four relays
• Pump alternation
• Programmable root functions
for flumes and weirs
• 11-point calibration
• Square root extraction
•
E3 Modulevel
®
Displacer Transmitters
•
Echotel
®
Models 300, 301, 344, 345 and 355
Non-Contact Ultrasonic Level Transmitters
•
Kotron
®
Models 82CE, 801, 804 and 805
RF Capacitance Level Transmitters
FOR
USE
WITH
•
Eclipse
®
Guided Wave Radar Transmitter
•
Thermatel
®
Models TA1 and TA2 Thermal
Mass Flow Transmitters
DIGITAL
Line/Loop
Display
Enclosure Material
Enclosure Rating
Power
METER
FEATURES
009-5768-6XX
Loop
3.5 digits, 1"
Glass Filled
Polycarbonate
NEMA 4X
24 VDC
009-5768-7XX
Loop
3.5 digits, 1"
Cast
Aluminum
Explosion Proof
24 VDC
009-5762-0XX*
Line
6 digits, 0.60"
Plastic
1
⁄
8
" DIN
NEMA 4X Panel
85-265 VAC,
12 or 24 VDC
-40° to +149° F
(-40° to +65° C)
Yes
None
Panel
50 - 100
Ω
700
Ω
Yes, 2
009-5776-5XX
Line
4 digits, 0.56"
Plastic
1
⁄
8
" DIN
NEMA 4X Panel
85-265 VAC/90-265 VDC
12-36 VDC
+32° to +149° F
(0° to +65° C)
None
None
Panel
50
Ω
N/A
N/A
Operating Temp. Range
UL/CUL Approvals
FM/CSA Approvals
Mounting
Maximum Input
Loop Resistance
Isolated 24 VDC P.S.
Max. Loop Resistance
Isolated 24 VDC P.S.
009-5765-5XX*
Line
6 digits, 1"
Glass Filled
Polycarbonate
NEMA 4X
115/230 VAC,
24 VDC
-4° to +149° F
(-20° to +65° C)
None
None
Wall
100
Ω
1200
Ω
Yes, 2
-40° to +185° F
-40° to +176° F
(-40° to +85° C)
(-40° to +80° C)
None
None
Class
I, II, III,
Div 1 Cl.
I
Div 1, Gps C,D
Gps A,B,C,D,E,F,G Cl.
II
Div 1,Gps E,F,G
Type 4X
Cl.
III
Wall
Wall
50
Ω
N/A
N/A
50
Ω
N/A
N/A
*
Models 009-5765-5XX and 009-5762-0XX include the following features: totalizer, 2 or 4 SPDT relays with adjustable deadband
rated for 2 amps at 250 VAC, alternate rate/total display, pump alternation, 4-20 mA retransmit, 11-point calibration, programmable
root functions for weirs & flumes, square root extraction, priority batch programming, lock-out and fail-safe.

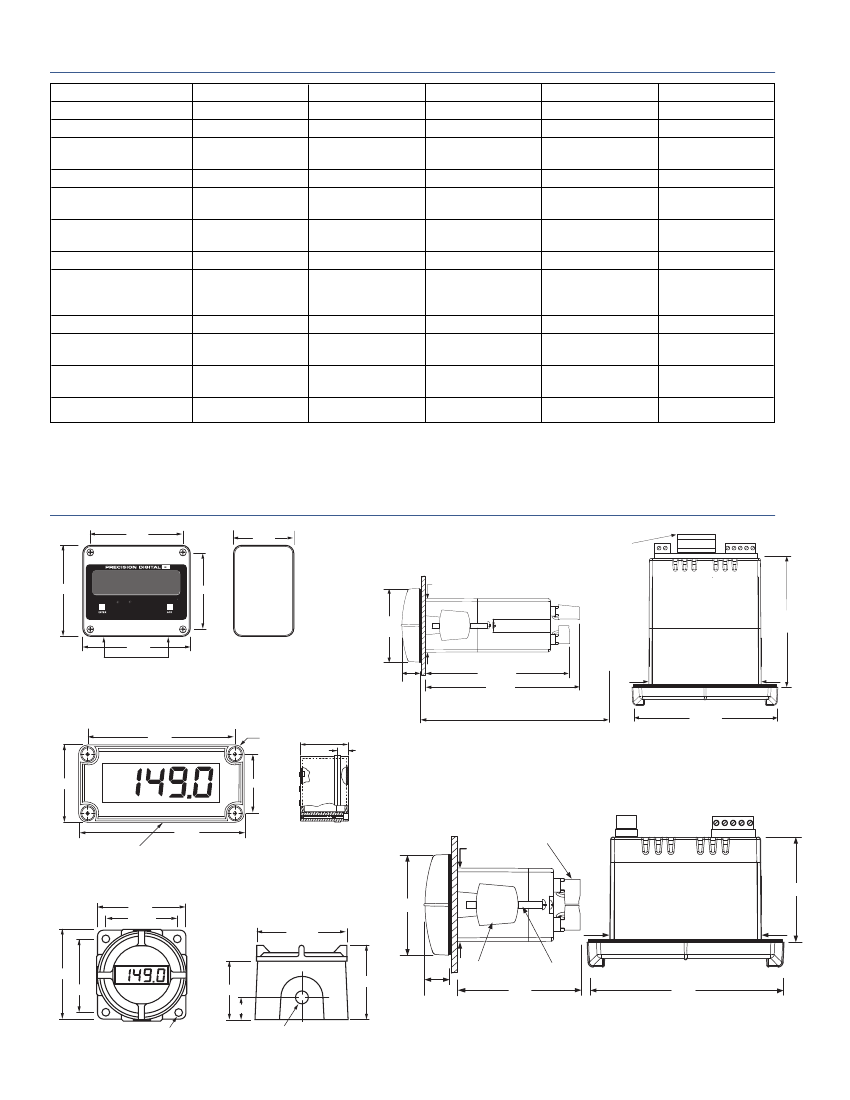

DIMENSIONAL
6.00"
DRAWINGS
3.70"
Relays Option
Connector
5.50"
672468
6.70"
4.80"
1.76"
(45 mm)
2.45"
(62 mm)
4.17"
(106 mm)
(2) 1/2" conduit entries
0.59"
(15 mm)
4.77"
(121 mm)
5.05"
(128 mm)
6"
(152 mm) Clearance
3.61"
(92 mm)
009-5765-5XX
4.68"
(119 mm)
4.72"
Wall
Mounting
Holes
Beneath
Cover
Screws
2.56"
.79"
009-5762-0XX
3.15"
2.36"
5.51"
1/2"
conduit entry
END VIEW
1.76"
TOP
VIEW
Removable
Connectors
009-5768-6XX
6.25"
5.12"
2.50"
2.45"
6.38"
3.61"
6.25"
5.12"
4"
5.12"
1.5"
3/4"
NPT conduit entry
0.59"
Mounting
Bracket
3.1"
Mounting
Screw
4.68"
009-5776-5XX
3/8"
009-5768-7XX
2
DIGITAL
METER
MODEL
NUMBER
METER TYPE
620
655
686
687
765
Line powered
1
⁄
8
DIN
Line powered NEMA 4X
Loop powered NEMA 4X
Loop powered XP
Line powered
1
⁄
8
DIN
24 VDC only
24 VDC only
SUPPLY VOLTAGE
0
2
115/230 VAC
24 VDC
620, 655 & 765 only
655, 686, 687, 692, 765
Model 009-5776-52X is suitable
for 12-36 VDC supply voltage
Model 009-5762-00X is suitable
for 85-265 VAC supply voltage
Model 009-5762-02X is suitable
for 12 or 24 VDC supply voltage
Model 009-5776-50X is suitable
for 85-265 VAC or 90-265 VDC
supply voltage
OUTPUT/OPTIONS
1
2
3
4
5
6
Indication only
2 relays
4-20 mA retransmit
2 relays and 4-20 mA retransmit
4 relays
4 relays and 4-20 mA retransmit
620 & 655 only
620 & 655 only
620 & 655 only
620 & 655 only
620 & 655 only
MOUNTING KITS
0
0
9
5
7
036-3817-001
Panel mounting kit for
Model 655
2" pipe mounting kit for
Model 655
Panel mounting kit for
Model 686
2" pipe mounting kit for
Models 686 & 687
036-3817-002
036-3817-003
036-3817-004
MODEL
Magnetrol
Model
009-5762-021
009-5762-022
009-5762-023
009-5762-024
009-5762-025
009-5762-026
009-5762-001
009-5762-002
009-5762-003
009-5762-004
009-5762-005
NUMBER
Precision Digital
Model
PD6200-7R0
PD6200-7R2
PD6200-7R3
PD6200-7R5
PD6200-7R4
PD6200-7R7
PD6200-6R0
PD6200-6R2
PD6200-6R3
PD6200-6R5
PD6200-6R4
CROSS-REFERENCE
Magnetrol
Model
009-5762-006
009-5765-501
009-5765-502
009-5765-503
009-5765-504
009-5765-505
009-5765-506
009-5765-521
009-5765-522
009-5765-523
009-5765-524
Precision Digital
Model
PD6200-6R7
PD655-N
PD655-44
PD655-45
PD655-46
PD655-47
PD655-48
PD655-2-N
PD655-2-44
PD655-2-45
PD655-2-46
Magnetrol
Model
009-5765-525
009-5765-526
009-5768-621
009-5768-721
009-5776-501
009-5776-521
036-3817-001
036-3817-002
036-3817-003
036-3817-004
Precision Digital
Model
PD655-2-47
PD655-2-48
PD686
PD687-EX
PD765-6RO
PD765-6RO-1
PDA6554
PDA6545
PDA6844
PDA6845
3
QUALITY
The quality assurance system in place at
Magnetrol guarantees the highest level of quality
throughout the company. Magnetrol is commit-
ted to providing full customer satisfaction both
in quality products and quality service.
Magnetrol’s corporate quality assurance system
is registered to ISO 9001 affirming its commit-
ment to known international quality standards
providing the strongest assurance of prod-
uct/service quality available.
WARRANTY
All Magnetrol electronic level and flow controls
are warranted free of defects in materials or
workmanship for one full year from the date of
original factory shipment.
If returned within the warranty period; and,
upon factory inspection of the control, the
cause of the claim is determined to be covered
under the warranty; then, Magnetrol will repair
or replace the control at no cost to the purchaser
(or owner) other than transportation.
Magnetrol shall not be liable for misapplication,
labor claims, direct or consequential damage or
expense arising from the installation or use of
equipment. There are no other warranties
expressed or implied, except special written
warranties covering some Magnetrol products.
Important Note:
The digital meters described in this bulletin are manufactured by Precision Digital and marketed and
sold on a non-exclusive basis by Magnetrol International. Standard Precision Digital terms relative to
warranty, shipment and ISO 9001 registration apply.
5300 Belmont Road • Downers Grove, Illinois 60515-4499 • 630-969-4000 • Fax 630-969-9489 • www.magnetrol.com
145 Jardin Drive, Units 1 & 2 • Concord, Ontario Canada L4K 1X7 • 905-738-9600 • Fax 905-738-1306
Heikensstraat 6 • B 9240 Zele, Belgium • 052 45.11.11 • Fax 052 45.09.93
Regent Business Ctr., Jubilee Rd. • Burgess Hill, Sussex RH15 9TL U.K. • 01444-871313 • Fax 01444-871317
Copyright © 2009 Magnetrol International, Incorporated. All rights reserved. Printed in the USA.
Performance specifications are effective with date of issue and are subject to change without notice.
Magnetrol & Magnetrol logotype, Eclipse, and Modulevel are registered trademarks of Magnetrol International.
BULLETIN: 41-104.2
EFFECTIVE: June 2009
SUPERSEDES: May 2003
