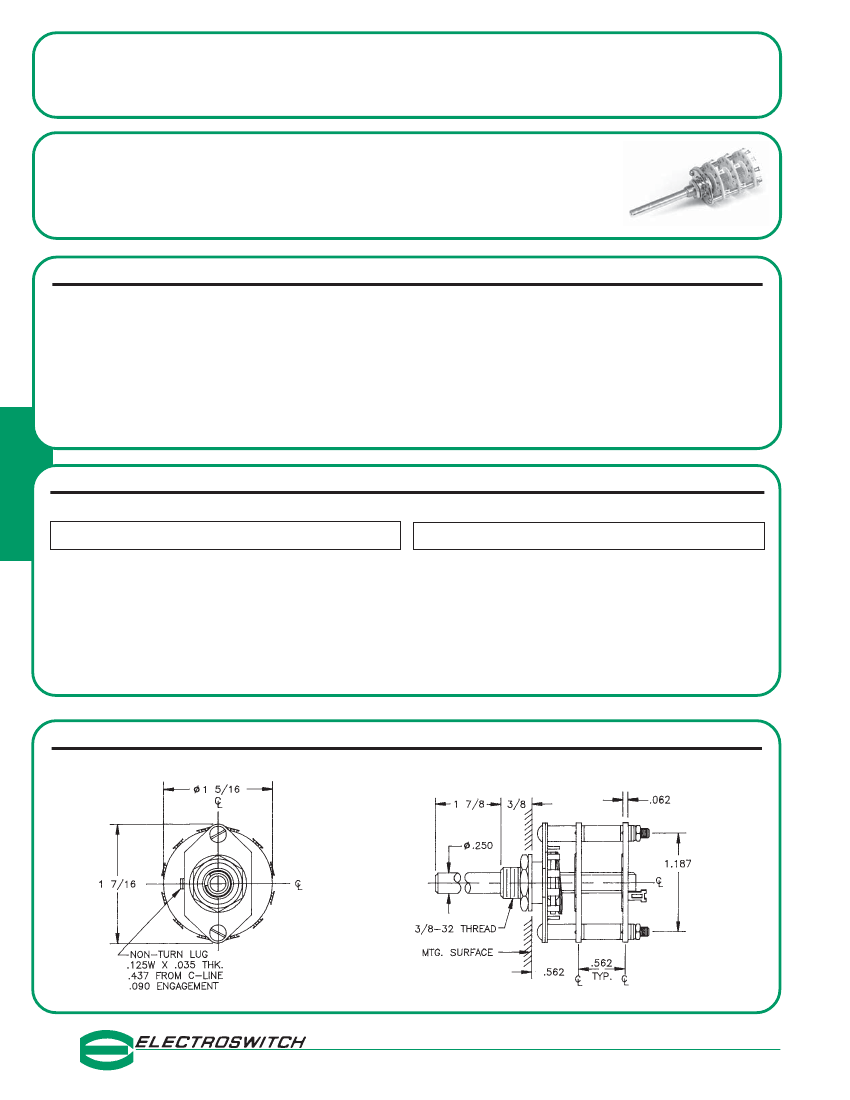

D4 - SERIES
SPECIFICATIONS AND ORDERING INFORMATION
1.437" DIAMETER 1.5 AMPS @ 28 VDC
The D4 Series switch is the most economical and versatile switch in our
open frame rotary line. This series offers the quality feel of a ball and spring
index mechanism and is available with up to 12 positions and 30° or 60°
indexing.
SPECIFICATIONS
ELECTRICAL
Current and Voltage Rating:
Make and break resistive load
1.5 amps @ 28 VDC; 0.5 amp @ 115 VAC.
Current Carrying Capacity:
9 amps.
Dielectric Strength:
1,500 VAC between current carrying parts and
ground.
Contact Resistance:
Average initial 3.5 milliohms.
Insulation Resistance:
Glass epoxy in excess of 750,000 megohms.
Ceramic in excess of 1,000,000 megohms.
Diallyl in excess of 900,000 megohms.
Hardware:
Mounting nut and lockwasher are shipped assembled.
MECHANICAL
Materials and Finishes:
All parts utilize non-corrosive materials
as standard.
Clips and Rotors:
Brass with silver plate as standard.
Insulation:
Glass epoxy, ceramic, or diallyl phthalate.
Index:
Single-ball, hill and valley.
Index Life:
25,000 cycles minimum.
Index Torque:
Switches have lowest practical torque consistent
with crisp detenting and smooth, reliable operation.
Index Angles:
Positive 30° standard, 60° available.
Index Stops:
Adjustable standard, fixed or continuous.
Stop Strength:
10 in. lbs. minimum.
D
STANDARD PART NUMBER
GLASS EPOXY INSULATION
SWITCHES - SOLDER LUG TERMINALS - 30° INDEX - ADJUSTABLE STOPS
CERAMIC INSULATION
SWITCHES - SOLDER LUG TERMINALS - 30° INDEX - ADJUSTABLE STOPS
ACTIVE
POLES/
POLES POSITIONS SECTION
01
02-11
1
02
02-11
1
02
02-05
2
03
02-11
1
03
02-03
3
04
02-11
1
04
02-05
2
05
02-11
1
06
02-11
1
06
02-05
2
06
02-03
3
09
02-03
3
NO. OF
SECTIONS
1
2
1
3
1
4
2
5
6
3
2
3
SHORTING
D4G0111S
D4G0211S
D4G0205S
D4G0311S
D4G0303S
D4G0411S
D4G0405S
D4G0511S
D4G0611S
D4G0605S
D4G0603S
D4G0903S
NON-
SHORTING
D4G0111N
D4G0211N
D4G0205N
D4G0311N
D4G0303N
D4G0411N
D4G0405N
D4G0511N
D4G0611N
D4G0605N
D4G0603N
D4G0903N
FIG.
DA
DA
DG
DA
DM
DA
DG
DA
DA
DG
DM
DM
*
ACTIVE
POLES/
POLES POSITIONS SECTION
01
02-12
1
02
02-12
1
02
02-06
2
03
02-12
1
03
02-05
3
04
02-12
1
04
02-06
2
05
02-12
1
05
02-03
5
06
02-12
1
06
02-06
2
06
02-05
3
NO. OF
SECTIONS
1
2
1
3
1
4
2
5
1
6
3
2
SHORTING
D4C0112S
D4C0212S
D4C0206S
D4C0312S
D4C0305S
D4C0412S
D4C0406S
D4C0512S
D4C0503S
D4C0612S
D4C0606S
D4C0605S
NON-
SHORTING
D4C0112N
D4C0212N
D4C0206N
D4C0312N
D4C0305N
D4C0412N
D4C0406N
D4C0512N
D4C0503N
D4C0612N
D4C0606N
D4C0605N
FIG.
DD
DD
DL
DD
DO
DD
DL
DD
DR
DD
DL
DO
*
* FIGURES ARE SHOWN ON PAGES 55 AND 56.
DIMENSIONS
STANDARD CONSTRUCTION
D4G -
STANDARD GLASS EPOXY CONSTRUCTION
•
ELECTRONIC PRODUCTS
UNIT OF ELECTRO SWITCH CORP.
2010 Yonkers Road
Raleigh, NC 27604
Telephone: (888) ROTARYS or (919) 833-0707
Fax: (800) 909-9171 or (919) 833-8016
24

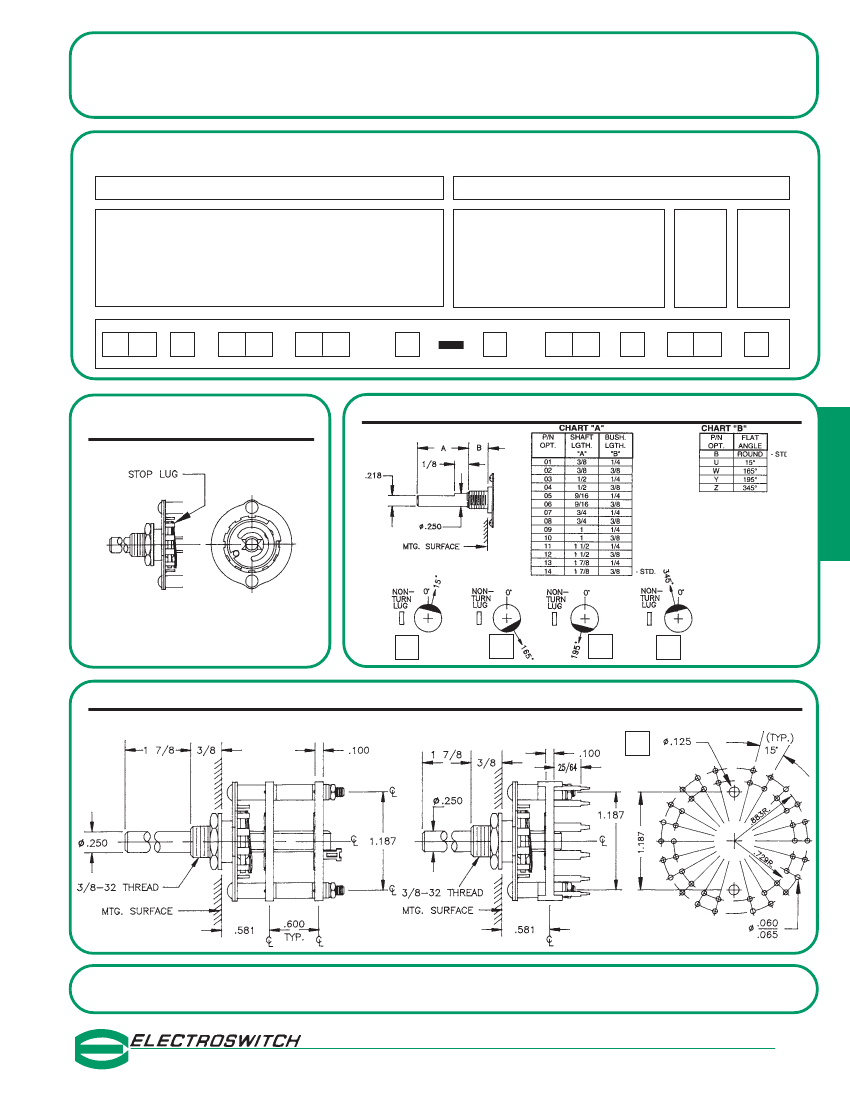

ADDITIONAL OPTIONS AND ORDERING INFORMATION
D4 - SERIES
INDEX
ANGLE
30°
60°
STOP
TYPE
A - ADJ.
F - FIXED
C - CONT.
SEE
CHART
“A”
SEE
CHART
“B”
SHAFT/
BUSHING
SHAFT
FLAT
How to Order Additional Options:
2 DIGIT
SERIES
D4
INSULATION
TYPE
G - GLASS
C - CERAMIC
D - DIALLYL
TOTAL
POLES
01 - MIN.
ACTIVE
POSITIONS
12 - MAX @ 30°
06 - MAX @ 60°
CONTACT
TYPE
N - NON
SHORTING
S - SHORTING
TERMINAL
TYPE
L - SOLDER LUG
R - REAR P.C.
CUSTOMERS SPECIFIED ORDER NUMBER FOR STANDARD OPTIONS
ADDITIONAL OPTIONS
(SPECIFY)
(SPECIFY)
(SPECIFY) (SPECIFY)
(SPECIFY)
D
4
(SPECIFY)
(SPECIFY)
(SPECIFY)
ADJUSTABLE STOP
MECHANISM
SHAFT
,
BUSHING
,
AND FLAT OPTIONS
D
SHAFT AS VIEWED
WITH NON-TURN LUG
AT 9 O'CLOCK AND
SHAFT IN EXTREME
CCW POSITION AND
STRUT BOLTS
ORIENTED VERTICALLY.
REMOVE STOP LUGS TO ACHIEVE
MORE POSITIONS.
U
W
Y
Z
INSULATION AND PRINTED CIRCUIT BOARD TERMINAL OPTIONS
D4C
- CERAMIC CONSTRUCTION
D4D
-DIALLYL PHTHALATE CONSTRUCTION
DIALLYL PHTHALATE
P.C. BOARD MOUNTING PATTERN
R
CUSTOM SWITCHES ARE AVAILABLE. CONTACT THE FACTORY WITH YOUR COMPLETE SPECIFICATIONS.
•
ELECTRONIC PRODUCTS
UNIT OF ELECTRO SWITCH CORP.
2010 Yonkers Road
Raleigh, NC 27604
Telephone: (888) ROTARYS or (919) 833-0707
Fax: (800) 909-9171 or (919) 833-8016
25
