5010835009 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> 5010835009

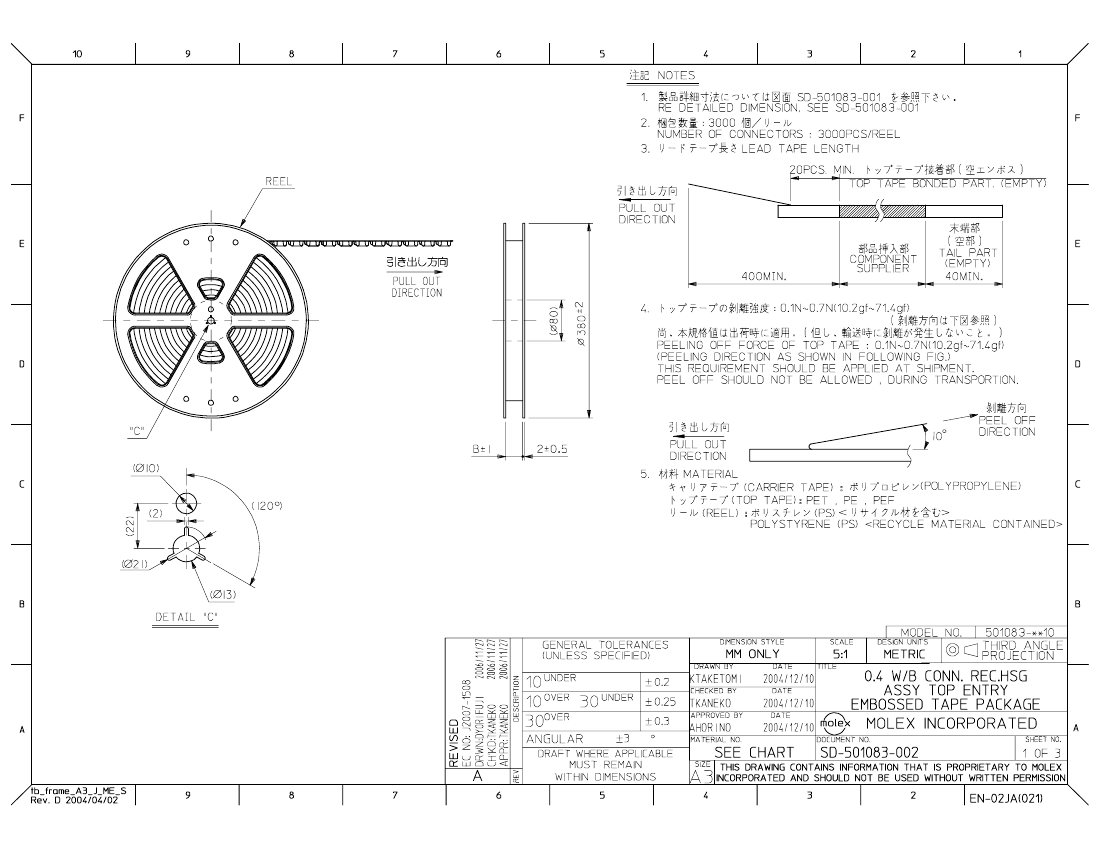

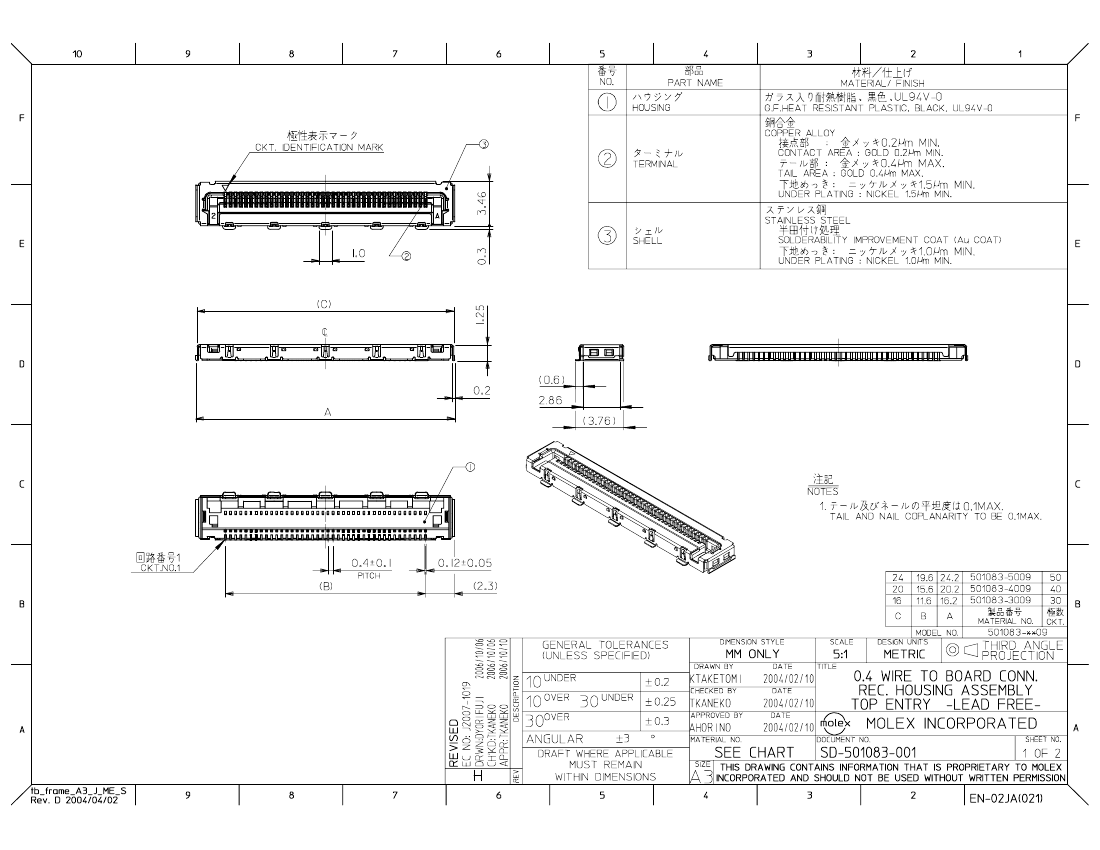

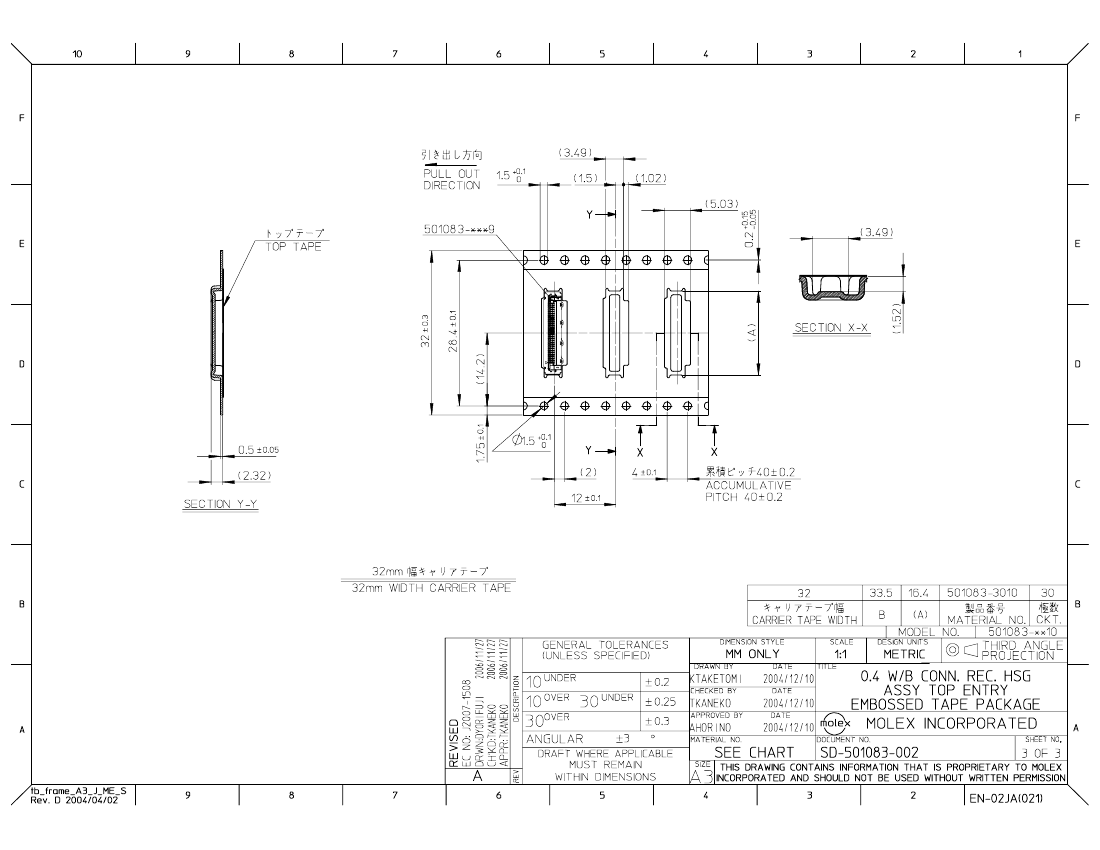

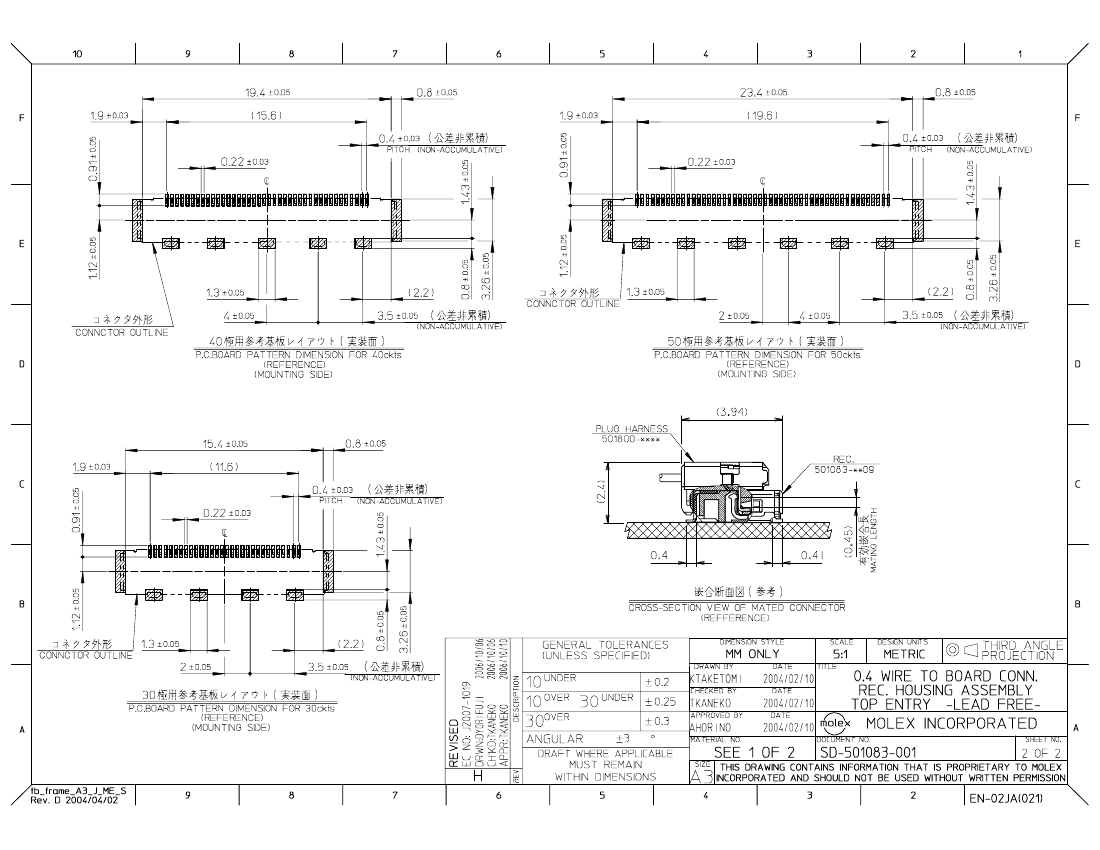

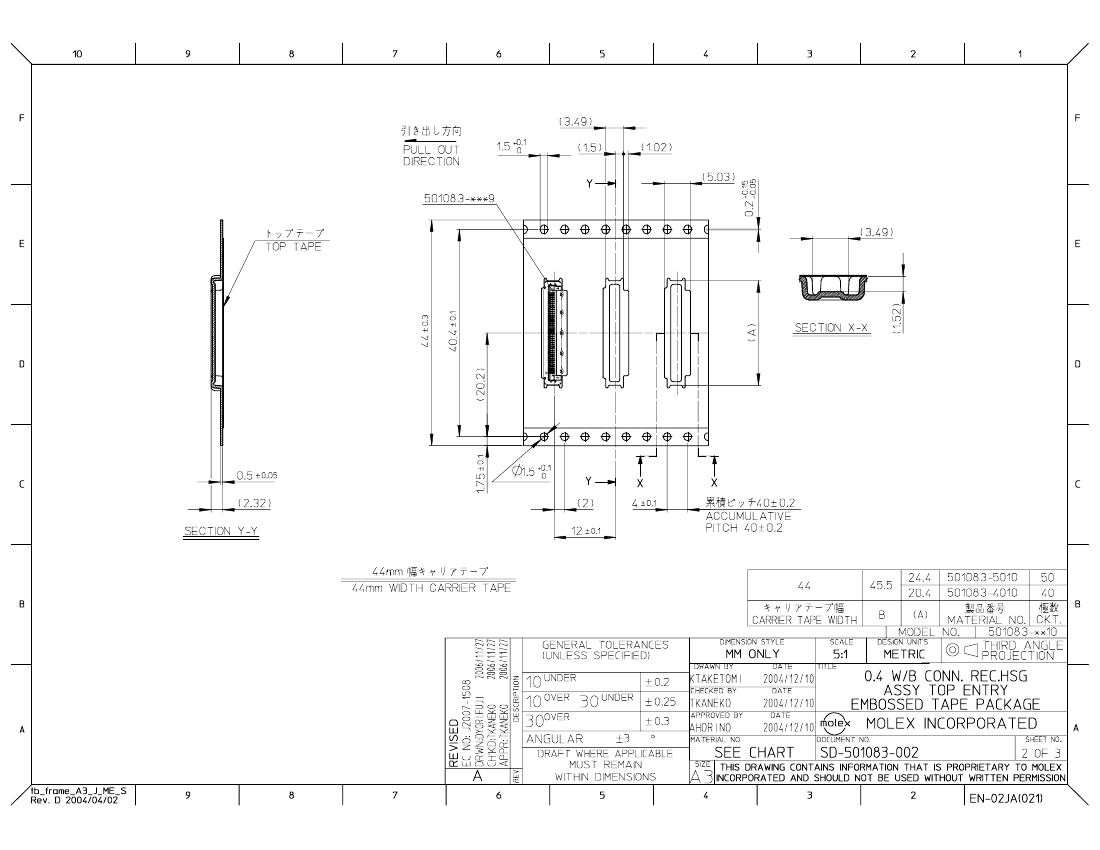

Preview

5010835009: DescriptionTWO PART BOARD CONNECTOR; CategoryThe connector; File Size399KB，5 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric Compare View All

5010835009 Overview

TWO PART BOARD CONNECTOR

5010835009 Parametric

Parameter Name	Attribute value
Connector type	BOARD CONNECTOR
Contact materials	NOT SPECIFIED
Terminal spacing	0.4064 mm
Total number of contacts	30
EU RoHS regulations	Yes
state	Active
width	0.1480 inch
body_depth	0.0490 inch
body_diamete	0.6380 inch
Shell style	RECEPTACLE
Contact surface matching	NOT SPECIFIED
Contact coated terminals	NOT SPECIFIED
Connector male and female	MALE
contact_patte	RECTANGULAR
contact_resistance	450 mohm
dielectric_withstanding_voltage__v_	160VAC
durability	10 Cycles
insertion_force_max__n_	1.3344
insulation_resistance	1.00E8 ohm
insulator_col	BLACK
Manufacturer Series	501083
mating_contact_pitch__inch_	0.016
mounting_option_1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
umber_of_connectors	ONE
umber_of_pcb_rows	1
Number of load rows	2
Minimum operating temperature	-30 Cel
erating_temperature_max__cel_	75
cb_contact_patte	RECTANGULAR
lating_thickness__inch_	16u
larization_key	POLARIZED HOUSING
ed_current__signal_	0.2000 A
eference_standard	UL
eliability	COMMERCIAL
sub_category	Headers and Edge Type Connectors
Terminal type	SURFACE MOUNT
withdrawl_force_min__n_	.139
dditional_feature	ROHS COMPLIANT

Preview

Download Datasheet

View All

5010835009 Related Products

	5010835009	501083-3009	501083-4009	501083-5009
Description	TWO PART BOARD CONNECTOR	TWO PART BOARD CONNECTOR	TWO PART BOARD CONNECTOR	TWO PART BOARD CONNECTOR
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact materials	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Terminal spacing	0.4064 mm	0.4064 mm	0.4064 mm	0.4064 mm
Total number of contacts	30	30	30	30
EU RoHS regulations	Yes	Yes	Yes	Yes
state	Active	Active	Active	Active
width	0.1480 inch	0.1480 inch	0.1480 inch	0.1480 inch
body_depth	0.0490 inch	0.0490 inch	0.0490 inch	0.0490 inch
body_diamete	0.6380 inch	0.6380 inch	0.6380 inch	0.6380 inch
Shell style	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Contact surface matching	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact coated terminals	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Connector male and female	MALE	MALE	MALE	MALE
contact_patte	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
contact_resistance	450 mohm	450 mohm	450 mohm	450 mohm
dielectric_withstanding_voltage__v_	160VAC	160VAC	160VAC	160VAC
durability	10 Cycles	10 Cycles	10 Cycles	10 Cycles
insertion_force_max__n_	1.3344	1.3344	1.3344	1.3344
insulation_resistance	1.00E8 ohm	1.00E8 ohm	1.00E8 ohm	1.00E8 ohm
insulator_col	BLACK	BLACK	BLACK	BLACK
Manufacturer Series	501083	501083	501083	501083
mating_contact_pitch__inch_	0.016	0.016	0.016	0.016
mounting_option_1	LOCKING	LOCKING	LOCKING	LOCKING
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD
umber_of_connectors	ONE	ONE	ONE	ONE
umber_of_pcb_rows	1	1	1	1
Number of load rows	2	2	2	2
Minimum operating temperature	-30 Cel	-30 Cel	-30 Cel	-30 Cel
erating_temperature_max__cel_	75	75	75	75
cb_contact_patte	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
lating_thickness__inch_	16u	16u	16u	16u
larization_key	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING
ed_current__signal_	0.2000 A	0.2000 A	0.2000 A	0.2000 A
eference_standard	UL	UL	UL	UL
eliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
sub_category	Headers and Edge Type Connectors	Headers and Edge Type Connectors	Headers and Edge Type Connectors	Headers and Edge Type Connectors
Terminal type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
withdrawl_force_min__n_	.139	.139	.139	.139
dditional_feature	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
