AFSD5-080120-25-26P datasheet, PDF

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> AFSD5-080120-25-26P

AFSD5-080120-25-26P: Description8000MHz - 12000MHz RF/MICROWAVE WIDE BAND MEDIUM POWER AMPLIFIER; CategoryWireless rf/communication Radio frequency and microwave; File Size51KB，1 Pages; ManufacturerMITEQ Inc

Download Datasheet Parametric Compare View All

AFSD5-080120-25-26P Overview

8000MHz - 12000MHz RF/MICROWAVE WIDE BAND MEDIUM POWER AMPLIFIER

AFSD5-080120-25-26P Parametric

Parameter Name	Attribute value
Maker	MITEQ Inc
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	SMA-F
structure	COAXIAL
Gain	28 dB
Maximum operating frequency	12000 MHz
Minimum operating frequency	8000 MHz
RF/Microwave Device Types	WIDE BAND MEDIUM POWER
Maximum voltage standing wave ratio	2

Preview

Download Datasheet

View All

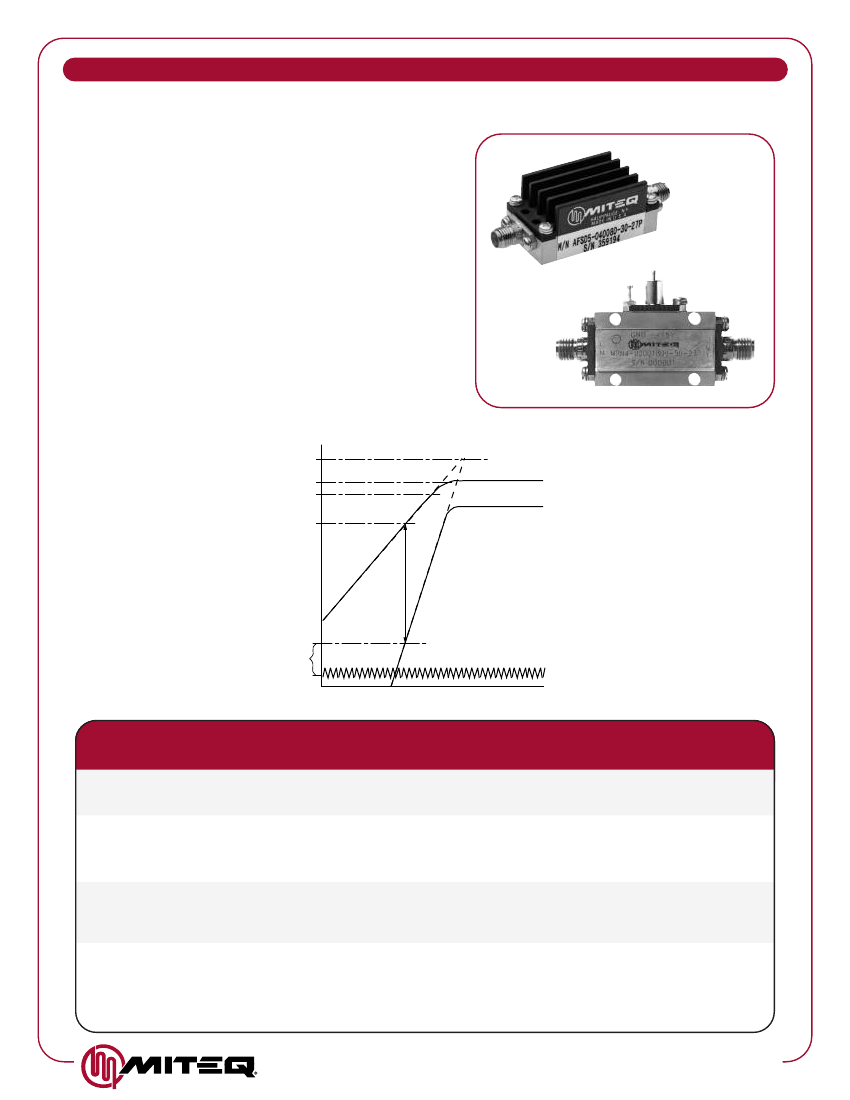

MEDIUM POWER AMPLIFIERS

AFSD/MPN SERIES

FEATURES

• High dynamic range

• Up to 1 watt output power

• Usable as a TWTA and SSPA

driver amplifier

• Low power consumption

• One-year warranty

• EMI suppression filter

• High second and third intercept points

• Custom frequency, gain, and power

options available

OUTPUT POWER

Third Order

Intercept Point

Saturated Output Power

Output Power at

1 dB Compression

Maximum

Spur-Free Level

Spur-Free Dynamic Range

Sensitivity Threshold

Signal-to-Noise Ratio

Output

Noise

INPUT POWER

MODEL

NUMBER

AFSD5-020080-22-26P

AFSD4-020060-20-27P

AFSD5-040080-20-27P

AFSD5-040120-35-25P

AFSD5-060120-30-26P

AFSD5-080100-22-27P

AFSD5-080120-25-26P

MPN1-00100100-23P*

MPN2-00200200-27P*

MPN2-00500100-30P*

MPN2-01000200-28P*

MPN3-02000400-25P

MPN3-02001800-20P

MPN4-02001800-23P

FREQUENCY

RANGE

GAIN

(GHz)

(dB, Min.)

2–8

2–6

4–8

4–12

6–12

8–10

8–12

0.1–1

0.2–2

0.5–1

1–2

2–4

2–18

GAIN

FLATNESS

(±dB, Max.)

1.2

1.5

2.5

T wo

O rd e -T o n e T

r In t

e r mo i r d

tal

NOISE

FIGURE

(dB, Max.)

2.2

3.5

2.2

2.5

1.5

2.5

1.5

VSWR

IN/OUT

(Max.)

2:1

2.5:1/2:1

2:1/2.5:1

2:1

2.5:1/2.2:1

OUTPUT POWER

@ 1 dB COMP.

(dBm, Min.)

NOM. DC

POWER

(15 V, mA)

550

575

450

550

575

600

500

200

250

500

550

300

450

700

* These models can be optimized for cellular telephony applications.

NOTE: See pages 61 and 62 for outlines.

100 Davids Drive, Hauppauge, NY 11788

TEL.: (631) 439-9220 • FAX: (631) 436-7430

e-mail: components@miteq.com •

www.miteq.com

C-24C/MPN Series 022707

AFSD5-080120-25-26P Related Products

	AFSD5-080120-25-26P	AFSD5-020080-22-26P	AFSD5-080100-22-27P	MPN2-00500100-30P	AFSD4-020060-20-27P	AFSD5-040080-20-27P	AFSD5-060120-30-26P	AFSD5-040120-35-25P	MPN3-02001800-20P
Description	8000MHz - 12000MHz RF/MICROWAVE WIDE BAND MEDIUM POWER AMPLIFIER	2000MHz - 8000MHz RF/MICROWAVE WIDE BAND MEDIUM POWER AMPLIFIER	Wide Band Medium Power Amplifier, 8000MHz Min, 10000MHz Max,	Wide Band Medium Power Amplifier, 500MHz Min, 1000MHz Max,	Wide Band Medium Power Amplifier, 2000MHz Min, 6000MHz Max,	Wide Band Medium Power Amplifier, 4000MHz Min, 8000MHz Max,	6000MHz - 12000MHz RF/MICROWAVE WIDE BAND MEDIUM POWER AMPLIFIER	4000MHz - 12000MHz RF/MICROWAVE WIDE BAND MEDIUM POWER AMPLIFIER	Wide Band Medium Power Amplifier, 2000MHz Min, 18000MHz Max,
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Other features	SMA-F	SMA-F	SMA-F	SMA-F	SMA-F	SMA-F	SMA-F	SMA-F	SMA-F
structure	COAXIAL	COAXIAL	COAXIAL	COAXIAL	COAXIAL	COAXIAL	COAXIAL	COAXIAL	COAXIAL
Gain	28 dB	30 dB	28 dB	25 dB	30 dB	30 dB	26 dB	25 dB	20 dB
Maximum operating frequency	12000 MHz	8000 MHz	10000 MHz	1000 MHz	6000 MHz	8000 MHz	12000 MHz	12000 MHz	18000 MHz
Minimum operating frequency	8000 MHz	2000 MHz	8000 MHz	500 MHz	2000 MHz	4000 MHz	6000 MHz	4000 MHz	2000 MHz
RF/Microwave Device Types	WIDE BAND MEDIUM POWER	WIDE BAND MEDIUM POWER	WIDE BAND MEDIUM POWER	WIDE BAND MEDIUM POWER	WIDE BAND MEDIUM POWER	WIDE BAND MEDIUM POWER	WIDE BAND MEDIUM POWER	WIDE BAND MEDIUM POWER	WIDE BAND MEDIUM POWER
Maximum voltage standing wave ratio	2	2	2	2	2	2	2	2	2.2
Maker	MITEQ Inc	MITEQ Inc	MITEQ Inc	MITEQ Inc	MITEQ Inc	-	-	MITEQ Inc	MITEQ Inc
Base Number Matches	-	1	1	1	1	1	1	-	-
