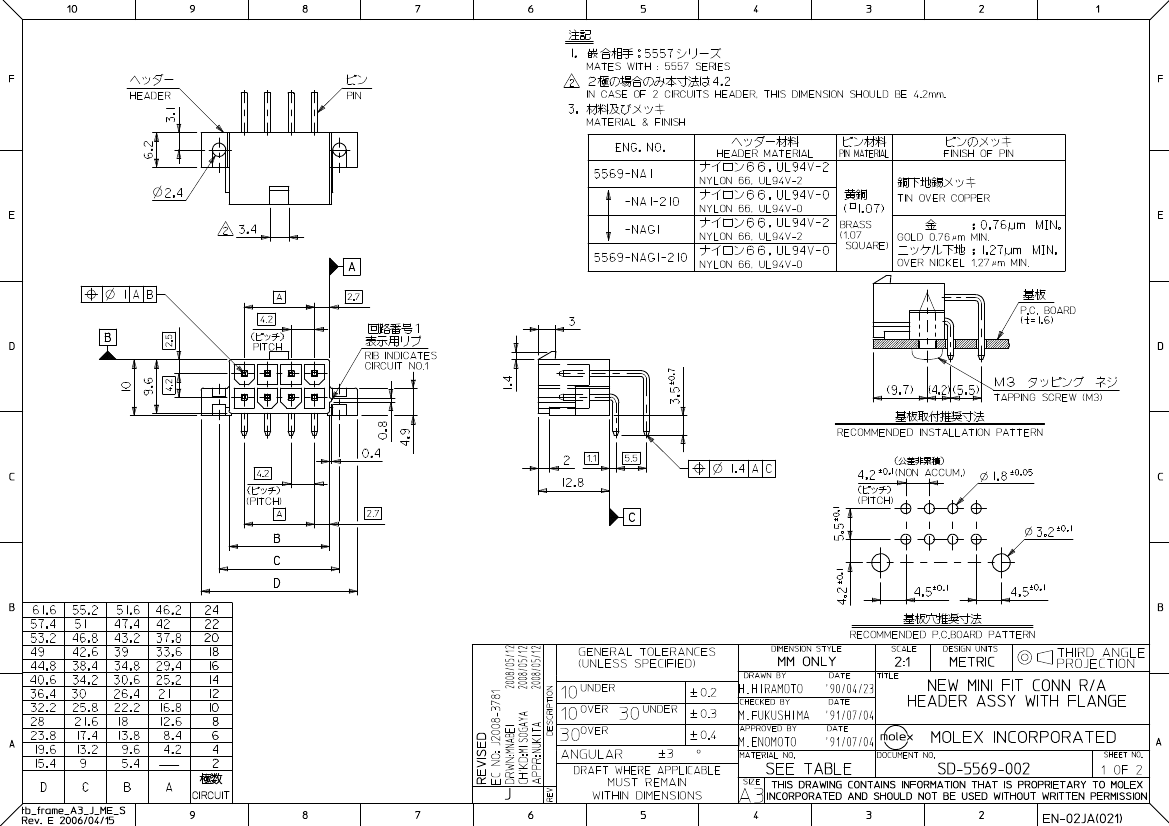

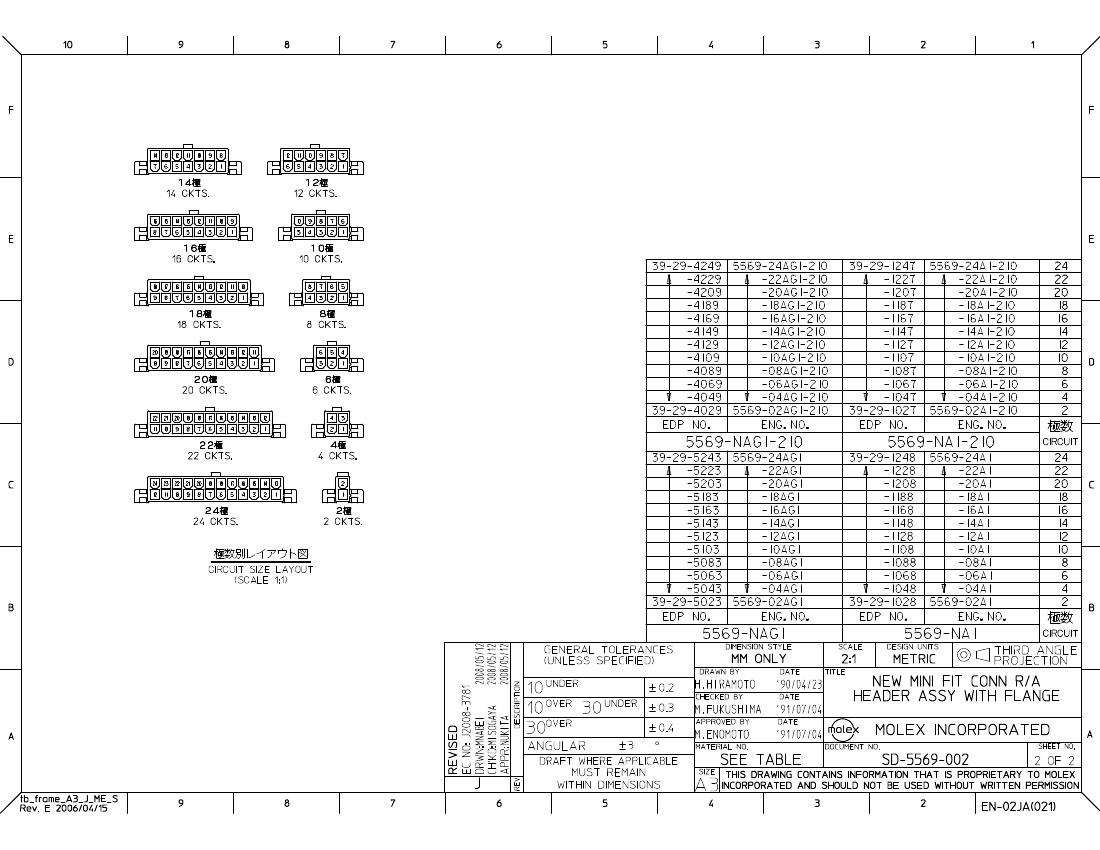

39-29-4249 |
39-29-4229 |
39294249 |
| Description |
2 CONTACT(S), MALE, POWER CONNECTOR, SOLDER |
2 CONTACT(S), MALE, POWER CONNECTOR, SOLDER |
2 CONTACT(S), MALE, POWER CONNECTOR, SOLDER |
| Installation type |
BOARD |
BOARD |
BOARD |
| Options |
GENERAL PURPOSE |
GENERAL PURPOSE |
GENERAL PURPOSE |
| Shell material |
NYLON |
NYLON |
NYLON |
| Total number of contacts |
24 |
22 |
2 |
| Is it Rohs certified? |
conform to |
conform to |
- |
| Reach Compliance Code |
compli |
unknow |
- |
| Other features |
MINI-FIT JR, LOW PROFILE |
MINI-FIT JR, LOW PROFILE |
- |
| body width |
0.394 inch |
0.394 inch |
- |
| subject depth |
0.764 inch |
0.764 inch |
- |
| body length |
2.425 inch |
2.26 inch |
- |
| Body/casing type |
RECEPTACLE |
RECEPTACLE |
- |
| Connector type |
RECTANGULAR POWER CONNECTOR |
RECTANGULAR POWER CONNECTOR |
- |
| Contact arrangement |
S0P24 |
S0P22 |
- |
| Contact to complete cooperation |
NOT SPECIFIED |
NOT SPECIFIED |
- |
| Contact completed and terminated |
TIN OVER NICKEL |
TIN OVER NICKEL |
- |
| Contact point gender |
MALE |
MALE |
- |
| Contact material |
NOT SPECIFIED |
NOT SPECIFIED |
- |
| Contact resistance |
10 mΩ |
10 mΩ |
- |
| Contact style |
SQ PIN-SKT |
SQ PIN-SKT |
- |
| DIN compliance |
NO |
NO |
- |
| Dielectric withstand voltage |
2200VAC V |
2200VAC V |
- |
| Durability |
30 Cycles |
30 Cycles |
- |
| empty shell |
NO |
NO |
- |
| Filter function |
NO |
NO |
- |
| IEC compliance |
NO |
NO |
- |
| maximum insertion force |
6.672 N |
6.672 N |
- |
| Insulation resistance |
1000000000 Ω |
1000000000 Ω |
- |
| Insulator color |
NATURAL |
NATURAL |
- |
| insulator material |
NYLON |
NYLON |
- |
| MIL compliance |
NO |
NO |
- |
| Manufacturer's serial number |
5569 |
5569 |
- |
| Plug information |
MULTIPLE MATING PARTS AVAILABLE |
MULTIPLE MATING PARTS AVAILABLE |
- |
| Mixed contacts |
NO |
NO |
- |
| Installation option 1 |
LOCKING |
LOCKING |
- |
| Installation method |
RIGHT ANGLE |
RIGHT ANGLE |
- |
| Number of connectors |
ONE |
ONE |
- |
| Number of rows loaded |
2 |
2 |
- |
| Maximum operating temperature |
105 °C |
105 °C |
- |
| Minimum operating temperature |
-40 °C |
-40 °C |
- |
| Guideline |
UL |
UL |
- |
| reliability |
COMMERCIAL |
COMMERCIAL |
- |
| Terminal length |
0.138 inch |
0.138 inch |
- |
| Terminal pitch |
4.191 mm |
4.191 mm |
- |
| Termination type |
SOLDER |
SOLDER |
- |
| UL Flammability Code |
94V-0 |
94V-0 |
- |
| Evacuation force-minimum value |
.5004 N |
.5004 N |
- |
| Base Number Matches |
1 |
1 |
- |
