8622 NAFI 2
Applications
Military airborne computer.
Description
• The NAFI 2 Series is a modular connector,
available either with 8 or 4 rows of contacts,
offering a very large diversity in the contact
number selection, from 16 up to 556 ways.
The connectors use improved miniaturized
tuning-forks and blade-contacts derived from
the MIL-C 28754 standard.
• One of the most interesting aspect of the new
8622 Series is the press-fit field proven tech-
nology. It provides a very low profile
female connector and contributes reducing
the volume and weight of the equipment and
making easier backplane repair.
Standards
Characteristics
Mechanical
• Contact insertion force per contact pair :
- signal contacts (average) : 0.46 N
- AWG 16 power contacts (Max) : 6.70 N
• Compliant pin retention in Pwb PTH : 25 N
• Contact life :
- mating/unmating cycles : 500
• Minimum shortest blade
contact security : 1.39 mm
Physical
As per CEI 512
• Damp heat at 40°C/94% R.H (mated) :
56 days
• Thermal shocks (-55°C to +125°C) :
5 cycles
• Salt spray 5% NaCI/35°C :48 hrs
• Physical shocks in 3 directions
1/2 sine-6ms : 100 g
• Vibrations : (no discontinuity)
- sine 10 - 2000 Hz - 15g/150 mn/axis
Satisfact.
- random 50 - 2000 Hz - 20g - 0.2g /Hz - 15 mn
Satisfact.
• Working temperature -55°C to + 125°C
Satisfact.
• Temperature ageing (1000 hrs)
125°C
• Resistance at areo fluids (EN2591 a.p.C15)
Satisfact.
• Weight in grams (396 way pair)
50grs
2
• The male header is available with SMT one-
piece contact and flex-cable as well; both ter-
minations are interchangeable on the
daughter board.
Male and female connectors are available
also with straight solder spill or press fitted
terminations for parallel cards dispositions.
• The insulator modules are provided with
closed entry cavities for tuning-fork contact
protection during mating operation. Both
female end modules are fitted with standard
signal contact and polarizing keys. The end
modules are also available with AWG 16
cavities for power, coaxial or fiber optic of the
MIL-C 38999 Series II crimp contacts.
Electrical
• Signal contact maximum current rating :
- permanent : 1 A
- during 3600 seconds : 2 A
- during 40 seconds : 3 A
• Power contact maximum current rating :
- permanent : 13 A
• Dielectric withstanding voltage
- at sea level : 600 VAC
- at an altitude of 13700 meters : 250 VAC
• Insulation resistance : 1000 MΩ
• Capacitance between contacts at 10 MHz
• With flex-cable termination : 3.5 pF
• Contact resistance Max (mated) : 30 mΩ
Materials and finishes
components
modular insulators
contacts
flex cable
extruded supports
male polarizing pins
female polarizing keys
materials
black PPS
UL94 VO
autoextinguish.
copper alloy
polyimid ana copper
aluminum alloy
stainless steel
aluminum alloy
finishes
a.p.MIL
black anodized
Ordering information
basic series
connector type
number of contacts
mandatory separation dot
number of rows
- 8 or 4
M -
male
F -
female
see next page
8622
M
396
-
8
07
000
contact termination style
07 -
SMT one-piece contact
14 -
straight solder spills
82 -
press-fit
suffix
000 -
standard
XXX -
any particular specification
Remark :
Above part-numbering system is given as an information.
Described example : 8622 M396-807000 is a 396 way 8 row standard male header with SMT terminations.
For
any particular design,
you are requested to compose your reference and consult us for getting a definitive part number and customer drawings as well.
396
10
8622 NAFI 2
The 8622 range
card format
dimension
A1 / B1
SEM
single
Europe
SEME
half
ATR
A3 / B3
SEM
connector
double number of number of overall
Europe fixings modules dimension
2
36.60
1.441
8 row connector
4 row connector
(15.24 mm pitch between cards)
(10.16 mm between cards)
number of contacts
8 rows populated
76
116
156
196
236
276
316
356
396
436
6 rows populated
56
86
116
146
176
206
236
266
296
326
4 rows populated
36
56
76
96
116
136
156
176
196
216
2 rows populated
16
26
36
46
56
66
76
86
96
106
3
69.90
2.752
49.30
1.941
4
62.00
2.441
2
100.00
3.937
5
74.70
2.941
fixings
6
87.40
3.441
7
8
9
149.30
5.878
100.10
3.941
112.80
4.441
125.50
4.941
10
138.20
5.441
164.00
6.457
11
159.80
6.291
3
222.00
8.740
12
13
172.50
6.791
476
516
556
356
386
416
236
256
276
116
126
136
fixings
185.20
7.291
233.00
9.173
14
197.90
7.791
The 8622 connector series covers a large range of card formats, from the smallest SEM A1/B1 up to the 233 mm long DOUBLE EUROPE style.
In accordance with the number of modules, the above table shows the overall dimensions of the connector. The shortest connector is composed
of at least 2 modules. The longest, fitted with 14 modules, offers 556 contacts in a 197.90 mm length only.
From 2 to 10 modules, the male header is fastened on to the daughter card by 2 fixing points. Over 10 modules, a third center fixing is necessary.
Above table displays the connector flexibility. As an example, the connector ranges from 76 to 556 contacts for 8 row cavities totally equipped with
their contacts. The same 8 row modules may be underloaded in 6 rows only. In that case, the connector ranges from 56 to 416 contacts. On the
same way, a 4 row module connector fully equipped offers 36 to 276 contacts and only 16 to 136 as partially populated.
397
11
8622 NAFI 2

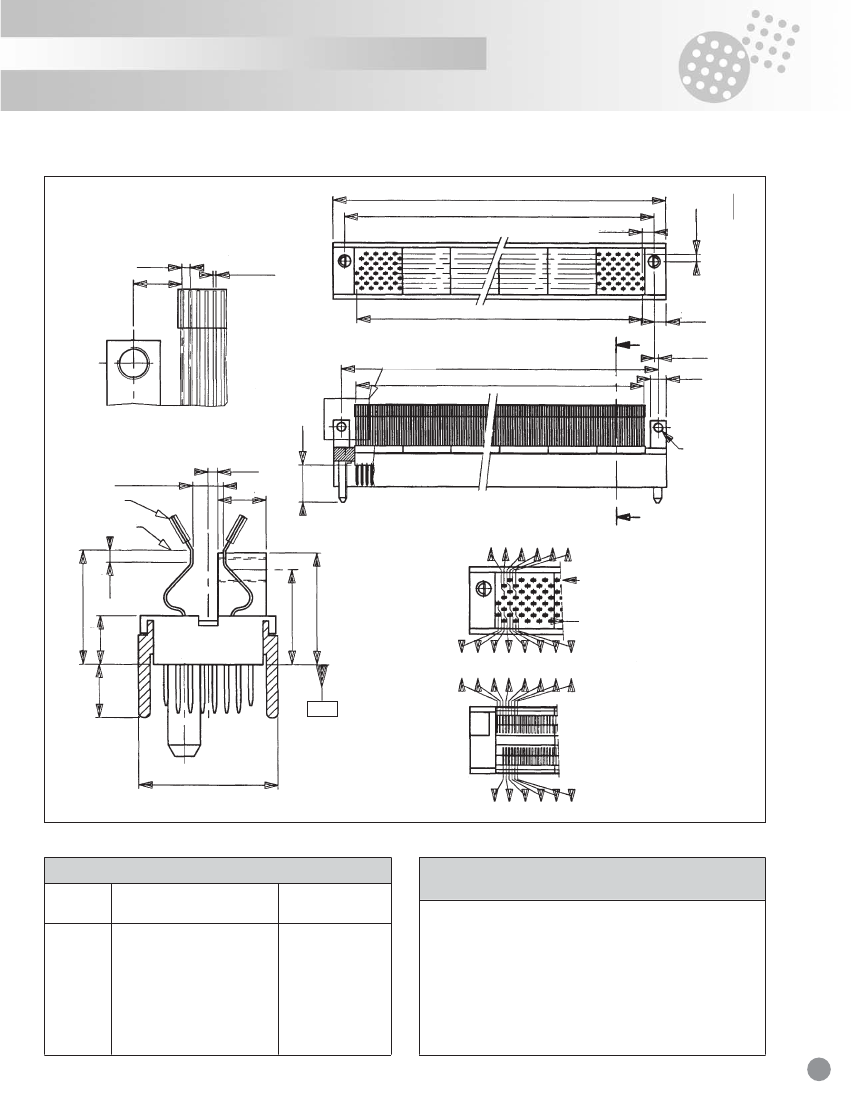

Male header dimensions
4 row connector with SMT terminations
A
B
.635
4.445
.175
.025
Detail a
.635/
.025
5.08/
.2
0.24
/.010
3.06
C
A
See detail a
.120
.9525
D
E
.037
4.19
.165
9.65
.380
2 holes M 2.5
FCI Souriau
8622MXXX-407000
Section A-A
0.8
1.6 to 3.2/
.063 to .126
non conductive
carrier
contact breakoff
.031
A
3.01
.119
CONTACT POSITION IDENTIFICATION
11.68/
.460
1.27
11.94/
.470
.050
D1 B1 C2 A2 D2 B2
9.91/
.390
VIEW FROM
FRONT FACE
5.08
.200
ROW A
ROW D
5.59
.220
REF
VIEW FROM
REAR FACE
9.52 Max/
.375
D1 B1 C2 A2 D2 B2
For typical Pwb foot-print, page 515 - Dimension 11.94 (.42) depends on Pwb thickness (please, consult us)
dimension formula
example : 196 ways
N = 10 modules
C
A
B
D
E
21.59 + 12.7 x (N - 2)
.850
.500
.591
typical 196 ways part number
8622 M 196-407000
dimensions
Number of fixings :
123.19
4.850
Over 10 modules, a third fixing is necessary.
C dimension is then increased of 8.89 mm (.350).
As an example, a 216 way connector, composed
of 11 modules, has a length :
C = 30.48 + 12.7 x 9 = 144.78 mm
1.200 + 0.500 x 9 = 5.700 inch
C + 15.01
C +
08.89
.350
138.20
5.441
132.08
5.200
C + 10.79
.429
133.98
5.275
C +
00.63
.025
123.82
4.875
398
12
8622 NAFI 2

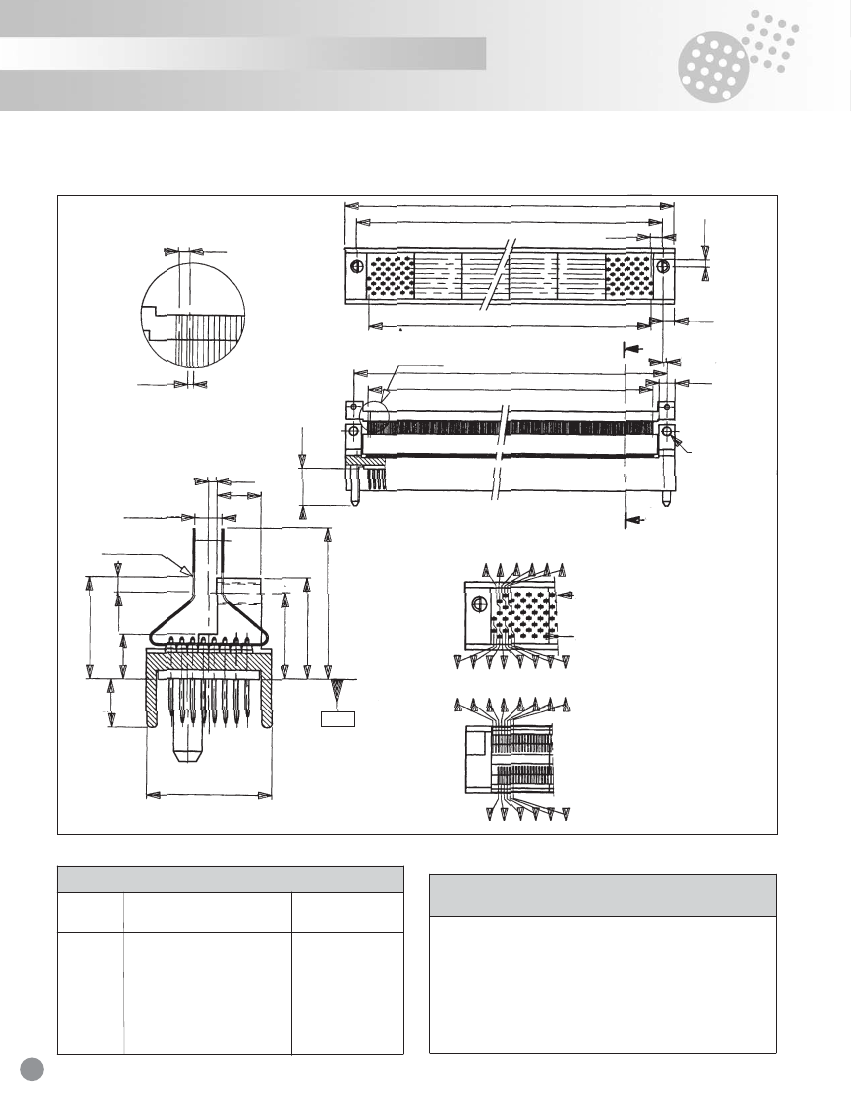

Male header dimensions
8 row connector with SMT terminations
A
1.905
A
A
CONTACT POSITION IDENTIFICATION
D1 B1 C2 A2 D2 B2
B
3.175
Detail a
0.635/
.025
3.81
.150
.125
0.24/
.010
C
3.06
.120
See detail a
D
E
0.9525
.037
4.19
.165
9.65
.380
Section A-A
1.016
3.2 to 7.62/
.126 to .300
non conductive
carrier
contact breakoff
.040
2 HOLES M
SOURIAU
8622MXXX-807000
5.08
.200
1.27
.050
ROW A
9.91/
.390
11.68/
.460
VIEW FROM
FRONT FACE
ROW H
11.94/
.470
5.08
.200
G1 E1 H1 F1 G2 E2 H2 F2
G1 E1 H1 F1 G2 E2 H2 F2
5.59
.220
REF
VIEW FROM
REAR FACE
14.6 Max/
.575
D1 B1 C2 A2 D2 B2
For typical Pwb foot-print, page 515 - Dimension 11.94 (.470) depends on Pwb thickness (please, consult us)
dimension formula
example : 396 ways
N = 10 modules
C
A
B
D
E
24.13 + 12.7 x (N - 2)
.950
.500
typical 396 ways part number
8622 M 396-807000
dimensions
Number of fixings :
125.73
4.950
Over 10 modules, a third fixing is necessary.
C dimension is then increased of 8.89 mm (.350).
As an example, a 436 way connector, composed
of 11 modules, has a length :
C = 24.13 + 8.89 + 12.7 x 9 = 147.32 mm
C = .950 + .350 + .500 x 9 = 5.800
C + 12.47
.491
138.20
5.441
C +
06.35
.250
132.08
5.200
C +
08.25
.325
133.98
5.275
C +
00.63
.025
126.36
4.975
.0750
399
13
8622 NAFI 2

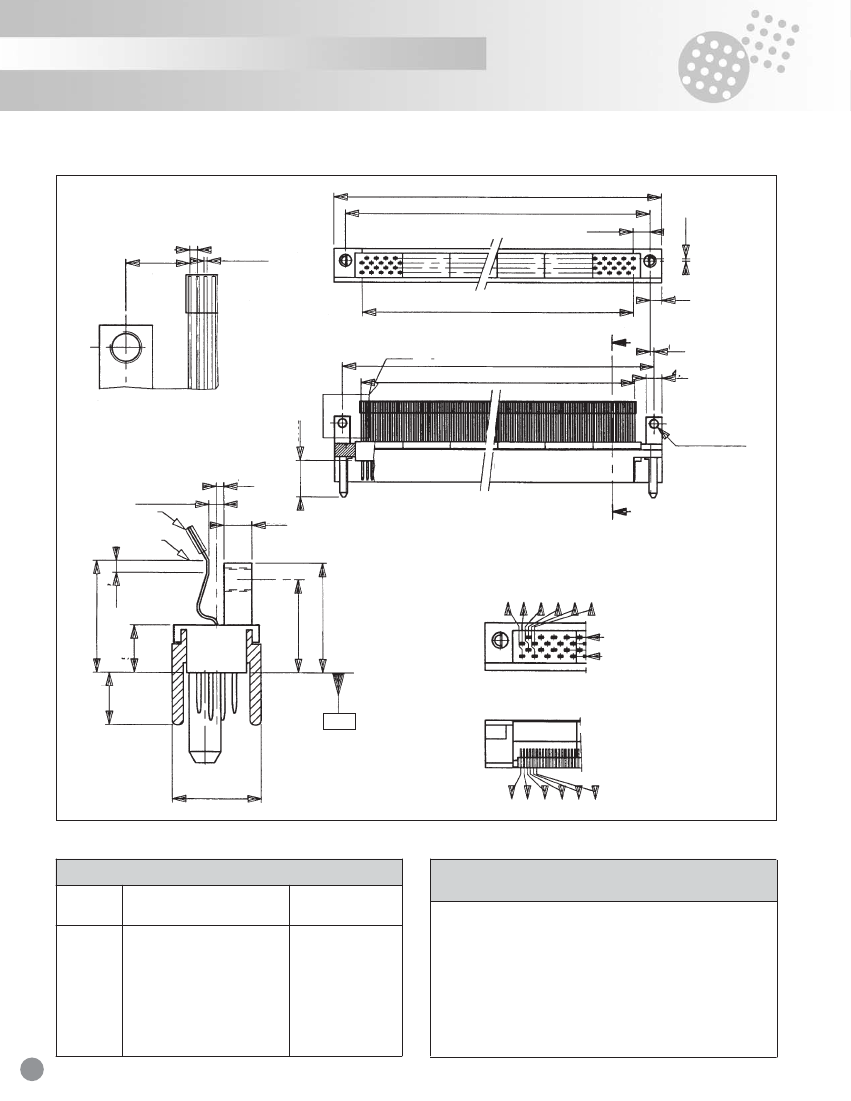

Male header dimensions
8 row connector with flex cable termination (available for 396 ways connector only)
A
B
1.905
A
See detail a
0.3
.012
.037
.0750
Detail a
3.175
0.635
.025
.125
C
3.06
.120
0.9525
D
E
4.19
.165
9.65
.380
2 HOLES M 2.5
Section A-A
1.016/
.040
5.08
.200
FCI Souriau
8622MXXX-827000
3.2 to 7.62
.126 to .300
A
CONTACT POSITION IDENTIFICATION
Breakable Line
D1 B1 C2 A2 D2 B2
17.54/
.691
ROW A
VIEW FROM
FRONT FACE
ROW H
11.81/
.465
5.19
.204
9.91/
.390
11.58/
.460
1.78
.070
G1 E1 H1 F1 G2 E2 H2 F2
5.59
.220
G1 E1 H1 F1 G2 E2 H2 F2
REF
VIEW FROM
REAR FACE
14.6 Max/
.575
D1 B1 C2 A2 D2 B2
Above drawing is available for a 396 way connector. For any other arrangement, please consult us.
Dimension 11.81/
1.465
depends on Pwb thickness.
dimension formula
example : 396 ways
N = 10 modules
C
A
B
D
E
24.13 + 12.7 x (N - 2)
.950
.500
dimensions
typical 396 ways part number
8622 M 396-827000
125.73
4.950
Number of fixings :
Over 10 modules, a third fixing is necessary.
C dimension is then increased of 8.89 mm (.350).
As an example, a 436 way connector, composed
of 11 modules, has a length :
C = 24.13 + 8.89 + 12.7 x 9 = 147.32 mm
C = .950 + .350 + .500 x 9 = 5.800 inch
C + 12.47
.491
138.20
5.441
C +
06.35
.250
132.08
5.200
C +
08.25
.325
133.98
5.275
C +
00.63
.025
126.36
4.975
400
14
