2.5SWZ330MR09: DescriptionCAPACITOR, ALUMINUM ELECTROLYTIC, SOLID POLYMER, POLARIZED, 10 V, 47 uF, SURFACE MOUNT, 2917; CategoryPassive components; File Size82KB，2 Pages; Manufacturerrubycon; Websitehttp://www.rubycon.co.jp/cn/

Download Datasheet Parametric Compare View All

2.5SWZ330MR09 Overview

CAPACITOR, ALUMINUM ELECTROLYTIC, SOLID POLYMER, POLARIZED, 10 V, 47 uF, SURFACE MOUNT, 2917

2.5SWZ330MR09 Parametric

Parameter Name	Attribute value
negative deviation	20 %
Minimum operating temperature	-55 Cel
Maximum operating temperature	105 Cel
positive deviation	20 %
Rated DC voltage urdc	10 V
Processing package description	CHIP, ROHS COMPLIANT
state	Active
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
capacitance	47 µF
dielectric materials	ALUMINUM (SOLID POLYMER)
esr__mohm_	25
leakage_current__ma_	.0188
Manufacturer Series	SWZ
Installation features	SURFACE MOUNT
packaging shape	RECTANGULAR PACKAGE
Package Size	SMT
cking_method	TR, 13 Inch
polarity	POLARIZED
ipple_current__ma_	1800
series	SWZ
size code	2917
tangent angle	0.1
Terminal shape	WRAPAROUND
heigh	1.9 mm
length	7.3 mm
width	4.3 mm

Preview

Download Datasheet

View All

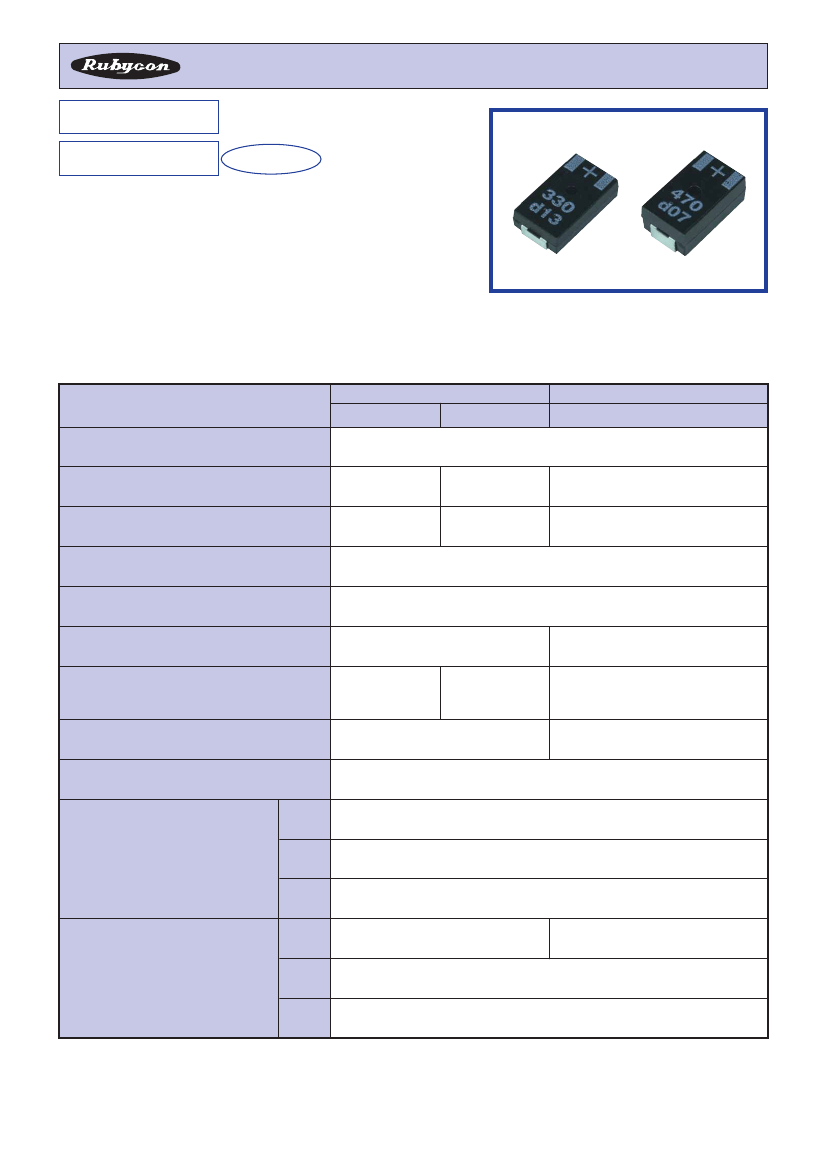

CONDUCTIVE POLYMER ALUMINUM SOLID ELECTROLYTIC CAPACITORS

SW

SWZ

SERIES

UPGRADE

◆FEATURES

SW High Capacitance,Low ESR

：

SWZ High Capacitance,Ultra Low ESR

：

・

RoHS Compliance

・

Lead free reﬂow soldering is available

(260℃,10sec):(Available for MSL3)

◆SPECIFICATIONS

Series

SW

2.7mm

2.9mm

−55∼＋105℃

2∼8

68∼220

2∼6.3

120∼470

±20％

≦0.04CV

≦0.1

SWZ

1.9mm

Temperature Range(℃)

Rated Voltage Range(V.DC)

2∼10

47∼330

Rated Cap Range(μF)

Capacitance Tolerance(20℃/120Hz)

Leakage Current(after 5 minutes)(μA)

（Tanδ）

Dissipation Factor(20℃/120Hz)

Equivalent Series Resistance(ESR)

(mΩ)(20℃/100kHz)

≦0.1

9∼18

3,500

2,500(8V)

9

4.5∼25

Maximum Allowable Ripple Current(mA r.m.s)(100kHz)

1,800∼3,500

Rated voltage ×1.25

Surge Voltage

ΔC

Endurance

(105℃, 2000hrs, Rated Voltage applied)

Within ±20% of the initial value

Tanδ

LC

ΔC

≦200% of initial speciﬁed value

≦initial speciﬁed value

Within −20%∼+40% of the initial value

Within −20%∼+60% of the initial value

Damp heat(Steady state)

(60℃, 90%RH, 500hrs, No-applied voltage)

Tanδ

LC

≦200% of initial speciﬁed value

≦300% of initial speciﬁed value

2.5SWZ330MR09 Related Products

	2.5SWZ330MR09	10SWZ47MR25	2.5SWZ330MR15	2SW220M_1	6SW220M
Description	CAPACITOR, ALUMINUM ELECTROLYTIC, SOLID POLYMER, POLARIZED, 10 V, 47 uF, SURFACE MOUNT, 2917	CAPACITOR, ALUMINUM ELECTROLYTIC, SOLID POLYMER, POLARIZED, 10 V, 47 uF, SURFACE MOUNT, 2917	CAPACITOR, ALUMINUM ELECTROLYTIC, SOLID POLYMER, POLARIZED, 10 V, 47 uF, SURFACE MOUNT, 2917	CAPACITOR, ALUMINUM ELECTROLYTIC, SOLID POLYMER, POLARIZED, 10 V, 47 uF, SURFACE MOUNT, 2917	CAPACITOR, ALUMINUM ELECTROLYTIC, SOLID POLYMER, POLARIZED, 6 V, 220 uF, SURFACE MOUNT, 2917
negative deviation	20 %	20 %	20 %	20 %	20 %
Minimum operating temperature	-55 Cel	-55 Cel	-55 Cel	-55 Cel	-55 Cel
Maximum operating temperature	105 Cel	105 Cel	105 Cel	105 Cel	105 Cel
positive deviation	20 %	20 %	20 %	20 %	20 %
Rated DC voltage urdc	10 V	10 V	10 V	10 V	6 V
Processing package description	CHIP, ROHS COMPLIANT	CHIP, ROHS COMPLIANT	CHIP, ROHS COMPLIANT	CHIP, ROHS COMPLIANT	CHIP, ROHS COMPLIANT
state	Active	Active	Active	Active	ACTIVE
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	SOLID POLYMER
capacitance	47 µF	47 µF	47 µF	47 µF	220 uF
Manufacturer Series	SWZ	SWZ	SWZ	SWZ	SW
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
packaging shape	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE
polarity	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED
size code	2917	2917	2917	2917	2917
tangent angle	0.1	0.1	0.1	0.1	0.1
Terminal shape	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND
dielectric materials	ALUMINUM (SOLID POLYMER)	ALUMINUM (SOLID POLYMER)	ALUMINUM (SOLID POLYMER)	ALUMINUM (SOLID POLYMER)	-
esr__mohm_	25	25	25	25	-
leakage_current__ma_	.0188	.0188	.0188	.0188	-
Package Size	SMT	SMT	SMT	SMT	-
cking_method	TR, 13 Inch	TR, 13 Inch	TR, 13 Inch	TR, 13 Inch	-
ipple_current__ma_	1800	1800	1800	1800	-
series	SWZ	SWZ	SWZ	SWZ	-
heigh	1.9 mm	1.9 mm	1.9 mm	1.9 mm	-
length	7.3 mm	7.3 mm	7.3 mm	7.3 mm	-
width	4.3 mm	4.3 mm	4.3 mm	4.3 mm	-
