HMC510LP5

510LP5E

v04.0811

MMIC VCO w/ HALF FREQUENCY OUTPUT

& DIVIDE-BY-4, 8.45 - 9.55 GHz

Features

Dual Output: Fo = 8.45 - 9.55 GHz

Fo/2 = 4.225 - 4.775 GHz

Pout: +13 dBm

Phase Noise: -116 dBc/Hz @100 kHz Typ.

No External Resonator Needed

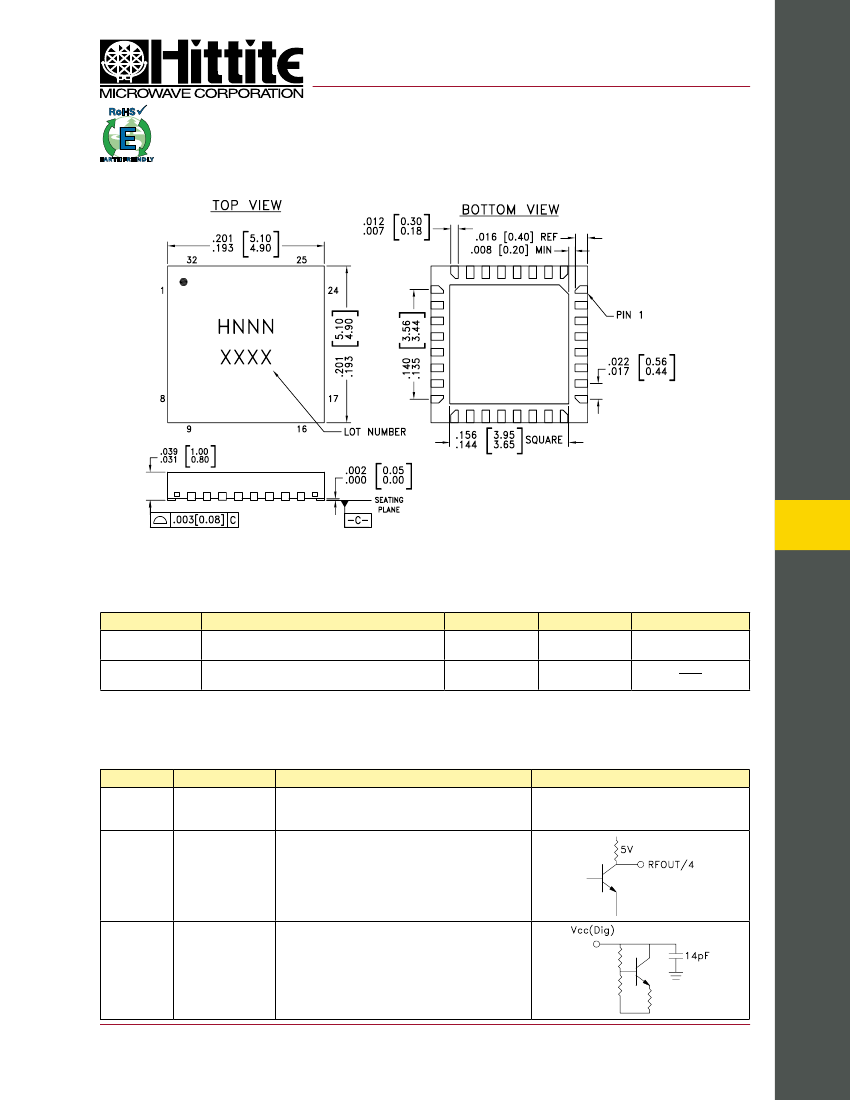

32 Lead 5x5mm SMT Package: 25mm²

Typical Applications

Low noise MMIC VCO w/Half Frequency, Divide-by-4

Outputs for:

• Point to Point/Multipoint Radio

• Test Equipment & Industrial Controls

• SATCOM

• Military End-Use

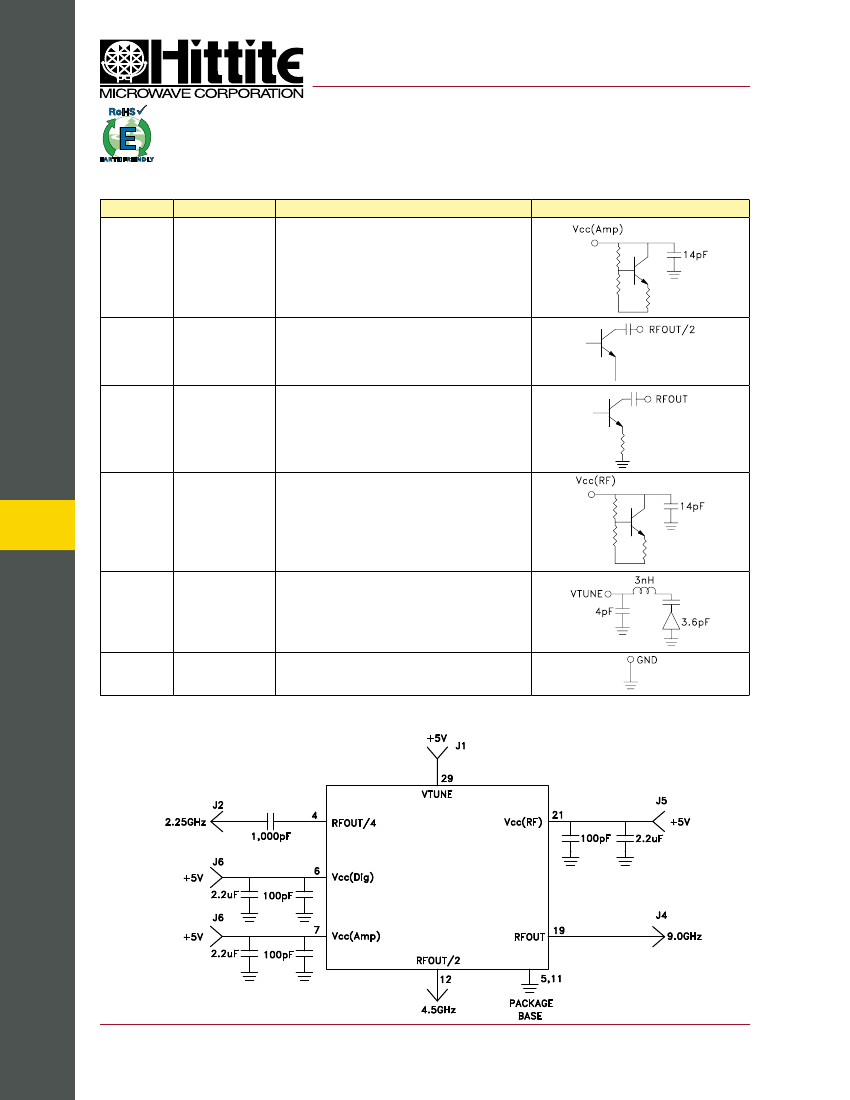

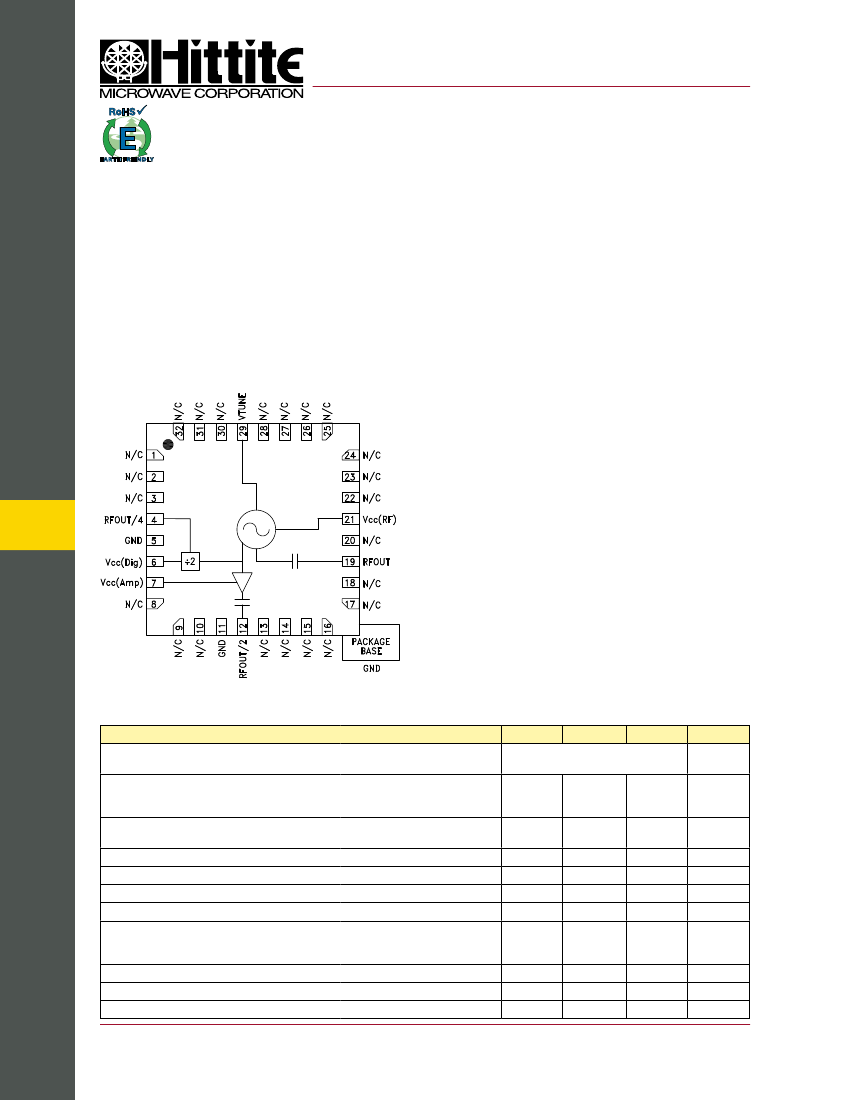

Functional Diagram

General Description

The HMC510LP5 & HMC510LP5E are GaAs InGaP

Heterojunction Bipolar Transistor (HBT) MMIC VCOs.

The HMC510LP5 & HMC510LP5E integrate resona-

tors, negative resistance devices, varactor diodes

and feature half frequency and divide-by-4 outputs.

The VCO’s phase noise performance is excellent over

temperature, shock, and process due to the oscillator’s

monolithic structure. Power output is +13 dBm typical

from a +5V supply voltage. The prescaler and RF/2

functions can be disabled to conserve current if not

required. The voltage controlled oscillator is packaged

in a leadless QFN 5x5 mm surface mount package,

and requires no external matching components.

VCOS

with

/2 OUTPUT - SMT

Electrical Specifications,

= +25° C, Vcc (Dig), Vcc (Amp), Vcc (RF) = +5V

Parameter

Frequency Range

Fo/2

RFOUT

RFOUT/2

RFOUT/4

+10

-8

-116

Vtune

Icc(Dig) + Icc(Amp) + Icc(RF)

270

315

360

1/2

2nd

3rd

0.8

Min.

Typ.

8.45 - 9.55

4.225 - 4.775

+15

+14

-4

Max.

Units

GHz

dBm

dBc/Hz

µA

dBc

MHz pp

MHz/V

MHz/°C

Power Output

SSB Phase Noise @ 100 kHz Offset,

Vtune= +5V @ RFOUT

Tune Voltage

Supply Current

Tune Port Leakage Current (Vtune= 13V)

Output Return Loss

Harmonics/Subharmonics

Pulling (into a 2.0:1 VSWR)

Pushing @ Vtune= 5V

Frequency Drift Rate

8-1

For price, delivery and to place orders: Hittite Microwave Corporation, 20 Alpha Road, Chelmsford, MA 01824

Phone: 978-250-3343

Fax: 978-250-3373

Order On-line at www.hittite.com

Application Support: Phone: 978-250-3343 or apps@hittite.com
