2N2475 datasheet, PDF - EEWORLD Datasheet

2N2475: DescriptionTRANSISTOR,BJT,NPN,6V V(BR)CEO,TO-52VAR; CategoryDiscrete semiconductor The transistor; File Size103KB，2 Pages; ManufacturerDiodes; Websitehttp://www.diodes.com/

Download Datasheet Parametric Compare View All

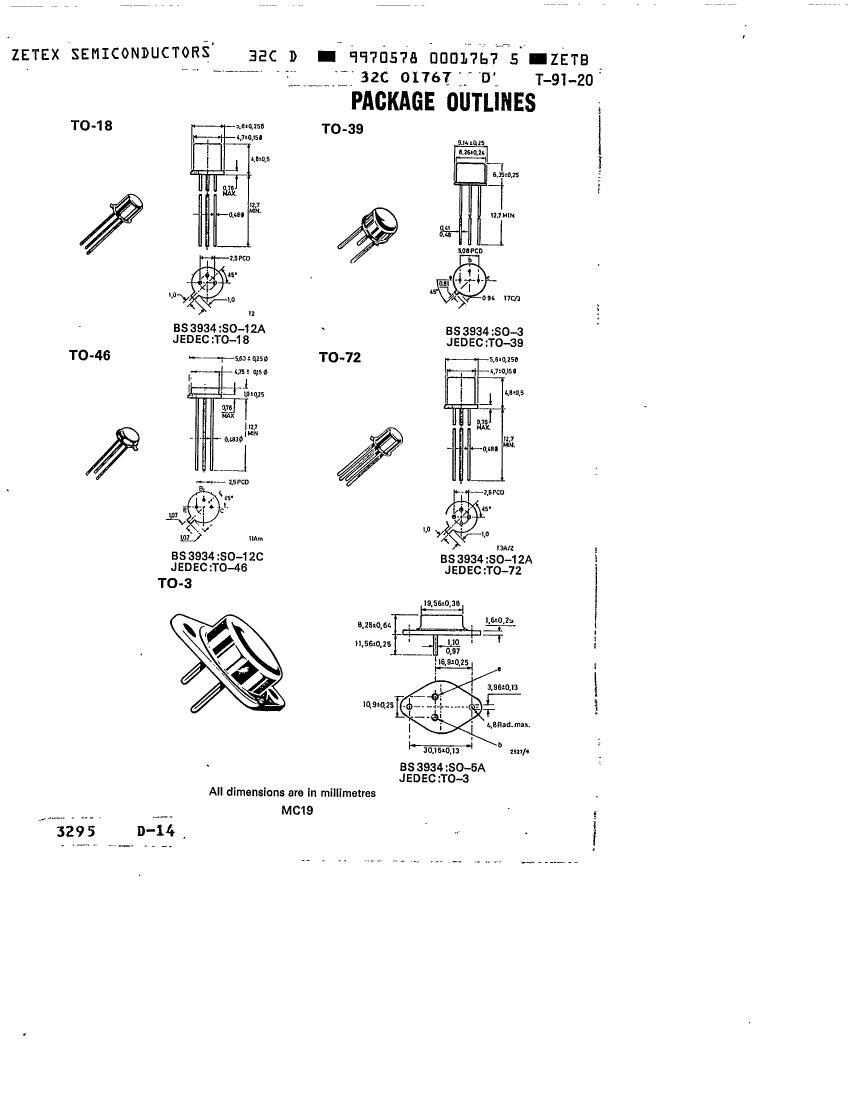

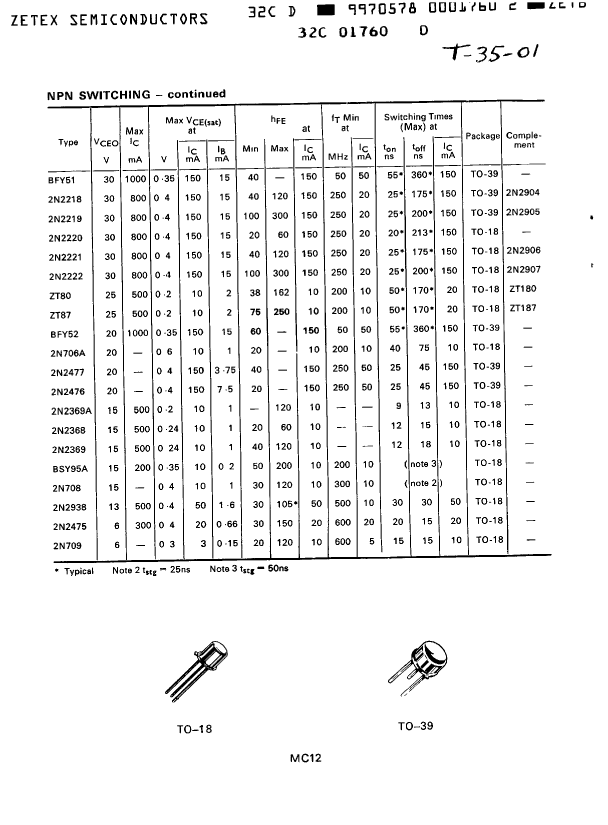

2N2475 Overview

TRANSISTOR,BJT,NPN,6V V(BR)CEO,TO-52VAR

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	,
Reach Compliance Code	unknow
Configuration	Single
Minimum DC current gain (hFE)	30
JESD-609 code	e0
Maximum operating temperature	200 °C
Polarity/channel type	NPN
Maximum power dissipation(Abs)	0.3 W
surface mount	NO
Terminal surface	Tin/Lead (Sn/Pb)
Nominal transition frequency (fT)	600 MHz
Base Number Matches	1

	2N2475	2N2477	2N709
Description	TRANSISTOR,BJT,NPN,6V V(BR)CEO,TO-52VAR	TRANSISTOR,BJT,NPN,20V V(BR)CEO,TO-5	TRANSISTOR,BJT,NPN,6V V(BR)CEO,TO-18
Is it Rohs certified?	incompatible	incompatible	incompatible
Reach Compliance Code	unknow	unknow	unknow
Configuration	Single	Single	Single
Minimum DC current gain (hFE)	30	40	20
JESD-609 code	e0	e0	e0
Maximum operating temperature	200 °C	200 °C	200 °C
Polarity/channel type	NPN	NPN	NPN
Maximum power dissipation(Abs)	0.3 W	0.6 W	0.3 W
surface mount	NO	NO	NO
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Nominal transition frequency (fT)	600 MHz	250 MHz	600 MHz
Base Number Matches	1	1	1
