Product data sheet
Automation technology - sensors and actuators
Product description
Area
Order number
M8 female panel mount connector, Contacts: 3, not shielded, single wires, IP67
M8 series 718
76 6018 0111 00003-0200
Illustration

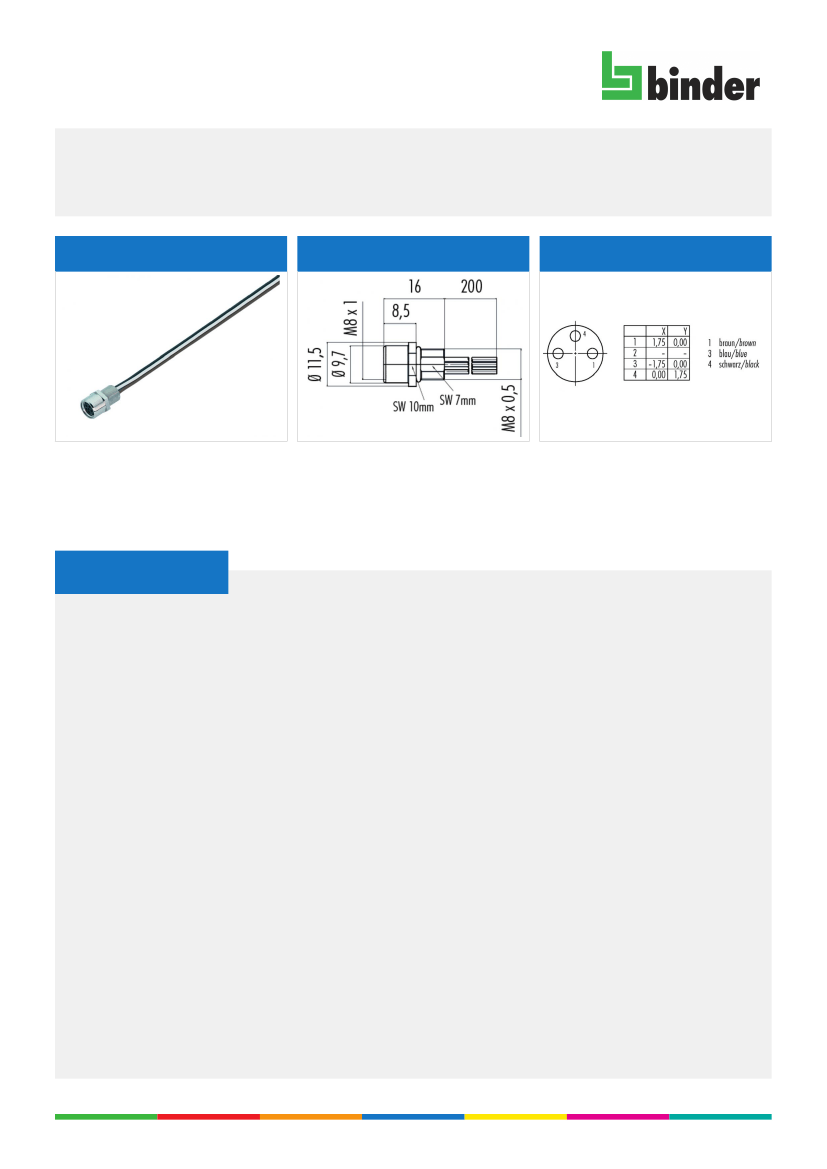

Scale drawing
Contact arrangement
You can find the assembly instructions on the next page.
Technical data
General values
Notice
Please note that, due to the
change from the old to the new
order number, there may be
deviations in the technical
specifications. For questions
about product details, please use
the ‘Contact Customer Service’
form on the right.
female panel mount connector
screw
single wires
0.25 mm²
24
85 °C
– 40 °C
85369010
Electrical values
Rated current (40 °C)
Rated voltage
Rated impulse voltage
Pollution degree
Overvoltage category
Insulating material group
Volume resistivity
EMC compliance
Degree of protection
Mechanical operation
4A
60 V
1500 V
3
II
II
≤ 3 mΩ
not shielded
IP67
> 100 Mating cycles
Connector design
Connector locking system
Termination
Wire gauge (mm)
Wire gauge (AWG)
Upper limit temperature
Lower limit temperature
Customs tariff number
Material
Contact material
Contact plating
Contact body material
CuSn (bronze)
Au (gold)
PA
Date: 2019-06-03 - Page 1 of 3
Product data sheet
Automation technology - sensors and actuators
Product description
Area
Order number
M8 female panel mount connector, Contacts: 3, not shielded, single wires, IP67
M8 series 718
76 6018 0111 00003-0200

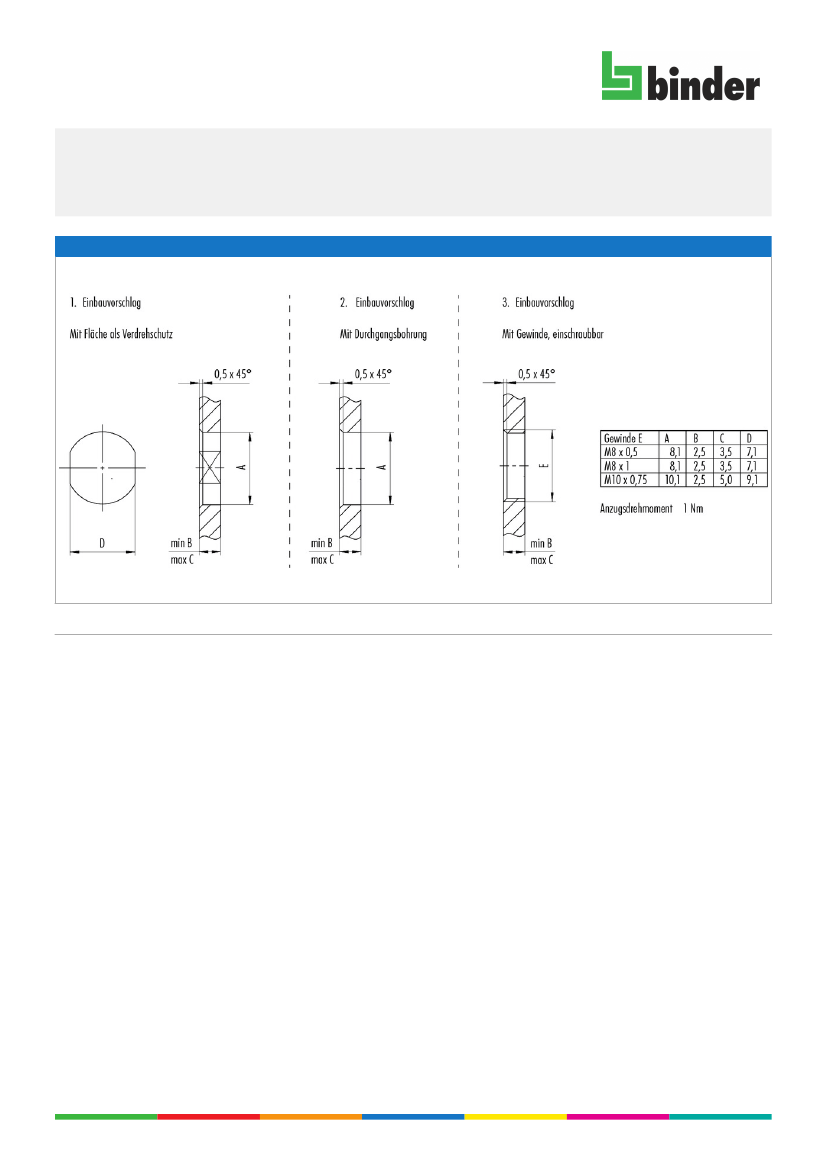

Assembly instructions / Panel cut-out
Date: 2019-06-03 - Page 2 of 3
Product data sheet
Automation technology - sensors and actuators
Product description
Area
Order number
M8 female panel mount connector, Contacts: 3, not shielded, single wires, IP67
M8 series 718
76 6018 0111 00003-0200
Security notices
The connectors are designed for use in plant, control system and electrical equipment. The end user is responsible
for checking whether the connectors are suitable for use in other applications.
Connectors with degree of protection IP 67 and IP 68 are not suitable for use under water. When used outdoors, the
connectors must be separately protected against corrosion. For further information about IP degrees of protection
refer to ‘Technical support’ in the Download Centre.
Date: 2019-06-03 - Page 3 of 3
