SPO-02350BDS-9.500M datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> oscillator> SPO-02350BDS-9.500M

Preview

SPO-02350BDS-9.500M: DescriptionLVPECL Output Clock Oscillator,; CategoryPassive components oscillator; File Size161KB，3 Pages; ManufacturerSunny Electronics Corp; Websitehttp://www.sunny.co.kr

Download Datasheet Parametric View All

SPO-02350BDS-9.500M Overview

LVPECL Output Clock Oscillator,

SPO-02350BDS-9.500M Parametric

Parameter Name	Attribute value
Maker	Sunny Electronics Corp
Reach Compliance Code	unknown
Other features	TRI-STATE; ENABLE/DISABLE FUNCTION; BULK
maximum descent time	0.7 ns
Frequency Adjustment - Mechanical	NO
frequency stability	50%
Installation features	THROUGH HOLE MOUNT
Nominal operating frequency	9.5 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
Oscillator type	LVPECL
Output load	50 OHM
physical size	20.7mm x 13.06mm x 7.5mm
longest rise time	0.7 ns
Maximum supply voltage	3.465 V
Minimum supply voltage	3.135 V
Nominal supply voltage	3.3 V
surface mount	NO
maximum symmetry	45/55 %

Preview

Download Datasheet

View All

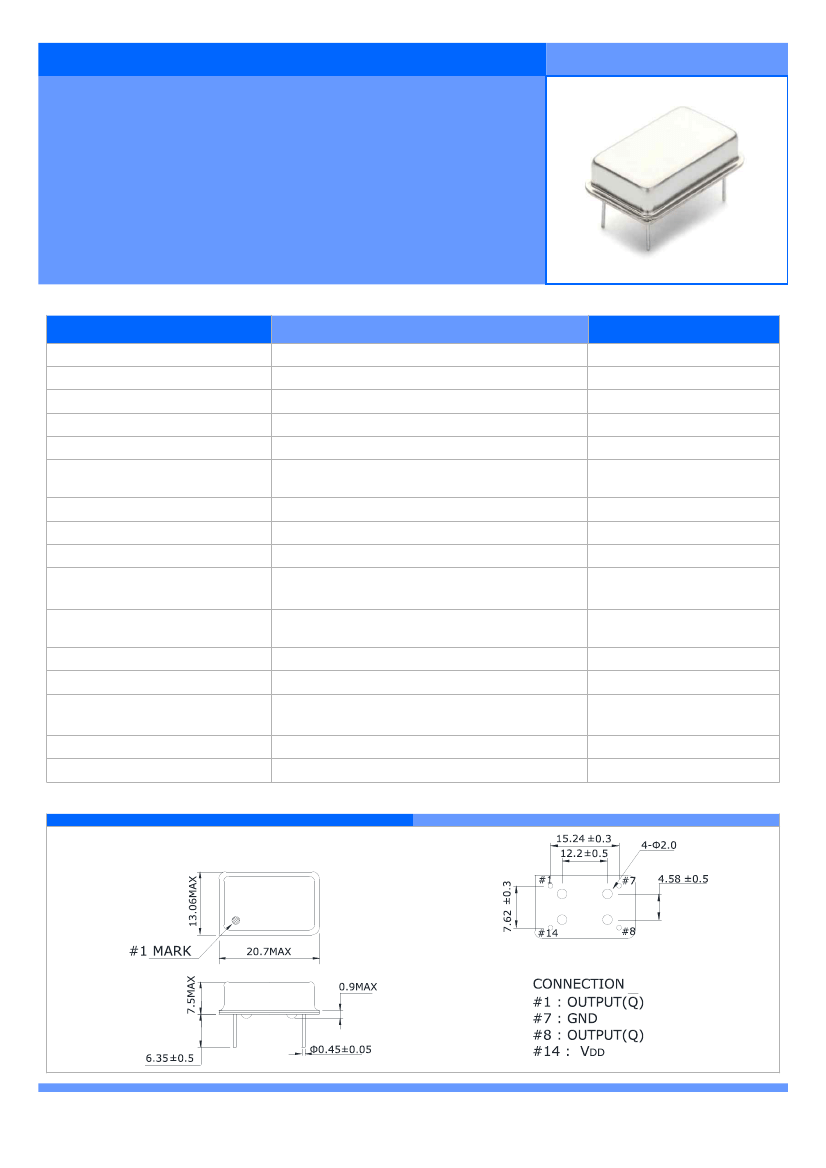

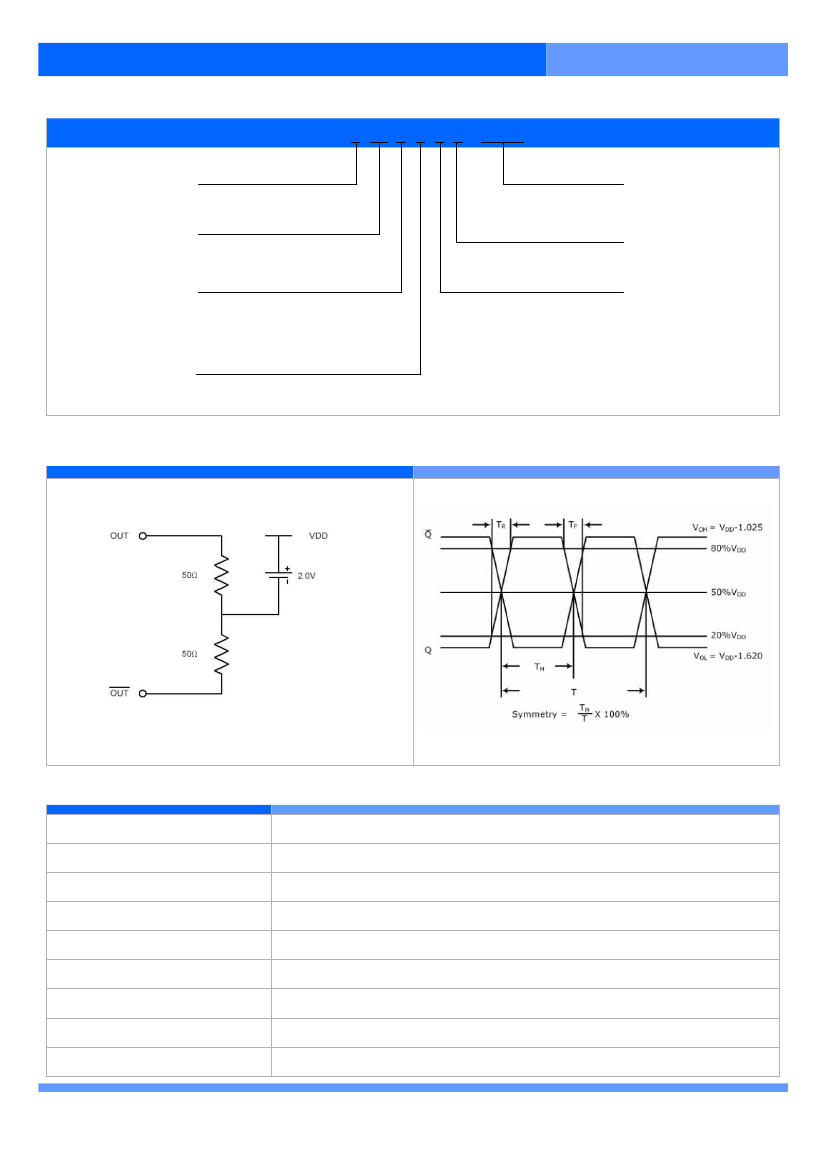

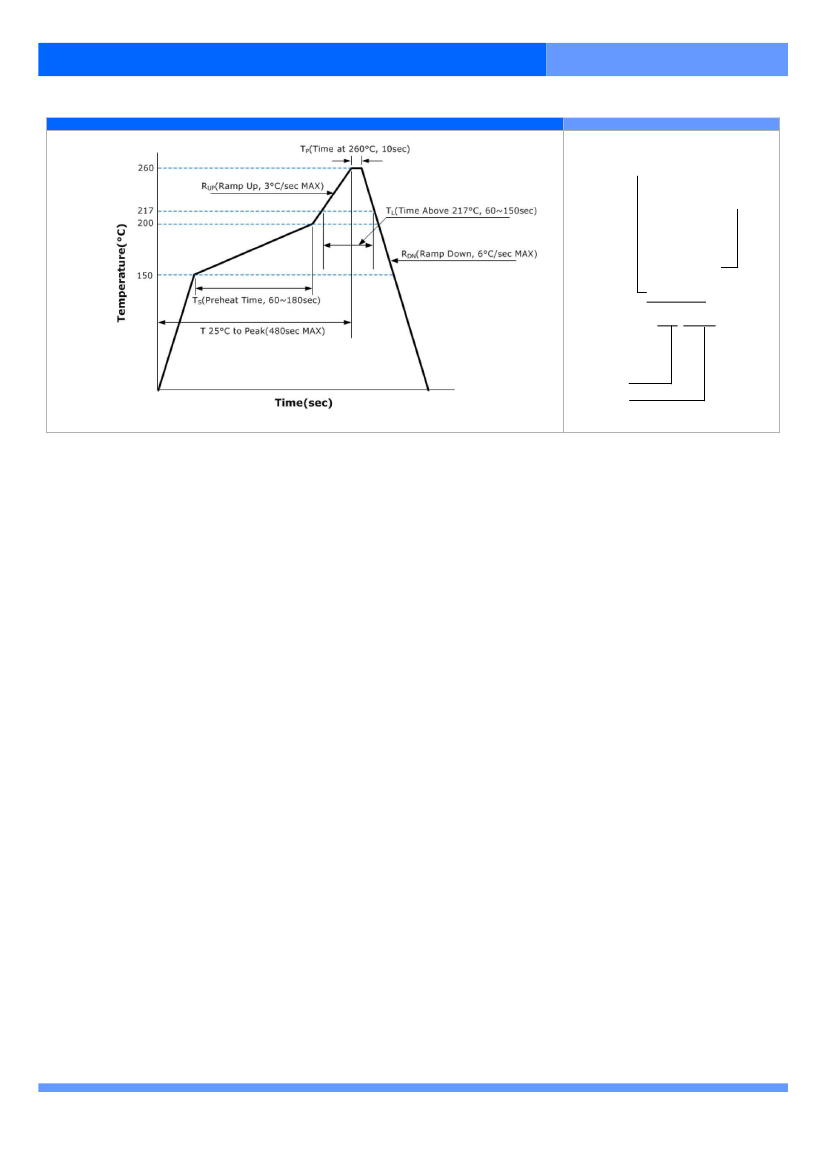

CRYSTAL OSCILLATORS

LVPECL TYPE

SPO-02

-

Metal Package

Low RMS phase jitter(12 kHz to 20 MHz)

2.5 V, 3.3 V Supply Voltage

LVPECL Output

■ ELECTRICAL SPECIFICATIONS

ITEM

Output Logic Type

Frequency Range

Supply Voltage(V

DD

)

Operating Temperature Range

Storage Temperature Range

Frequency Stability

Input Current

Output Voltage Logic High(V

OH

)

Output Voltage Logic Low(V

OL

)

Rise / Fall Time

Duty Cycle

Start-up Time

Output Load Condition(LVPECL)

Output Enable Function

(V

IH

and V

IL

)

RMS Phase Jitter

Frequency Aging

LVPECL

9.500 MHz to 250.000 MHz

2.5 V

DC

±5 %, 3.3 V

DC

±5 %

-20 to +70 ℃, -40 to +85 ℃

-55 to +125 ℃

±25 ppm, ±50 ppm, ±100 ppm Max.

55 mA Max. at 2.5 V, 88 mA Max. at 3.3 V

V

DD

–

1.025 V

DC

Min.

V

DD

–

1.620 V

DC

Max.

0.3 ns Typ., 0.7 ns Max.

45 to 55 %, 40 to 60 %

10 ms Max.

50 Ω into V

DD

- 2.0 V

DC

70 % of V

DD

Min. to Enable Output

30 % of V

DD

Max. to Disable Output

1 ps Max.

±3 ppm Max.

High Impedance

BW : 12 kHz to 20 MHz

25 ℃, First year

Measured over

20 % to 80 % of waveform

Measured at 50 % of

waveform

Over operating temperature

range

Value

Remarks

LVPECL XO

■ MECHANICAL DIMENSIONS

(mm)

http://www.sunny.co.kr

SUNNY ELECTRONICS CORP
