HMC374
/
374E
v00.0405
SMT PHEMT LOW NOISE
AMPLIFIER, 0.3 - 3.0 GHz
8
LOW NOISE AMPLIFIERS - SMT
Typical Applications
The HMC374 / HMC374E is ideal for:
• Cellular/PCS/3G
• WCS, MMDS & ISM
• Fixed Wireless & WLAN
• Private Land Mobile Radio
Features
Single Supply: Vdd = +2.75 to +5.5V
Low Noise Figure: 1.5 dB
High Output IP3: +37 dBm
No External Matching Required
Functional Diagram
General Description
The HMC374 & HMC374E are general purpose broad
band Low Noise Amplifiers (LNA) for use in the 0.3 -
3 GHz frequency range. The LNA provides 15 dB of
gain and a 1.5 dB noise figure from a single positive
supply of +2.75 to +5.5V. The low noise figure coupled
with a high P1dB (22 dBm) and high OIP3 (37 dBm)
make this part ideal for cellular applications. The
compact LNA design utilizes on-chip matching for
repeatable gain and noise figure performance. To
minimize board area the design is offered in a low cost
SOT26 package that occupies only 0.118” x 0.118”.
Electrical Specifi cations,
T
A
= +25° C, Vdd= +5V
Parameter
Frequency Range
Gain
Gain Variation Over Temperature
Noise Figure
Input Return Loss
Output Return Loss
Output 1 dB Compression (P1dB)
Saturated Output Power (Psat)
Output Third Order Intercept (IP3)
Supply Current (Idd) (Vdd = +5V)
12
Min.
Typ.
0.3 - 1.0
15
0.01
1.5
5
7
22
23
37
90
0.02
1.9
10
Max.
Min.
Typ.
1.0 - 2.0
13
0.01
1.6
8
9
22
23
37
90
0.02
2.0
6
Max.
Min.
Typ.
2.0 - 3.0
9
0.01
1.8
13
9
22
23
37
90
0.02
2.2
Max.
Units
GHz
dB
dB/°C
dB
dB
dB
dBm
dBm
dBm
mA
8 - 60
For price, delivery, and to place orders, please contact Hittite Microwave Corporation:
20 Alpha Road, Chelmsford, MA 01824 Phone: 978-250-3343 Fax: 978-250-3373
Order On-line at www.hittite.com
HMC374
/
374E
v00.0405
SMT PHEMT LOW NOISE
AMPLIFIER, 0.3 - 3.0 GHz

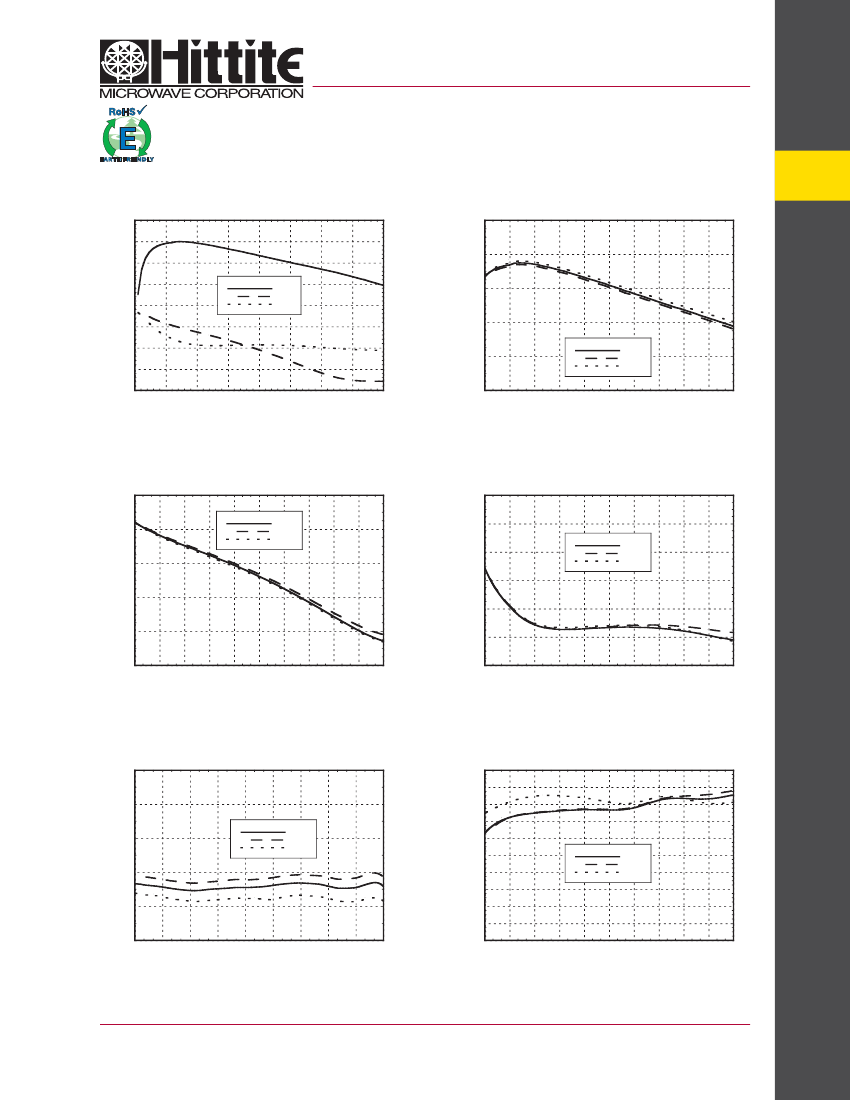

Broadband Gain & Return Loss
20
15
Gain vs. Temperature
20
8
LOW NOISE AMPLIFIERS - SMT
8 - 61
16
10
RESPONSE (dB)
GAIN (dB)
5
0
-5
-10
4
-15
-20
0
0.5
1
1.5
2
2.5
3
3.5
4
FREQUENCY (GHz)
0
0.3
S21
S11
S22
12
8
+25C
+85C
-40C
0.6
0.9
1.2
1.5
1.8
2.1
2.4
2.7
3
3.3
FREQUENCY (GHz)
Input Return Loss vs. Temperature
0
+25C
+85C
-40C
Output Return Loss vs. Temperature
0
-2
RETURN LOSS(dB)
-4
-6
-8
-10
-12
0.3
+25C
+85C
-40C
-4
RETURN LOSS(dB)
-8
-12
-16
-20
0.3
0.6
0.9
1.2
1.5
1.8
2.1
2.4
2.7
3
3.3
0.6
0.9
1.2
1.5
1.8
2.1
2.4
2.7
3
3.3
FREQUENCY (GHz)
FREQUENCY (GHz)
Noise Figure vs. Temperature
5
Output IP3 vs. Temperature
40
39
4
NOISE FIGURE(dB)
OIP3(dBm)
+25C
+85C
-40C
38
37
3
36
35
34
33
+25C
+85C
-40C
2
1
32
31
0
0.3
0.6
0.9
1.2
1.5
1.8
2.1
2.4
2.7
3
30
0.3
0.6
0.9
1.2
1.5
1.8
2.1
2.4
2.7
3
3.3
FREQUENCY (GHz)
FREQUENCY (GHz)
For price, delivery, and to place orders, please contact Hittite Microwave Corporation:
20 Alpha Road, Chelmsford, MA 01824 Phone: 978-250-3343 Fax: 978-250-3373
Order On-line at www.hittite.com
HMC374
/
374E
v00.0405
SMT PHEMT LOW NOISE
AMPLIFIER, 0.3 - 3.0 GHz
8
LOW NOISE AMPLIFIERS - SMT

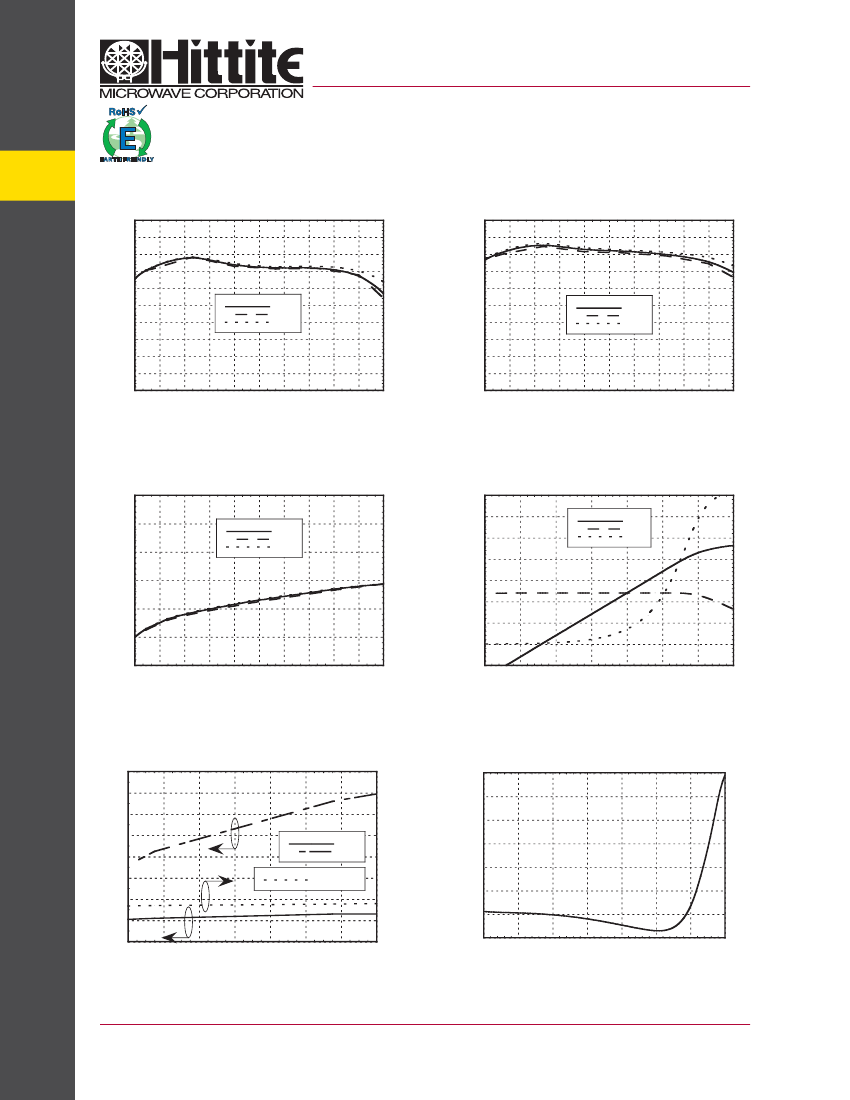

P1dB vs. Temperature
25
24
23
22
P1dB(dBm)
21
20
19
18
17
16
15
0.3
0.6
0.9
1.2
1.5
1.8
2.1
2.4
2.7
3
3.3
+25C
+85C
-40C
Psat vs. Temperature
25
24
23
22
Psat(dBm)
21
20
19
18
17
16
15
0.3
0.6
0.9
1.2
1.5
1.8
2.1
2.4
2.7
3
3.3
+25C
+85C
-40C
FREQUENCY (GHz)
FREQUENCY (GHz)
Reverse Isolation vs. Temperature
0
-5
ISOLATION (dB)
-10
-15
-20
-25
-30
0.3
+25C
+85C
-40C
Power Compression @ 2 GHz
35
Pout (dBm), Gain (dB), PAE (%)
30
25
20
15
10
5
0
-5
-20
Pout
Gain
PAE
0.6
0.9
1.2
1.5
1.8
2.1
2.4
2.7
3
3.3
-15
-10
-5
0
5
10
15
FREQUENCY (GHz)
INPUT POWER (dBm)
Gain, Noise Figure & Power vs.
Supply Voltage @ 2 GHz
25
23
GAIN (dB), P1dB (dBm)
21
19
17
15
13
11
9
2.7
3.1
3.5
3.9
4.3
4.7
5.1
Gain
P1dB
Current vs. Power @ 2 GHz
8
7
6
100
Idd (mA)
98
96
94
92
90
-20
104
102
NOISE FIGURE (dB)
5
4
3
2
1
0
5.5
Noise Figure
-15
-10
-5
0
5
10
15
Vdd (Vdc)
INPUT POWER (dBm)
8 - 62
For price, delivery, and to place orders, please contact Hittite Microwave Corporation:
20 Alpha Road, Chelmsford, MA 01824 Phone: 978-250-3343 Fax: 978-250-3373
Order On-line at www.hittite.com
HMC374
/
374E
v00.0405
SMT PHEMT LOW NOISE
AMPLIFIER, 0.3 - 3.0 GHz
Absolute Maximum Ratings
Drain Bias Voltage (Vdd)
RF Input Power (RFIN)(Vdd = +5.0 Vdc)
Channel Temperature
Continuous Pdiss (T = 85 °C)
(derate 7.5 mW/°C above 85 °C)
Thermal Resistance
(channel to lead)
Storage Temperature
Operating Temperature
+7.0 Vdc
15 dBm
150 °C
0.488 W
133 °C/W
-65 to +150 °C
-40 to +85 °C
Typical Supply Current vs. Vdd
Vdd (V)
2.7
3.0
5.0
5.5
Idd (mA)
89
89
90
90
8
LOW NOISE AMPLIFIERS - SMT
8 - 63
ELECTROSTATIC SENSITIVE DEVICE
OBSERVE HANDLING PRECAUTIONS

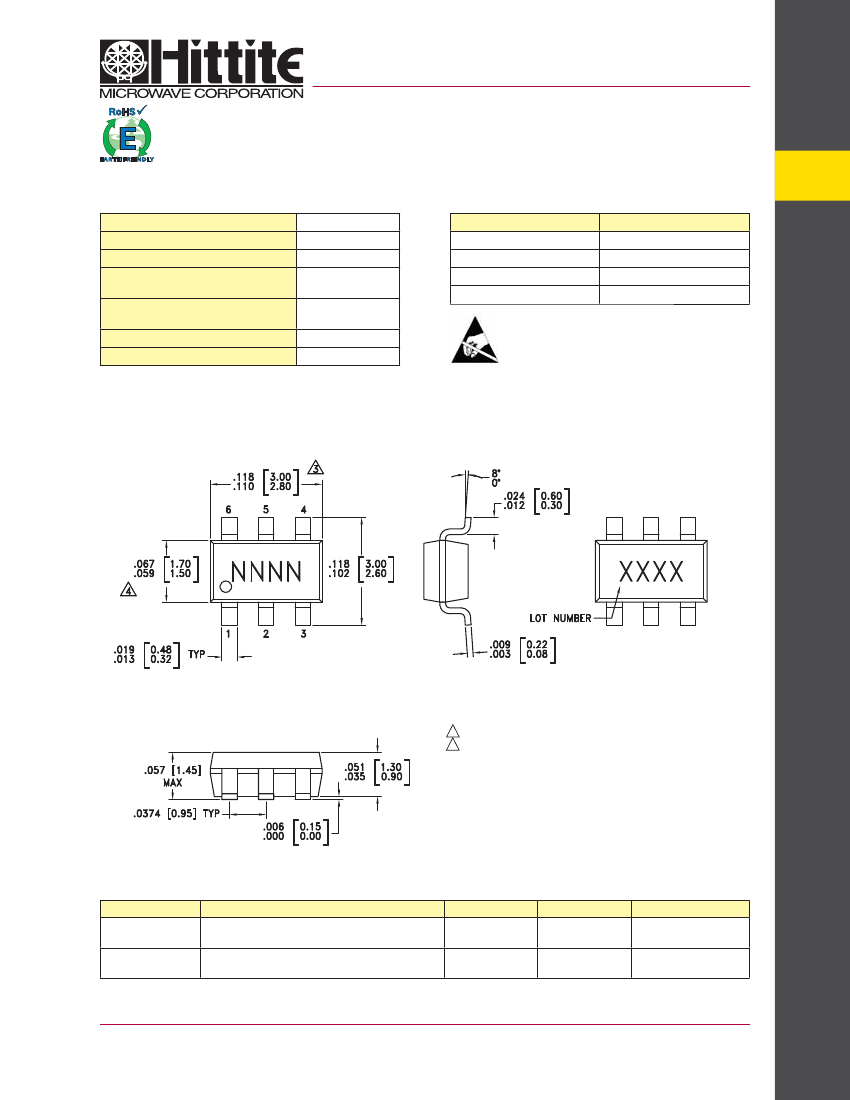

Outline Drawing
NOTES:
1. LEADFRAME MATERIAL: COPPER ALLOY
2. DIMENSIONS ARE IN INCHES [MILLIMETERS]
3. DIMENSION DOES NOT INCLUDE MOLDFLASH OF 0.15mm PER SIDE.
4. DIMENSION DOES NOT INCLUDE MOLDFLASH OF 0.25mm PER SIDE.
5. ALL GROUND LEADS MUST BE SOLDERED TO PCB RF GROUND.
Package Information
Part Number
HMC374
HMC374E
Package Body Material
Low Stress Injection Molded Plastic
RoHS-compliant Low Stress Injection Molded Plastic
Lead Finish
Sn/Pb Solder
100% matte Sn
MSL Rating
MSL1
MSL1
[1]
Package Marking
[3]
H374
XXXX
374E
XXXX
[2]
[1] Max peak reflow temperature of 235 °C
[2] Max peak reflow temperature of 260 °C
[3] 4-Digit lot number XXXX
For price, delivery, and to place orders, please contact Hittite Microwave Corporation:
20 Alpha Road, Chelmsford, MA 01824 Phone: 978-250-3343 Fax: 978-250-3373
Order On-line at www.hittite.com
HMC374
/
374E
v00.0405
SMT PHEMT LOW NOISE
AMPLIFIER, 0.3 - 3.0 GHz
8
LOW NOISE AMPLIFIERS - SMT
Pin Descriptions
Pin Number
Function
Description
These pins may be connected to RF/DC ground.
Performance will not be affected.
Interface Schematic
1,4
N/C
2, 5
GND
These pins must be connected to RF/DC ground.
3
IN
This pin is DC coupled.
An off-chip DC blocking capacitor is required.
RF output and DC Bias for the output stage.
See application circuit for off-chip components.
6
OUT

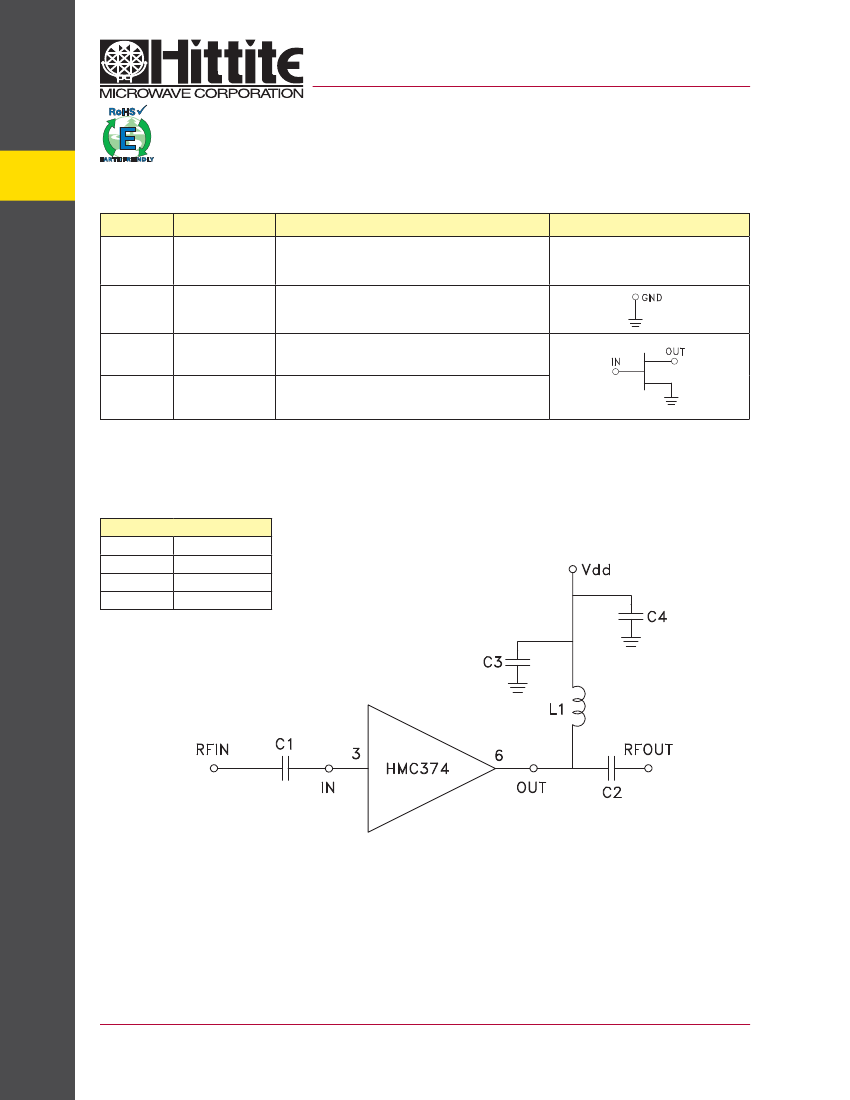

Application Circuit
Recommended Component Values
C1, C2
C3
C4
L1
150 pF
1,000 pF
4.7 μF
27 nH
8 - 64
For price, delivery, and to place orders, please contact Hittite Microwave Corporation:
20 Alpha Road, Chelmsford, MA 01824 Phone: 978-250-3343 Fax: 978-250-3373
Order On-line at www.hittite.com
