HMC187AMS8
/
187AMS8E
v00.0410
GaAs MMIC SMT PASSIVE FREQUENCY
DOUBLER, 0.85 - 2.0 GHz INPUT
Features
Conversion loss: 15 dB
Fo, 3Fo, 4Fo isolation: 40 dB
input Drive level: 10 to 20 dBm
Typical Applications
the HMC187AMs8(e) is ideal for:
• Wireless local loop
• lMDs, VsAt, and point-to-point radios
• uNii & HiperlAN
5
Freq. Multipliers - pAssiVe - sMt
• test equipment
Functional Diagram
*
General Description
the HMC187AMs8(e) is a miniature frequency dou-
bler MMiC in plastic 8-lead MsOp package. the sup-
pression of undesired fundamental and higher order
harmonics is 40 dB typical with respect to input signal
levels. the doubler uses the same diode/balun tech-
nology used in Hittite MMiC mixers. the doubler is
ideal for high volume applications where frequency
doubling of a lower frequency is more economical
than directly generating a higher frequency. the pas-
sive schottky diode doubler technology contributes no
measurable additive phase noise onto the multiplied
signal.
Electrical Specifications,
T
A
= +25° C, As a Function of Drive Level
input = +10 dBm
parameter
Frequency range, input
Frequency range, Output
Conversion loss
FO isolation
(with respect to input level)
3FO isolation
(with respect to input level)
4FO isolation
(with respect to input level)
Min.
typ.
1.25 - 1.75
2.5 - 3.5
18
22
35
42
30
Max.
Min.
input = +15 dBm
typ.
1.0 - 1.75
2.0 - 3.5
14
45
46
40
17
Max.
Min.
input = +20 dBm
typ.
0.85 - 2.0
1.7 - 4.0
15
18
Max.
units
GHz
GHz
dB
dB
dB
dB
* N/C denotes no internal connection, however, it is recommended to connect these pins to ground.
5-1
For price, delivery and to place orders: Hittite Microwave Corporation, 20 Alpha Road, Chelmsford, MA 01824
Phone: 978-250-3343
Fax: 978-250-3373
Order On-line at www.hittite.com
Application Support: Phone: 978-250-3343 or apps@hittite.com
HMC187AMS8
/
187AMS8E
v00.0410
GaAs MMIC SMT PASSIVE FREQUENCY
DOUBLER, 0.85 - 2.0 GHz INPUT
Isolation @ +15 dBm Drive Level*
0
-15
ISOLATION (dB)
-30
-45
-60
-75
-90
1F0
3F0
4F0
Conversion Gain @ +15 dBm Drive Level
0
-5
CONVERSION GAIN (dB)
-10
-15
-20
-25
-30
-35
1
2
3
4
5
6
OUTPUT FREQUENCY (GHz)
+85 C
+25 C
-40 C
5
0
2
4
6
8
10
12
FREQUENCY (GHz)
*With respect to input level
Input Return Loss vs. Drive Level
0
-5
RETURN LOSS (dB)
-10
-15
-20
-25
-30
0.5
Output Return Loss
for Several Input Frequencies
0
-5
RETURN LOSS (dB)
-10
-15
2.50 GHz
1.75 GHz
1.00 GHz
17 dBm
15 dBm
13 dBm
10 dBm
-20
-25
1
1.5
2
2.5
3
0
2
4
6
8
10
INPUT FREQUENCY (GHz)
OUTPUT FREQUENCY (GHz)
For price, delivery and to place orders: Hittite Microwave Corporation, 20 Alpha Road, Chelmsford, MA 01824
Phone: 978-250-3343
Fax: 978-250-3373
Order On-line at www.hittite.com
Application Support: Phone: 978-250-3343 or apps@hittite.com
5-2
Freq. Multipliers - pAssiVe - sMt
HMC187AMS8
/
187AMS8E
v00.0410
GaAs MMIC SMT PASSIVE FREQUENCY
DOUBLER, 0.85 - 2.0 GHz INPUT
Output Return Loss with 1 GHz Input
0
Conversion Gain @ 25
°C
vs. Drive Level
0
-5
CONVERSION GAIN (dB)
-10
-15
-20
-25
-30
20 dBm
17 dBm
15 dBm
13 dBm
11 dBm
9 dBm
RETURN LOSS (dB)
-5
5
Freq. Multipliers - pAssiVe - sMt
-10
-15
17 dBm
15 dBm
10 dBm
-35
1
2
3
4
5
6
OUTPUT FREQUENCY (GHz)
-20
0
1
2
3
4
5
6
OUTPUT FREQUENCY (GHz)
Conversion Gain @ -40
°C
vs. Drive Level
0
-5
CONVERSION GAIN (dB)
-10
-15
-20
-25
-30
-35
1
2
3
4
5
6
OUTPUT FREQUENCY (GHz)
20 dBm
17 dBm
15 dBm
13 dBm
11 dBm
9 dBm
Output Return Loss with 1.75 GHz Input
0
RETURN LOSS (dB)
-5
-10
-15
17 dBm
15 dBm
10 dBm
-20
0
1
2
3
4
5
6
OUTPUT FREQUENCY (GHz)
Conversion Gain @ +85
°C
vs. Drive Level
0
-5
CONVERSION GAIN (dB)
-10
-15
-20
-25
-30
-35
1
2
3
4
5
6
OUTPUT FREQUENCY (GHz)
20 dBm
17 dBm
15 dBm
13 dBm
11 dBm
9 dBm
Output Return Loss with 2.5 GHz Input
0
RETURN LOSS (dB)
-5
-10
-15
17 dBm
15 dBm
10 dBm
-20
0
1
2
3
4
5
6
OUTPUT FREQUENCY (GHz)
5-3
For price, delivery and to place orders: Hittite Microwave Corporation, 20 Alpha Road, Chelmsford, MA 01824
Phone: 978-250-3343
Fax: 978-250-3373
Order On-line at www.hittite.com
Application Support: Phone: 978-250-3343 or apps@hittite.com
HMC187AMS8
/
187AMS8E
v00.0410
GaAs MMIC SMT PASSIVE FREQUENCY
DOUBLER, 0.85 - 2.0 GHz INPUT
Absolute Maximum Ratings
input Drive
storage temperature
Operating temperature
+27 dBm
-65 to +150 °C
-40 to +85 °C
eleCtrOstAtiC seNsitiVe DeViCe
OBserVe HANDliNG preCAutiONs
5
Freq. Multipliers - pAssiVe - sMt
5-4

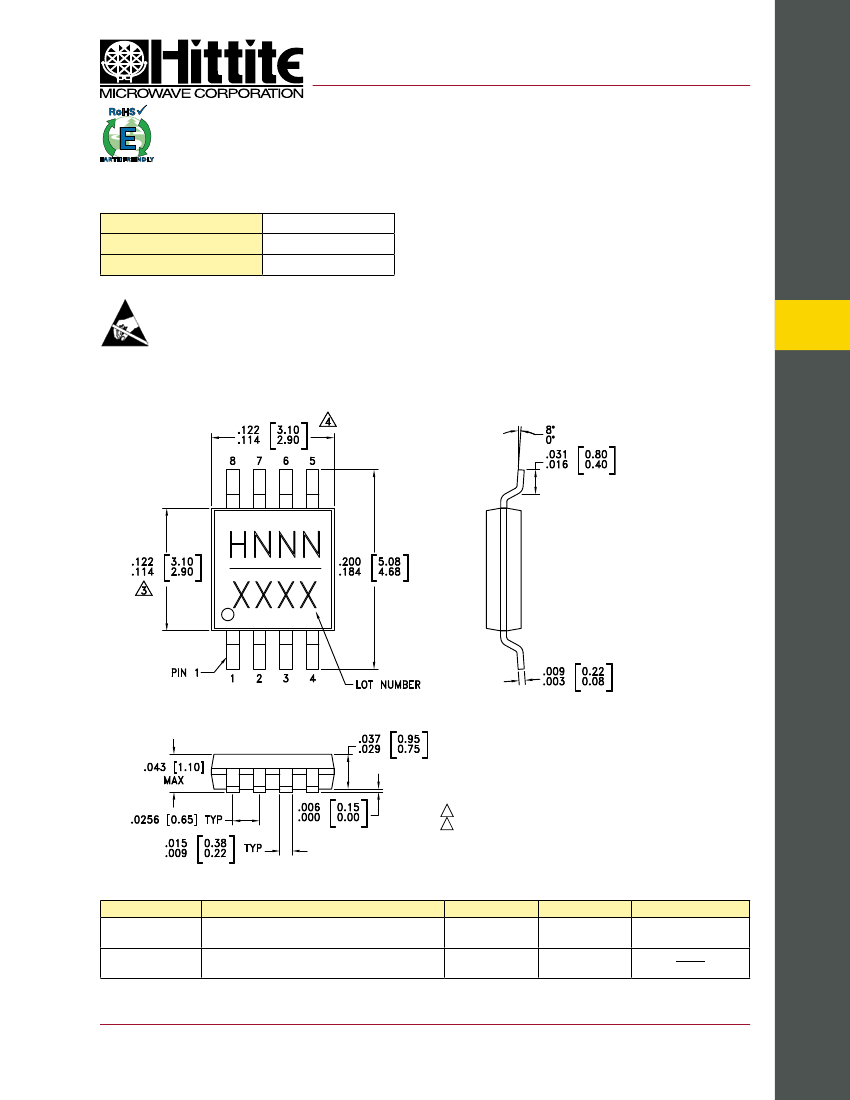

Outline Drawing
NOtes:
1. leADFrAMe MAteriAl: COpper AllOY
2. DiMeNsiONs Are iN iNCHes [MilliMeters].
3. DiMeNsiON DOes NOt iNCluDe MOlDFlAsH OF 0.15mm per siDe.
4. DiMeNsiON DOes NOt iNCluDe MOlDFlAsH OF 0.25mm per siDe.
5. All GrOuND leADs Must Be sOlDereD tO pCB rF GrOuND.
Package Information
part Number
HMC187AMs8
HMC187AMs8e
package Body Material
low stress injection Molded plastic
roHs-compliant low stress injection Molded plastic
lead Finish
sn/pb solder
100% matte sn
Msl rating
Msl1
Msl1
[1]
package Marking
[3]
H187A
XXXX
H187A
XXXX
[2]
[1] Max peak reflow temperature of 235 °C
[2] Max peak reflow temperature of 260 °C
[3] 4-Digit lot number XXXX
For price, delivery and to place orders: Hittite Microwave Corporation, 20 Alpha Road, Chelmsford, MA 01824
Phone: 978-250-3343
Fax: 978-250-3373
Order On-line at www.hittite.com
Application Support: Phone: 978-250-3343 or apps@hittite.com
HMC187AMS8
/
187AMS8E
v00.0410
GaAs MMIC SMT PASSIVE FREQUENCY
DOUBLER, 0.85 - 2.0 GHz INPUT
Pin Description
pin Number
1, 4, 5, 8
Function
N/C
Description
these pins are not connected internally; however, all data shown
herein was measured with these pins connected to rF/DC ground
externally.
All ground leads must be soldered to pCB rF/DC ground.
interface schematic
5
Freq. Multipliers - pAssiVe - sMt
3, 6
GND
2
rFiN
pin is DC coupled and
matched to 50 Ohms.
7
rFOut
pin is DC coupled and
matched to 50 Ohms.
5-5
For price, delivery and to place orders: Hittite Microwave Corporation, 20 Alpha Road, Chelmsford, MA 01824
Phone: 978-250-3343
Fax: 978-250-3373
Order On-line at www.hittite.com
Application Support: Phone: 978-250-3343 or apps@hittite.com
