824-M0163 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power management> transformer> 824-M0163

824-M0163: DescriptionDatacom Transformer, 10/100 BASE-T Application(s), 1CT:1; 1CT:1CT, SO060A; CategoryPower management transformer; File Size211KB，2 Pages; ManufacturerElec & Eltek; Websitehttp://www.eleceltek.com

Download Datasheet Parametric View All

824-M0163 Overview

Datacom Transformer, 10/100 BASE-T Application(s), 1CT:1; 1CT:1CT, SO060A

824-M0163 Parametric

Parameter Name	Attribute value
Maker	Elec & Eltek
package instruction	SO060A
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	HEIGHT DIM INCLUDE TERMINAL ALSO
application	10/100 BASE-T
high	7.85 mm
Insulation voltage	1500 V
length	32.13 mm
Installation features	SURFACE MOUNT
Number of functions	5
Maximum operating temperature	70 °C
Minimum operating temperature
method of packing	TAPE & REEL
physical size	L32.13XB18.34XH7.85 (mm)
Primary inductance	350 µH
surface mount	YES
Transformer type	DATACOM TRANSFORMER
Turns ratio (Np:Ns)	1CT:1; 1CT:1CT
width	18.34 mm

Preview

Download Datasheet

View All

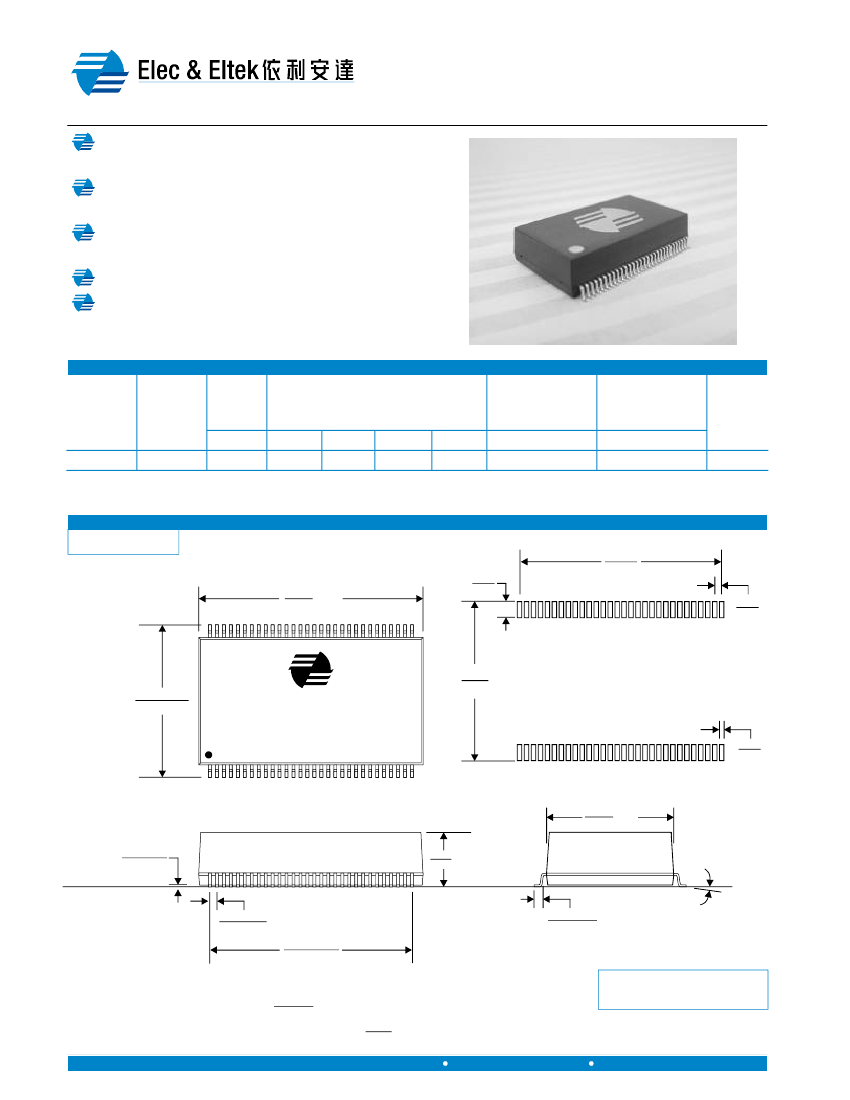

E & E Magnetic Products Limited

10/100 Base-T 5 Port

Magnetic Module

1:1 Turns Ratios for Different Transceivers IC

CHEMATICS

Compliant with IEEE802.3 standard including

350uH

OCL with 8mA DC bias

Designed to withstand IR-Reflow with peak

temperature per IPC/JEDEC J-STD-020C

Compact 5-port design for use in space-restrictive

applications

Operating temperature 0°C to +70°C

RoHS compliant version is available

LECTRICAL

PECIFICATION @

25°C

Part

Number

RoHS

Part

Number

Insertion

Loss

(dB Max)

.1-100MHz 1-30MHz

Return Loss

(dB Min)

40MHz

14.0

50MHz

13.0

60-80MHz

12.0

CMRR

(dB Min)

.1-100MHz

35.0

Crosstalk

(dB Min)

.1-100MHz

33.0

Hipot

(Vrms)

824-M0163

1.0

16.0

1500

1. Contact EEMPL for RoHS compliant versions availability.

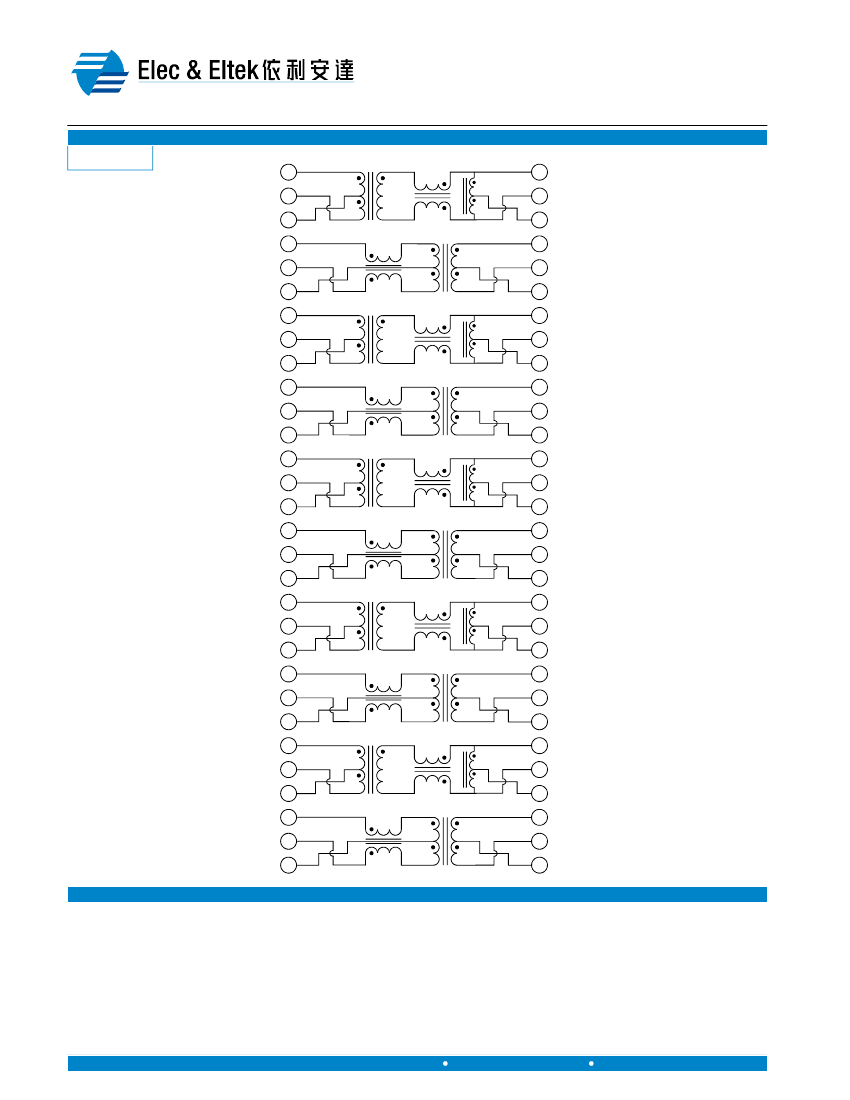

CHEMATICS

ECHANICAL

IMENSIONS

Package: SO060A

1.131

28.73

1.265 MAX

32.13

.092

2.34

.039

0.99

.894

22.71

.852±.010

21.64±0.25

824-M0163

(DATE) (COUNTRY)

Recommended

Pad Layout

.722 MAX

18.34

.025

0.64

.005-.020

0.13-0.51

.309 MAX

7.85

0-8°

REFERENCE OR

GAUGE PLANE

.039±.005

0.99±0.13

1.131±.010

28.73±0.25

.040±.010

1.02±0.25

Notes:

2. All dimensions are specified in inches with higher precedence in inches.

3. Unless otherwise specified, all tolerances are ± .010 .

0.25

Weight (in gram)

Tape & Reel

9.0 typ.

200 / reel

2/F Block A, 94 Tokwawan Road, Kowloon, Hong Kong

Tel: (852) 2765 3888

Fax: (852) 2954 3304

EH025(06)

Revised in 06/07
