832-00023 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> filter> 832-00023

832-00023: DescriptionData Line Filter, 2 Function(s), 12A, LEAD FREE PACKAGE-4; CategoryAnalog mixed-signal IC filter; File Size83KB，2 Pages; ManufacturerElec & Eltek; Websitehttp://www.eleceltek.com

Download Datasheet Parametric View All

832-00023 Overview

Data Line Filter, 2 Function(s), 12A, LEAD FREE PACKAGE-4

832-00023 Parametric

Parameter Name	Attribute value
Maker	Elec & Eltek
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum DC resistance	0.011 Ω
filter type	DATA LINE FILTER
high	27.94 mm
inductance	1400 µH
length	30.73 mm
Manufacturer's serial number	832-00023
Installation type	THROUGH HOLE MOUNT
Number of functions	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
physical size	L30.73XB15.88XH27.94 (mm)/L1.21XB0.625XH1.1 (inch)
Rated current	12 A
width	15.88 mm

Preview

Download Datasheet

View All

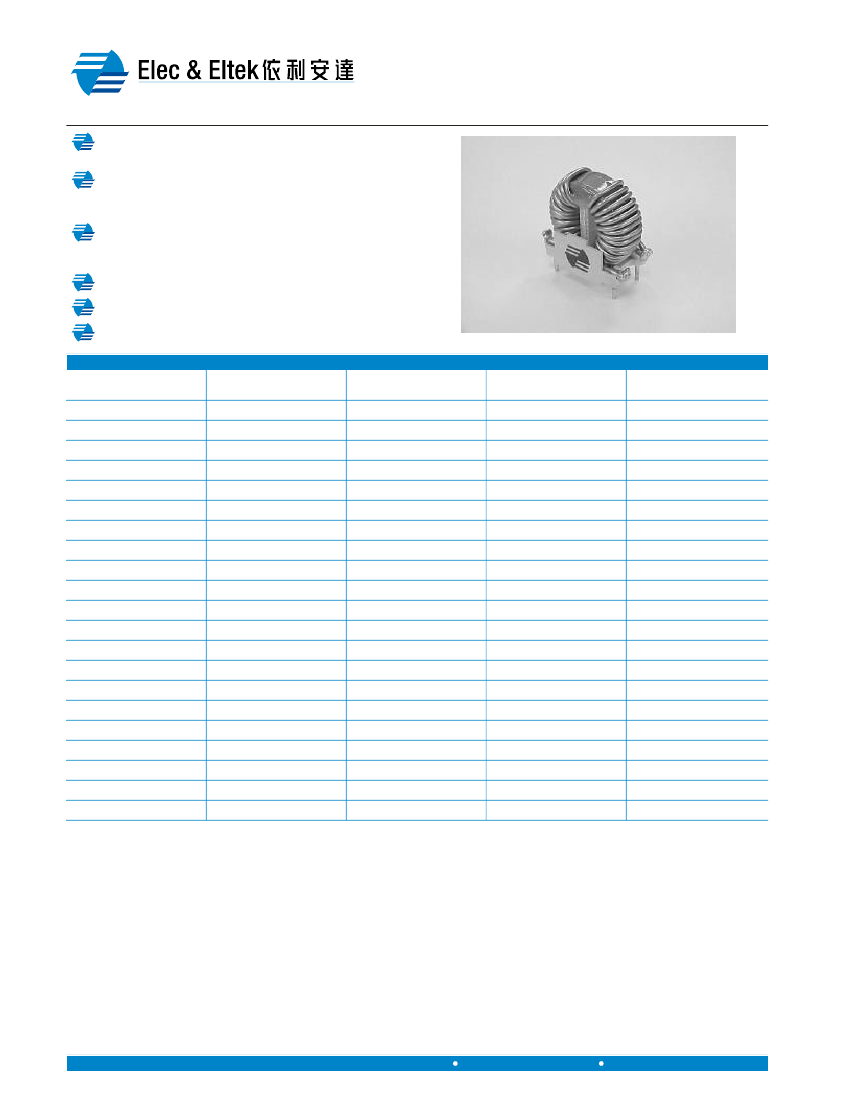

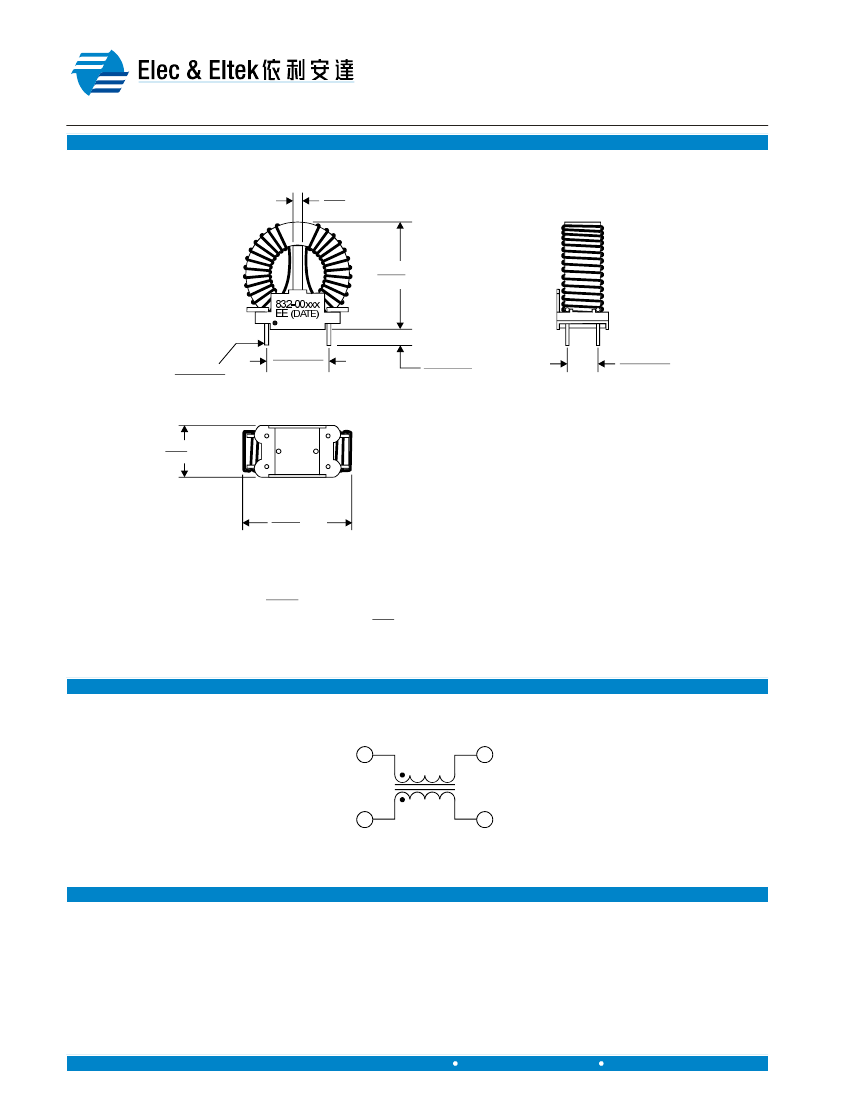

COMMON MODE CHOKE

E & E Magnetic Products Limited

Toroid Type, Vertical Mount

Effective in filtering supply lines having in-phase

CHEMATICS

signals of equal amplitude

Substantial attenuation can be achieved when the

part is used in conjunction with input and output

capacitors

Broad frequency range can be filtered by placing

high and low inductance common mode toroids in

series

1250 Vrms isolation between windings

Operating temperature: -40° to +85°C

Lead(Pb)-free versions are available

LECTRICAL

PECIFICATION @

25°C

Part

Number

832-00038

832-00037

832-00036

832-00035

832-00034

832-00033

832-00032

832-00031

832-00030

832-00029

832-00028

832-00027

832-00026

832-00272

832-00271

832-00025

832-00024

832-00023

832-00022

832-00021

832-00020

Notes:

1. Inductance tested at 15.75kHz, 0ADC.

Inductance, Ls

(mH) Min.

5.0

8.0

15.0

2.5

4.0

7.5

1.3

2.1

3.7

1.0

1.7

3.0

0.6

1.1

1.9

0.5

0.8

1.4

0.3

0.6

1.1

Leakage Inductance, LL

(

H) Max.

125

233

DCR

(

Ω)

Max.

.210

.270

.430

.090

.100

.110

.030

.040

.022

.032

.027

.012

.013

.017

.008

.011

.005

.006

.008

Rated Current, Irms

(A) Max.

Unit B10, 3/F., 94 Tokwawan Road, Kowloon, Hong Kong

Tel: (852) 2954 3333

Fax: (852) 2954 3304

PC101(02)

Revised in 04/05
