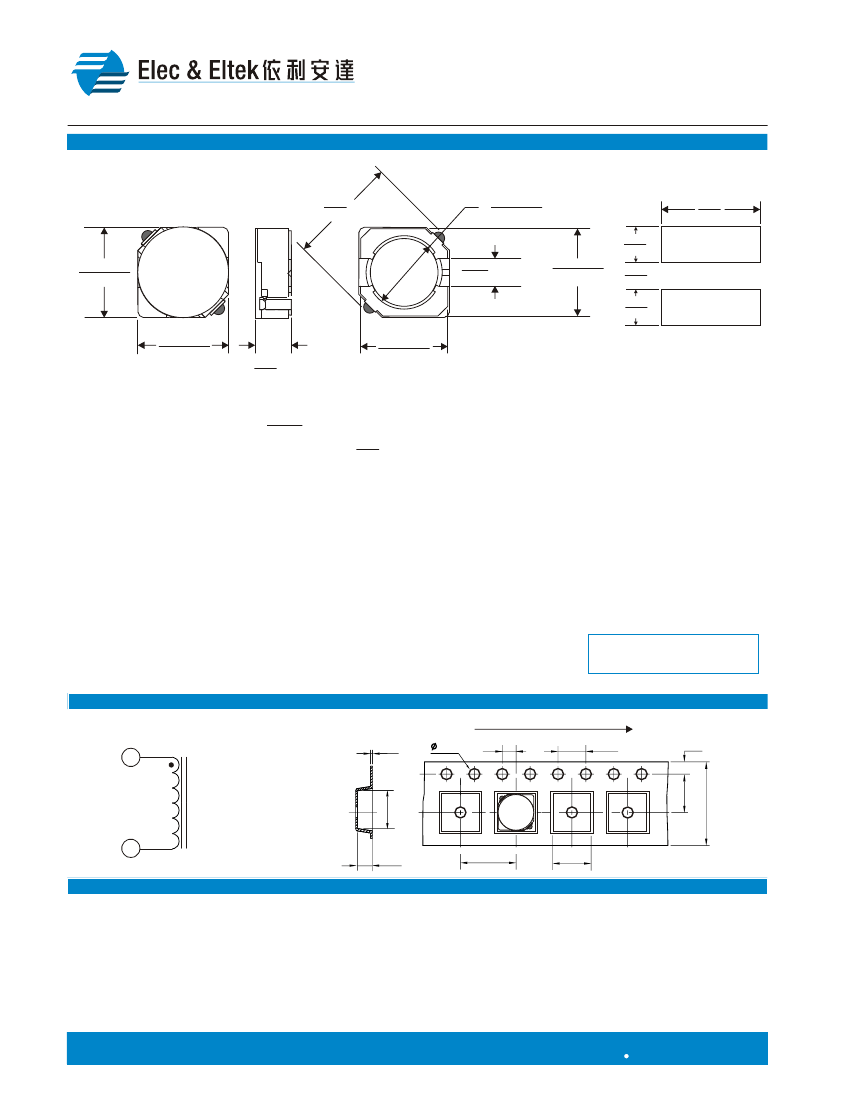

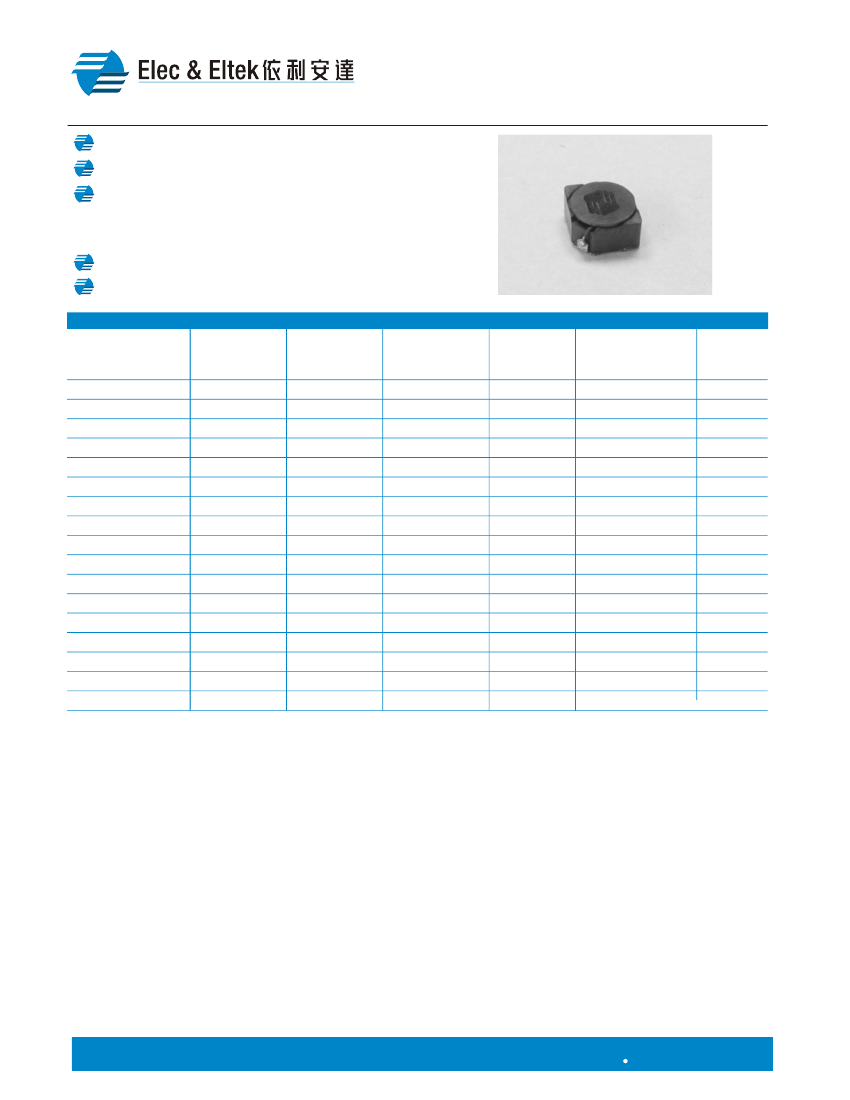

E & E Magnetic Products Limited
SHIELDED SURFACE MOUNT
POWER INDUCTOR
Drum Type, SIS5D18 Series
Magnetically Shielded
Miniature in size and high energy storage
Ideal for high current requirements of notebook,
video recorders and other DC-DC conversion
applications
Custom inductance value or tolerance is available
RoHS compliant
E
LECTRICAL
S
PECIFICATION
@ 25
o
C
Part
Number
SIS5D18N-4R1R
SIS5D18N-5R4R
SIS5D18N-6R2R
SIS5D18N-8R9R
SIS5D18N-100R
SIS5D18N-120R
SIS5D18N-150R
SIS5D18N-180R
SIS5D18N-220R
SIS5D18N-270R
SIS5D18N-330R
SIS5D18N-390R
SIS5D18N-470R
SIS5D18N-560R
SIS5D18N-680R
SIS5D18N-820R
SIS5D18N-101R
Inductance
(uH)
4.1
5.4
6.2
8.9
10
12
15
18
22
27
33
39
47
56
68
82
100
Tolerance
(%)
±30
±30
±30
±30
±30
±30
±30
±30
±30
±30
±30
±30
±30
±30
±30
±30
±30
Test Frequency
(kHz)
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
2
DCR
(m
W
Max)
57
76
96
116
124
153
196
210
290
330
386
520
595
665
840
978
1200
Rated DC Current
(A)
1.95
1.60
1.40
1.25
1.20
1.10
0.97
0.85
0.80
0.75
0.65
0.57
0.54
0.50
0.43
0.41
0.36
3
Marking
(XYYY)
N4R1
N5R4
N6R2
N8R9
N100
N120
N150
N180
N220
N270
N330
N390
N470
N560
N680
N820
N101
Notes:
1. Ordering Information: SIS5D18a - bbbRc.
SIS5D18
a
bbb
R
c
= Product Type.
= Tolerance of Inductance (N =
±30%).
= Inductance value in uH (i.e. 4R1= 4.1uH; 470 = 47uH; 101 = 100uH).
= Internal Control Code.
= Packaging Code (U = Tape & Reel Packaging in 7 inch Reel ).
2. Test frequency is specified as the frequency for measuring the inductance.
3. Rated D.C. current indicates the value of the current when the inductance is 35% lower than its initial value
or the current when temperature rising
DT=40
o
C at D.C. Superposition.
4. Operating temperature range: -40°C to +125°C.
5. The part temperature (ambient temperature + temperature rise) should not exceed the upper limit of the
operating temperature under worst case operating conditions. Circuit design, component placement, PWB
trace size and thickness, airflow and other cooling provisions all affect the part temperature. Part
temperature should be verified in the end application.
1/F., Harbour View 1, No.12 Science Park East Avenue, Phase II, Hong Kong Science Park, Shatin, N.T. Hong Kong
Tel: (852) 2954 3333
Fax: (852) 2954 3304
1
PI052(03)
Revised in 06/12
E & E Magnetic Products Limited
SHIELDED SURFACE MOUNT
POWER INDUCTOR
Drum Type, SIS5D18 Series
M
ECHANICAL
D
IMENSIONS
.323
Max
8.20
Æ
.181±
.010
4.60±
0.25
.085
2.15
.248
6.30
.224±
.012
5.70±
0.30
XYYYR
(DATE)
.079
(Reference)
.217±
.010
5.50±
0.25
2.00
.079
2.00
.085
2.15
.224±
.012
5.70±
0.30
.079
Max
2.00
.217±
.010
5.50±
0.25
Recommended
Pad Layout
Notes:
inches
mm with higher precedence in mm.
7. U
nless otherwise specified, all tolerances are
±
.010
.
0.25
6. All dimensions are specified in
Weight (in gram)
Tape & Reel
:
:
1.0 typ.
950 / reel
S
CHEMATIC
0.30
P
ACKAGING
USER DIRECTION OF UNREELING
1.55
2.0
4.0
1.75
1
5.50
XYYYR
(DATE)
2
6.15
2.20
8.00
6.15
FOR MORE INFORMATION, PLEASE CONTACT
HEADQUARTER
1/F., Harbour View 1, No.12 Science Park East Avenue,
Phase II, Hong Kong Science Park, Shatin, N.T.
Hong Kong
Tel: (852) 2954 3333 Fax: (852) 2954 3304
Email: eempl@eleceltek.com
Website: http://www.eleceltek.com / www.eemagnetic.com
