MCX Miniature Coaxial Connectors
MCX Miniaturkoaxialkontakte
Technical Data
Technische Daten
Mechanical Data
Mechanische Daten
Mechanical Data
Mechanische Daten
Mating force
Steckkraft
Unmating force
Ziehkraft
Recommended temperature range
Empfohlener Temperaturbereich
Mating cycles
Steckzyklen
max. 24.9 N (5.6 lbs.)
min. 8 N (1.8 lbs.)
-65 °C
d - d
165 °C (-85 °F
d - d
329 °F)
t
500
Electrical Data
Elektrische Daten
Electrical Data
Elektrische Daten
Characteristic impedance
Wellenwiderstand
Frequency range
Frequenzbereich
Insulation resistance
Isolationswiderstand
Contact resistance inner conductor
Durchgangswiderstand Innenleiter
Contact resistance outer conductor
Durchgangswiderstand Außenleiter
Dielectric Withstanding Voltage (DWV) at sea level
Prüfspannung (DWV) auf Meereshöhe
50
:
/ 75
:
0 - 6 GHz
t
5000 M:
d
5 m:
d
1 m:
t
1000 VRSM
Materials and Platings
Materialien und Oberflächen
Materials and Platings
Materialien und Oberflächen
Body material
Kontaktmaterial
Material center conductor
Material Innenleiter
Insulator
Isolator
Crimp ferrule
Crimphülse
Center contact plating
Oberfläche Innenleiter
Brass
Messing
CuBe / Brass
CuBe / Messing
Teflon
Teflon
Cu alloy
Cu Legierung
Au over Ni
Au über Ni
ALL DIMENSIONS IN MILLIMETERS - VALUES FOR INCHES IN BRACKETS - TECHNICAL DATA SUBJECT TO CHANGE
RF 12/2006
19
MCX Coaxial Connectors, Mating Area Dimensions
MCX Koaxialkontakte, Abmessungen Steckbereich
Plug
Stift
Jack
Buchse
A
B
C
D
E
Plug /
Stift
min.
max.
0,48
0,53
(0.019)
(0.021)
2,00
—
(0.079)
3,81
—
(0.150)
2,79
3,20
(0.110)
(0.126)
4,14
—
(0.163)
Jack /
Buchse
min.
max.
—
—
1,85
1,98
(0.073)
(0.078)
3,73
nom.
(0.147)
2,60
2,80
(0.102)
(0.110)
3,99
4,12
(0.157)
(0.162)
Dimensions Straight Cable Termination, Semi-rigid (MCX)
Abmessungen gerader Kabelanschluss, semi-rigid (MCX)
Plug
Stift
FCT Part Number
FCT Teilenummer
A25P1NA-103-10
A25P1NA-104-10
A25P1NA-111-10
A25J1NA-103-10
A25J1NA-104-10
A25J1NA-111-10
A38P1NA-103-10
A38P1NA-104-10
A38J1NA-103-10
A38J1NA-104-10
A
11,2
(0.441)
13,8
(0.545)
11,2
(0.441)
11,9
(0.467)
11,9
(0.467)
11,9
(0.467)
11,2
(0.441)
13,8
(0.545)
11,9
(0.467)
11,9
(0.467)
B
5,0
(0.196)
5,0
(0.196)
5,0
(0.196)
5,0
(0.196)
5,0
(0.196)
5,0
(0.196)
5,0
(0.196)
5,0
(0.196)
5,0
(0.196)
5,0
(0.196)
Characteristic Impedance
Wellenwiderstand
Suitable Cable
Verwendbares Kabel
0.086 Semi-rigid
0.141 Semi-rigid
0.047 Semi-rigid
50 Ohm
.086 Semi-Rigid
.141 Semi-rigid
.047 Semi Rigid
RG405, .086 Semi-rigid
0.141 Semi-rigid
75 Ohm
.086 Semi-Rigid
.141 Semi-rigid
Jack
Buchse
20
RF 12/2006
TECHNISCHE ÄNDERUNGEN VORBEHALTEN – MAßE IN MILLIMETER (INCHES IN KLAMMERN)
Dimensions Straight Cable Termination (MCX)
Abmessungen gerader Kabelanschluss (MCX)
Plug
Stift
FCT Part Number
FCT Teilenummer
A25P1NA-201-10
A25P1NA-205-10
A25P1NA-206-10
A25J1NA-201-10
A25J1NA-205-10
A25J1NA-206-10
A38P1NA-201-10
A38P1NA-205-10
A38J1NA-201-10
A38J1NA-205-10
A
15,7
(0.618)
15,7
(0.618)
15,7
(0.618)
12,6
(0.495)
12,6
(0.495)
12,6
(0.495)
15,7
(0.618)
15,7
(0.618)
12,6
(0.495)
12,6
(0.495)
B
13,7
(0.540)
13,7
(0.540)
13,7
(0.540)
10,6
(0.417)
10,6
(0.417)
10,6
(0.417)
13,7
(0.540)
13,7
(0.540)
10,6
(0.417)
10,6
(0.417)
Characteristic Impedance
Wellenwiderstand
Suitable Cable
Verwendbares Kabel
RG316, 188, 174
RG316, 188, 174 D.S.
RG178, 196
50 Ohm
RG316, 188, 174
RG316, 188, 174 D.S.
RG178, 196
RG179, 187
RG179 D.S., 187
75 Ohm
RG179
RG179 D.S., 187
Jack
Buchse
Dimensions Straight Cable Termination, Semi-rigid, Bulkhead (MCX)
Abmessungen gerader Kabelanschluss, semi-rigid, Gehäusedurchführung (MCX)
FCT Part Number
FCT Teilenummer
A25J1BK-103-10
A25J1BK-104-10
A25J1BK-111-10
A38J1BK-103-10
A38J1BK-104-10
A
14,3
(0.561)
14,3
(0.561)
14,3
(0.561)
14,3
(0.561)
14,3
(0.561)
B
9,6
(0.378)
9,6
(0.378)
9,6
(0.378)
9,6
(0.378)
9,6
(0.378)
C
6,5
(0.255)
6,5
(0.255)
6,5
(0.255)
6,5
(0.255)
6,5
(0.255)
Characteristic Impedance
Wellenwiderstand
Suitable Cable
Verwendbares Kabel
.086 Semi-Rigid
50 Ohm
.141 Semi-rigid
.047 Semi Rigid
.086 Semi-Rigid
75 Ohm
.141 Semi-rigid
Jack
Buchse
Dimensions Straight Cable Termination, Bulkhead (MCX)
Abmessungen gerader Kabelanschluss, Gehäusedurchführung (MCX)
FCT Part Number
FCT Teilenummer
A25J1BK-201-10
A25J1BK-205-10
A25J1BK-206-10
A38J1BK-201-10
A38J1BK-205-10
A
19,2
(0.755)
19,2
(0.755)
19,2
(0.755)
19,2
(0.755)
19,2
(0.755)
B
15,4
(0.606)
15,4
(0.606)
15,4
(0.606)
15,4
(0.606)
15,4
(0.606)
C
8,0
(0.315)
8,0
(0.315)
8,0
(0.315)
8,0
(0.315)
8,0
(0.315)
Characteristic Impedance
Wellenwiderstand
Suitable Cable
Verwendbares Kabel
RG316, 188, 174
50 Ohm
RG316, 188, 174 D.S.
RG178, 196
RG179, 187
75 Ohm
RG179 D.S., 187
Jack
Buchse
ALL DIMENSIONS IN MILLIMETERS - VALUES FOR INCHES IN BRACKETS - TECHNICAL DATA SUBJECT TO CHANGE
RF 12/2006
21
Dimensions Right Angled Cable Termination, Semi-rigid (MCX)
Abmessungen abgewinkelter Kabelanschluss, semi-rigid (MCX)
Plug
Stift
FCT Part Number
FCT Teilenummer
A25P2NA-103-10
A25P2NA-104-10
A25P2NA-111-10
A38P2NA-103-10
A38P2NA-104-10
A
8,9
(0.349)
8,9
(0.349)
8,9
(0.349)
8,9
(0.349)
8,9
(0.349)
B
8,8
(0.345)
8,8
(0.345)
8,8
(0.345)
8,8
(0.345)
8,8
(0.345)
C
6,0
(0.236)
6,0
(0.236)
6,0
(0.236)
6,0
(0.236)
6,0
(0.236)
Characteristic Impedance
Wellenwiderstand
Suitable Cable
Verwendbares Kabel
.086 Semi-Rigid
50 Ohm
.141 Semi-Rigid
.047 Semi-Rigid
.086 Semi-Rigid
75 Ohm
.141 Semi-Rigid
Dimensions Right Angled Cable Termination (MCX)
Abmessungen abgewinkelter Kabelanschluss (MCX)
Plug
Stift
FCT Part Number
FCT Teilenummer
A25P2NA-201-10
A25P2NA-205-10
A25P2NA-206-10
A38P2NA-201-10
A38P2NA-205-10
A
8,9
(0.349)
8,9
(0.349)
8,9
(0.349)
8,9
(0.349)
8,9
(0.349)
B
13,2
(0.518)
13,2
(0.518)
13,2
(0.518)
13,2
(0.518)
13,2
(0.518)
C
9,1
(0.359)
9,1
(0.359)
9,1
(0.359)
9,1
(0.359)
9,1
(0.359)
Characteristic Impedance
Wellenwiderstand
Suitable Cable
Verwendbares Kabel
RG316, 188, 174
50 Ohm
RG316, 188, 174 D.S.
RG178, 196
RG179, 187
75 Ohm
RG179 D.S., 187

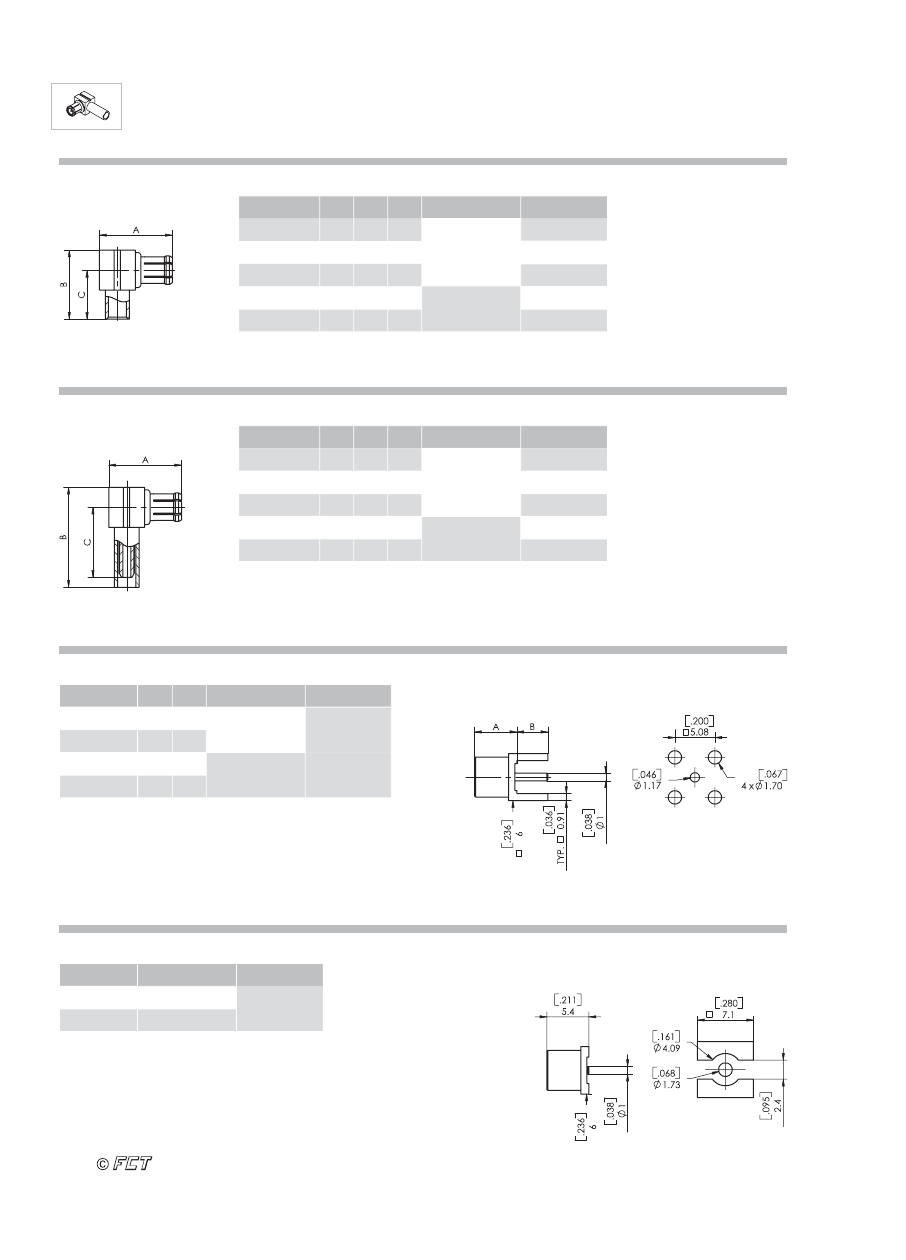

Dimensions Straight PCB Termination (MCX)
Abmessungen gerader Leiterplattenanschluss (MCX)
FCT Part Number
FCT Teilenummer
A25J1PC-000-10
A25J1PC-000-11
A38J1PC-000-10
A38J1PC-000-11
A
6,0
(0.236)
6,0
(0.236)
6,0
(0.236)
6,0
(0.236)
B
3,9
(0.155)
1,7
(0.068)
3,9
(0.155)
1,7
(0.068)
Characteristic impedance
Wellenwiderstand
50 Ohm
Brass
Messing
75 Ohm
Material
Material
Jack
Buchse
Dimensions Straight PCB Termination, Surface Mounted/SMT (MCX)
Abmessungen gerader Leiterplattenanschluss, Oberflächenmontage/SMT (MCX)
FCT Part Number
FCT Teilenummer
A25J1SF-000-10G
A38J1SF-000-10G
Characteristic Impedance
Wellenwiderstand
50 Ohm
75 Ohm
Material
Material
Brass
Messing
Jack
Buchse
22
RF 12/2006
TECHNISCHE ÄNDERUNGEN VORBEHALTEN – MAßE IN MILLIMETER (INCHES IN KLAMMERN)
Dimensions Right Angled PCB Termination (MCX)
Abmessungen abgewinkelter Leiterplattenanschluss (MCX)
FCT Part Number
FCT Teilenummer
A25J2PC-000-10
A38J2PC-000-10
A
9,5
(0.375)
9,5
(0.375)
B
10,0
(0.394)
10,0
(0.394)
C
7,0
(0.276)
7,0
(0.276)
Characteristic Impedance
Wellenwiderstand
50 Ohm
75 Ohm
Material
Material
Brass
Messing
Jack
Buchse
Dimensions Straight Edge Mounted (MCX)
Abmessungen Leiterplatten Kantenmontage, gerade (MCX)
FCT Part Number
FCT Teilenummer
A25J1EG-000-10
A38J1EG-000-10
A
9,6
(0.376)
9,6
(0.376)
B
6,3
(0.246)
6,3
(0.246)
C
5,0
(0.197)
5,0
(0.197)
Characteristic Impedance
Wellenwiderstand
50 Ohm
75 Ohm
Material
Material
Brass
Messing
Jack
Buchse
ALL DIMENSIONS IN MILLIMETERS - VALUES FOR INCHES IN BRACKETS - TECHNICAL DATA SUBJECT TO CHANGE
RF 12/2006
23
