LPC-23FDSG datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> LPC-23FDSG

LPC-23FDSG: DescriptionBoard Connector, 23 Contact(s), 1 Row(s), Female, Straight, 0.079 inch Pitch, Solder Terminal, Black Insulator, Plug,; CategoryThe connector The connector; File Size52KB，1 Pages; ManufacturerHonda Tsushin Kogyo Co., Ltd.; Environmental Compliance

Download Datasheet Parametric View All

LPC-23FDSG Overview

Board Connector, 23 Contact(s), 1 Row(s), Female, Straight, 0.079 inch Pitch, Solder Terminal, Black Insulator, Plug,

LPC-23FDSG Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	incompatible
Maker	Honda Tsushin Kogyo Co., Ltd.
Reach Compliance Code	unknown
Other features	POLARIZATION AVAILABLE
body width	0.079 inch
subject depth	0.197 inch
body length	1.835 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	Gold (Au)
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	40 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	500VAC V
Filter function	NO
IEC compliance	NO
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	POLYBUTYLENE TEREPHTHALATE
JESD-609 code	e4
MIL compliance	NO
Plug contact pitch	0.079 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Plating thickness	8u inch
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.118 inch
Terminal pitch	2 mm
Termination type	SOLDER
Total number of contacts	23
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

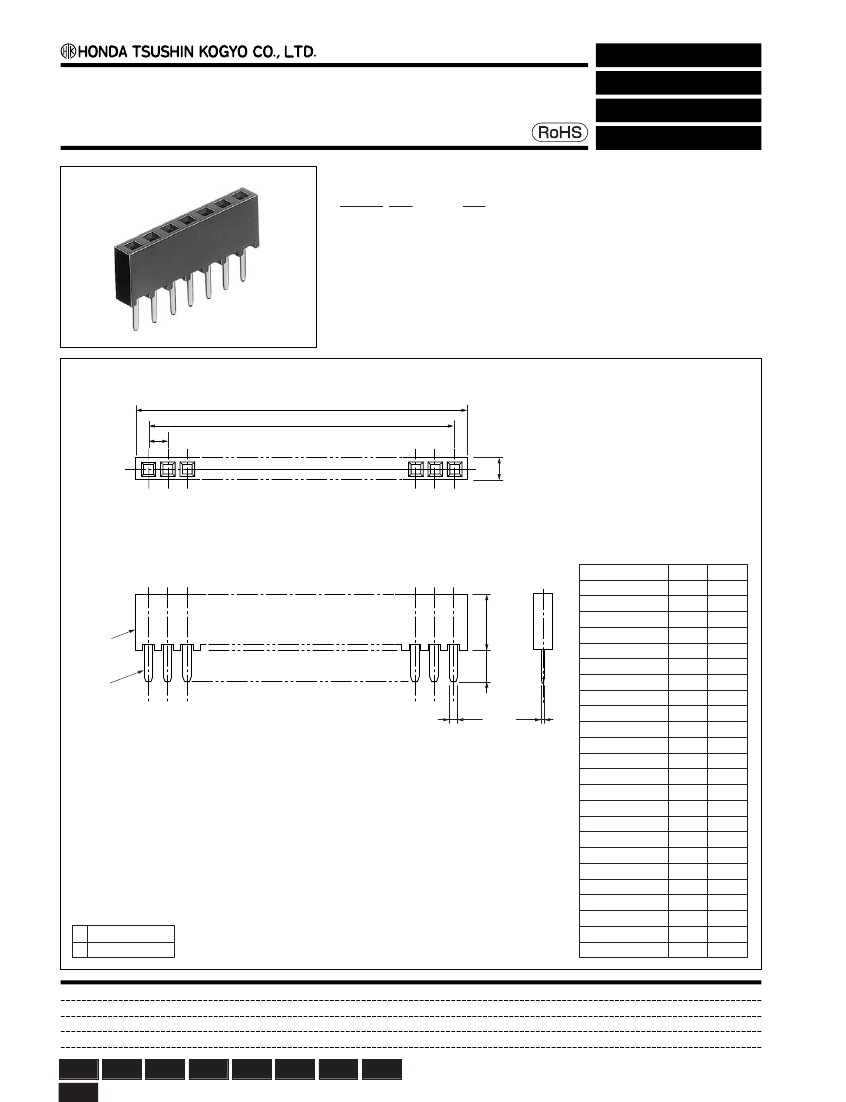

2 mm pitch connector

Straight through hole type female connector for PCB

LPC-( )FDS( )

●

Configuration of product Part No.

For PCB

Straight Through hole

LPC- ( ) FDS ( )

➀

➁

➂

➀

Series name

➁

No. of contacts: 2-25

➂

Contact plating

+C : Tin copper plate

G+: Gold plate

●

Dimensions

Part No.

LPC-2FDS( )

LPC-3FDS( )

LPC-4FDS( )

LPC-5FDS( )

LPC-6FDS( )

LPC-7FDS( )

LPC-8FDS( )

LPC-9FDS( )

0.6

0.2

LPC-10FDS( )

LPC-11FDS( )

LPC-12FDS( )

LPC-13FDS( )

LPC-14FDS( )

LPC-15FDS( )

LPC-16FDS( )

LPC-17FDS( )

LPC-18FDS( )

LPC-19FDS( )

LPC-20FDS( )

LPC-21FDS( )

LPC-22FDS( )

4.6

6.6

8.6

10.6

12.6

14.6

16.6

18.6

20.6

22.6

24.6

26.6

28.6

30.6

32.6

34.6

36.6

38.6

40.6

42.6

44.6

46.6

48.6

50.6

™

●

Components

➀

Insulator

➁

Contacts

Because some combinations of “Configurations of

Product Part No.”, are under consideration for

development, please contact us for availability details.

LPC-23FDS( )

LPC-24FDS( )

LPC-25FDS( )

Mating connectors:

LPC series male connectors

Accessories:

Polarization key: LPC-PK1

Through

hole

SMT

Press-in

IDC

Wire

Soldering Crimping wrapping

Others

Recommended Resources

Do you understand the new smart building equipment connection solution?

One of multiple sets of high-power colored light chain circuits that flash in turn a

Four-channel infrared remote control receiver circuit

INA120 instrument amplifier

TL431 and 7805 form an adjustable regulated power supply circuit diagram

FET humidity and temperature dual-function sensor test circuit
