1008 CHIP INDUCTORS
Aerospace Grade Chip Inductors
AE413RAD
This robust version of Coilcraft’s standard 1008HQ series
features high temperature materials that pass NASA low
outgassing specifications and allow operation in ambient
Inductance
3
(nH)
3.0 @ 50 MHz
4.1 @ 50 MHz
7.8 @ 50 MHz
10 @ 50 MHz
12 @ 50 MHz
18 @ 50 MHz
22 @ 50 MHz
33 @ 50 MHz
39 @ 50 MHz
47 @ 50 MHz
56 @ 50 MHz
68 @ 50 MHz
82 @ 50 MHz
100 @ 50 MHz
Percent
tolerance
5
5
5
5,2
5,2
5,2
5,2
5,2
5,2
5,2,1
5,2,1
5,2,1
5,2
5,2
temperatures up to 155°C. The leach-resistant base
metalization with tin-lead (Sn-Pb) terminations ensures the
best possible board adhesion.
SRF min
5
(GHz)
8.10
6.20
3.80
3.60
2.80
2.70
2.05
1.70
1.30
1.45
1.23
1.15
1.06
0.82
DCR max
6
(Ohms)
0.04
0.05
0.05
0.06
0.06
0.07
0.07
0.09
0.09
0.12
0.12
0.13
0.16
0.16
Imax
(A)
1.6
1.6
1.6
1.6
1.5
1.4
1.4
1.3
1.3
1.2
1.2
1.1
1.1
1.0
Part number
1
AE413RAD3N0_SZ
2
AE413RAD4N1_SZ
AE413RAD7N8_SZ
2
AE413RAD10N_SZ
AE413RAD12N_SZ
AE413RAD18N_SZ
AE413RAD22N_SZ
AE413RAD33N_SZ
AE413RAD39N_SZ
AE413RAD47N_SZ
AE413RAD56N_SZ
AE413RAD68N_SZ
AE413RAD82N_SZ
AE413RADR10_SZ
Q
70 @ 1500 MHz
75 @ 1500 MHz
75 @ 500 MHz
60 @ 500 MHz
70 @ 500 MHz
62 @ 350 MHz
62 @ 350 MHz
75 @ 350 MHz
75 @ 350 MHz
75 @ 350 MHz
75 @ 350 MHz
80 @ 350 MHz
80 @ 350 MHz
62 @ 350 MHz
Core material
Ceramic
min
4
1. When ordering, please specify
tolerance
and
testing
codes:
AE313RADR10JSZ
Tolerance: F
= 1%
G
= 2%
J
= 5%
Testing:
Z
= Coilcraft Critical Products Environmental Stress
Conditions Testing.
H
= Coilcraft Qual + Coilcraft Hi-Rel Burn-in
P
= Coilcraft Qual + MIL-STD-981 Class S Group A
screening
N
= Coilcraft Qual + MIL-STD-981 Class B Group A
screening
C
= Coilcraft Qual + MIL-STD-981 Class S Group A
screening + MIL-STD-981 Class S Group B qualification
W
= Coilcraft Qual + MIL-STD-981 Class B Group A
screening + MIL-STD-981 Class S Group B qualification
2. Part is wound on low profile coilform.
3. Inductance measured using a Coilcraft SMD-A fixture in an Agilent/
HP 4286A impedance analyzer with Coilcraft-provided correlation
pieces.
4. Q measured using an Agilent/HP 4291A with an Agilent/HP 16193 test
fixture.
5. For SRF less than 6 GHz, measured using an Agilent/HP 8753D
network analyzer and a Coilcraft SMD-D test fixture. For SRF greater
than 6 GHz, measured using an Agilent/HP 8722ES network analyzer
and a Coilcraft SMD-D test fixture.
6. DCR measured on a Cambridge Technology micro-ohmmeter and a
Coilcraft CCF840 test fixture.
7. Electrical specifications at 25°C.
Refer to Doc 362 “Soldering Surface Mount Components” before soldering.
Terminations
Tin-lead (63/37) over silver-platinum-glass frit
Ambient temperature
–55°C to +125°C with
Imax
current, +125°C
to +155°C with derated current
Storage temperature
Component: –55°C to +155°C.
Packaging: –55°C to +80°C
Resistance to soldering heat
Max three 40 second reflows at
+260°C, parts cooled to room temperature between cycles
Temperature Coefficient of Inductance (TCL)
+25 to +155 ppm/°C
Moisture Sensitivity Level (MSL)
1 (unlimited floor life at <30°C /
85% relative humidity)
Enhanced crush-resistant packaging
2000/7″reel; 7500/13″ reel
Standard height parts: Plastic tape: 8 mm wide, 0.23 mm thick,
4 mm pocket spacing, 1.8 mm pocket depth
Low profile parts: Plastic tape: 8 mm wide, 0.3 mm thick,
4 mm pocket spacing, 1.6 mm pocket depth
®
These parts are preproduction products for electrical evaluation only.
Specification subject to change without notice.
Document AE190-1
Revised 06/01/09
1102 Silver Lake Road
Cary IL 60013
© Coilcraft, Inc. 2009
Phone
800-981-0363
Fax
847-639-1508
E-mail
cp@coilcraft.com
Web
www.coilcraft-cps.com

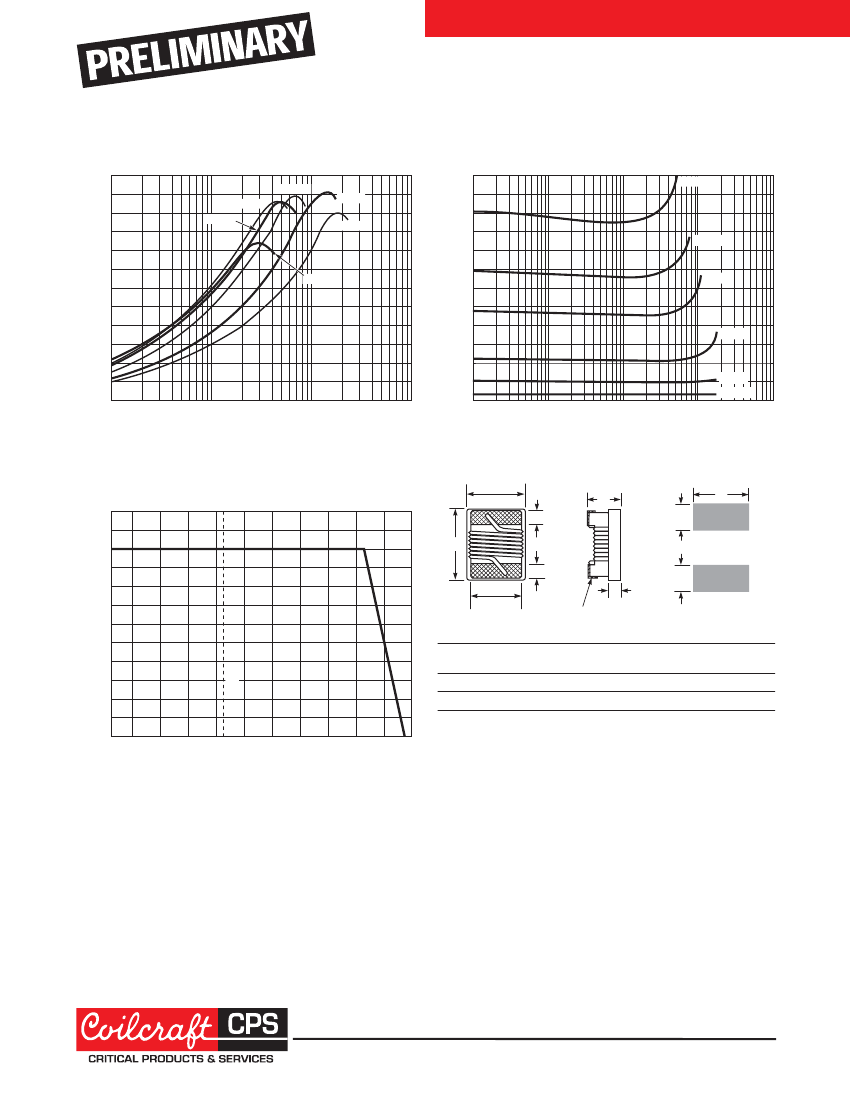

1008 CHIP INDUCTORS
AE413RAD Series (1008)
Typical Q vs Frequency
120
110
68 nH
Typical L vs Frequency
120
22 nH
10 nH
3.0 nH
47 nH
100 nH
110
100
90
68 nH
100
90
80
Inductance (nH)
80
70
47 nH
Q Factor
70
100 nH
60
50
40
30
20
10
0
10
100
1000
10000
60
50
40
30
20
10
0
1
10
100
1000
10 nH
3.0 nH
22 nH
10000
Frequency (MHz)
Frequency (MHz)
Current Derating
120
110
100
A
B
overall
F
G
F
E
terminal
C
I
J
I
D
Terminal wraparound:
approx 0.015/0,38 both ends
H
Percent of rated
I
rms
90
80
70
60
50
Recommended
Suggested
Land Pattern
30
20
10
0
-55 -40
-20
0
20
25°C
40
A
max
B
max
C
max*
D
ref
E
F
G
H
I
J
0.115 0.110 0.080 0.020 0.080 0.020 0.060 0.100 0.040 0.050 inches
2,92
2,79
2,03
0,51
2,03
0,51
1,52
2,54
1,02
1,27 mm
*Low profile parts: 0.050/1,27
40
60
80
100
120
140 160
Ambient temperature (°C)
All dimensions are without solder applied to the terminations. For
maximum dimensions with solder, add 0.006 inches / 0,152 mm.
®
These parts are preproduction products for electrical evaluation only.
Specification subject to change without notice.
Document AE190-2
Revised 06/01/09
1102 Silver Lake Road
Cary IL 60013
© Coilcraft, Inc. 2009
Phone
800-981-0363
Fax
847-639-1508
E-mail
cp@coilcraft.com
Web
www.coilcraft-cps.com
