SMD General Purpose Rectifiers
ACGRB201-HF Thru. ACGRB207-HF
Reverse Voltage: 50 to 1000 Volts
Forward Current: 2.0 Amp
RoHS Device
Halogen Free
Features
- Glass passivation junction.
- High current capability.
- High surge current capability.
- Low reverse current.
- Comply with AEC-Q101
0.086 (2.20)
0.077 (1.95)
0.155 (3.94)
0.130 (3.30)
DO-214AA (SMB)
Mechanical data
- Case: DO-214AA / SMB, molded plastic.
- Epoxy: UL flammability classification rate 94V-0.
- Terminals: Lead free plating (Tin finish).
Solderable per MIL-STD-202, Method 208.
- Polarity: Cathode band.
- Weight: 0.092 grams(approx.).
0.180 (4.57)
0.160 (4.06)
0.012 (0.30)
0.006 (0.15)
0.096 (2.44)
0.084 (2.13)
0.060 (1.52)
0.030 (0.76)
0.008(0.20)
Max.
0.220 (5.59)
0.201 (5.10)
Circuit diagram
Maximum Ratings
(at T
A
=25°C unless otherwise noted)
Parameter
Max. repetitive peak reverse voltage
Max. DC blocking voltage
Max. RMS voltage
Peak forward surge current, 8.3ms
single half sine-wave superimposed
on rated load (JEDEC method)
Max. average forward rectified current
Max. instantaneous forward voltage
I
F
=2.0A @ 25°C
Max. DC reverse current at rated T
A
=25°C
DC blocking voltage
T
A
=100°C
Dimensions in inches and (millimeter)
Symbol ACGRB ACGRB ACGRB ACGRB ACGRB ACGRB ACGRB
201-HF 202-HF 203-HF 204-HF 205-HF 206-HF 207-HF
V
RRM
V
DC
V
RMS
50
50
35
100
100
70
200
200
140
400
400
280
600
600
420
800
800
560
1000
1000
700
Units
V
V
V
I
FSM
60
A
I
F
V
F
I
R
I
R
C
J
R
θJC
T
J
T
STG
2.0
1.1
5
A
V
μA
100
10
40
-55 to +150
-55 to +150
pF
°C/W
°C
°C
Typical junction capacitance (Note 1)
Typical thermal resistance
Operating temperature range
Storage temperature range
Notes: 1. Measured at 1.0MHZ and applied reverse voltage of 4.0V DC.
Company reserves the right to improve product design , functions and reliability without notice.
AQW-JG010
REV: B
Page 1
Comchip Technology CO., LTD.
SMD General Purpose Rectifiers
Rating and C
haracteristic

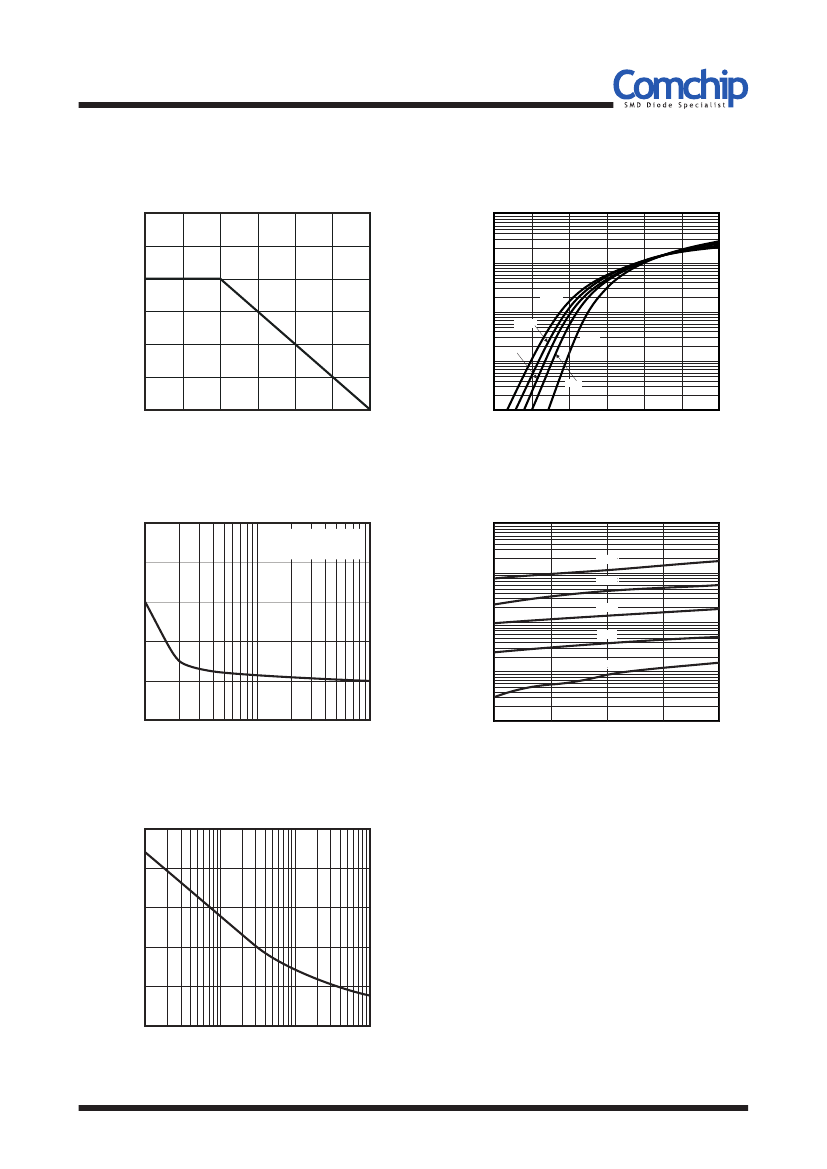

Curves (ACGRB201-HF Thru. ACGRB207-HF)
Fig.1 - Typical Forward Current
Derating Curve
3.0
2.5
2.0
1.5
1.0
0.5
0
0
25
50
75
100
125
150
100
Fig.2 - Typical Forward Characteristics
Instantaneous Forward Current, (A)
Average Forward Current, (A)
10
150°C
1.0
125°C
25°C
100°C
0.1
85°C
0.01
0.4
0.6
0.8
1.0
1.2
1.4
1.6
Case Temperature, (°C)
Forward Voltage, (V)
Fig.3 - Maximum Non-Repetitive
Forward Surge Current
100
100
T
J
=25°C
Fig.4 - Typical Reverse Characteristics
Peak Forward Surge Current, (A)
Reverse Leakage Current, (μA)
8.3ms Single Half Sine-Wave
(JEDEC Method)
80
150°C
10
125°C
60
100°C
1.0
85°C
40
0.1
25°C
20
0
1
10
100
0.01
20
40
60
80
100
Number of Cycles at 60Hz
Percent of Rated Peak Reverse Voltage, (%)
Fig.5 - Typical Junction Capacitance
25
Junction Capacitance, (pF)
20
15
10
5
0
0.1
1.0
10
100
Reverse Voltage, (V)
Company reserves the right to improve product design , functions and reliability without notice.
AQW-JG010
REV: B
Page 2
Comchip Technology CO., LTD.
SMD General Purpose Rectifiers

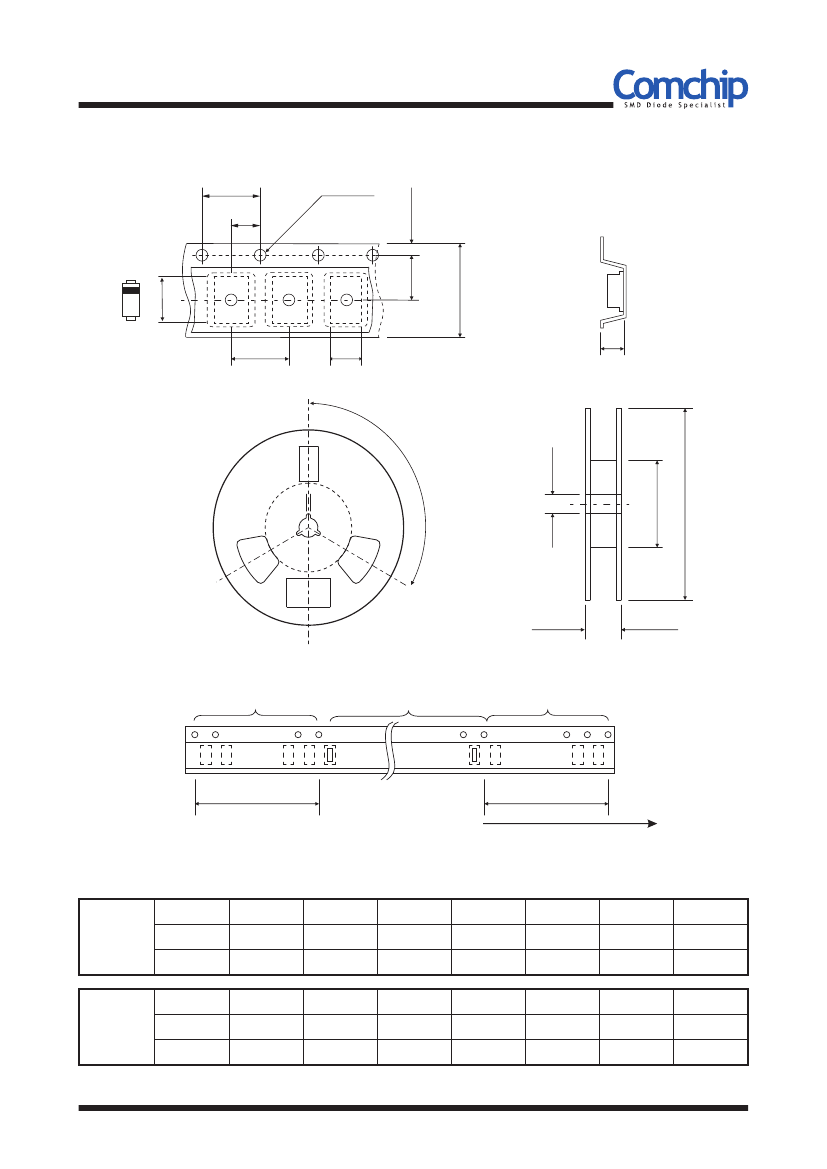

Reel Taping Specification
P
0
P
1
d
Index hole
E
F
B
P
A
W
C
12
0
o
D
2
D
1
D
W
1
Trailer
.......
.......
160mm (min)
Device
.......
.......
.......
.......
Leader
.......
.......
400mm (min)
End
Start
Direction of Feed
SYMBOL
A
4.00 MAX.
0.157 MAX.
B
5.90 MAX.
0.232 MAX.
C
3.00 MAX.
0.118 MAX.
d
1.50 ± 0.10
0.059 ± 0.004
D
330 ± 2.00
13.00 ± 0.079
D
1
50 MIN.
1.969 MIN.
D
2
13.50 ± 1.00
0.531± 0.039
DO-214AA
(SMB)
(mm)
(inch)
SYMBOL
E
1.75 ± 0.10
0.069 ± 0.004
F
5.50 ± 0.05
0.217 ± 0.002
P
8.00 ± 0.10
0.315 ± 0.004
P
0
4.00 ± 0.10
0.157 ± 0.004
P
1
2.00 ± 0.05
0.079 ± 0.002
W
12.00 ± 0.30
0.472 ± 0.012
W
1
18.40 MAX.
0.724 MAX.
DO-214AA
(SMB)
(mm)
(inch)
Company reserves the right to improve product design , functions and reliability without notice.
AQW-JG010
REV: B
Page 3
Comchip Technology CO., LTD.
SMD General Purpose Rectifiers
Marking Code
Part Number
ACGRB201-HF
ACGRB202-HF
ACGRB203-HF
ACGRB204-HF
ACGRB205-HF
ACGRB206-HF
ACGRB207-HF
Marking code
C:Comchip Logo
201
202
203
204
205
206
207
C
:Package
C
B
XXX
XXX : Product Type Marking Code
Cathode Mark
Suggested PAD Layout
DO-214AA (SMB)
SIZE
(mm)
A
B
C
D
E
2.30
2.50
1.80
4.30
6.80
(inch)
0.091
0.098
E
D
C
A
0.071
0.169
0.268
B
Note:
1.The pad layout is for reference purposes only.
Standard Packaging
REEL PACK
Case Type
DO-214AA
(SMB)
REEL
( pcs )
Reel Size
(inch)
3,000
13
Company reserves the right to improve product design , functions and reliability without notice.
AQW-JG010
REV: B
Page 4
Comchip Technology CO., LTD.
