AT83C26-PLTEL Overview

Microprocessor Circuit, CMOS, MO-220, MLF-48

AT83C26-PLTEL Parametric

Parameter Name	Attribute value
Maker	INSIDE Secure
Parts packaging code	QFN
package instruction	HVQCCN,
Contacts	48
Reach Compliance Code	unknown
JESD-30 code	S-XQCC-N48
length	7 mm
Number of terminals	48
Package body material	UNSPECIFIED
encapsulated code	HVQCCN
Package shape	SQUARE
Package form	CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE
Certification status	Not Qualified
Maximum seat height	0.9 mm
Maximum supply voltage	5.5 V
Minimum supply voltage	3 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Terminal form	NO LEAD
Terminal pitch	0.5 mm
Terminal location	QUAD
width	7 mm
uPs/uCs/peripheral integrated circuit type	MICROPROCESSOR CIRCUIT

Preview

Download Datasheet

View All

Features

•

5 Smart Card Interfaces

– Compliance with ISO 7816, EMV2000, GIE-CB and GSM Standards

– Direct Connection to the Smart Cards

Logic Level Shifters

Short Circuit Current Limitation

4kV+ ESD Protection (MIL/STD 883 Class 3)

– 1 or 2 Master Smart Card interfaces

Synchronous Card support (with C4 and C8 Contacts)

Card Detection and Automatic de-activation sequence on card extraction

– 1 to 4 SAM/SIM cards (15 to 30mA each)

– Programmable Voltage for each smart card

Class A: 5V ±0.4V at 60 mA (±0.25V at 65 mA with VCC= 5V±10%)

Class B: 3V ±0.2V at 60 mA

Class C: 1.8V ±0.14V at 40mA

– Low Ripple Noise: < 200 mV

– Programmable Activation Sequence

– Automatic de-activation on card power-fail or over-current and system power-fail

– Card Clock Stop High or Low for Card Power-down Modes

Versatile Host Interface

– Two Wire Interface (TWI) Link at 400kbit/s

Programmable Address allow up to 4 AT83C26 on the bus

– Programmable Interrupt Output

Reset Output Includes

– Power-On Reset (POR)

– Power-Fail Detector (PFD)

Extended Voltage Operation: 3 to 5.5V

Low Power Consumption

– 5 mA Maximum Operating Current (without Smart Card)

– 150 mA Maximum In-rush Current (each DC/DC)

– 30

µA

Typical Power-down Current (without Smart Card)

4 to 48 MHz Clock Input

System clock derived from the external clock input

Industrial Temperature Range: -40 to +85°C

Packages: QFN48, VQFP48

•

Multiple Smart

Card Reader

Interface With

Power

Management

AT83C26

•

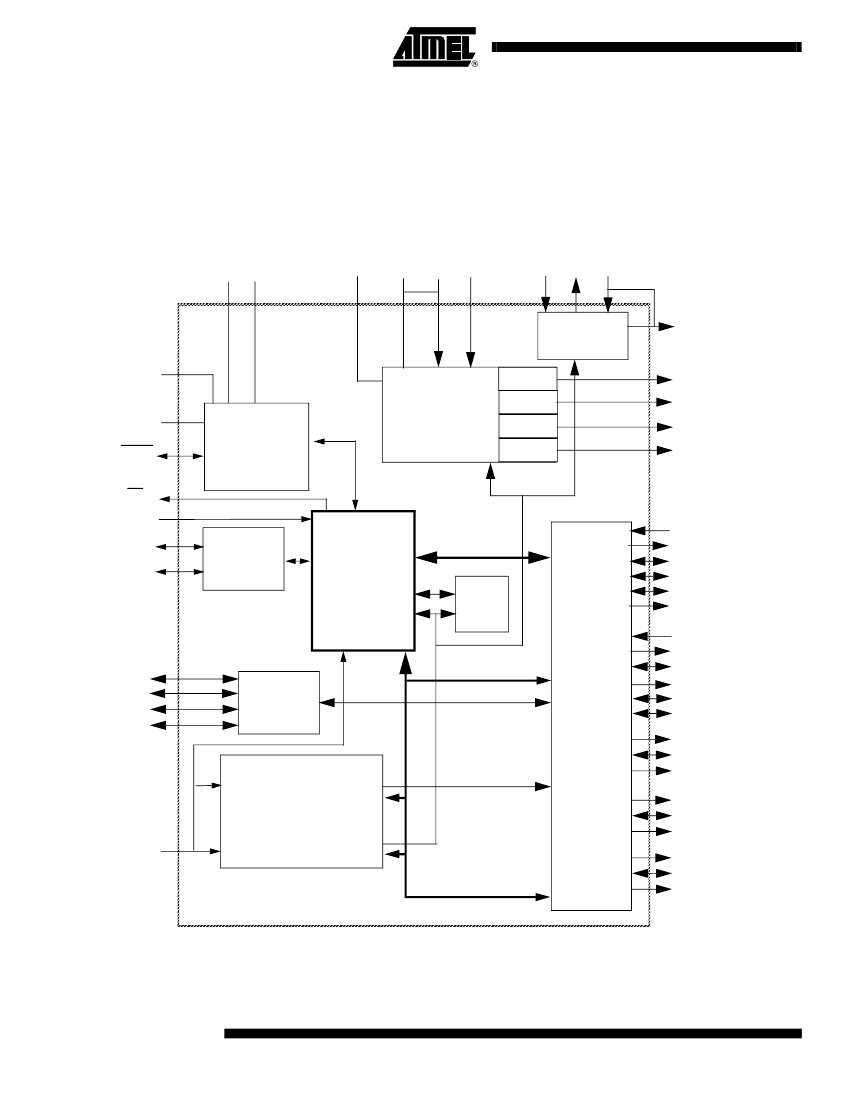

Description

The AT83C26 is a smart card reader interface IC for smart card reader/writer applica-

tions such as EFT/POS terminals and set top boxes. It enables the management of

any type of smart card from any kind of host. Up to 4 AT83C26 can be connected in

parallel thanks to the programmable TWI address.

Its high efficiency DC/DC converters and low quiescent current in stand-by mode

make it particularly suited to low power and portable applications. The reduced bill of

material allows to lower significantly the system size and cost. A sophisticated protec-

tion system guarantees timely and controlled shutdown upon error conditions.

7511D–SCR–02/07

AT83C26-PLTEL Related Products

	AT83C26-PLTEL	AT83C26-PLRUL	AT83C26-RKTEL
Description	Microprocessor Circuit, CMOS, MO-220, MLF-48	Microprocessor Circuit, CMOS, GREEN, MO-220, MLF-48	Microprocessor Circuit, CMOS, PQFP48, 1.40 MM HEIGHT, VQFP-48
Maker	INSIDE Secure	INSIDE Secure	INSIDE Secure
Parts packaging code	QFN	QFN	QFP
package instruction	HVQCCN,	HVQCCN,	LFQFP,
Contacts	48	48	48
Reach Compliance Code	unknown	unknown	unknown
JESD-30 code	S-XQCC-N48	S-XQCC-N48	S-PQFP-G48
length	7 mm	7 mm	7 mm
Number of terminals	48	48	48
Package body material	UNSPECIFIED	UNSPECIFIED	PLASTIC/EPOXY
encapsulated code	HVQCCN	HVQCCN	LFQFP
Package shape	SQUARE	SQUARE	SQUARE
Package form	CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE	CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE	FLATPACK, LOW PROFILE, FINE PITCH
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	0.9 mm	0.9 mm	1.6 mm
Maximum supply voltage	5.5 V	5.5 V	5.5 V
Minimum supply voltage	3 V	3 V	3 V
Nominal supply voltage	5 V	5 V	5 V
surface mount	YES	YES	YES
technology	CMOS	CMOS	CMOS
Terminal form	NO LEAD	NO LEAD	GULL WING
Terminal pitch	0.5 mm	0.5 mm	0.5 mm
Terminal location	QUAD	QUAD	QUAD
width	7 mm	7 mm	7 mm
uPs/uCs/peripheral integrated circuit type	MICROPROCESSOR CIRCUIT	MICROPROCESSOR CIRCUIT	MICROPROCESSOR CIRCUIT
