CCLB Series

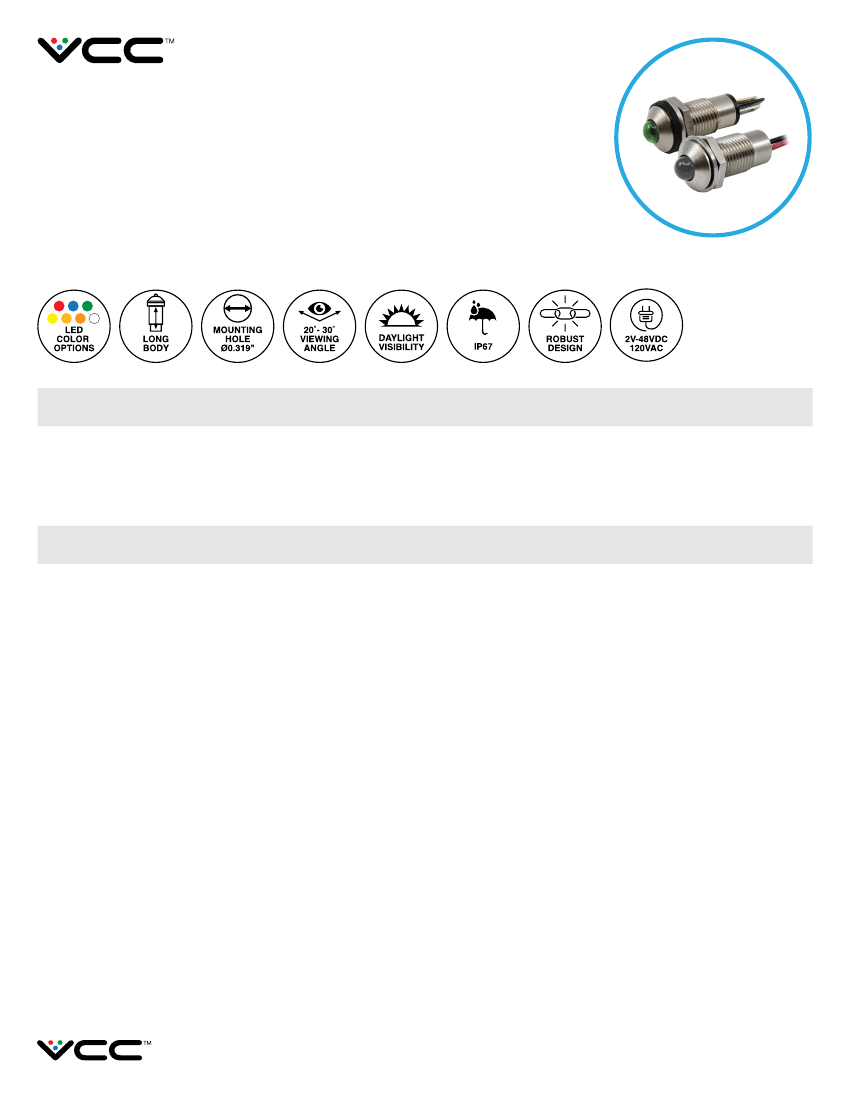

0.319” (8.10mm) Prominent LED
Indicator, Long Body and IP67 sealed
Long-body LED metal indicator which fit thick panels, especially
designed for extreme, harsh and outdoor environments.
Application
•
Industrial
•
Transportation
•
People Movers
• Maritime, Oil and Gas Industry
•
Automation and Control
• Slot, Gaming and Vending Machines
•
Safety and Emergency
•
Pilot Instrumentation
•
Aircraft/Military Instrumentation
Key Features
•
For panel hole diameter: 0.319” (8.10mm)
• Long-body indicator (longer threads) which fit thicker panels up to 0.354 (9mm)
• Available in nickel-plated brass housing
•
Available with ultra bright and super ultra bright (daylight viewing) LEDs
•
Designed for extreme, harsh and outdoor environments
• Offered with front and backside sealing for moisture (water) and dust resistance
•
Available in operating voltage of 2V to 48V; 120VAC
• Optional resistor for 5V-48VDC
• Offered with 6” 24 AWG wire leads
•
Solder tab terminal for fast, easy installation
•
Available in seven single colors: red, yellow, green, orange, amber, blue and white
•
Viewing angle: 20-30 (dependent on model)
• Mounting hardware provided: lock washer and hex nut and weather gasket (for W and I option)
• Thread size: M8*0.75mm
• Mounting torque: 20 ± 2 in-lb ( 2.26 ± 0.23 N-mm )
• Resistant to vandal, shock and vibration
• For black matte finish, custom cable length, connectors or colors, contact VCC
•
RoHS and REACH Compliant
vcclite.com | 1.800.522.5546
CCLB Series | 10/19 | Page 1 of 4
Ordering Data
Finish
C
C
*B
Nickle Finish
Black Matte
Series
CLB
1
2
Terminal
1
Leads
Tab
LED Specifications
3036
See Chart for
LED Part Number
Resistor Code
9908
See Chart for
Resistor Value Code
Options
I
S
W
I
Standard
Gasket Seal
IP67 (leads only)
*Contact VCC for black matte finish
Example:
CCLB-1-3036-9908-I
CCLB Nickle Finish, Wire Leads, Super Ultra Bright Red LED 12 Volt, IP67
LED Specification Chart
LED Part
Numbers
Color
Luminous
Intensity (mcd)
Typ. @ IF (mA)
Electrical and Optical Characteristics (TA = 25°C)
Resistor Chart
Resistor
Value Code
Voltage
Operating Specification
VF Typ.
@ IF (mA)
Viewing
Angle
(2θ
1/2
)
Peak
Wavelength
(nm)
Current
(mA)
Resistor Value (Ohms)
Green,Yellow Red,
Bicolor LED
Resistor Value (Ohms)
Blue, White LED
ULTRA BRIGHT - DAYLIGHT READABLE
3056
3055
3054
3060
Red
Yellow
Green
Orange
400.0
400.0
300.0
600.0
20
20
20
20
1.9
2.0
3.2
2.1
20
20
20
20
30˚
30˚
30˚
30˚
660
590
520
610
0000
9900
9928
9901
9902
9903
9904
9905
9906
9907
9922
9908
2
5
5
12
12
24
24
28
28
5
5
12
12
24
24
28
28
48
48
120VAC
10 or 20
10
10
10
10
10
10
10
10
20
20
20
20
20
20
20
20
9
9
8
None
332
Not Available
121
1000
715
2210
1910
2610
2320
150
65
511
357
1100
953
1500
1300
4870
4530
6490
Contact VCC
SUPER ULTRA BRIGHT
3036
3046
3047
3048
Red
Red
Green
Amber
2800.0
900.0
5490.0
1300.0
20
20
20
20
1.85
1.9
3.2
2.02
20
20
20
20
20˚
30˚
20˚
30˚
660
626
520
592
BLUE
3057
Blue
640.0
20
3.3
20
20˚
468
9909
9910
WHITE
3061
White
27000.0
20
3.2
20
15˚
N/A
9911
9923
9933
9912
9913
9920
vcclite.com | 1.800.522.5546
CCLB Series | 10/19 | Page 2 of 4

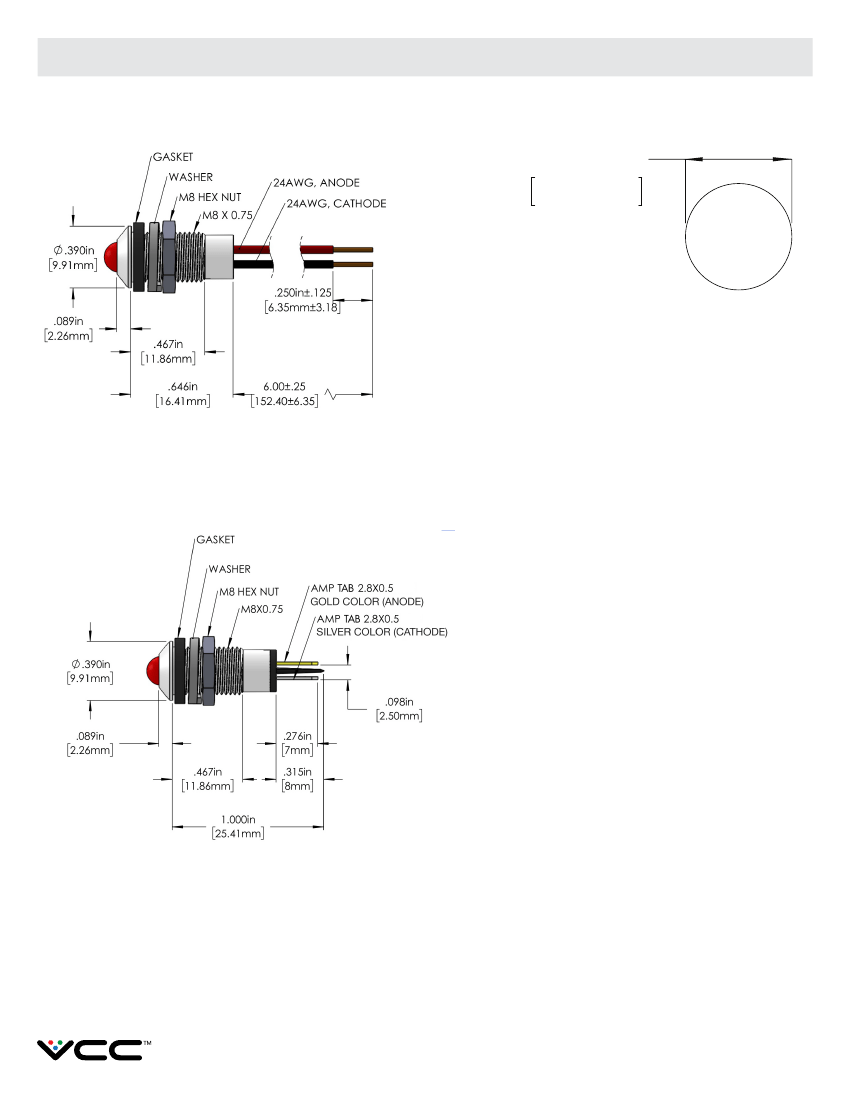

Product Dimensions
CCLB Series
Wire Leads
Recommended Mounting Hole
Ø
0.319in
Ø
8.10mm
+0.004
0.000
+0.10
0
CCLB Series
Tab Terminal
Notes:
1. All dimensions are in inches [millimeters]
2. Tolerance is ±[0.25] 0.01 unless otherwise noted.
3. The specifications, characteristics and technical data described in the datasheet are subject to change without prior notice.
vcclite.com | 1.800.522.5546
CCLB Series | 10/19 | Page 3 of 4
Product Dimensions
Custom Connector

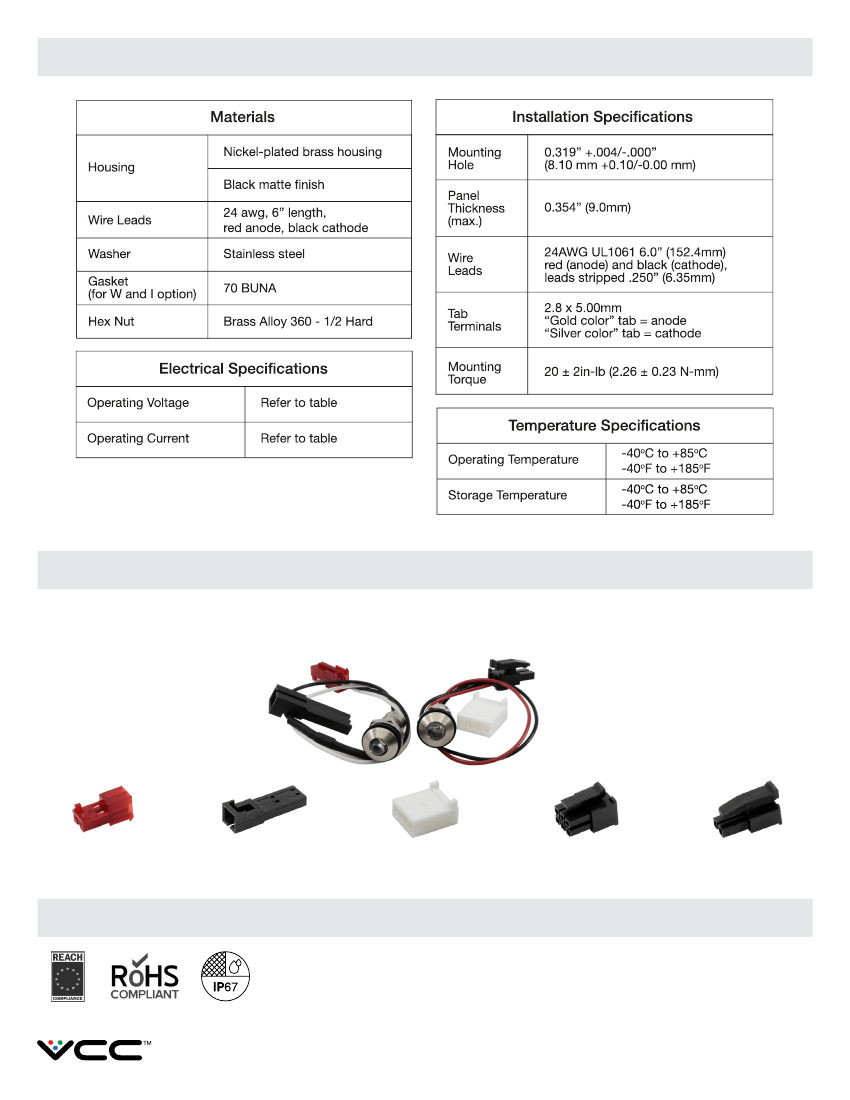

VCC can add crimped connections to your panel mount indicators (PMIs) and combine two final steps into
one seamless transaction. We offer a range of connector options, including:
2 Position
Connector
Wire-to-Wire Crimp
Housing
Crimp Housing
Connector
Micro-Fit Connector
- Dual Row
Micro Rectangular
Power Connector
Compliances and Approvals
vcclite.com | 1.800.522.5546
CCLB Series | 10/19 | Page 4 of 4
