DIP121205DN datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> DIP121205DN

DIP121205DN: DescriptionDC-DC Regulated Power Supply Module, 2 Output, 2W, Hybrid, DIP-14; CategoryPower/power management The power supply circuit; File Size129KB，2 Pages; ManufacturerCrane Co.

Download Datasheet Parametric Compare View All

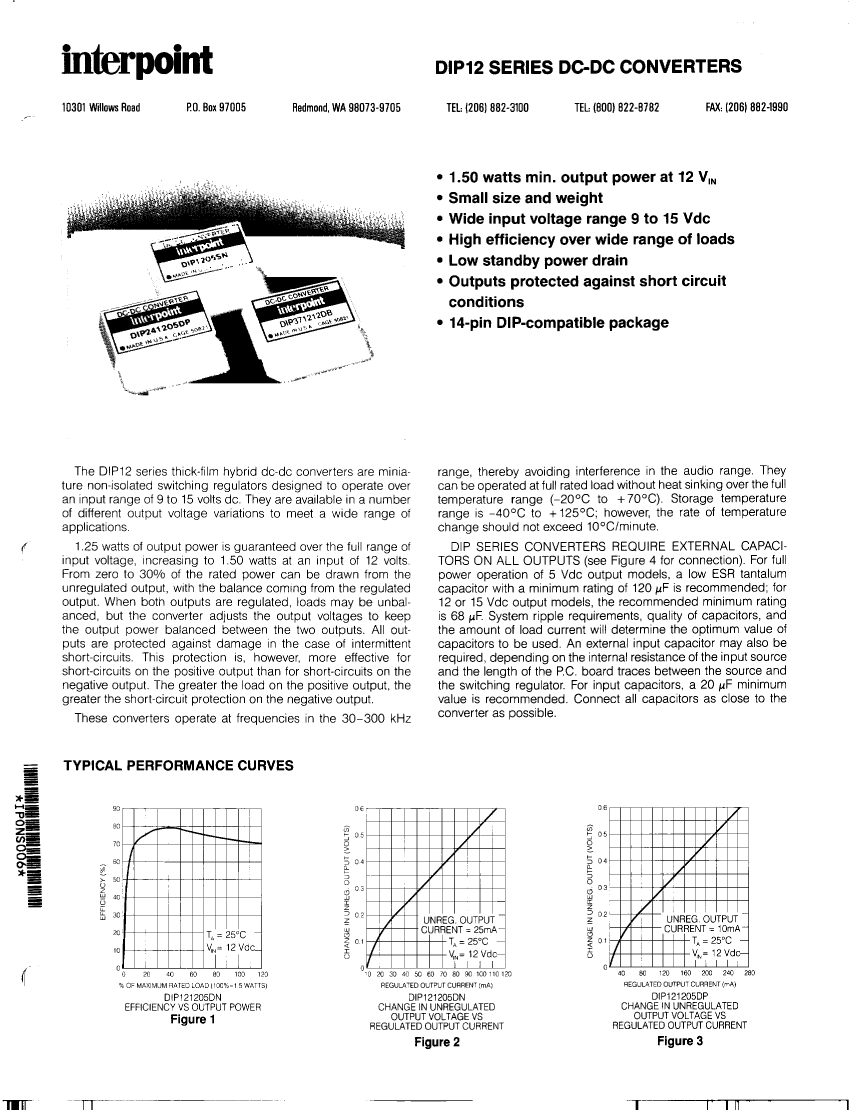

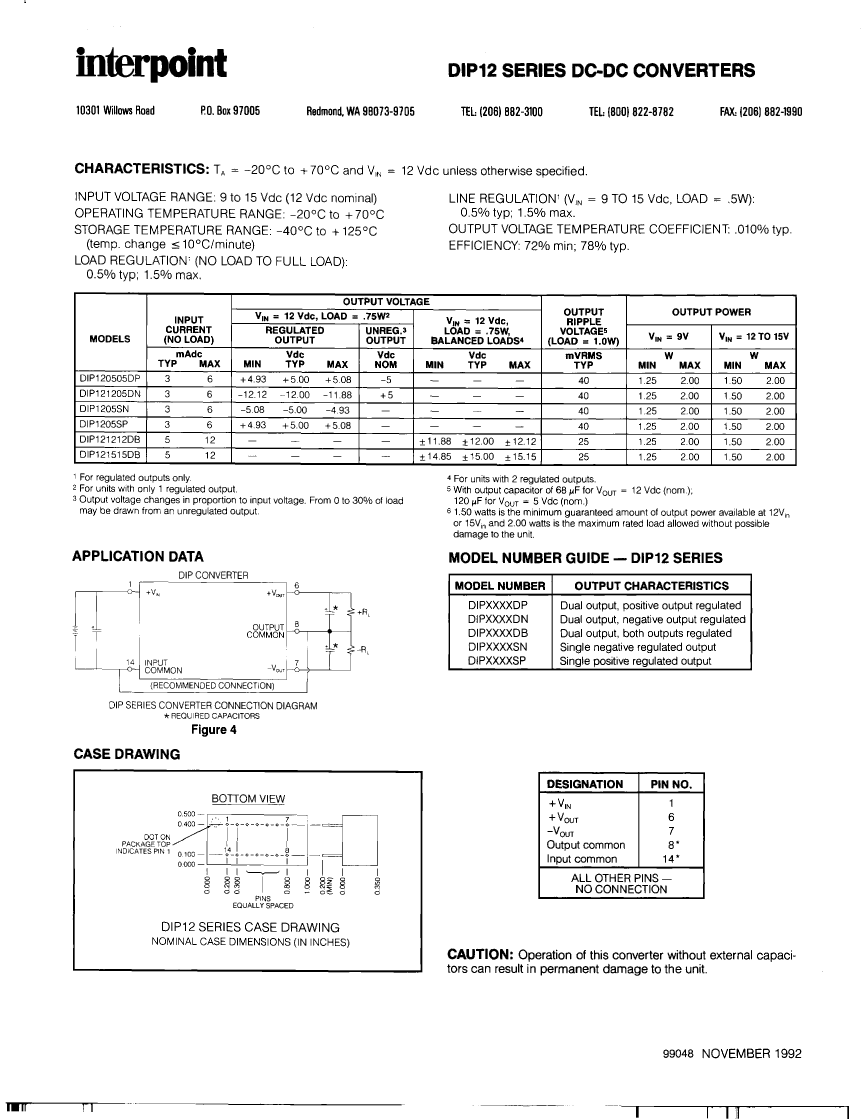

DIP121205DN Overview

DC-DC Regulated Power Supply Module, 2 Output, 2W, Hybrid, DIP-14

DIP121205DN Parametric

Parameter Name	Attribute value
Maker	Crane Co.
package instruction	DIP,
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	AUXILIARY OUTPUT IS UNREGULATED
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE
Efficiency (main output)	78%
Maximum input voltage	15 V
Minimum input voltage	9 V
Nominal input voltage	12 V
JESD-30 code	R-XDIP-P14
length	25.4 mm
Maximum grid adjustment rate	1.5%
Maximum load regulation	1.5%
Number of functions	1
Output times	2
Number of terminals	14
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
Maximum output voltage	-12.12 V
Minimum output voltage	-11.88 V
Nominal output voltage	-12 V
Package body material	UNSPECIFIED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Protect	CURRENT
Certification status	Not Qualified
surface mount	NO
technology	HYBRID
Temperature level	COMMERCIAL
Terminal form	PIN/PEG
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum total power output	2 W
Fine-tuning/adjustable output	NO
width	7.62 mm

Preview

Download Datasheet

View All

DIP121205DN Related Products

	DIP121205DN	DIP1205SN	DIP120505DP
Description	DC-DC Regulated Power Supply Module, 2 Output, 2W, Hybrid, DIP-14	DC-DC Regulated Power Supply Module, 1 Output, 2W, Hybrid, DIP-14	DC-DC Regulated Power Supply Module, 2 Output, 2W, Hybrid, DIP-14
package instruction	DIP,	DIP,	DIP,
Reach Compliance Code	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE
Efficiency (main output)	78%	78%	78%
Maximum input voltage	15 V	15 V	15 V
Minimum input voltage	9 V	9 V	9 V
Nominal input voltage	12 V	12 V	12 V
JESD-30 code	R-XDIP-P14	R-XDIP-P14	R-XDIP-P14
length	25.4 mm	25.4 mm	25.4 mm
Maximum grid adjustment rate	1.5%	1.5%	1.5%
Maximum load regulation	1.5%	1.5%	1.5%
Number of functions	1	1	1
Output times	2	1	2
Number of terminals	14	14	14
Maximum operating temperature	70 °C	70 °C	70 °C
Minimum operating temperature	-20 °C	-20 °C	-20 °C
Maximum output voltage	-12.12 V	-5.08 V	5.08 V
Minimum output voltage	-11.88 V	-4.93 V	4.93 V
Nominal output voltage	-12 V	-5 V	5 V
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
encapsulated code	DIP	DIP	DIP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE
Protect	CURRENT	CURRENT	CURRENT
Certification status	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	NO	NO
technology	HYBRID	HYBRID	HYBRID
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	PIN/PEG	PIN/PEG	PIN/PEG
Terminal pitch	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL
Maximum total power output	2 W	2 W	2 W
Fine-tuning/adjustable output	NO	NO	NO
width	7.62 mm	7.62 mm	7.62 mm
Maker	Crane Co.	Crane Co.	-
Other features	AUXILIARY OUTPUT IS UNREGULATED	-	AUXILIARY OUTPUT IS UNREGULATED
Base Number Matches	-	1	1
