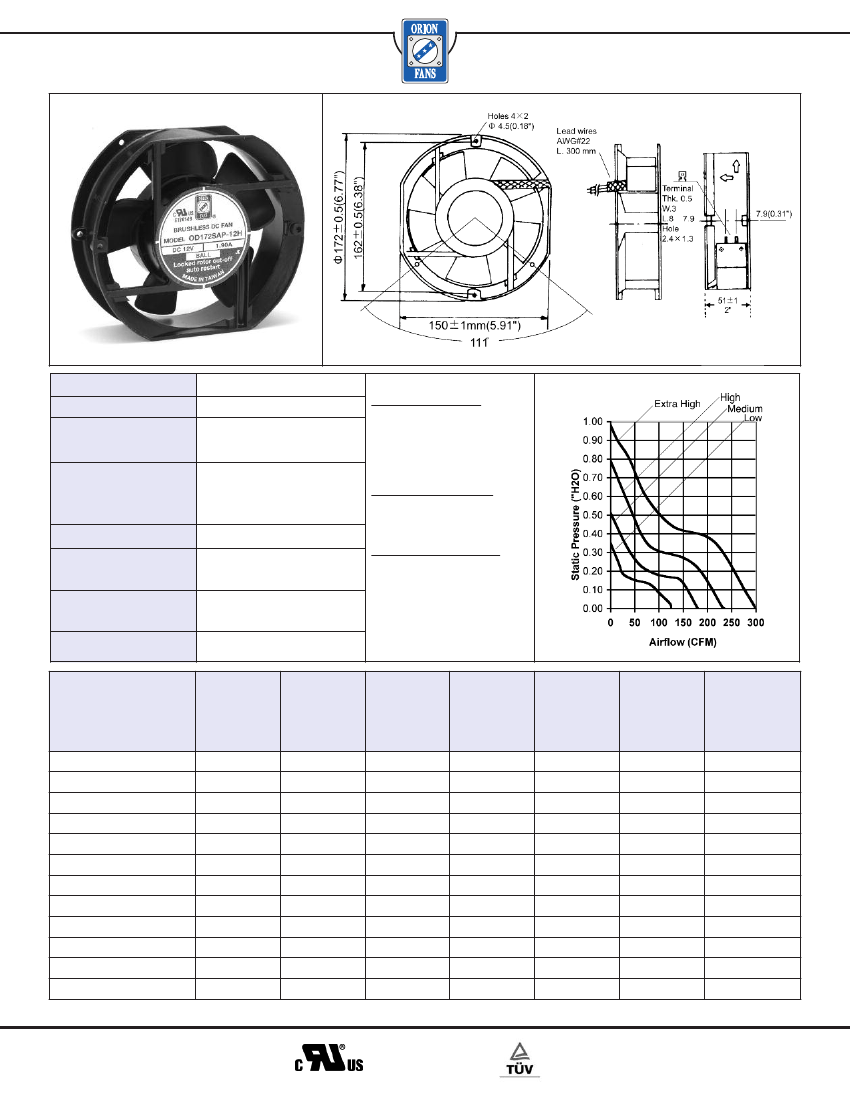

OD172S Series
DC Fan - 12, 24, 48V
172x150x51mm (6.7”x 5.9”x 2.0”)
Frame
Impeller
Connection
Diecast Aluminum
PBT, UL94V-O plastic
2x Lead wires, AWG22 or
terminals
Brushless DC, auto restart,
impedance and polarity
protected
Dual ball bearing
10M ohm between leadwire
and frame (500VDC)
1 second at 500 VAC, max
leakage - 500 MicroAmp
-30C ~ +90C
m0
Available Options:
Tachometer (5VTTL)
Alarm (5VTTL)
Thermistor Speed Control
PWM Speed Control
Life Expectancy (L10)
Ball - 40,000 hrs (60C)
Operating Temperature
Ball: -20C ~ 75C
Motor
Bearing System
Insulation Resistance
Dielectric Strength
Storage Temperature
Model Number
OD172SAP-12HH *
OD172SAP-12H *
OD172SAP-12M *
OD172SAP-12L *
OD172SAP-24HH *
OD172SAP-24H *
OD172SAP-24M *
OD172SAP-24L *
OD172SAP-48HH *
OD172SAP-48H *
OD172SAP-48M *
OD172SAP-48L *
Knight Electronics, Inc.
10557 Metric Drive
Dallas, Texas 75243
214-340-0265
Speed (RPM)
3800
3200
2500
1600
3900
3300
2500
1600
3900
3300
2500
1600
Airflow
(CFM)
290
230
180
125
300
235
180
125
300
235
180
125
Noise (dB)
56
52
42
32
57
52
42
32
57
52
42
32
Volts DC
12
12
12
12
24
24
24
24
48
48
48
48
Voltage
Range
8~14
8~14
8~14
8~14
15~28
15~28
15~28
15~28
22~63
22~63
22~63
22~63
Amps
4.20
1.90
1.10
0.45
2.65
0.97
0.52
0.20
1.03
0.48
0.30
0.12
Max. Static
Pressure
(“H2O)
0.93
0.75
0.51
0.35
0.98
0.79
0.51
0.35
0.98
0.79
0.51
0.35
* Indicate “B” for wire leads or “TB” for Terminals
RoHS Compliant
57
Information and data is subject to
change without prior notification.
