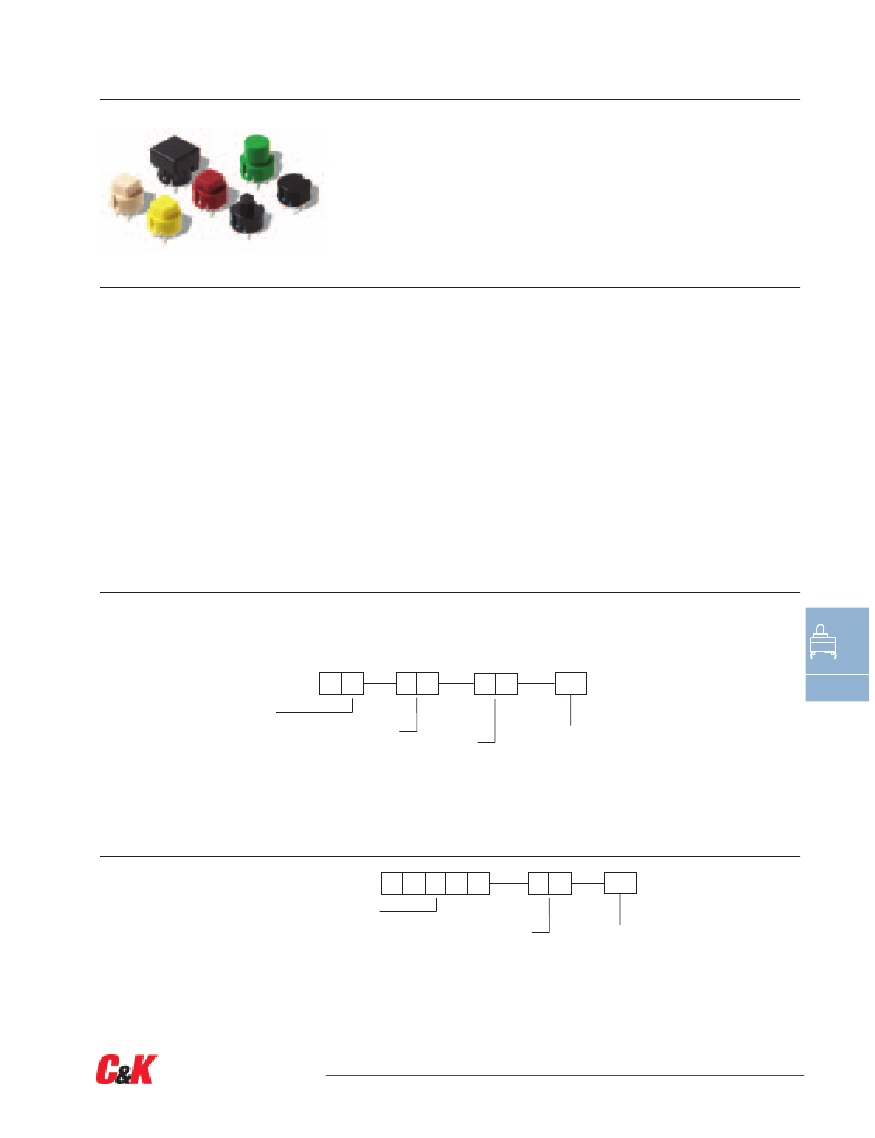

D6
SPST Momentary Key Switches
Features/Benefits
•
Easy X, Y coding on single
side PCB
•
•
•
•
Construction
Positive tactile feedback
High temperature
Wide variety of colors & styles
RoHS compliant and compatible
Mechanical
Typical Applications
•
Video
•
Electronic games
•
Appliances
FUNCTION: momentary
CONTACT ARRANGEMENT: 1 make contact (SPST), NO
DISTANCE BETWEEN BUTTON CENTERS, MIN.: 12,7 (0.500)
TERMINALS: PC pins
Electrical
SWITCHING POWER MAX.: 3 VA
SWITCHING VOLTAGE MAX.: 32 V DC
SWITCHING CURRENT MAX.: 100 mA DC
DIELECTRIC STRENGTH (50 Hz / 1 min): 250 V
OPERATING LIFE with max. switching power: (2,5x10
5
operations)
CONTACT RESISTANCE:
≤100
mΩ
INSULATION RESISTANCE:
≥10
8
Ω
BOUNCE TIME:
≤
10 ms
SWITCHING TRAVEL:
Version F1: 0.2mm
≤
Te
≤
1.0 mm
Version F2: 0.3mm
≤
Te
≤
1.1 mm
OPERATING FORCE:
Version F1: 0.8N
≤
Fa
≤
1.8N
Version F2: 2.0N
≤
Fa
≤
3.5N
Environmental
OPERATING TEMPERATURE: -20˚C to 85˚C.
Process
SOLDERABILITY:
Wave soldering, compatible with lead free soldering profile
Hand soldering, 350˚C for 3 seconds
Packaging
The D6 switches are delivered in boxes containing 10 trays with
250 pieces each: Total 2,500 pieces per box.
The D6 buttons are delivered in bulk with 2500 pieces per box.
How To Order
Our easy build-a-switch concept allows you to mix and match options to create the switch you need. To order, select
desired option from each category and place it in the appropriate box.

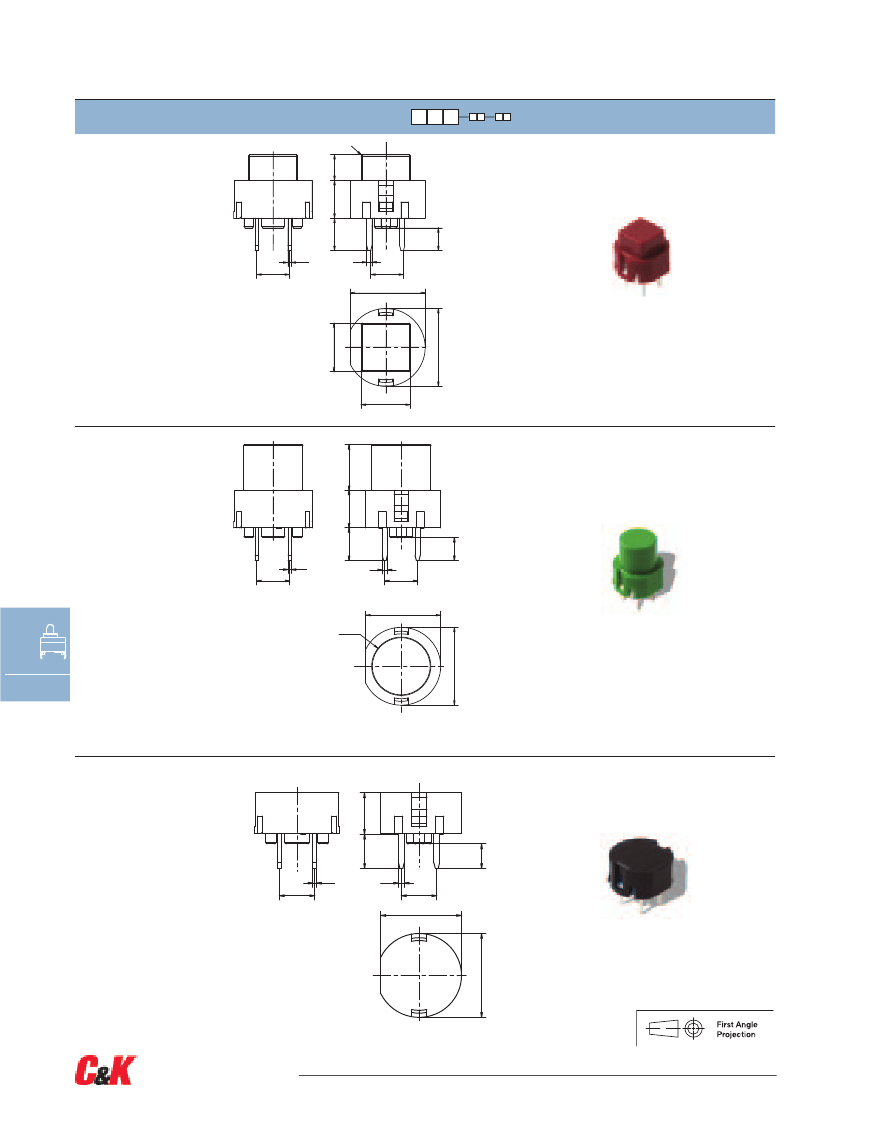

Switch
Series
D6C
Square
D6R
Round
D6L*
Plunger
D6F**
Flat
D6
LFS
D
Key Switches
*Available only in color 90 (black).
** Available only in color 90 (black) and 00 (white).
Switch Color
00
White
10
Gray
30
Yellow
40
Red
50
Green
60
Blue
90
Black
Force
F1
1.3N(STD)
F2
2.5N
RoHS compliant and compatible product.
Button
Buttons can be ordered separately.
Shipped in bulk.

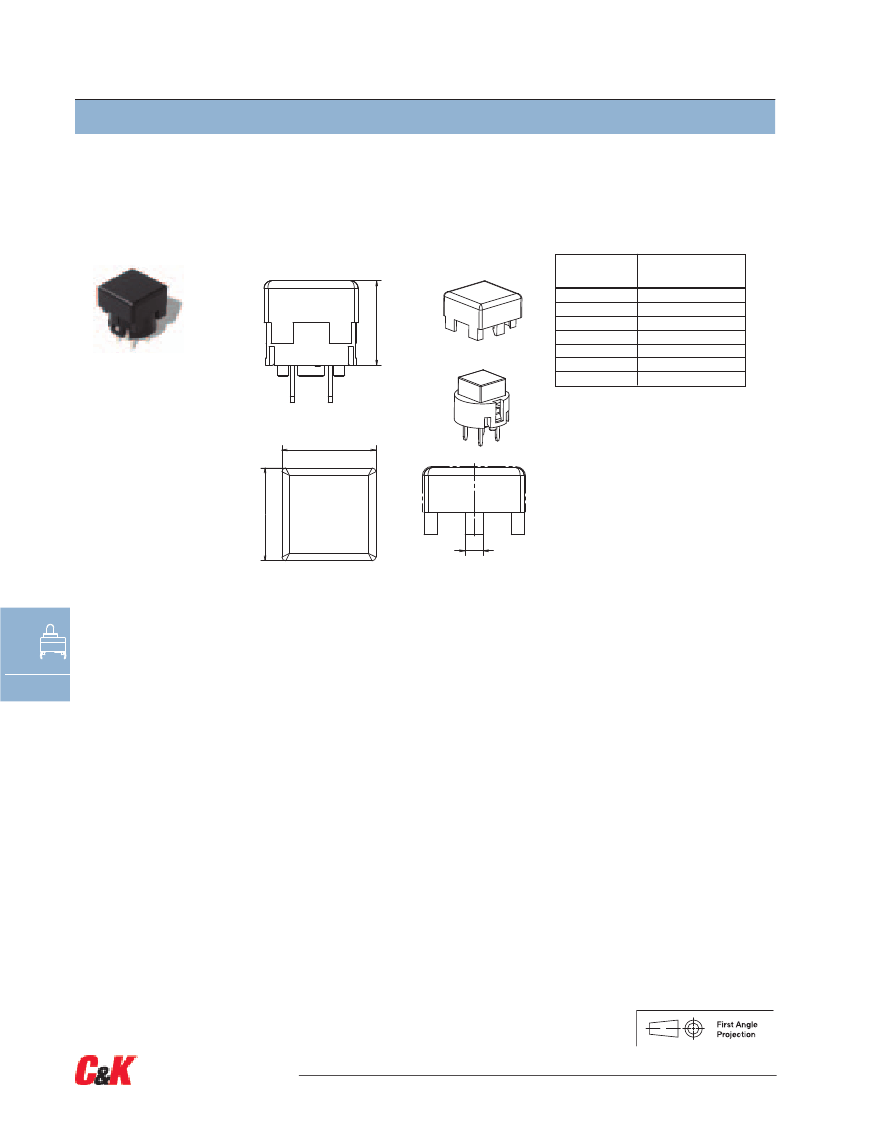

D6 button for use with D6C only.
B
T
N D
6
F
Series
BTND6
Button
Button Color
00
White
10
Gray
30
Yellow
40
Red
50
Green
60
Blue
90
Black

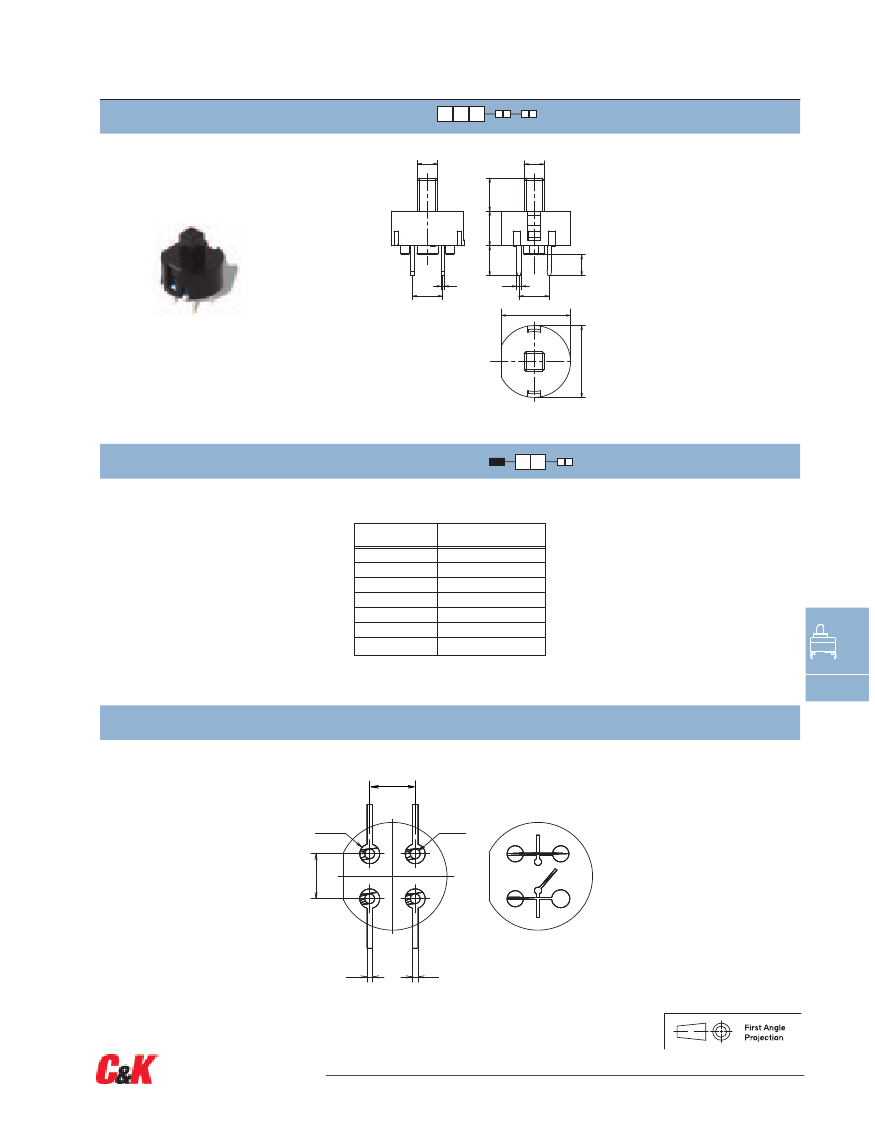

Version F1 or F2.
Dimensions are shown: mm
Specifications and dimensions subject to change
D–19
