GT22MSCXETR datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > unclassified> GT22MSCXETR

GT22MSCXETR: DescriptionTOGGLE SWITCH, SPDT, LATCHED, 0.02A, 20VDC, THROUGH HOLE-RIGHT ANGLE; Categoryunclassified; File Size400KB，5 Pages; ManufacturerC&K Components

Download Datasheet Parametric View All

GT22MSCXETR Overview

TOGGLE SWITCH, SPDT, LATCHED, 0.02A, 20VDC, THROUGH HOLE-RIGHT ANGLE

GT22MSCXETR Parametric

Parameter Name	Attribute value
Maximum DC contact current	0.0200 A
Maximum DC contact voltage	20 V
Maximum operating temperature	85 Cel
Minimum operating temperature	-30 Cel
Maximum AC contact current	0.0200 A
Maximum AC contact voltage	20 V
Processing package description	ROHS COMPLIANT
Lead-free	Yes
EU RoHS regulations	Yes
state	ACTIVE
seal	EPOXY TERMINAL SEALED
Electrical life	40000 Cycle(s)
switch function	SPDT
terminal coating	GOLD
Manufacturer Series	GT
width	6.93 mm
high	5.38 mm
length or diameter	7.01 mm
Installation features	THROUGH HOLE-RIGHT ANGLE
Switch action	LATCHED
Switch type	TOGGLE SWITCH
Terminal type	SOLDER

Preview

Download Datasheet

View All

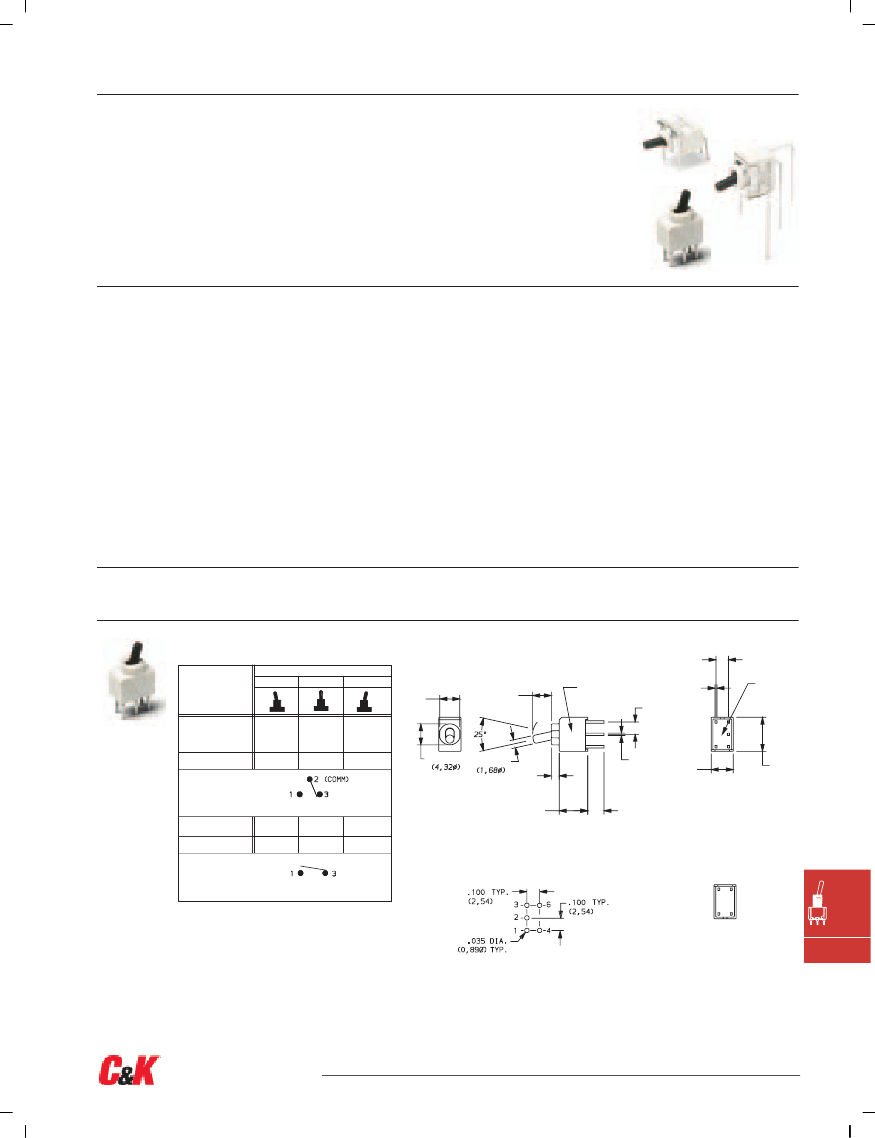

GT Series

Sealed Ultraminiature Toggle Switches

Features/Benefits

•

Sealed against solder and cleaning

process contaminants

Typical Applications

•

Hand-held telecommunications

•

Small instrumentation

•

Ultraminiature size, smallest

footprint available

•

Thru-hole and surface mount models

•

High temperature materials (UL 94V-0)

•

RoHS compliant and compatible

Specifications

CONTACT RATING: 0.4 VA max. @ 20 V AC or DC max.

MECHANICAL & ELECTRICAL LIFE: 40,000 make-and-break

cycles at full load.

CONTACT RESISTANCE: Below 50 m

Ω

typ. initial @

2-4 V DC, 100 mA.

INSULATION RESISTANCE: 109

Ω

min.

DIELECTRIC STRENGTH: 500 Vrms min. @ sea level.

OPERATING TEMPERATURE: –30ºC to 85ºC.

SOLDERABILITY: Per MIL-STD-202F method 208D, or

EIA RS-186E method 9 (1 hour steam aging).

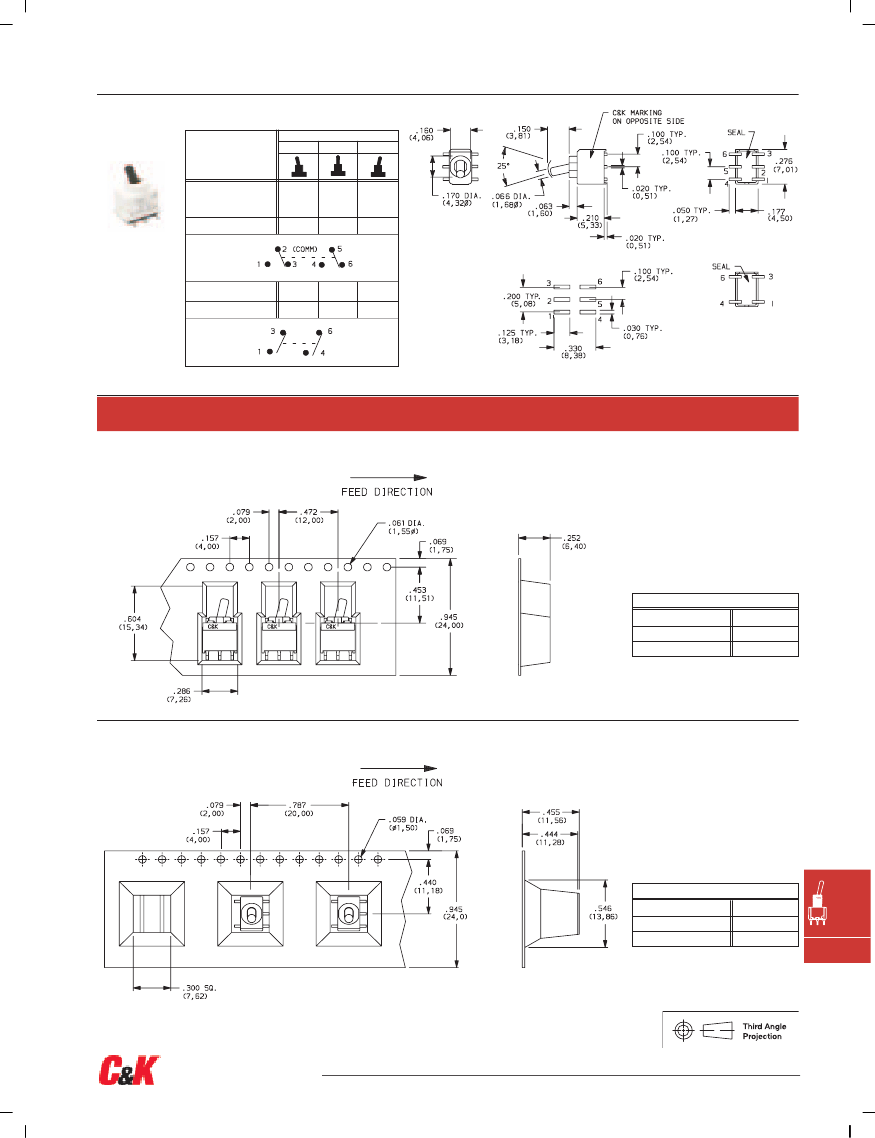

PACKAGING: Surface mount switches shipped in anti-static

tape and reel packaging per EIA 481-3, see page F-47 for

drawings and reel information. Tape and cover strip are

conductive for use near statically sensitive components,

consult Customer Service Center.

Materials

HOUSING AND BASE: Glass filled nylon 4/6, flame retardant,

heat stabilized (UL 94V-0).

ACTUATOR: Glass filled nylon 4/6, flame retardant, heat stabilized

(UL 94V-0), with standard internal o-ring seal.

SWITCH SUPPORT: Brass, tin plated.

MOVABLE CONTACTS: Copper alloy, with gold plate over

nickel plate.

STATIONARY CONTACTS: Copper alloy, with gold plate over

nickel plate.

TERMINALS: Gold.

TERMINAL SEAL: Epoxy. All terminals insert molded.

NOTE:

Specifications and materials listed above are for switches with standard options.

For information on specific and custom switches, consult Customer Service Center.

How To Order

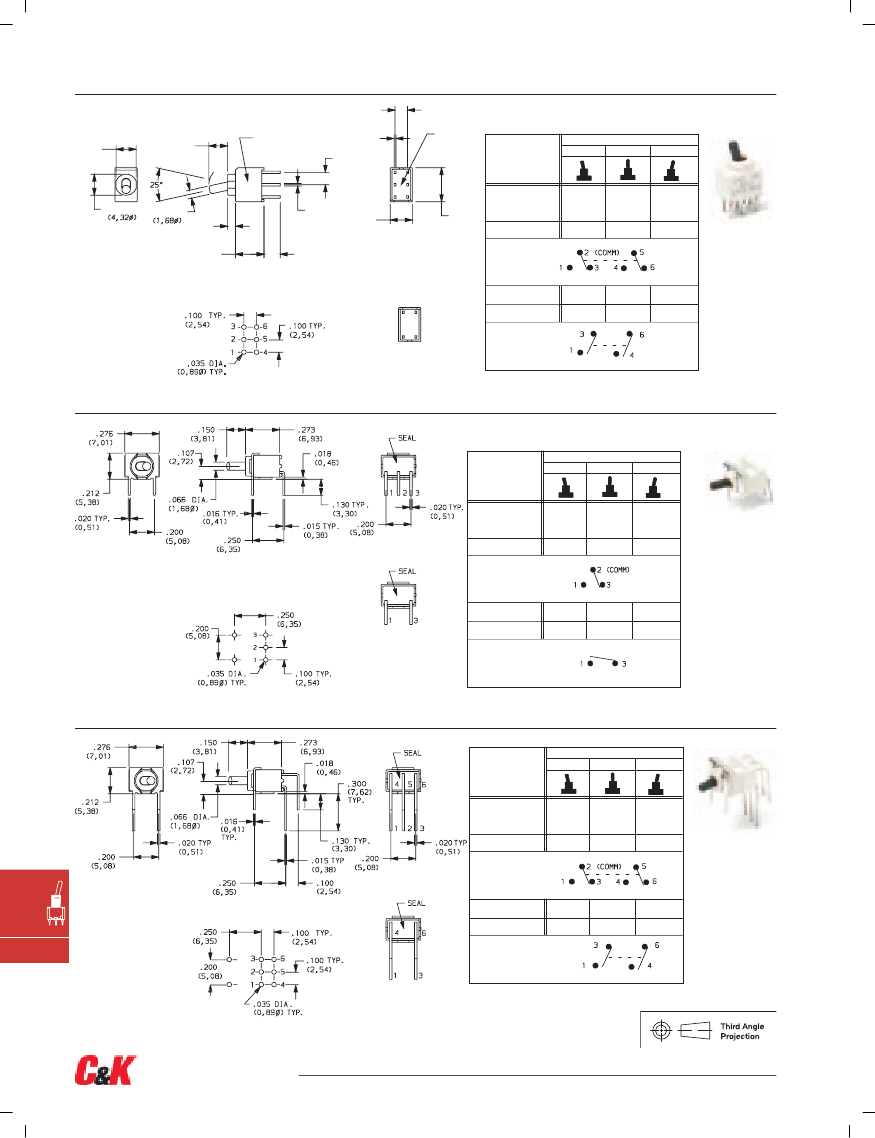

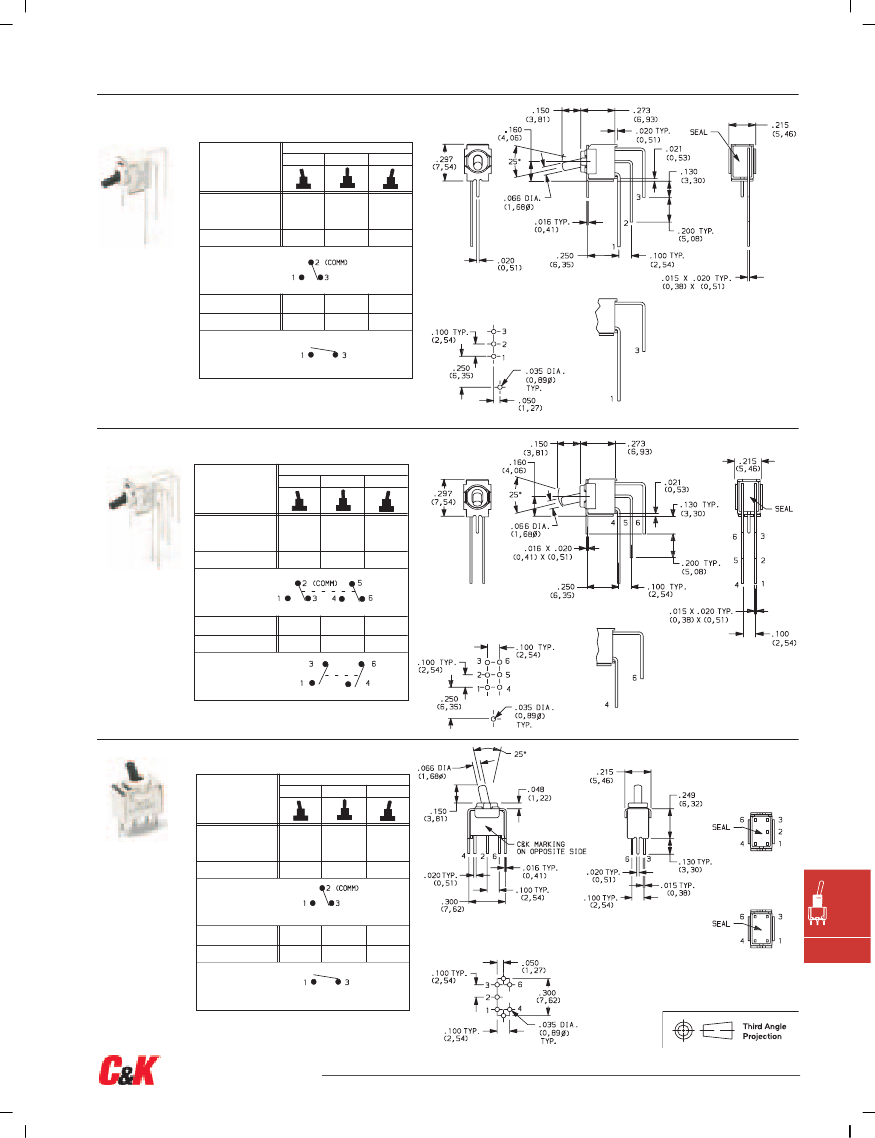

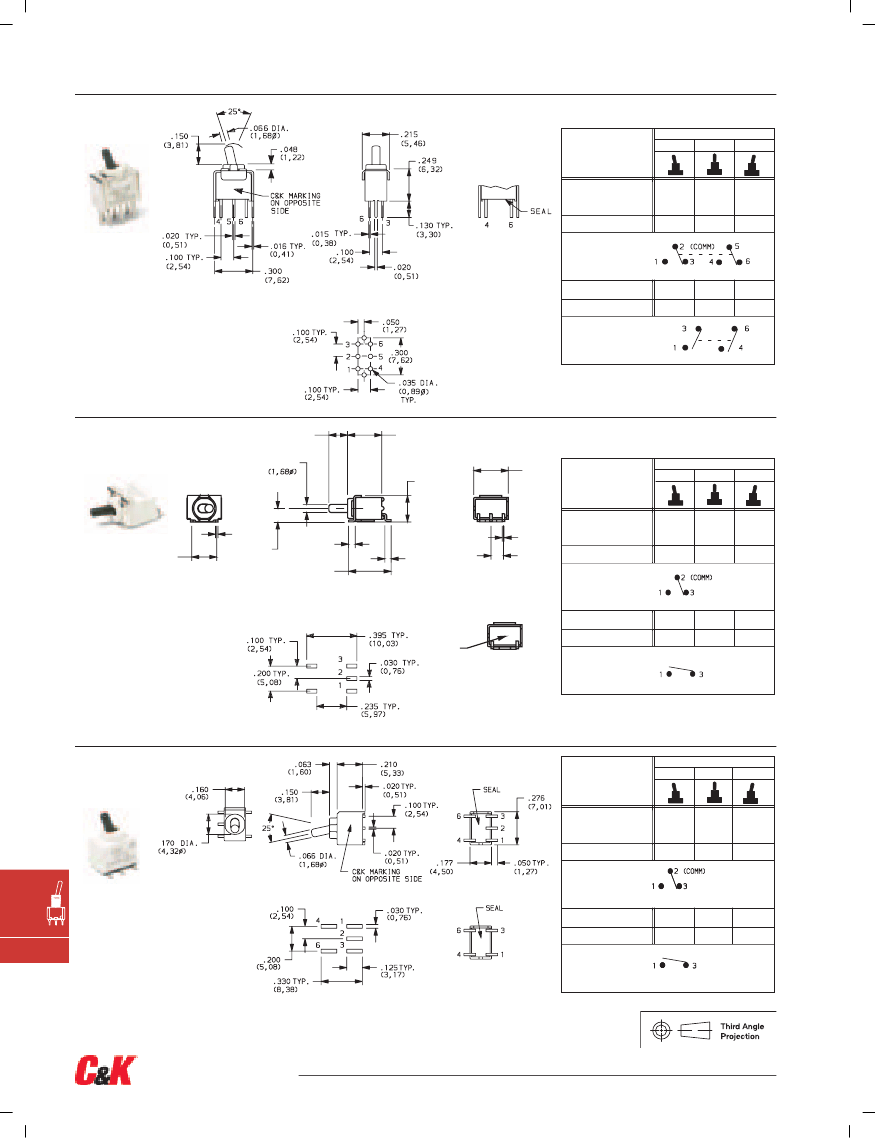

Complete part numbers for GT Series Sealed Ultraminiature Toggle Switches are shown on pages F–43 thru F–47.

SWITCH FUNCTION

POS.1

POS. 2

POS. 3

PART NUMBER

.160

(4,06)

.150

(3,81)

.100

(2,54)

C&K MARKING ON

.015 TYP.

(0,38)

OPPOSITE SIDE

.100

(2,54)

.170 DIA.

.066 DIA.

.063

(1,60)

.020 TYP.

(0,51)

.177

(4,50)

EPOXY

SEAL

GT11MCXE

SPDT

GT11MCXE

GT13MCXE

Conn. Terms.

Schematic

2-3

NONE

OFF

OPEN

2-1

.276

(7,01)

SPDT

Note: Pins 4 and 6 not connected

OFF

OPEN

NONE

N/A

3-1

GT12MCXE

Conn. Terms.

Schematic

.228

(5,79)

.130 TYP.

(3,30)

ACTUATOR SHOWN IN POS. 1

TERMINAL NOS. FOR

PC MOUNTING

REFERENCE ONLY

SPST

Note: Pins 4 and 6 not connected

GT12-omit hole 2.

NOTE: X= Plating Option; K (tin lead) or B (gold)

GT12 MODEL

TERMINALS 1,3,4 & 6 ONLY

Toggle

Dimensions are shown: Inches (mm)

Specifications and dimensions subject to change

F–43

www.ck-components.com
